Description
1. Overview

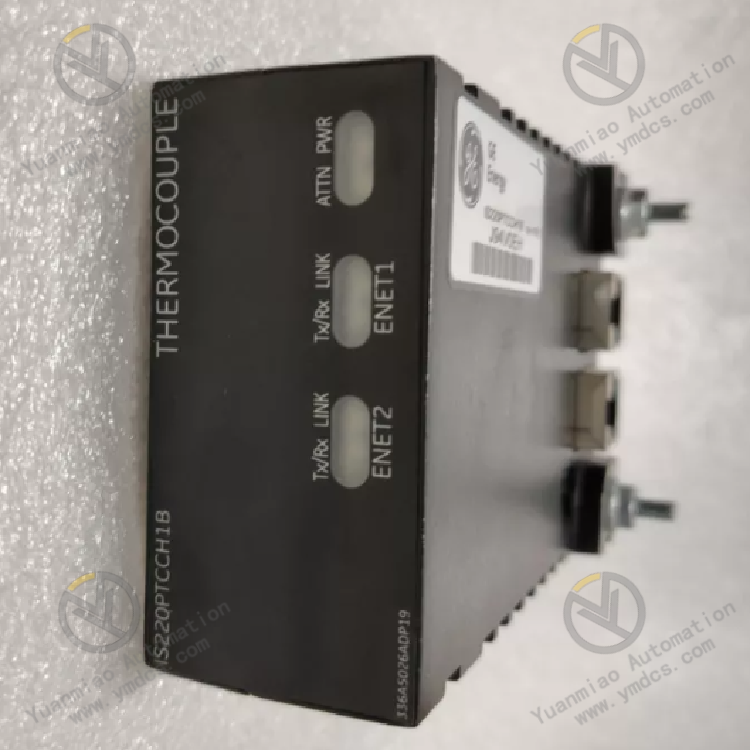

The IS220PTCCH1B is a high-precision multi-channel thermocouple input module developed by General Electric (GE) exclusively for Speedtronic Mark VIe gas turbine, steam turbine and power plant process control systems. Serving as the core temperature acquisition I/O hardware of the system, it is an upgraded successor model of the IS220PTCCH1A. Fully compatible with the complete GE Mark VIe industrial control platform, this module undertakes core tasks including multi-point field temperature signal acquisition, thermocouple signal conversion, cold-junction temperature compensation, temperature data calculation and calibration, fault signal screening, and real-time data uploading. It delivers accurate and reliable temperature data support for temperature monitoring, overtemperature protection, operating condition regulation and equipment fault diagnosis of generator sets, thermal equipment, process pipelines and power devices.
Different from general-purpose universal temperature acquisition boards, the IS220PTCCH1B is specially optimized for high-reliability, high-precision and non-stop operation scenarios including power plants, petrochemical & chemical industries and high-end industrial automation. Adopting dedicated high-precision temperature acquisition chips and optimized signal processing circuits, it features prominent strengths such as high temperature measurement accuracy, low temperature drift coefficient, fast response speed, strong anti-interference capacity and excellent channel consistency. The complete module has passed rigorous reliability tests required by the power industry, covering high & low temperature cycling, damp-heat durability, mechanical vibration shock, Electromagnetic Compatibility (EMC) and long-term energized aging. It can stably operate under harsh cabinet conditions in power plants, including enclosed high temperature, high humidity with condensation, dust accumulation, intensive electromagnetic radiation, disturbance caused by frequent equipment startup/shutdown, and 24-hour nonstop continuous operation. Identical mechanical structure, installation dimensions, interface definitions and communication logic to legacy modules of the same model enable non-destructive in-situ upgrade replacement. It is widely adopted for maintenance of power plant control systems, replacement and upgrade of aging temperature measurement modules, precision optimization of temperature acquisition, troubleshooting of temperature measurement loops, and stability improvement renovation of unit industrial control systems.
2. Technical Features
2.1 Multi-Channel High-Precision Temperature Measurement Ensures Stable and Reliable Acquisition
The module integrates 12 independent thermocouple acquisition channels supporting synchronous parallel collection of multiple temperature signals. Each channel boasts high measurement precision, favorable repeatability and ultra-low temperature drift, enabling precise capture of subtle temperature variations of equipment. Equipped with dedicated high-precision signal operation circuits, it effectively eliminates common drawbacks of conventional temperature measurement boards such as large acquisition deviation, data jitter, accumulated temperature drift and poor channel consistency. All channels feature excellent linearity of temperature measurement data, meeting strict high-precision temperature monitoring and refined condition regulation requirements of generator sets and thermal equipment, and providing accurate data for unit fault prediction, temperature rise tracing and steady-state operation management.
2.2 Compatibility with Full Range of Thermocouples Ensures Broad Versatility
Natively compatible with mainstream industrial thermocouple types including J, K, T, E, S, N and R, it requires no additional conversion accessories and can adaptively match field thermocouple sensors of different materials and measuring ranges for full high-low temperature operating conditions. Supporting single-point and multi-point distributed temperature measurement networking, the module seamlessly interconnects Mark VIe main control units, upper monitoring platforms and industrial control configuration systems to realize real-time field temperature collection, calculation & conversion, remote uploading and centralized management. It accommodates temperature measurement demands across multiple industries including thermal power, cogeneration, petrochemical and energy & power sectors.
2.3 Built-in Intelligent Cold-Junction Compensation Eliminates Systematic Temperature Measurement Deviation
The module integrates on-board high-precision cold-junction temperature detection and automatic compensation functions, requiring no external cold-junction compensation devices or auxiliary circuits. It corrects temperature measurement errors induced by ambient temperature fluctuation in real time, thoroughly resolving systematic inaccuracies of traditional thermocouple measurement caused by cabinet temperature variation and temperature differences at wiring terminals. Stable, drift-free precise temperature readings are guaranteed throughout all seasons despite cabinet temperature swings, greatly boosting accuracy and reliability of overall system temperature monitoring.
2.4 Full-Loop Electrical Isolation Delivers Strong Anti-Interference Performance for Complex Conditions
Independent electrical isolation is implemented for all temperature measurement channels, signal loops and power supply loops. The PCB incorporates multi-stage circuits for surge suppression, electrostatic protection, high-frequency harmonic filtering, power-frequency noise shielding and EMC protection. It effectively counteracts complex field interference including intensive electromagnetic radiation in power plants, pulse disturbance from switching operations, grid harmonic disturbance, line induced voltage and ground circulating current. Hardware-level prevention is achieved against temperature data jitter, signal distortion, value drift and abnormal channel alarms, sustaining stable operation of temperature acquisition systems under heavy interference and drastic temperature fluctuation.
2.5 Intelligent Self-Diagnosis and Fault Tolerance Enhance Operational Safety
Comprehensive functions are integrated: full hardware self-test upon power-up, real-time channel status monitoring, thermocouple open-circuit detection, signal anomaly identification, over-range alarming, hardware fault tracing and data verification & error correction. Hazards such as thermocouple open circuit, line short circuit, signal attenuation, overtemperature/out-of-range readings, channel faults and module hardware abnormalities can be automatically and accurately identified. Fault locations are pinpointed with operation logs retained and alarm information uploaded in real time. Meanwhile, a data fault tolerance mechanism is activated to block erroneous data from abnormal channels and guarantee continuous collection and uploading of valid data on healthy channels. Risks including full-board temperature measurement failure and blind monitoring zones of units resulting from single-channel faults are avoided, satisfying unattended and long-cycle nonstop operation requirements of power plants.
2.6 Non-Destructive In-Situ Replacement Supports Efficient and Low-Cost O&M Upgrades
Physical dimensions, installation specifications, slot alignment, interface pin definitions, electrical parameters, acquisition logic and system communication protocols are fully consistent with legacy modules such as IS220PTCCH1A, enabling direct plug-and-play non-destructive in-situ upgrade replacement. No revision of system control programs, reconfiguration of temperature measurement parameters, renovation of field thermocouple wiring or channel-by-channel calibration commissioning is needed. The module can resume service after passing power-on self-test and normal link synchronization, drastically cutting unit maintenance downtime, commissioning costs and technical renovation risks, and accommodating hardware upgrade demands of aging temperature measurement industrial control systems in power plants.
2.7 Industrial Military-Grade Construction Enables Long-Term Maintenance-Free Operation
Fabricated with original industrial high-precision components, thickened flame-retardant PCBs and full-area triple-proof special coatings (moisture-proof, dust-proof, anti-corrosion), the module contains no mechanical moving parts, featuring low power consumption, low heat generation and outstanding resistance to aging, temperature drift, vibration and electromagnetic interference. It withstands long-term cabinet operation under enclosed high temperature, humid condensation, accumulated dust & oil contamination, high-frequency vibration and 24-hour energized continuous operation. No temperature measurement drift, channel failure, performance degradation or data abnormality occurs during long-term service. Regular channel calibration and parameter commissioning are unnecessary, meeting years of uninterrupted stable operation needs of power generating units.
3. Specification Parameters
3.1 Basic Parameters
- Model: IS220PTCCH1B
- Manufacturer: GE General Electric
- Device Type: Multi-Channel High-Precision Thermocouple Temperature Input Module
- Compatible Systems: GE Speedtronic Mark VIe gas/steam turbine control systems, power plant process DCS industrial control systems
- Core Functions: Multi-channel thermocouple temperature signal acquisition, signal conversion & amplification, intelligent cold-junction compensation, temperature data calibration & calculation, channel fault self-diagnosis, open-circuit detection, over-range alarming, real-time data uploading, temperature measurement fault tolerance & error correction
- Application Scenarios: Maintenance of power plant industrial control systems, replacement & upgrade of legacy temperature measurement modules, precision optimization of unit temperature acquisition, troubleshooting of temperature measurement loops, renovation of gas/steam turbine control systems, iterative projects of industrial high-precision temperature measurement systems
3.2 Electrical and Acquisition Performance Parameters
- Operating Power Supply: Standard industrial wide-range power supply compliant with regular power specifications of power plant cabinets, featuring wide voltage adaptability, low power consumption, anti-fluctuation and stable operation
- Acquisition Channels: 12 independent isolated thermocouple input channels supporting synchronous parallel collection with mutual channel isolation
- Supported Thermocouple Types: Full lineup of standard industrial thermocouples including J, K, T, E, S, N and R
- Core Function: On-board automatic cold-junction temperature compensation with no external compensation devices required to accurately correct ambient temperature errors round the clock
- Acquisition Precision: Industrial high-precision temperature measurement grade with minimal temperature drift coefficient, excellent data repeatability and linearity to meet precision temperature measurement requirements of power plants
- Response Performance: High-speed signal acquisition and calculation with low response latency for real-time tracking of dynamic temperature rise and fall of equipment
- Fault Detection: Automatic identification and alarming of thermocouple open circuit, short circuit, over-range readings and signal anomalies
- Isolation Protection: Independent electrical isolation per channel plus multi-level full-board protection against overvoltage, overcurrent, surge, electrostatic discharge and harmonic disturbance with qualified insulation performance
- Operation Mode: Supports 24-hour uninterrupted continuous acquisition, applicable to all working conditions including steady-state unit operation, load fluctuation, startup/shutdown switching and fault transients
3.3 Environmental Operating Parameters
- Operating Temperature: -30℃ ~ +70℃, adaptable to extreme cabinet temperature fluctuation and long-term enclosed high-temperature continuous operation
- Storage Temperature: -40℃ ~ +85℃, meeting environmental requirements for long-distance equipment transportation and long-term equipment shutdown storage
- Operating Humidity: 5% ~ 95%RH (non-condensing); moisture resistant to prevent short-circuit damage and performance degradation caused by dew formation
- Ingress Protection Rating: High-grade industrial protection with dust-proof, moisture-proof, anti-corrosion, mechanical vibration resistance and anti-aging performance
- EMC Compliance: Complies with high-end anti-interference EMC standards for power industries, adapted to complex substation conditions featuring intensive electromagnetic fields and dense harmonics
3.4 Structural and Maintenance Parameters
- Structure Form: Compact plug-in modular design adopting precision multi-layer SMT PCB technology with neat layout, uniform heat dissipation and vibration resistance
- Mounting Method: Slot plug-in installation for standard Mark VIe system cabinets with precise alignment, stable gold finger contact and strong seismic resistance
- Version Compatibility: Fully compatible with legacy same-model modules such as IS220PTCCH1A, supporting non-destructive in-situ replacement and upgrade iteration
- Maintenance Features: Automatic full-link power-on self-test, automatic channel calibration, automatic fault log archiving, adaptive matching of temperature measurement parameters, no routine precision calibration required
- Operational Advantages: Accurate drift-free temperature measurement, stable fault-free channels, jitter-free data, ultra-low failure rate, long-cycle maintenance-free service
4. Working Principle
After power-on, the IS220PTCCH1B thermocouple input module automatically completes hardware initialization, acquisition chip self-test, power supply loop verification, inspection of all channel circuits, system communication handshake and reference calibration of temperature measurement parameters. Upon successful full-dimensional self-inspection and normal link synchronization, the module connects formally to the GE Mark VIe industrial control system and enters steady multi-channel temperature collection and data calculation operation.
During runtime, 12 independent channels synchronously collect faint thermoelectric potential analog signals generated by field thermocouple sensors. All raw signals undergo front-end electrical isolation, surge suppression, multi-stage electromagnetic filtering and signal shaping noise reduction to eliminate invalid interference such as grid harmonics, power-frequency clutter, electromagnetic crosstalk and line induced disturbance, filtering signal jitter and abnormal noise to obtain pure and stable original temperature measurement signals. Meanwhile, an on-board high-precision temperature measuring unit collects real-time cold-junction ambient cabinet temperature. An embedded intelligent compensation algorithm automatically corrects cold-junction temperature differences to thoroughly eliminate systematic temperature measurement errors triggered by ambient temperature variation.
Compensated and shaped standard signals are sent to the core arithmetic unit for high-precision analog-to-digital conversion, temperature value calculation, linear calibration and data encapsulation, accurately converting analog thermoelectric potential signals into standard temperature values. Via the system bus communication mechanism, the module uploads real-time channel temperature data, equipment temperature rise conditions, channel operating status and fault alarm information to upper main control systems, monitoring platforms and DCS configuration systems in real time. In addition, channel parameter configuration, range calibration and alarm threshold setting commands issued by the host system are received synchronously for parameter update and logic adaptation, realizing fully automatic closed-loop operation of field temperature collection, data calculation and remote management.
Hardware, channels, communication and data transmission are monitored in real time throughout operation with comprehensive self-diagnosis and fault-tolerant protection capabilities. Once hidden hazards such as thermocouple open circuit, line short circuit, over-range signals, abnormal data, hardware faults and communication link failure are detected, the faulty channel is pinpointed immediately with fault logs retained and alarm information uploaded. A fault-tolerant isolation mechanism is triggered synchronously to block erroneous data from abnormal channels and sustain normal collection of remaining channels. Blind temperature monitoring zones and system risks caused by single-point faults are prevented, comprehensively ensuring safe, stable, precise and reliable operation of temperature monitoring systems for power plant units.
5. Application Scenarios
5.1 Core Temperature Monitoring of Power Plant Units
As the core temperature measurement hardware of GE Mark VIe turbine control systems, it undertakes full tasks of multi-point temperature collection, calculation, monitoring and alarming for critical positions including the main body, bearings, pipelines and cavities of gas turbines, steam turbines and generator sets. Real-time temperature rise and fluctuation of units are accurately reflected, providing core data support for steady-state unit operation, load regulation, overtemperature protection, emergency shutdown and condition diagnosis. It serves as vital hardware for safe operation monitoring of power plant power equipment.
5.2 Precision Optimization and Upgrade of Legacy Temperature Measurement Systems
Widely deployed for renovation of aging temperature measurement industrial control systems in power plants, it addresses common drawbacks of outdated temperature measurement modules: severe temperature drift, low acquisition precision, frequent data jitter, absence of cold-junction compensation, high channel failure rate and weak anti-interference capacity. Hardware replacement comprehensively improves unit temperature acquisition precision, data stability and system reliability, enhancing refined temperature control and fault early warning performance of units. Latent risks including inaccurate temperature readings, false alarms and missing monitoring are eliminated, elevating overall operational stability of turbine control systems.
5.3 Accurate Temperature Measurement Adaptation for Complex Industrial Conditions
Benefiting from full-channel electrical isolation, multi-stage electromagnetic protection, intelligent cold-junction compensation and anti-temperature-drift architecture, the module is highly adapted to harsh operating conditions in power plants and petrochemical sites: intensive electromagnetic radiation, frequent switching operations, dense grid harmonics, drastic ambient temperature fluctuation and recurring equipment vibration. Various external interference is effectively resisted to guarantee round-the-clock accurate and stable temperature readings across all channels. Temperature measurement distortion, data drift and false alarms induced by interference are avoided, meeting high-precision and high-reliability temperature measurement demands of complex industrial scenarios.
