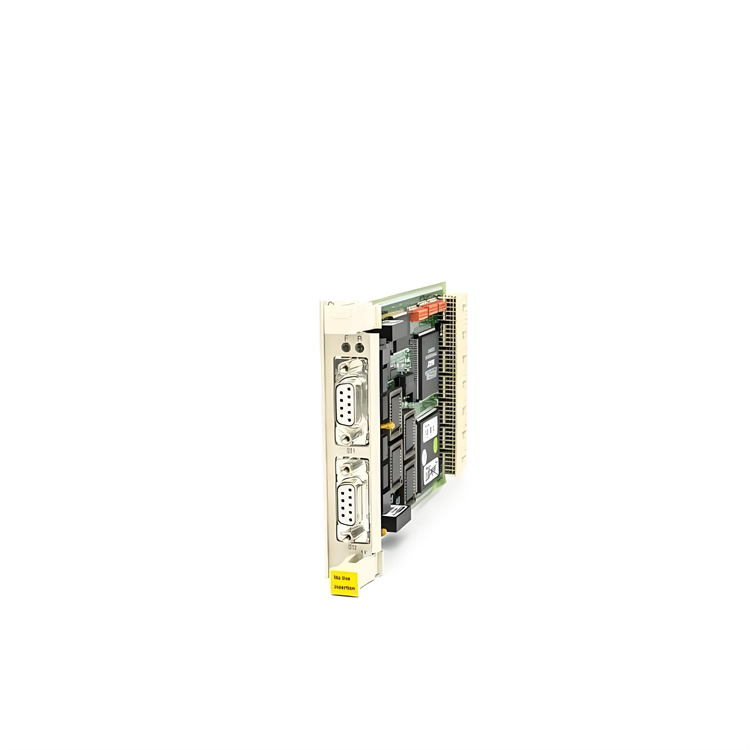

ABB UNS4684a-P,V1 HIEE305114R0001

1. Product Description

ABB UNS4684a-P, V1 (Order No. HIEE305114R0001) is a safety analog input/output (I/O) module and the core signal processing unit of Safety Instrumented Systems (SIS).

The module is specially designed for high-risk industrial scenarios such as petrochemical, natural gas, nuclear power auxiliary systems, and large metallurgical units. It is mainly used for safe acquisition of key process parameters (pressure, temperature, level, etc.), closed-loop control output, and emergency interlock triggering.

It has obtained IEC 61508 SIL 3 safety certification and adopts a 1oo2D diagnostic redundant architecture with dual-channel parallel operation and real-time cross-checking. It switches to a safe state within 10 ms in case of failure. It is seamlessly compatible with ABB AC 800M F controllers, Freelance 800F DCS, and third-party safety instruments, forming a sensing-calculation-actuation safety closed-loop system compliant with IEC 61508, providing a reliable safety barrier for high-risk production processes.

2. Technical Specifications

Parameter Category	Details
Model / Order No.	Model: UNS4684a-P, V1; Order No.: HIEE305114R0001; Type: Safety Analog I/O Module
Manufacturer	ABB (compliant with IEC 61508 SIL 3, IEC 6000 series standards; RoHS/REACH compliant)
Core Functions	1) Safe acquisition: 16 AI channels, compatible with 4~20 mA, 0~10 V, Pt100 signals, 16-bit A/D conversion; 2) Precision output: 8 AO channels, 4~20 mA (load ≤ 600 Ω), response ≤ 5 ms; 3) Redundant safety: 1oo2D dual-channel redundancy, real-time cross-check, fail-safe; 4) Diagnostic monitoring: 20+ status items, 5 ms self-test cycle, ≥ 500 event logs; 5) Communication: PROFIBUS-PA/DP, supports Symphony Plus/DCS systems.
Electrical Parameters	Supply voltage: DC 24 V ±15%, full load current ≤ 300 mA; Channel isolation: ≥ 2500 V AC/1 min between AI/AO, power and channels; Input accuracy: ±0.05% FS (Pt100: ±0.1 ℃ @ 0~200 ℃); Output accuracy: ±0.05% FS.
Communication / Interface	Main communication: PROFIBUS-PA/DP; Local interface: front pluggable spring terminals (AWG 22~14); Termination: 120 Ω bus terminator supported.
Physical Characteristics	Mounting: standard 3U rack (DIN 41494); Dimensions: 100 mm × 130 mm × 280 mm; Ingress protection: IP20 (module), IP40 (terminals); Housing: galvanized steel + flame-retardant ABS composite.
Environmental Adaptability	Operating temperature: -10 ℃ ~ +70 ℃; Storage temperature: -40 ℃ ~ +85 ℃; Relative humidity: 5%~95% (non-condensing); Vibration: 10~500 Hz, 5 g (IEC 60068-2-6); Shock: 15 g, 11 ms half-sine (IEC 60068-2-27).
Reliability	MTBF ≥ 800,000 hours; MTTR ≤ 0.3 hours; PFD ≤ 5×10⁻⁸/h (redundant configuration); Fail-safe output: switches to preset safe values (e.g. 4 mA / 20 mA) on power loss or communication break.

3. Functions & Features

(1) SIL 3 Redundant Safety

1oo2D diagnostic redundancy: Dual-channel parallel acquisition and real-time cross-check every 5 ms. Single-channel faults are accurately isolated and seamlessly taken over to ensure uninterrupted safety functions.
Fail-safe: Output automatically switches to preset safe values during power loss, communication break or hardware failure to prevent accidents caused by misoperation.
High isolation & anti-interference: ≥ 2500 V AC/1 min isolation between channels and power supply, with EMC Level 4 design, resistant to ±4 kV surge and 200 V/m radiation interference, suitable for strong interference environments such as inverters and high-power motors.

(2) Multi-Signal Precision Processing

Full signal compatibility: 16 AI channels configurable for current, voltage, RTD signals, directly connected to pressure transmitters, temperature sensors, etc. without additional conversion modules.
High-precision measurement: 16-bit A/D conversion, input/output accuracy ±0.05% FS, Pt100 accuracy ±0.1 ℃, meeting precise control and safety interlock requirements.
Fast response: Input processing delay ≤ 3 ms, output response ≤ 5 ms, total response from detection to actuation ≤ 20 ms, effectively limiting accident escalation.

(3) Intelligent Diagnosis & Easy Maintenance

Comprehensive monitoring: Real-time monitoring of 20+ items including power, channels, CPU, communication. Alternating red/yellow alarm and fault code upload for accurate location.
Online maintenance: Supports online calibration and redundant switch test. Front pluggable terminals allow module replacement within 5 minutes without shutdown.
Data traceability: Stores ≥ 500 time-stamped fault/operation logs, supports remote export for root cause analysis.

(4) Flexible Integration

Multi-protocol communication: Native PROFIBUS-PA/DP for fast integration into ABB Symphony Plus, AC 800M and other control systems for data sharing and remote monitoring.
Physical isolation: Physically isolated from non-safety loops to avoid common cause failures, meeting SIL 3 system independence requirements.

4. Applications

Petrochemical: Safety monitoring and interlock for pressure, temperature and level in reactors and distillation columns to prevent leakage, explosion and other accidents.
Natural gas processing: Safety control of pressure and flow in gas pipelines and storage facilities to ensure delivery safety.
Nuclear power auxiliary systems: Parameter monitoring and safety protection for nuclear island and conventional island auxiliary equipment, complying with nuclear safety standards.
Large metallurgy: Control and interlock of key parameters in blast furnaces and converters to avoid equipment damage and production interruption.
Other high-risk applications: Chemical storage tanks, pharmaceuticals, thermal power auxiliary machines and other processes requiring high safety levels.

5. FAQs & Troubleshooting

1. Module communication lost, cannot interact with controller

Possible causes: Reverse A/B lines, mismatched communication parameters, missing terminator, damaged interface.

Solutions: ① Check wiring diagram to ensure correct A/B connection; ② Verify address (1~127) and baud rate in configuration software match the controller; ③ Install 120 Ω terminator at the bus end; ④ Replace cable; if still faulty, replace communication interface module.

2. Input signal out of tolerance (＞±0.05% FS)

Possible causes: Uncalibrated, faulty sensor, loose wiring, signal interference.

Solutions: ① Calibrate channel with standard signal source and save parameters; ② Check sensor output and replace if faulty; ③ Tighten terminals and clean oxidized contacts; ④ Use twisted shielded cable with single-end grounding, away from power cables.

3. Redundant switch failure, system shutdown after single-channel fault

Possible causes: Wrong redundancy parameters, faulty communication link, diagnostics disabled.

Solutions: ① Set redundancy mode to 1oo2D and threshold to 0.1% FS; ② Check redundant bus indicators; repair if abnormal; ③ Enable channel self-test and cross-check; ④ Upgrade firmware to latest version.

4. No output signal or abnormal value

Possible causes: Overload, wrong configuration, short/open circuit, damaged driver.

Solutions: ① Check load ≤ 600 Ω; add isolator if overloaded; ② Confirm output mode matches load type; ③ Check continuity with multimeter; ④ Perform manual forced output; replace module if no output.

5. Unstable operation, frequent alarms

Possible causes: Out-of-range temperature/humidity, poor grounding, unstable power supply.

Solutions: ① Improve cabinet ventilation to keep within rated environment; ② Strengthen grounding (resistance ≤ 4 Ω) for better anti-interference; ③ Stabilize power supply; install voltage regulator if needed.
