Description

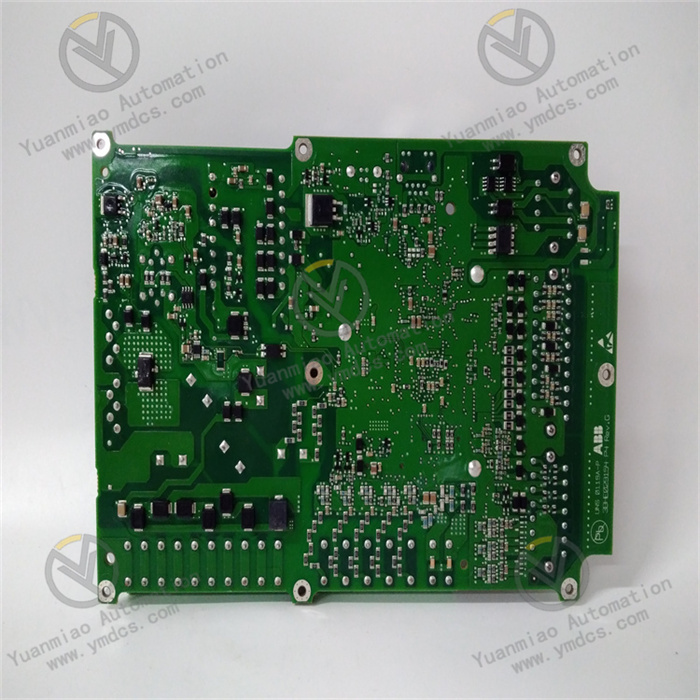

ABB UNS0119A-P
1. Product Description
ABB UNS0119A-P is an industrial-grade high-performance control and communication module, belonging to ABB’s automation control system product line. It is often used in industrial DCS/PLC and excitation systems to perform core control calculation, data acquisition, multi-protocol communication and system coordination tasks.Adopting an advanced microprocessor architecture with a separated design for communication and control processors, it features high computing speed and strong electromagnetic compatibility (EMC) performance. With a compact structure and modular packaging, it is suitable for cabinet-mounted installation and harsh industrial environments.
The module integrates rich I/O and communication interfaces, supporting mainstream industrial protocols such as Modbus RTU, Profinet and CANopen. It can seamlessly connect to upper-level DCS, PLC and field devices to realize remote monitoring, parameter configuration and fault diagnosis.The separated layout of power terminals and signal connectors meets international standards including IEC, UL and CE.It is widely used in industrial scenarios such as power generation, metallurgy, chemical engineering, rail transit and marine applications. It is especially suitable for upgrading legacy control systems and deploying core control nodes in new automation projects, serving as a high-end industrial control module solution that balances reliability, compatibility and flexibility.
2. Technical Specifications
| Parameter Category | Details |
|---|---|
| Model / Order No. | Model: UNS0119A-P |
| Manufacturer | ABB (Country of origin: Switzerland / Europe) |
| Product Type | Industrial-grade control and communication module, applicable to DCS/PLC systems and industrial excitation control, serving as a core automation control unit |
| Core Functions | 1) Control calculation: accurately execute control algorithms to realize closed-loop regulation;2) Data acquisition: high-speed collection of analog/digital signals;3) Multi-protocol communication: support Modbus RTU, Profinet, CANopen;4) Redundancy support: adapt to dual redundancy architecture with bumpless switching upon failure;5) Fault diagnosis: built-in self-diagnosis and event logging with timestamps |
| Electrical Parameters | Operating voltage: 24 VDC / 220 VAC optional;Low power consumption under rated working conditions;Overcurrent, overvoltage and reverse polarity protection;Multi-channel digital/analog outputs for field actuators;High-frequency control for current loop / position loop with fast response |
| Communication & Interface | 1× Ethernet (RJ45), 1× RS-485, 1× USB (commissioning / firmware upgrade); support RS232 and CAN bus extension;Support Modbus TCP, Profinet IO, CANopen;Ethernet time synchronization, precise timestamp for event logs |
| Physical Characteristics | Compact panel / DIN-rail mounting;Dimensions: approx. 140×100×25 mm; Weight: approx. 0.45 kg;Screw-fixed, no special tools required, easy for quick plug-in and replacement |
| Environmental Rating | Operating temperature: -20℃ ~ +55℃ (standard), extended range optional;Storage temperature: -40℃ ~ +85℃;Relative humidity: 5% ~ 95% (non-condensing);Vibration / shock: compliant with IEC 60068;High EMC level, suitable for strong electromagnetic interference industrial sites |
| Reliability | MTBF > 200,000 hours;Industrial-grade components, full conformal coating;Modular design for easy maintenance;Compliant with CE, UL, IEC 61010 electrical safety standards;1-year warranty |
3. Functions & Features
(1) Precise Control & Efficient Data Processing
- High-speed computing: Built-in high-performance microprocessor (Intel Celeron M 1.6 GHz) with 256 MB SDRAM, enabling fast execution of complex control algorithms and massive parallel data processing to meet industrial real-time control requirements.
- Accurate closed-loop regulation: Supports three closed-loop controls for position, speed and current with optimized control frequencies, suitable for excitation current, motor speed, valve opening and other applications with high precision and fast dynamic response.
- Flexible I/O configuration: Multi-channel configurable analog inputs (±10 VDC) and digital I/O channels, customizable according to on-site requirements, adapting to most small and medium-sized control projects without additional extension modules.
(2) Complete Redundancy & High Reliability
- Dual redundancy with bumpless switching: Supports active-standby redundant deployment, status synchronization via CAN/Ethernet, millisecond-level bumpless switching during faults to avoid system shutdown caused by single-point failure.
- Multi-level electrical protection: Integrates overcurrent, overvoltage, reverse polarity and surge protection; power circuit isolated from signal circuit, strong EMC immunity for stable operation in high-interference environments (e.g., near inverters, high-voltage equipment).
- Long-term stable operation: MTBF over 200,000 hours, PCB conformal coating for humid and salt-spray environments; non-volatile flash memory permanently stores event logs and parameters after power failure for fault traceability.
(3) Multi-protocol Communication & Easy Integration
- Rich communication interfaces: Ethernet + RS-485 + USB + CAN covering local commissioning to remote monitoring; supports Modbus RTU/TCP, Profinet IO, CANopen for seamless connection with PLC/DCS from Siemens, Rockwell and other brands.
- Online firmware upgrade: Remote firmware upgrade via USB or Ethernet without shutdown, ensuring uninterrupted production, convenient for bug fixing and function expansion.
- Easy commissioning and maintenance: Compatible with ABB CMT series software for visual parameter configuration, status monitoring and fault code reading; LED indicators clearly show power, communication, running/alert status.
4. Applications
- Power plants: Core control module in excitation systems for thermal, hydro and gas-fired power plants, stabilizing generator terminal voltage, realizing reactive power regulation and grid synchronization.
- Industrial automation: DCS/PLC systems in metallurgy, chemical, mining and other process industries for closed-loop control of large fans, pumps and compressors to improve productivity and system stability.
- Rail transit: Auxiliary power supply systems for diesel locomotives and EMUs, adapting to high vibration, wide temperature range and strong electromagnetic interference to ensure stable power supply.
- Marine applications: Marine propulsion and auxiliary systems, suitable for salt-spray and high-humidity environments to realize multi-equipment coordinated control.
- Legacy system upgrade: Replace traditional analog control boards or old digital modules to improve control accuracy, communication capability and reliability, and reduce maintenance costs.
5. FAQs & Troubleshooting
1. Communication lost, unable to monitor remotely
- Check whether Ethernet / RS-485 cables are securely connected, no open or short circuit.
- Verify that IP address, subnet mask, communication parameters (e.g. Modbus slave address, baud rate) match the upper system.
- Test port communication with commissioning software to check for damaged hardware interfaces.
- Check if firewall / switch blocks ports; open required ports if necessary.
2. Reduced control accuracy, large parameter fluctuation
- Ensure stable 24 VDC power supply (fluctuation < ±5%), install voltage stabilizer if needed.
- Check sensor wiring for looseness, calibrate sensor zero and range.
- Re-optimize control algorithm parameters (PID), perform closed-loop tuning via CMT software if necessary.
- Check module heat dissipation to avoid performance degradation due to high temperature.
3. Module alarm, abnormal redundancy switching
- Check LED indicators and software fault codes to identify fault type (power fault, communication fault, hardware abnormality).
- Inspect synchronization cables between redundant modules, verify correct redundancy logic configuration.
- Upgrade firmware to the latest version to fix known bugs.
- For hardware damage (e.g. processor / communication chip failure), contact ABB authorized service for replacement.
4. No response or abnormal I/O output
- Check I/O channel configuration, ensure channels are enabled and correctly defined.
- Measure voltage/current of output channels to check for faulty actuators.
- Verify reliable module grounding to reduce electromagnetic interference on outputs.
- Restore factory settings and reconfigure to eliminate parameter errors.
