Description

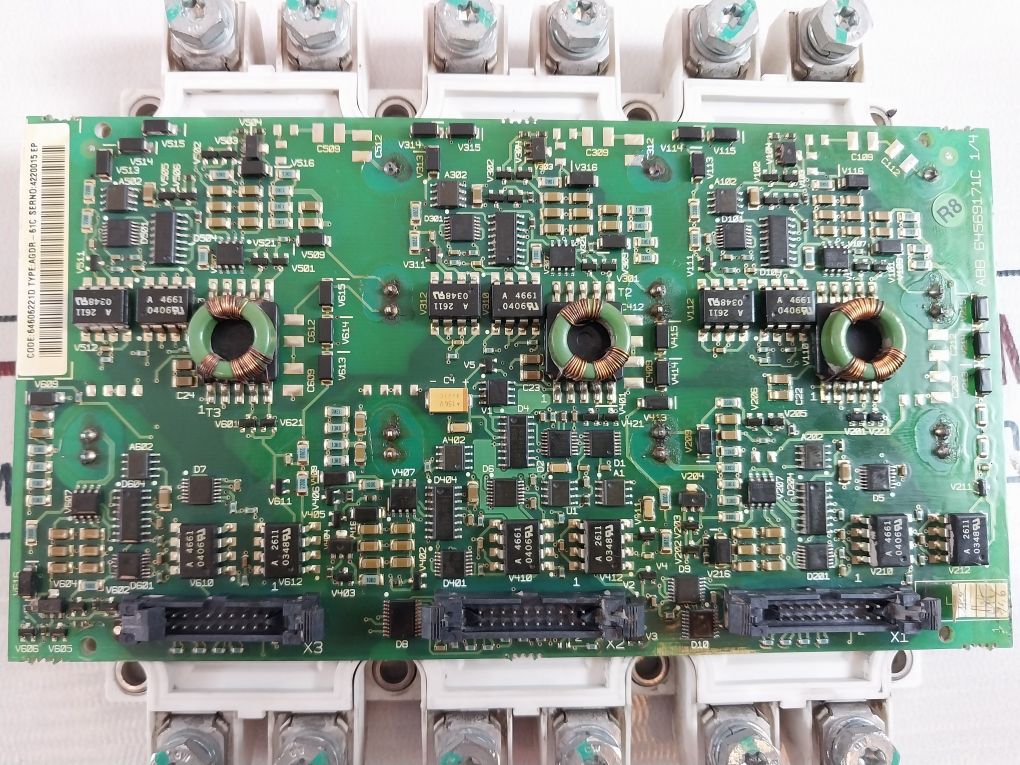

ABB AGDR-61C 64606221D
ABB AGDR-61C 64606221D is a dedicated gate drive board kit for IGBTs (AGDR is the code name of the ABB drive board series, 61C is the version/configuration code, and 64606221D is the complete material number). It is manufactured by ABB (origin USA, original imported product). It is usually matched with designated IGBT power modules (such as FS450R17KE3) to form an integrated drive‑and‑power kit. As the core control execution unit for medium‑high power inverters, it is especially compatible with mainstream industrial drive series such as ABB ACS800, enabling seamless connection without complicated debugging. It features high integration, strong anti‑interference capability, comprehensive protection, and plug‑and‑play functionality.
I. Basic Information
Product Type: IGBT gate drive board (drive kit for matching IGBT modules), not a power chip. It is the key interface unit connecting the controller and the IGBT power bridge, responsible for converting optical/electrical control signals into precise gate drive pulses, while realizing real‑time status monitoring and fast fault protection.
Core Functions: Provides positive and negative gate voltages and peak currents required for IGBT turn‑on and turn‑off; adopts optical isolation for control signal transmission (strong anti‑electromagnetic interference); built‑in overcurrent, short‑circuit, overtemperature, undervoltage, and desaturation protection; blocks the drive and feeds back alarms at microsecond level in case of faults; supports drive status diagnosis and upload of temperature/current monitoring data; adapts to high‑frequency PWM control and works stably with corresponding IGBTs without additional snubber circuits.
Application Positioning: Suitable for medium‑voltage/low‑voltage high‑power drive systems, mainly used in industrial inverters (such as ACS800 series), wind power converters, photovoltaic inverters, UPS, SVG/STATCOM, and induction heating power supplies. Typical industries include metallurgy, electric power, rail transit, papermaking, cement, and petrochemical. It is suitable for variable frequency speed regulation and power conversion scenarios of heavy‑duty equipment such as fans, water pumps, compressors, and rolling mills.
Product Features: Modular design with standard installation dimensions for easy and quick replacement; dual anti‑interference of optical isolation and electrical isolation with excellent EMC performance; drive parameters factory‑matched with corresponding IGBTs without manual tuning; industrial‑grade components, wide‑temperature operation, and hot‑swap support (some configurations); one‑year warranty for original kits, with in‑stock supply in some channels.
II. Electrical Parameters
Drive Voltage: Standard drive uses dual power supplies of +15 V/‑10 V. The peak gate drive current matches 1700 V/450 A class IGBTs such as FS450R17KE3; low drive power consumption for long‑time continuous operation; with power supply undervoltage/overvoltage detection and protection.
Compatible IGBTs: Recommended matching with FS450R17KE3 (1700 V, 450 A); compatible with IGBT modules of the same series and voltage level; gate resistance parameters factory‑fixed to avoid IGBT damage caused by over‑drive or insufficient turn‑off.
Switching Frequency: Rated for PWM switching frequency 0–16 kHz, typical working condition 2–8 kHz; supports high‑frequency short pulses and heavy‑load low‑frequency operation with optimized switching loss, suitable for variable load scenarios.
Protection Response: Short‑circuit protection (SC) response time < 2 μs, desaturation protection < 3 μs; overtemperature protection linked with IGBT substrate temperature sensor, automatic derating/blocking when overheated; fault signals fed back to the controller via optical fiber or digital interface.
Isolation Performance: Electrical isolation voltage between control side and power side ≥ 2500 V AC, optical fiber transmission distance up to 10 m, suitable for strongly interfered industrial sites; insulation resistance > 100 MΩ.
Operating Power Supply: Auxiliary power supply is usually 24 V DC (some versions support 12 V DC), power consumption approx. 10–20 W (depending on load).
III. Structure & Mechanical Characteristics
Package / Dimensions: Standard PCB drive board kit, common dimensions 130 mm × 19 mm × 191 mm, weight approx. 0.2 kg; crimping/screw fixing, compatible with standard heat sinks and inverter cabinet mounting holes; drive board with connectors for direct docking with gate/emitter interfaces, optical fiber interfaces, and power interfaces of IGBT modules.
Housing / Material: PCB made of high‑strength FR‑4 material with anti‑corrosion surface coating; key components (driver chips, optocouplers/digital isolators, transformers) adopt industrial‑grade packaging, high temperature and humidity resistance; metal fixing bracket with reliable grounding.
Installation Method: PCB board‑mounted installation, or integrated mounting position with matching IGBT modules; supports 35 mm DIN rail auxiliary fixing; wiring with special plugs to avoid wrong connection; optical fiber interfaces are standard ST/SC types for easy plugging and unplugging.
Environmental Adaptability
- Operating temperature: -40°C ～ +85°C (recommended long‑term operation at +5°C ～ +70°C);
- Storage temperature: -40°C ～ +85°C;
- Humidity: 5%–95% RH (non‑condensing), protection class IP20 (board level), must be installed in a closed cabinet;
- Vibration / shock resistance: Complies with IEC 60068 industrial standards.
IV. Functions & Advantages
Precise Drive & Low Loss: Factory‑matched IGBT‑drive parameters, optimized gate voltage/current waveforms, reduced IGBT turn‑on/turn‑off losses, improved system efficiency to over 98%; supports soft‑switching control strategy to reduce EMI.
High Reliability & Comprehensive Protection: Microsecond‑level fault blocking, multiple protections to prevent IGBT burnout; isolated design resists high‑voltage spikes and electromagnetic interference; long‑life industrial‑grade components with high MTBF; condition monitoring function facilitates predictive maintenance and reduces downtime.
Easy Integration & Compatibility: Standard interfaces and dimensions, direct replacement of old boards of the same model; plug‑and‑play without modifying control programs; supports communication with ABB DCS and third‑party PLC/DCS systems; compatible with mainstream inverters such as ACS800 without additional customized drive programs.
Simple Maintenance & Controllable Cost: Modular structure with short replacement time; drive board with diagnostic indicators for quick fault location; one‑year warranty for original kits, stable supply chain, and easy procurement of spare parts.
V. Application Scenarios
Industrial Drives: Power unit drive for ABB ACS800 series inverters, used for variable frequency speed regulation of rolling mills, hoists, fans, water pumps, compressors, heavy‑duty starting, four‑quadrant operation;
New Energy Power Generation: Grid‑side/machine‑side IGBT drive for wind power converters, inverter bridge drive for photovoltaic inverters, improving power conversion efficiency and grid‑connection stability;
Power Quality Management: Power module drive for SVG (Static Var Generator), STATCOM, Active Power Filter (APF), dynamically compensating grid reactive power and harmonics;
Other Power Electronic Equipment: IGBT drive control for UPS, induction heating power supplies, electric welding machines, and electric vehicle charging piles.
VI. Key Installation & Operation Notes
- Power must be disconnected and discharged before installation to avoid high‑voltage electric shock;
- Optical fiber interfaces are strictly prohibited from hot‑plugging to avoid damaging optical modules;
- The drive board must be matched with the designated IGBT model; mismatched IGBTs are strictly prohibited;
- The heat sink must be firmly installed to ensure normal IGBT substrate temperature and prevent frequent overtemperature protection;
- The drive power supply must be stable to avoid abnormal drive caused by voltage fluctuations;
- The cabinet must be well‑protected against dust, moisture, and ventilation to avoid component corrosion or short circuit.
