Description

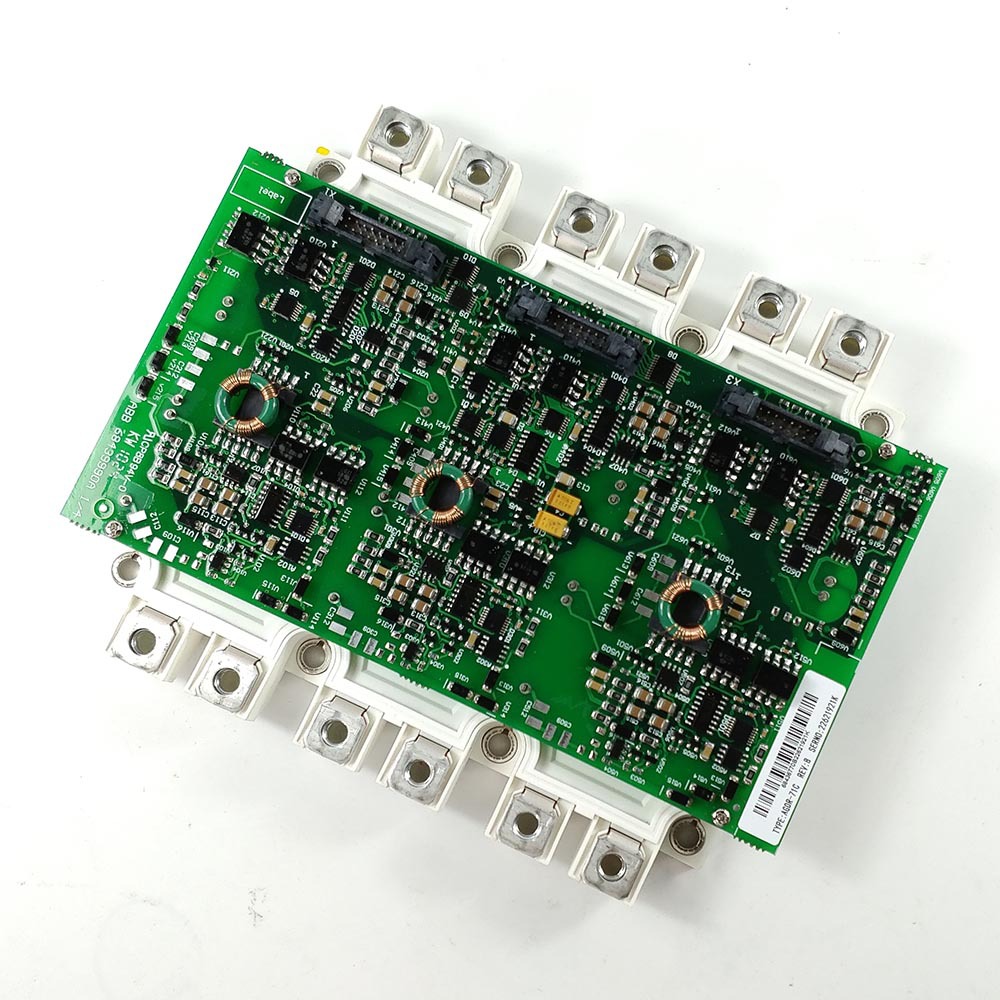

ABB FS450R17KE3/AGDR-81C

I. Basic Information

Product Type: Integrated kit of IGBT power module + dedicated gate drive board (not a single device). FS450R17KE3 is the IGBT power module, and AGDR‑81C is its matched gate drive board (AGDR is the code for ABB gate drive series, 81C is the version/config code, corresponding to a unique full material number). Together they form the power drive core of medium‑ and high‑power drive systems.
Core Functions: The complete assembly performs three core functions: high‑voltage high‑current switching and power conversion, precise drive control, and fault protection. FS450R17KE3 executes power conversion, realizing bidirectional AC‑DC conversion, variable frequency speed regulation, etc. AGDR‑81C converts optical/electrical control signals from the controller into precise gate drive pulses, providing the gate voltage and current required to turn FS450R17KE3 on and off. It also features built‑in multi‑level protection, microsecond‑level drive blocking and alarm feedback upon faults, and supports status monitoring data upload to ensure stable operation of the entire assembly.
Application Positioning: Suitable for medium‑voltage high‑power drive systems, mainly used in industrial inverters (especially ABB ACS800 and ACS6000 series), wind power converters, photovoltaic inverters, UPS, SVG/STATCOM power quality equipment, induction heating power supplies, etc. Typical industries include metallurgy, electric power, rail transit, papermaking, cement, and petrochemical. It is designed for variable frequency speed regulation and power conversion in heavy‑duty equipment such as fans, pumps, compressors, rolling mills, and hoists, especially for continuous‑duty applications with high requirements for reliability and efficiency.
Product Features: Original factory matching with precisely calibrated parameters, plug‑and‑play without manual drive parameter tuning; modular design with standardized dimensions for easy installation, replacement and system integration; dual anti‑interference design (optical isolation + electrical isolation) with excellent EMC performance for harsh industrial electromagnetic environments; industrial‑grade wide‑temperature operation with good protection; comprehensive fault protection and condition monitoring for convenient maintenance; reliable imported quality with one‑year warranty and stable supply chain.

II. Component Parameters (FS450R17KE3 + AGDR‑81C)

(1) FS450R17KE3 IGBT Power Module Parameters

Rated Voltage: 1700 V DC (or AC peak voltage), with stable high‑voltage blocking capability, suitable for medium‑voltage power conversion. It can be directly connected to the corresponding voltage‑level grid without additional step‑down devices, simplifying system design.
Rated On‑state Current (I_TAVM): 450 A (continuous on‑current), surge current up to 1200 A (10 ms). It stably carries high‑current demands of heavy‑duty equipment, supports 3‑phase 50/60 Hz operation, and enables long‑term continuous running for loads such as rolling mills and hoists.
Switching Frequency: Rated for PWM switching frequency 0–12 kHz, typical operating range 2–6 kHz. Fast switching speed and low switching loss; optimized chip design effectively reduces operating energy consumption, suitable for variable‑load and high‑frequency operation.
On‑state Characteristics: Low on‑state voltage drop (typical ≤1.8 V), high current conduction efficiency, further reducing operating losses. When paired with the AGDR‑81C drive board, the system conversion efficiency exceeds 97.5%, optimizing energy performance.
Package: Standard industrial module package (IGBT4 series), high integration, compact size, with built‑in IGBT chip and freewheeling diode. Excellent insulation allows direct and precise connection to the AGDR‑81C drive board, simplifying layout.
Protection Features: Basic built‑in overcurrent and overtemperature protection, which cooperates with the multi‑level protection of the AGDR‑81C drive board to achieve comprehensive fault protection and prevent module damage under abnormal conditions.

(2) AGDR‑81C Gate Drive Board Parameters

Drive Voltage: Standard dual power supply: +15 V / ‑10 V. Peak gate drive current is precisely matched to FS450R17KE3 (1700 V / 450 A). Low power consumption for long‑term continuous operation, with undervoltage / overvoltage detection and protection.
Matching Characteristics: Factory‑preconfigured parameters, specifically designed for 1700 V / 450 A class IGBT modules such as FS450R17KE3. Gate resistance is factory‑fixed to avoid IGBT damage from over‑drive or insufficient turn‑off, enabling cooperation without additional commissioning.
Switching Frequency Compatibility: Fully matched with FS450R17KE3, rated for PWM 0–12 kHz, supporting high‑frequency short pulses and heavy‑load low‑frequency operation with optimized switching loss to meet variable‑load requirements.
Protection Response: Built‑in overcurrent, short‑circuit, overtemperature, undervoltage, and desaturation protection. Short‑circuit response time < 1.8 μs, desaturation protection < 2.8 μs. Rapid drive blocking and fault alarm upon abnormality, providing dual protection with FS450R17KE3 to prevent burnout.
Isolation Performance: Electrical isolation voltage between control and power sides ≥ 3000 V AC. Control signals transmitted via fiber‑optic isolation for extremely high EMI immunity; fiber transmission distance up to 15 m, suitable for noisy industrial sites. Insulation resistance > 100 MΩ for safe operation.
Operating Power Supply: Auxiliary supply typically 24 V DC (some versions support 12 V DC), power consumption approx. 12–22 W (load‑dependent). Stable power supply avoids drive abnormalities caused by voltage fluctuations.

III. Structure & Mechanical Characteristics

Package & Dimensions:

FS450R17KE3: Standard IGBT module package, typical dimensions approx. 145 mm × 115 mm × 42 mm, net weight approx. 0.9 kg, suitable for standard heatsink mounting.
AGDR‑81C: Standard PCB drive board kit, dimensions 135 mm × 20 mm × 195 mm, net weight approx. 0.22 kg. Board‑mount design, directly connects to gate/emitter interfaces of the FS450R17KE3 module, compatible with standard inverter cabinet mounting holes.

Housing & Material:

FS450R17KE3: High‑strength, high‑temperature resistant, corrosion‑resistant industrial‑grade metal housing with good insulation and thermal performance, protecting against dust and moisture and extending service life.
AGDR‑81C: PCB made of high‑strength FR‑4 material with anti‑corrosion surface coating. Key components (driver ICs, optocouplers/digital isolators, transformers) use industrial‑grade packaging with high temperature and humidity resistance. Metal mounting bracket with reliable grounding ensures stable operation.

Installation Method: Both support standard industrial installation. FS450R17KE3 is screw‑mounted onto a heatsink; AGDR‑81C is PCB‑mounted or installed in an integrated position with FS450R17KE3, with optional 35 mm DIN rail mounting. Wiring uses dedicated connectors to prevent miswiring. AGDR‑81C fiber interfaces are standard ST/SC type for easy plugging and rapid assembly.
Environmental Adaptability:

Operating temperature: -40°C ～ +85°C (recommended long‑term range +5°C ～ +70°C). Industrial wide‑temperature design for stable performance in extreme environments.
Storage temperature: -40°C ～ +85°C, humidity 5%–95% RH (non‑condensing).
Protection degree: FS450R17KE3 IP20 or higher; AGDR‑81C IP20 (board level). Both must be installed in enclosed cabinets with dustproof, moisture‑proof, and ventilated conditions.
Vibration / shock resistance: Complies with IEC 60068 industrial standards, suitable for mild industrial vibration and ensuring long‑term stable operation.

IV. Functions & Advantages

1. Factory‑Matched, Highly Cooperative, Low Loss

FS450R17KE3 and AGDR‑81C are an original ABB matched design with precisely optimized gate voltage and current waveforms, significantly reducing IGBT switching losses. Combined with the low on‑state voltage drop of FS450R17KE3, overall system conversion efficiency exceeds 97.5%, greatly reducing cooling and energy costs for long‑term high‑power operation. Supports soft‑switching strategies to reduce EMI and meet industrial EMC requirements.

2. Multi‑Level Protection, Fast Response, High Reliability

AGDR‑81C provides overcurrent, short‑circuit, overtemperature, undervoltage, and desaturation protection with microsecond‑level response and turn‑off. Combined with the built‑in protection of FS450R17KE3, it forms a full‑coverage safety system that effectively prevents IGBT module damage from abnormal conditions such as voltage fluctuations, overcurrent, and overheating. Dual isolation (optical + electrical) blocks high‑voltage spikes and electromagnetic interference. Industrial‑grade components deliver high MTBF (Mean Time Between Failures) and reduce downtime, meeting high‑reliability requirements of industrial systems.

3. Plug‑and‑Play, Easy Integration, Strong Compatibility

Modular, standardized construction allows direct connection between FS450R17KE3 and AGDR‑81C without program changes or manual parameter tuning, enabling true plug‑and‑play and drastically reducing installation and commissioning time. Compatible with mainstream industrial inverters including ABB ACS800 and ACS6000, supports communication with ABB DCS and third‑party PLC/DCS systems, and integrates seamlessly into existing automation infrastructure for versatile power conversion applications.

4. Easy Maintenance, Controllable Cost, Stable Supply

Modular structure allows individual removal and replacement of FS450R17KE3 and AGDR‑81C with short replacement time. AGDR‑81C is equipped with diagnostic LEDs for fast fault localization. Combined with condition monitoring, it facilitates predictive maintenance. The assembly is fully imported original product with guaranteed quality, one‑year warranty, in‑stock availability in selected channels, easy spare parts procurement, and a stable supply chain, reducing long‑term maintenance costs and downtime losses.

V. Application Scenarios

Industrial Drives: As the core power drive component in ABB ACS800 and ACS6000 series inverters, used for variable frequency speed control of heavy‑duty equipment including rolling mills, hoists, fans, pumps, and compressors. Enables heavy‑load starting and four‑quadrant operation with precise speed and torque control, improving productivity and equipment stability.
Renewable Energy Generation: Used in grid‑side and machine‑side power drives of wind converters and inverter bridge drives of photovoltaic inverters. Achieves efficient conversion and grid‑connection control of renewable energy, increasing utilization rate and grid stability, supporting the development of the new energy industry.
Power Quality Management: Drives power modules in SVG (Static Var Generator), STATCOM, and APF (Active Power Filter) systems, dynamically compensating grid reactive power and harmonics, stabilizing grid voltage, and ensuring power quality, suitable for high‑power applications such as metallurgy and chemical engineering.
