Description

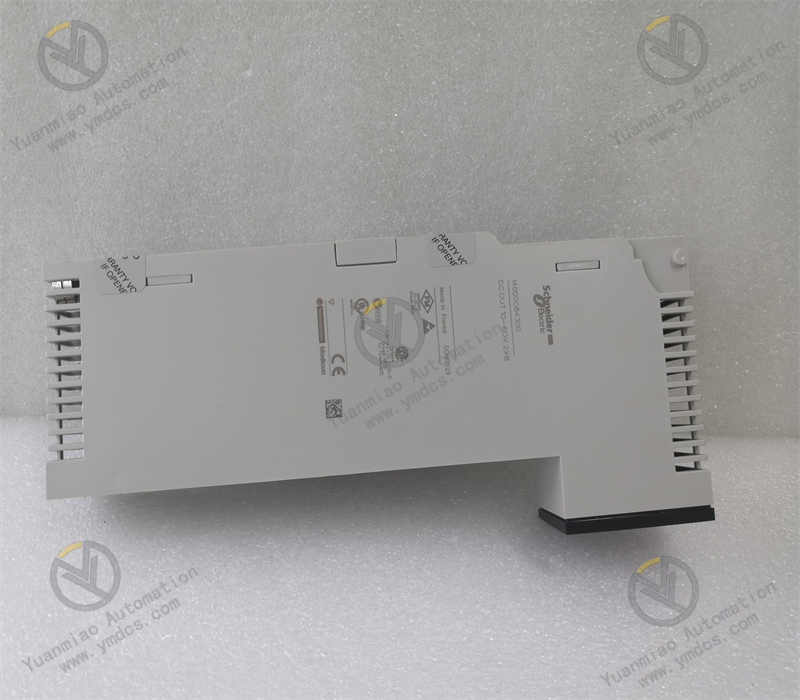

Schneider 140DDO84300
1. Overview
Schneider 140DDO84300 is an industrial-grade digital output module. As a core execution component in industrial automation control systems, it is designed to convert digital control commands from the controller into switching signals for driving field devices, realizing accurate start-stop and status control of various discrete equipment and process control units. It meets widespread switching control demands in manufacturing, energy, chemical, building automation and other industries.
Adopting high-performance semiconductor technology and relay output design, the module integrates 16 independent digital output channels divided into 2 groups (8 channels per group). It supports wide DC voltage output ranging from 10V to 60V DC, with a load capacity of 2A per channel, 6A per group and a maximum 12A for the entire module, capable of directly driving contactors, solenoid valves, indicator lights and other field equipment. Built-in comprehensive protection and diagnosis functions include 8A fuse protection and LED status indication for rapid fault troubleshooting. Featuring outstanding anti-interference performance and environmental adaptability, it operates stably under harsh industrial conditions.
2. Product Parameters
| Parameter Name | Specifications |
|---|---|
| Model | 140DDO84300 |
| Manufacturer | Schneider Electric |
| Product Series | Schneider Modicon Quantum Series |
| Product Type | Industrial DC digital output module, 16-channel relay output with 2 groups (8 channels each), supports discrete control and process control |
| Compatible Devices | Matched with Schneider Modicon Quantum series racks, CPU and control systems; compatible with Unity Pro programming software; directly drives contactors, solenoid valves, indicator lights and other equipment; adaptable to SCADA and DCS systems |
| Power Supply Parameters | Bus Current Consumption: 160mA; Power Consumption: 1W + (1V × Total Module Load Current); Input Voltage: 10–60V DC (continuous withstand 72V DC); 24V DC ±10% power supply supported; equipped with reverse polarity protection |
| Communication Parameters | Supports mainstream industrial protocols such as Modbus and Profibus; exchanges data with the CPU via Quantum backplane bus without additional communication interfaces, simplifying system wiring |
| I/O Performance | 16 independent digital output channels in 2 groups; Output Type: DC discrete output (sink/source universal), SPST normally open contact; Fail-safe mode supported (contacts open upon power loss) |
| Load & Response | Maximum current per channel: 2A; Maximum current per group: 6A; Maximum module current: 12A; Response time ≤ 1ms (status switching); Release time ≤ 10ms; Leakage current ≤ 1mA @ 60V; Voltage drop ≤ 1V @ 2A load |
| Physical Parameters | Dimensions: 70mm×100mm×71mm; Weight: 0.45kg; Modular design for Quantum rack and DIN rail mounting; detachable screw/spring terminals for easy wiring and maintenance; panel with 17 green LEDs for output status and 1 red LED for fault indication |
| Protection & Anti-interference | Ingress Protection: IP20; Isolation between groups: 700Vrms; Channel-to-backplane isolation: 2500Vrms (opto-isolation); built-in 8A fuses (1 per group) for overcurrent protection; EMC immunity: 10V/m (80–2000MHz); Vibration resistance: 5g; Shock resistance: 30g; partial models with conformal coating |
| Environmental Parameters | Operating Temperature: 0℃～60℃ (standard), -40℃～85℃ (wide temperature); Storage Temperature: -40℃～85℃; Humidity: 0%～95% non-condensing; dustproof and moistureproof design for complex industrial environments |
| Core Functions | 16-channel digital output, grouped control, wide voltage adaptation, overcurrent protection, fault diagnosis, LED status indication, Modbus communication, opto-isolation, hot backup support, eco-friendly design; direct drive for discrete and process control equipment |
3. Technical Features
- Grouped Multi-channel Output: Equipped with 16 independent digital output channels divided into two groups to realize grouped control, meeting synchronous control requirements of multiple devices and loops. It saves rack slot space, reduces system configuration costs and flexibly adapts to diversified on-site control demands.
High Load Capacity & Fast Response: Each channel provides up to 2A load current with a 12A total module rating, directly driving standard industrial devices such as contactors and solenoid valves without additional power amplification modules. The 1ms ultra-fast response ensures timely execution of control commands and avoids production delays caused by signal lag.
- Comprehensive Protection Mechanism: Built-in 8A group fuses effectively prevent module and equipment damage from overcurrent. 2500Vrms opto-isolation and 700Vrms inter-group isolation restrain signal interference and fault propagation. Reverse power connection protection further enhances operational safety and service life of the whole system.
Convenient Fault Diagnosis & Maintenance: Integrated LED indicators visually display individual output status and module faults for rapid fault location. Detachable terminal blocks simplify wiring and daily maintenance; hot-swap capability in partial applications minimizes downtime and maintenance costs.
- Superior Environmental Adaptability & Compatibility: The rugged industrial design ensures stable operation in wide temperature ranges from -40℃ to 85℃, high vibration and strong electromagnetic interference environments. With IP20 protection, it is suitable for harsh working conditions in metallurgy, chemical and other industries. It is fully compatible with Modicon Quantum systems, Unity Pro software and mainstream industrial protocols for seamless DCS and automation system integration.
- Energy-saving & Eco-friendly Design: Low basic power consumption of 1W reduces energy consumption. Compliant with REACH, RoHS and other environmental regulations, it meets green factory construction standards. Modular design optimizes spare part management and lowers inventory and resource waste.
4. Application Scenarios
(1) Manufacturing & Automated Production Lines
Widely used in automotive, electronics, mechanical processing and other automated production lines. As a core execution unit, it controls the start/stop and operation status of motors, assembly robots, conveyors, solenoid valves and indicator lights. 16-channel grouped control realizes multi-station synchronous operation, while fast response ensures smooth production coordination. Overcurrent protection and fault diagnosis reduce unplanned shutdown risks, improve line efficiency and product qualification rate, and are especially suitable for discrete and machine control applications.
(2) Power & Energy Industry
Applied in automatic control systems of power plants and substations to regulate auxiliary equipment including fans, water pumps, valves and status indicators. With strong anti-interference and wide-temperature adaptability, it withstands severe electromagnetic disturbance and ambient fluctuations in power stations and ensures stable operation of auxiliary systems. It supports hot backup configuration to meet redundant control requirements and guarantee reliable power supply.
(3) Petrochemical & Process Control
Deployed in oil refining, natural gas processing and chemical production processes to switch auxiliary reactor equipment, pipeline valves, heaters and other process units. Its excellent anti-interference and overcurrent resistance enable stable operation under high-temperature, high-vibration and corrosive conditions. Accurate command execution ensures safe, compliant and efficient chemical production, and satisfies multi-loop control demands of complex process systems.
(4) Building & Other Industrial Fields
