Description
1. Overview

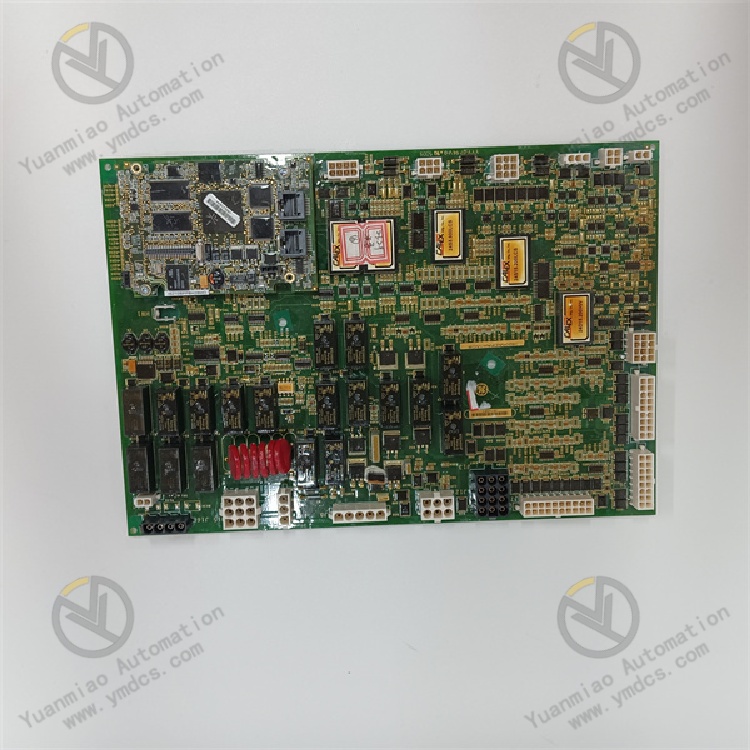

GE IS200AEPAH1ACB is a high-precision analog input acquisition and signal conditioning mainboard dedicated to the Speedtronic Mark VI turbine control system. The assembly is factory fitted with the attached subboard IS210BPPBH2BLD. The two boards form an original factory matched set with one-to-one matching of hardware and software parameters, and shall not be separated or mixed for use. Belonging to the core hardware portfolio of GE Vernova power generation control, the complete assembly is widely applied to parameter monitoring, signal acquisition, operating condition conditioning and closed-loop control loops of gas turbines, steam turbines and combined-cycle generator units.
The integrated module assembly is mainly responsible for isolated acquisition, filtering and waveform shaping, precision calibration, front-end conditioning and data forwarding of key process analog and discrete signals such as unit temperature, pressure, vibration, speed and displacement. It acts as the core front-end hardware for the turbine control system to perceive field operating conditions, implement load regulation, execute protection logic judgment and monitor equipment status. Among the assembly, IS200AEPAH1ACB serves as the mainboard carrier and undertakes core signal computation, bus interaction, data processing and system configuration matching. IS210BPPBH2BLD is a dedicated supporting signal expansion subboard for multi-channel signal shunting, loop isolation, terminal signal preprocessing and link reinforcement, effectively expanding the signal channel load capacity and adaptability to complex operating conditions of the mainboard.
Specially optimized for harsh power plant operating conditions including severe electromagnetic interference, alternating temperature and humidity, 24/7 non-stop continuous operation and high-frequency dynamic signal acquisition, the assembly adopts industrial-grade high-precision sampling chips and a full electrical isolation architecture. It features prominent strengths including high sampling accuracy, excellent signal stability, outstanding anti-interference performance and zero long-term zero drift. Natively fully compatible with the backplanes, system buses and configuration software of all GE Mark VI turbine cabinets, it delivers reliable front-end signal acquisition support for precise parameter control, stable operation and fault tracing of generating units. It is a standardized complete module for matching new power plant projects, replacing legacy circuit boards and optimizing & upgrading signal acquisition loops.
2. Technical Features
2.1 Cooperative Mainboard-Subboard Architecture for Accurate and Comprehensive Signal Acquisition
It adopts a hierarchical cooperative architecture of mainboard core computation + subboard front-end preprocessing. The IS210BPPBH2BLD subboard firstly conducts primary filtering, surge suppression, electrical isolation and waveform conditioning for multi-channel sensor signals such as field temperature, pressure, vibration and speed, efficiently filtering field clutter, pulse interference and power frequency crosstalk. The conditioned pure signals are transmitted to the IS200AEPAH1ACB mainboard for high-precision AD sampling, data calibration, logical operation and bus data upload. This hierarchical processing thoroughly resolves signal distortion, sampling drift and data fluctuation under complex electromagnetic environments, and comprehensively guarantees the authenticity, accuracy and real-time performance of key process parameter acquisition of the unit.
2.2 High-Precision Sampling Performance Adapted to Precision Unit Control Conditions
The mainboard is equipped with a 16-bit high-precision AD sampling unit with steady-state sampling accuracy up to ±0.05%, as well as millisecond-level high-speed signal acquisition and refresh capability, which can capture tiny parameter fluctuations and operating condition changes in real time during unit load variation, start-stop switching and grid disturbance. Cooperating with the dedicated front-end signal optimization mechanism of the IS210BPPBH2BLD subboard, it effectively eliminates signal attenuation, waveform distortion and phase offset caused by long-distance transmission. No zero drift or parameter offset occurs during long-term energized operation, perfectly adapting to precision control scenarios including high-precision closed-loop regulation of turbines, dynamic load response and accurate judgment of protection thresholds.
2.3 Full-Range Dual-Layer Electrical Isolation with Excellent Anti-Interference Performance
The entire board assembly adopts a dual-layer isolation protection design for mainboard and subboard. The IS210BPPBH2BLD subboard implements isolation of front-end field signal loops to effectively block various interference induced by field equipment start-stop, grounding disturbance, voltage fluctuation and line induction. The IS200AEPAH1ACB mainboard realizes isolation between board-level bus and power supply system, embedded with multiple protection mechanisms including overvoltage, overcurrent, short circuit, electrostatic discharge, surge impact and reverse voltage. The dual isolation architecture can effectively resist harsh condition interference such as intense electromagnetic radiation, ground potential difference and transient grid disturbance in power plants, prevent failures such as signal breakdown, channel damage and erroneous system sampling, and significantly improve operational stability and fault tolerance of the whole control system.
2.4 Multi-Channel Signal Expansion with Wide Operating Condition Adaptability
Leveraging the multi-channel expansion and signal reinforcement capability of the IS210BPPBH2BLD subboard, the complete module supports synchronous acquisition of multiple analog and discrete signals, fully covering all types of operating condition signals of turbines including temperature, pressure, vibration, shaft displacement, speed, valve position feedback and equipment operating status. A single assembly can realize centralized acquisition, conditioning and preprocessing of core measurement points of the unit, effectively simplifying cabinet wiring structure, reducing signal transfer nodes and lowering risks of superposed interference brought by parallel acquisition of multiple measurement points, suitable for complex industrial control scenarios with dense measurement points.
2.5 Intelligent Full-Link Self-Diagnosis for Accurate and Efficient Fault Localization
The assembly implements a dual mechanism of full-dimensional power-on self-test and full-time real-time monitoring during operation. Upon power-up, the module automatically verifies the integrity and parameter compliance of the mainboard sampling unit, bus links, preprocessing channels of the IS210BPPBH2BLD subboard, power supply loops and signal loops. During equipment operation, it continuously monitors potential hazards including channel abnormality, signal disconnection, over-range, data fluctuation, bus interference and abnormal board temperature rise. It can accurately locate faulty channels, fault types and abnormal points, automatically lock fault status, store operation logs and push alarm information to the upper system, greatly shortening the duration for troubleshooting, localization and maintenance of signal-related faults and improving system operation & maintenance efficiency.
2.6 Industrial-Grade Three-Proof Ruggedization for Long-Term Unattended Operation
Core components of both the mainboard and IS210BPPBH2BLD subboard have passed strict wide-temperature screening, high-low temperature cycling tests, industrial aging tests and vibration resistance tests. The circuit boards are coated with military-grade three-proof conformal coating with dustproof, moisture-proof, anti-corrosion, anti-oxidation, mold-proof, vibration-resistant and strong EMI-resistant performance. Highly integrated with no wearable mechanical parts, the unit features low power consumption and low heat generation. It can stably withstand long-term erosion from cabinet temperature & humidity fluctuation, equipment vibration and high-frequency electromagnetic radiation in power plants, supporting multi-year 24/7 non-stop continuous operation and fully meeting long-service-life unattended industrial operation requirements of large generating units.
2.7 Standardized Matched Assembly for Commissioning-Free Rapid Replacement
The whole board assembly strictly complies with GE Mark VI original factory specifications including hardware dimensions, slot standards, board interconnection definitions, electrical parameters, timing criteria and bus communication protocols, and is fully compatible with turbine control system configuration programs, cabinet backplane architecture and upper monitoring systems. Faulty legacy assemblies can be directly replaced as a complete set without modifying on-site wiring, system programs, sampling parameters and protection setpoints. Secondary calibration and timing commissioning are not required, and the module can be normally put into service after configuration matching upon power-on, greatly cutting maintenance costs and renovation construction period of power plant control systems.
3. Specification Parameters
3.1 Basic Assembly Parameters
- Complete Assembly Model: Mainboard IS200AEPAH1ACB + Attached Subboard IS210BPPBH2BLD
- Manufacturer: GE General Electric (Affiliated to the GE Vernova Power Generation Control System)
- Device Type: High-Precision Signal Acquisition and Conditioning Complete Module for Turbine Control Systems
- Core Functions: Isolated acquisition of field operating signals, front-end filtering and waveform shaping, multi-channel signal expansion, high-precision AD sampling, parameter calibration, data operation, bus data uploading, full-link fault self-diagnosis, real-time monitoring of unit operating conditions
- Compatible Systems: GE Speedtronic Mark VI Turbine Control System, Combined-Cycle Unit DCS, Generator Excitation and Monitoring System, Power Plant Auxiliary Equipment Control System
- Applicable Equipment: Gas Turbine, Steam Turbine, Combined-Cycle Generator Set, CHP Unit, Unit Sensor Measurement Assembly, Power Plant Process Monitoring Equipment
- Application Scenarios: Complete supporting for signal acquisition systems of new units, complete replacement of faulty legacy boards, optimization of unit measurement point accuracy, rectification of on-site signal interference issues, maintenance upgrade and performance optimization of control systems
3.2 Electrical and Sampling Parameters
- Operating Power Supply: Standard industrial DC power supply, compliant with dedicated power supply specifications of GE Mark VI cabinets, low power consumption, low heat generation and stable long-term operation
- Sampling Accuracy: 16-bit high-precision sampling, steady-state sampling error ≤±0.05%, no zero drift or parameter offset for long-term operation of the whole unit
- Sampling Speed: Millisecond-level high-speed refresh, adapting to rapid signal acquisition demands under dynamic conditions such as unit start-stop, load variation and grid disturbance
- Signal Processing: IS210BPPBH2BLD subboard completes front-end filtering, isolation, surge suppression and waveform shaping; mainboard completes precision sampling, data calibration, error correction and logical operation
- Isolation Performance: Dual-layer electrical isolation for mainboard and subboard, completely isolating the field signal side and system control side, effectively resisting ground potential interference, electromagnetic crosstalk and line induction interference
- Electrical Protection: Built-in multi-protection of overvoltage, overcurrent, short circuit, surge, electrostatic discharge and reverse voltage, tolerating industrial electrical impact and transient grid disturbance
3.3 Communication and Operation Parameters
- Communication Protocol: Compatible with GE Mark VI original dedicated bus protocol, supporting system configuration recognition, high-speed data uploading, remote parameter diagnosis and online monitoring
- Data Functions: Real-time uploading of channel measurement point parameters, board operating status, subboard link status, channel fault information and abnormal alarm data
- Fault Tolerance: Independent isolation of single-channel faults without affecting sampling of other channels and overall module operation, featuring strong system fault tolerance
- Operation Mode: 24-hour continuous non-stop sampling operation, adapting to all-weather unattended monitoring requirements of units
3.4 Environmental Operating Parameters
- Operating Temperature: -40℃ ~ +70℃, suitable for wide temperature fluctuation of power plant control rooms
- Storage Temperature: -40℃ ~ +85℃
- Operating Humidity: 5% ~ 95%RH (non-condensing), suitable for constant temperature & humidity enclosed cabinet environments
- Protection Technology: Military-grade three-proof conformal coating, dustproof, moisture-proof, anti-corrosion, anti-oxidation, mold-proof and anti-aging
- Anti-Interference Level: Compliant with high-end industrial EMC anti-interference standards for power plants, resisting intense electromagnetic radiation, equipment vibration and grid fluctuation interference
3.5 Structural and Maintenance Parameters
- Mounting Method: Standard embedded cabinet slot installation; IS210BPPBH2BLD subboard is onboard integrated onto dedicated interfaces of the mainboard, the complete assembly docks with the backplane bus with stable contact and strong vibration resistance
- Structural Features: Integrated mainboard-subboard assembly structure, high integration, no mechanical vulnerable parts, low failure rate and strong operational stability
- Maintenance Features: Support precise faulty channel localization, data traceability and subboard link status monitoring; no frequent daily calibration required, convenient maintenance and low operation costs
4. Working Principle
After power-on of the complete IS200AEPAH1ACB+IS210BPPBH2BLD module assembly, the mainboard automatically completes hardware initialization, bus link handshake and sampling parameter calibration. Meanwhile, it accurately detects the connection status, channel integrity and communication matching degree of the attached IS210BPPBH2BLD subboard, carries out full-board comprehensive self-test, and enters normal precision sampling operating mode after confirming no abnormalities.
Analog and discrete status signals such as temperature, pressure, vibration, speed, displacement and valve position feedback output by various field sensors are firstly connected to the IS210BPPBH2BLD subboard for front-end preprocessing. Via onboard high-precision filter circuits, intelligent impedance matching units and independent electrical isolation loops, the subboard fully filters industrial field clutter interference, power frequency crosstalk, voltage transients and line induction interference, regularizes signal waveforms, suppresses signal attenuation and distortion during long-distance transmission, and outputs pure, stable and standardized signals to the core sampling unit of the mainboard.
After standardized signals are sent to the IS200AEPAH1ACB mainboard, the 16-bit high-precision AD sampling unit completes high-speed analog-to-digital conversion, precision sampling and multi-point data calibration. Combined with preset system configuration parameters, it executes data operation, logical judgment and operating condition analysis, and finally uploads processed unit operating condition data to the upper-level main control system via the high-speed system bus, providing high-precision and highly reliable data support for unit load regulation, precise valve position control, protection logic actuation, operating condition monitoring and fault tracing.
During the whole equipment operation process, the mainboard and subboard operate cooperatively to monitor signal channel status, data transmission quality, power supply conditions and bus link stability in real time. Once hidden risks such as signal disconnection, over-range, data abnormality, channel fault, communication fluctuation and abnormal subboard link are detected, the hardware self-protection mechanism is triggered immediately to lock and isolate faulty channels, record fault codes and operation logs, push alarm information to the upper system, prevent abnormal signals from interfering with overall sampling and system logic, and comprehensively guarantee authentic and reliable unit signal acquisition, accurate and stable operating condition monitoring, as well as safe and orderly equipment linkage.
5. Application Scenarios
5.1 Full-Condition Signal Acquisition for Turbine Units
As the core front-end acquisition assembly of the GE Mark VI turbine control system, it is specially responsible for signal acquisition and front-end preprocessing of core process measurement points of gas turbines, steam turbines and combined-cycle units, fully covering key operating parameters including vibration, temperature, pressure, speed, shaft displacement and valve position feedback. It delivers core data support for unit start-stop logic control, dynamic load variation regulation and precise steady-state operation monitoring.
5.2 Precise Signal Support for Unit Protection Logic
It provides high-precision raw sampling data for key protection logics such as overtemperature, overpressure, excessive vibration, abnormal speed and shaft displacement over-limit of units. Relying on the dual-layer anti-interference architecture of mainboard and subboard, it eliminates protection misoperation and failure to act caused by signal distortion, sampling drift and data fluctuation, accurately guarantees reliable actuation and precise judgment of the unit protection system, and builds a core safety barrier for unit operation.
5.3 Optimization, Replacement and Upgrade of Legacy Acquisition Systems
Aiming at common problems of legacy boards of the same model including inaccurate sampling, data fluctuation, aging & damage of channels, degraded anti-interference capability, frequent alarms and abnormal subboard links, the complete mainboard-subboard assembly can be directly replaced as a whole. No modification to system architecture, on-site wiring and control programs is required, realizing low-cost performance upgrade of the front-end acquisition system and effectively improving unit monitoring accuracy and overall operational stability of the control system.
5.4 Anti-Interference Rectification under Complex Electromagnetic Operating Conditions
Relying on the dual-layer processing architecture of front-end isolation & filtering by IS210BPPBH2BLD subboard and precision sampling by mainboard, the module specially resolves problems such as signal fluctuation, unstable sampling and data abnormality under scenarios of intense electromagnetic radiation in power plants, multi-equipment interference and long-distance transmission. It is widely applicable to large-scale energy industrial control scenarios with complex electromagnetic environments, dense measurement points and harsh operating conditions.
