Description

METSO IOP303

METSO IOP303 is an industrial-grade control module featuring a compact, integrated design. It combines stable hardware performance with flexible control functions, integrating multiple mainstream industrial communication protocols and diverse I/O interfaces. It delivers precise process control, efficient data exchange, and excellent adaptability to harsh environments. Specifically designed for demanding industrial applications such as mining, aggregates, cement, and petrochemicals, it performs core functions including field equipment monitoring, parameter adjustment, and command issuance. As a key component in industrial automation systems connecting field devices and upper-level management systems, it provides reliable support for stable operation and intelligent management of production processes.

1. Positioning and System Relationship

System Affiliation

The METSO IOP303 belongs to the METSO Intelligent Operator Platform (IOP) series. Classified as an industrial control module, it is developed and manufactured by Metso Group and constitutes an important part of Metso’s industrial automation and process control product portfolio. Targeted at small-to-medium industrial automation scenarios, it balances practicality and cost-effectiveness. It is fully compatible with various Metso automation control systems and process monitoring systems, and supports seamless integration with third-party devices and upper-level management systems such as PLC, MES, and ERP. With strong versatility and interoperability, it can be quickly integrated into existing automation networks without extensive system modifications, reducing deployment costs.

Featuring a modular, lightweight design, the module can operate independently to complete basic tasks such as single-equipment control and small-process monitoring. It can also serve as a distributed control unit in large-scale distributed automation systems, connecting to field sensors, actuators, PLCs, and upper-level management systems via multiple communication interfaces to form a complete automation control chain. Suitable for single-equipment control, small control systems, and distributed control scenarios, it offers flexibility and scalability to meet industrial control requirements of varying scales and applications.

Core Role

Positioned as a field control and data transmission node in industrial automation systems, its core responsibilities include:

Field control: Implements core functions such as process control, parameter adjustment, and equipment start/stop control in industrial production. With a control range of 0–100%, control accuracy up to ±1.0%, and response time under 2 seconds, it precisely adjusts operating parameters of field devices to ensure stable and consistent production.
Data exchange and transmission: Integrates multiple industrial communication protocols and I/O interfaces to collect real-time operating data from field sensors and actuators, synchronously issue control commands from upper systems, and bridge field devices and upper-level management systems, enabling visual monitoring and remote control of production processes.
Stable operation assurance: Built with industrial-grade components and a rugged structure, it features strong anti-interference and harsh-environment resistance. It operates stably for long periods in demanding industrial settings such as high dust, extreme temperatures, and high humidity, reducing unplanned downtime, improving productivity, and lowering maintenance costs.
Flexible adaptation and expansion: Supports various I/O configurations and communication protocol matching. Its modular design allows expansion and upgrades based on actual application needs, adapting to control requirements across industries and scenarios, reducing system upgrade and retrofitting costs, and enhancing system reusability.
Status monitoring and feedback: Provides real-time data processing and equipment status monitoring. It tracks its own operating status and connected field devices, promptly reports anomalies, offers convenient troubleshooting references for maintenance personnel, and shortens fault resolution time.

Mounting Specifications

Mounting method: Compact and lightweight, it supports three installation types: wall-mounted, cabinet-embedded, and DIN-rail mounting. Small in size, it occupies minimal installation space, facilitating deployment in space-constrained industrial sites with a simple installation and commissioning process.
Physical dimensions: Standard size 140mm × 90mm × 45mm, compact structure, weight approx. 0.6kg. Easy to transport, install, and maintain, it fits various industrial control cabinets and field equipment locations without specialized mounting brackets, reducing installation difficulty.
Front-panel interfaces: Integrates multiple communication and I/O interfaces including 1× Ethernet (RJ45), 1× Modbus RTU, 4 analog inputs (AI), 2 analog outputs (AO), 4 digital inputs (DI), and 2 digital outputs (DO). It is also equipped with simple operation keys and 3 sets of LED status indicators (RUN/FAULT/COMM) for convenient wiring, commissioning, and status checking, with user-friendly operation to lower maintenance barriers.
Operating environment: Ingress protection rating IP65, effectively dustproof, waterproof, and resistant to foreign object intrusion, suitable for harsh industrial environments. Operating temperature range: -10°C to 70°C; storage temperature: -40°C to 85°C; humidity: 5%–95% RH (non-condensing). It runs stably under extreme conditions including high/low temperatures, heavy dust, and high humidity without additional protective equipment for most industrial applications.

System Architecture

Typical system integration architecture:Upper-level management systems (MES/ERP) → PLC/field controller → METSO IOP303 control module (field control, data acquisition and transmission) → sensors/actuators → production equipment.

In addition, the IOP303 can interconnect with other IOP series modules (e.g., IOP341, IOP350) or third-party control modules via Ethernet or Modbus to expand control functions and implement redundant backup, improving system reliability. Powered by a high-performance 32-bit 80MHz processor, the module rapidly processes control algorithms and real-time data. It receives control commands from PLCs or upper systems, collects feedback signals from field sensors, issues control commands to actuators after calculation, and feeds real-time production data and equipment status back to upper systems. This forms a complete closed loop: Command Issuance → Data Acquisition → Calculation → Control Execution → Status Feedback, ensuring automated and precise operation of production processes.

2. Functions and Technical Features

1. Precise Field Control Capability

Multi-type control functions: Supports process control, parameter adjustment, equipment start/stop control, and other applications. It monitors and regulates key parameters such as pressure, flow, and temperature in industrial production, and controls the operating status of field devices including actuators and motors. It adapts to diverse small-to-medium industrial control requirements and is widely used in field control in mining, cement, petrochemicals, and other industries.
Precise control and fast response: Control accuracy ±1.0%, control range 0–100%, response time < 2 seconds. It quickly responds to changes in production parameters and upper control commands, adjusts control strategies timely, and ensures stable and precise production, suitable for small-to-medium production scenarios with moderate requirements for control accuracy and response speed.
Basic algorithm processing: Equipped with a high-performance 32-bit processor, it supports fast execution of basic control algorithms such as PID to meet control needs in small-to-medium industrial scenarios. It also allows configuration of simple custom control logic, enabling adjustment of control schemes based on specific project requirements to improve control flexibility and adaptability.

2. Rich Communication Interfaces and Data Exchange Capability

Multi-protocol communication support: Integrates mainstream industrial protocols including Ethernet (TCP/IP, Modbus TCP) and Modbus RTU. It seamlessly connects to Metso’s native systems, third-party PLCs (Schneider, Siemens, etc.), and MES/ERP upper-level systems to achieve data interoperability, eliminate information silos, and enhance production management efficiency.
Diverse I/O interfaces: Features 4× AI (0-10V/4-20mA), 2× AO (0-10V/4-20mA), 4× DI (PNP/NPN), 2× DO (relay/transistor), enabling direct connection to field sensors (pressure, temperature, flow, etc.) and actuators (solenoid valves, frequency converters, etc.) without additional adapter modules, simplifying system wiring and reducing construction costs.
Data acquisition and upload: Supports real-time collection of field equipment operating parameters and production data, with periodic uploading to PLCs or upper-level management systems. It also accepts remote control commands to enable remote monitoring and control of production processes, helping managers grasp on-site production status in real time and optimize production scheduling.

3. Industrial-Grade Reliability and Harsh Environment Adaptability

Robust hardware design: Uses industrial-grade high-quality components with conformal coating on the circuit board for moisture, dust, and corrosion resistance. It effectively withstands dust, humidity, and chemical corrosion on-site, extending service life and reducing failure rates.
Strong anti-interference performance: Excellent EMC performance compliant with IEC 61000 series standards, resisting electromagnetic interference and voltage fluctuations in industrial environments. It operates stably in high-interference sites such as mines and petrochemical plants without signal distortion or module malfunction.
Wide temperature and voltage range: Operating temperature -10°C to 70°C, wide-range power supply (optional 220V AC or 24V DC, with 24V DC supporting ±20% tolerance). It adapts to power conditions in different regions and scenarios without additional voltage regulators, reducing deployment costs while maintaining stable operation in extreme climates such as cold northern and hot southern environments.

4. Convenient Programming and Maintenance Diagnostics

Programming support: Compatible with Metso’s proprietary programming software and IEC 61131-3 standard environments, supporting multiple programming languages including LD (Ladder Diagram), FBD (Function Block Diagram), and ST (Structured Text). Programming is flexible and efficient, with online modification, debugging, and program upload/download to improve engineering efficiency.
Status monitoring and diagnostics: Front-panel LEDs clearly indicate RUN, FAULT, and COMM status. Detailed fault information (communication faults, I/O faults, etc.) is accessible via programming software or upper systems, enabling quick fault localization, reducing troubleshooting time, and lowering maintenance costs.
Easy maintenance: Modular design supports hot swapping in certain scenarios for fast module replacement without shutdown, minimizing production interruption. It also supports parameter backup and restoration for quick commissioning after module replacement, enhancing maintenance efficiency.

5. Modular Expansion and System Compatibility

Flexible expansion: Supports I/O module expansion to add analog and digital channels based on control needs, scaling from small-scale to medium distributed control without replacing the core module, reducing upgrade costs.
Broad compatibility: Fully compatible with Metso automation systems and third-party PLCs, sensors, actuators, and upper-level management systems. It integrates quickly into existing networks without major equipment or system modifications, improving reusability and flexibility while lowering construction costs.
Redundancy support: Can form redundant systems with other IOP303 or Metso IOP series modules for control function backup. Upon failure of the primary module, the standby unit takes over control tasks rapidly to ensure uninterrupted production, improving system reliability for applications requiring moderate continuity.

3. Technical Specifications

Product Identification

Model: METSO IOP303
Brand: METSO (Metso)
Manufacturer: Metso Group
Series: Intelligent Operator Platform (IOP)
Type: Industrial control module
Mounting: Wall-mounted, cabinet-embedded, DIN-rail mounting
Protection rating: IP65
Dimensions: 140mm × 90mm × 45mm
Weight: Approx. 0.6kg

Core Parameters

Core functions: Process control, parameter adjustment, equipment start/stop control, data acquisition and exchange, status monitoring and diagnostics
Processor: 32-bit industrial-grade, 80MHz clock speed
Control accuracy: ±1.0%
Response time: < 2 seconds
Control range: 0–100%
Communication interfaces: 1× Ethernet (RJ45, TCP/IP, Modbus TCP), 1× Modbus RTU
I/O interfaces: 4× AI (0-10V/4-20mA), 2× AO (0-10V/4-20mA), 4× DI (PNP/NPN), 2× DO (relay/transistor)
Power supply: 220V AC or 24V DC ±20%
Output frequency: 30kHz
Power consumption: Typical < 4W
Programming languages: IEC 61131-3 compliant including LD, FBD, ST

Physical and Environmental

Installation location: Industrial control cabinets, field equipment (wall-mounted / embedded / DIN-rail)
Operating temperature: -10°C ~ 70°C
Storage temperature: -40°C ~ 85°C
Humidity: 5%–95% RH (non-condensing)
EMC immunity: Compliant with IEC 61000-4 series, strong electromagnetic interference protection
Protection: IP65, dustproof, waterproof, foreign object resistant

Compatibility

Compatible systems: Various Metso automation systems, MES/ERP upper-level management systems
Compatible devices: Third-party PLCs (Schneider, Siemens, etc.), sensors, actuators
Supported protocols: Modbus RTU/TCP, TCP/IP
Incompatible with: Non-industrial standard interface devices, equipment using non-compatible communication protocols

4. Supported Systems and Accessories

Compatible Host Systems

Dedicated compatibility: Metso automation control systems, Metso process monitoring systems
Application scope: Small-to-medium industrial automation control in mining, aggregates, cement, petrochemicals, metallurgy, and other industries, including equipment control, process monitoring, and parameter adjustment. Suitable for single-equipment control, small control systems, and medium distributed automation systems, especially field control in harsh industrial environments.

Required Accessories

Power supply: 220V AC or 24V DC power supply (24V DC must meet ±20% tolerance for module operation)
Communication cables: Ethernet cable (RJ45), Modbus communication cable
Field sensors: Pressure, temperature, flow sensors, etc. (selected based on control requirements)
Actuators: Solenoid valves, frequency converters, control valves, etc. (selected based on control requirements)
Metso proprietary programming software (for programming, debugging, and parameter configuration)
Mounting brackets (optional for wall mounting), terminal blocks (for interface wiring), DIN rail (optional for rail mounting)

Optional Accessories

Identical METSO IOP303 module (for redundant backup to improve system reliability)
I/O expansion modules (to expand channel count for complex control scenarios)
Surge protective devices (for sites with large voltage fluctuations and high interference to protect the module and communication links)
Signal isolators (for high-interference environments to enhance transmission stability and avoid signal distortion)
Specialized maintenance tools (for installation, removal, and troubleshooting to improve efficiency)

5. Application Scenarios

Mining industry: Controls and monitors small mining equipment (small crushers, conveyors, etc.) with precise parameter adjustment and real-time status monitoring. Adapted to harsh mine conditions including heavy dust, strong vibration, and extreme temperatures, it ensures continuous and stable equipment operation and improves mining efficiency.
Cement industry: Applied to auxiliary process control in cement production lines, including operation control of small conveying and batching equipment, auxiliary adjustment of raw material ratio, and precise control of equipment parameters. It adapts to high dust and high temperatures in cement plants to help improve cement quality.
Petrochemical industry: Controls and monitors small pump sets, valves, and other equipment in petrochemical plants, providing auxiliary adjustment of pipeline pressure and flow. With strong corrosion and interference resistance, it adapts to harsh petrochemical plant environments to ensure safe and stable production.
Aggregates industry: Controls small equipment on aggregate crushing and screening production lines, enabling automated aggregate production and precise parameter adjustment to improve productivity and product quality while adapting to high-dust on-site conditions.
Metallurgical industry: Used for auxiliary control in metallurgical production lines, including operation control of small conveying equipment and auxiliary heating devices. Featuring strong anti-interference and wide-temperature performance, it operates reliably in high-temperature, high-electromagnetic-interference metallurgical workshops to support continuous production.

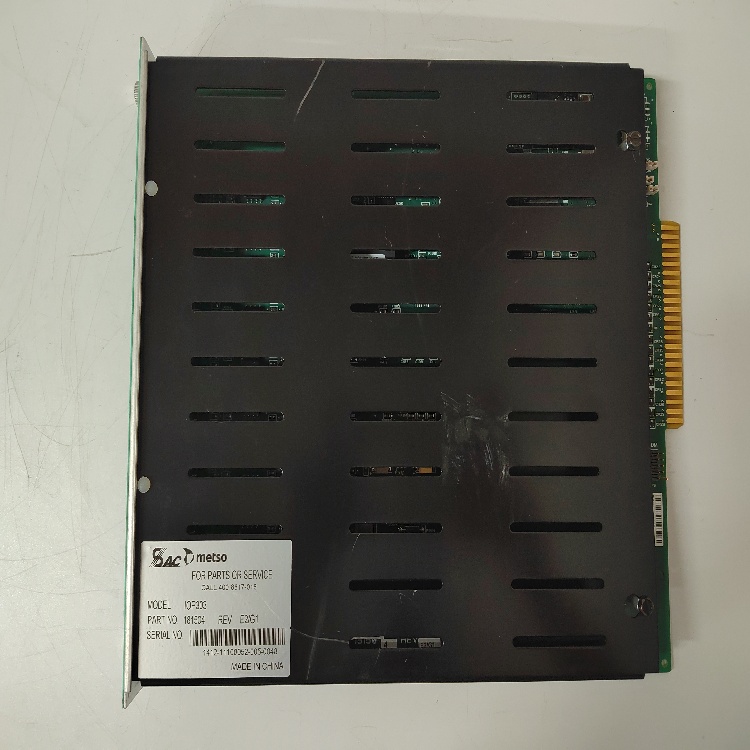

METSO IOP303 Industrial Control Module
