Product Overview

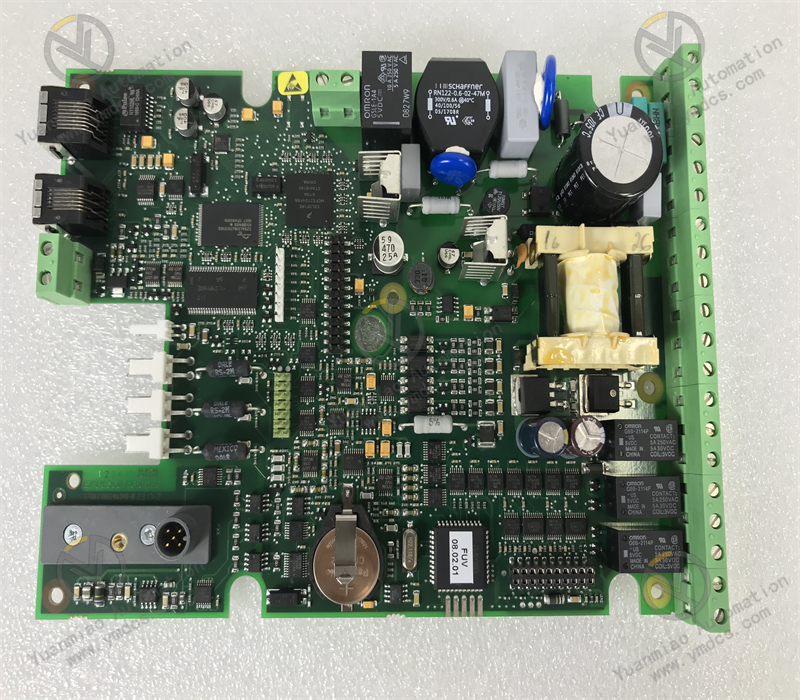

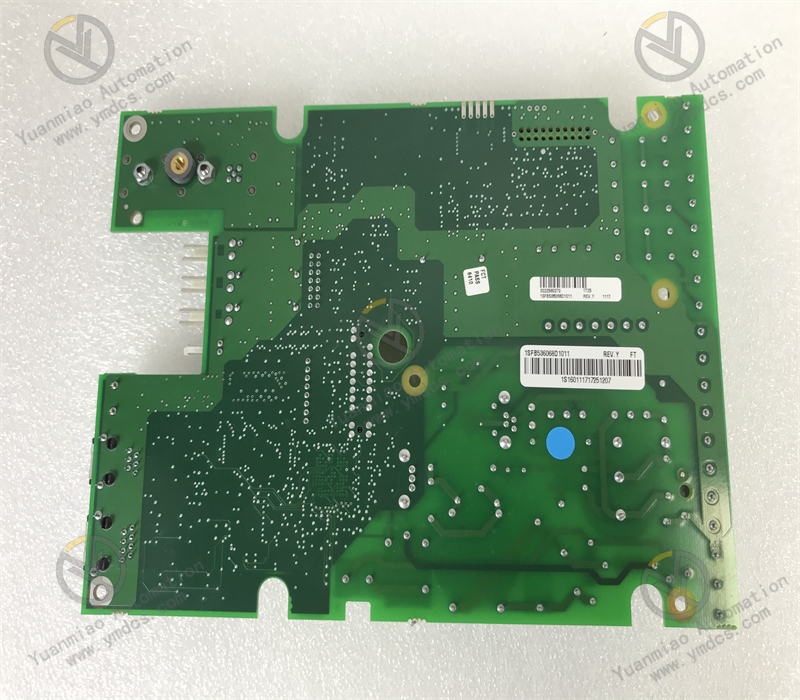

ABB 1SFB536068D1011 is a soft starter control board, and its alternative marking is PSPCB-LV/T. This board matches ABB PST and PSTB series low voltage soft starters, and it commonly works with PST105-600-70 and PSTB105 units. It runs core control logic for soft start and soft stop, and it sends optical isolation trigger signals to thyristors. Besides, it connects the local keypad and optional communication plug-in modules, so it acts as the central signal and control core of the soft starter.
Core Features
- Model: 1SFB536068D1011, PSPCB-LV/T, ABB soft starter main control PCB
- Compatible device: ABB PST, PSTB series soft starters, typical for PST105, PSTB105
- Control supply: 100-250V AC, 50/60Hz
- Optically isolated SCR firing output to separate power circuit and control circuit
- Built-in motor protection, current limit and ramp control algorithms
- Reserved slot for fieldbus communication modules, including Modbus, Profibus
Application
This control board applies to industrial motor soft start systems. It reduces starting inrush current for pumps, fans, compressors and conveyors. It suits replacement and maintenance for ABB PST / PSTB soft starter installations in factory automation, water treatment, mining and building HVAC systems.
