ABB 500BIO01 1MRB150005R1/J

I. Basic Information

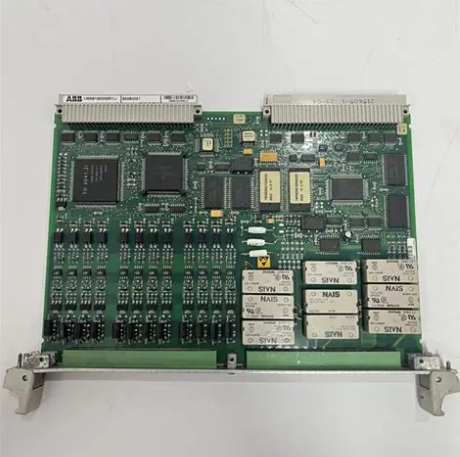

ABB 500BIO01 (1MRB150005R1/J) is an original configurable hybrid binary I/O card for Advant500/AC500 DCS/PLC series, manufactured in Sweden. As an integrated module dedicated to field discrete signal acquisition and local drive output of the control system with part number 1MRB150005R1/J.

Adopting plug-in CPCI European rack structure and opto-coupler isolated channel design, the module connects to main CPU via the internal backplane bus of 500-series and matches System800xA upper monitoring platform. It is widely applied in auxiliary control of thermal power plants, interlock control for chemical processes, complete metallurgical equipment and automatic control of water treatment pump rooms. Serving as the signal interface for on-site valve feedback, equipment start-stop status, fault alarming and interlock loops, it supports 24/7 maintenance-free continuous cabinet operation and is a common replacement spare part for legacy Advant500 systems.

II. Technical Specifications

(1) Basic Hardware Parameters

Model: 500BIO01, Part No.: 1MRB150005R1/J
Brand: ABB
Category: Programmable hybrid DI/DO discrete I/O Module
Compatible Systems: Advant Master500 DCS, AC500 PLC, System800xA Monitoring System
Application Scenarios: Auxiliary equipment interlock of utility boilers, logic control for chemical pumps and valves, start-stop control of dust removal fans, pump unit control for water treatment plants, automatic control of metallurgical belt conveyors
Mounting: Plug-in installation on standard CPCI rack slot, direct connection with main controller through backplane bus; supports hot-swap replacement under powered condition
Dimension: 36mm(W)×175mm(H)×110mm(D), Net Weight: 0.3kg
Protection Grade: IP20 (for cabinet installation only)
Structure: Fully SMD enclosed PCB, fanless passive cooling, vibration and shock resistant; 16 channels configurable flexibly via software
Core Functions: Field discrete signal collection, logic drive output, channel fault diagnosis and uploading of I/O data to main controller

(2) Rated Electrical Parameters

Power Supply: DC24V±10%, centrally fed by rack backplane; total power consumption ≤8W
DI Input Specification: DC24V active contact compatible with passive dry contact; rated input current 10mA per point
DO Output: Hybrid transistor/relay output; maximum load 2A per channel, suitable for contactor coils under resistive load
Isolation Standard: 2.5kV optoelectronic isolation between each channel and system side; single-channel fault cannot interfere with the entire board bus
Operation Mode: 24/7 uninterrupted powered operation to satisfy unattended running requirements of power plants

(3) I/O Configuration & Performance Parameters

Total Channels: 16 user-definable points via software; default configuration: 8DI+8DO, flexible for full 16DI or full 16DO setup
DI Filter: Adjustable input anti-chatter filter ranging from 0.2~32ms via software to suppress contact bounce and false signals caused by field interference
Response Speed: DI sampling time＜0.5ms, DO output delay＜1ms, applicable for high-speed safety interlock circuits
Event Timestamp: Local millisecond-level timestamp recorded upon every channel status change for accurate fault tracing
Output Protection: Built-in overcurrent, short-circuit and reverse polarity protection for DO; single-point locking upon load short-circuit without damaging the whole card

(4) Interface & Maintenance Parameters

Wiring: Partitioned high-density European screw terminals with separated DI/DO layout to prevent misconnection
Front Panel Indicators: Individual LED per channel plus common LEDs for power, run and fault status enabling intuitive on-site circuit checking
System Compatibility: Native 500-series internal backplane bus; automatically identified by CPU after power-up without hardware DIP switch setting
Maintenance Functions: Online channel configuration, remote fault diagnosis, channel forcing commissioning and remote firmware upgrade via System800xA upper platform

(5) Environmental Specifications

Operating Temperature: -25℃～+70℃, adaptable to cabinet temperature rise and seasonal ambient fluctuation in workshops
Storage Temperature: -40℃～+85℃, resistant to high/low temperature shocks during long-distance transportation and storage
Operating Humidity: 5%～95% RH (non-condensing), suitable for humid and dusty substation environments

III. Key Features

Flexible Channel Configuration Reduces Cabinet Space Cost

16 configurable channels allow free allocation of DI/DO quantities. One single module realizes both signal acquisition and drive output, cutting total I/O card quantity and optimizing cabinet layout.

Full-channel Opto-isolation for Zoned Fault Protection

Independent optocoupler isolation for each channel; short-circuit or overvoltage on field wiring only locks the faulty single point without disturbing backplane bus and main CPU, improving overall system fault tolerance and safety.

Programmable Anti-chatter Filter Prevents False Sampling

User-defined input filter duration via software eliminates signal bouncing induced by switch contact bounce and line clutter, reducing unexpected unit interlock and misoperation.

Millisecond Event Timestamp Enables Precise Fault Root Cause Analysis

Automatic timestamp recording on every digital status change facilitates accident review and root-cause identification of unit trip or unexpected interlock actions, complying with power plant safety supervision and troubleshooting requirements.

Maintenance-free Sealed Industrial Design

Constructed with non-wearing components and natural heat dissipation, dustproof and moistureproof for long-term continuous service without regular maintenance.

Direct Drop-in Replacement for Convenient Legacy System Retrofit

Direct plug-and-play substitution for old BIO-series cards on identical rack slots with no rewiring or control program modification, realizing cost-effective system expansion and spare part replacement.

IV. Working Principle

Power-on Self-test & Initialization: After DC24V energization, the module runs self-diagnosis on internal circuits, channel loops and backplane bus. Upon successful self-check, it completes handshake registration with CPU and loads preconfigured DI/DO parameter settings.
DI Signal Acquisition: Field 24V discrete signals from limit switches, equipment feedback contacts and local emergency stop are fed into sampling circuit after opto-isolation and hardware filtering.
Software Anti-chatter Processing: Jitter and noise are filtered out per preset time threshold; valid signals are converted into digital logic status and stored in internal registers.

DO Command Decoding & Output: Start/stop and interlock instructions issued from main controller via backplane are decoded and converted into level or contact signals to drive field loads such as contactors and solenoid valves.
Bidirectional Data Exchange: Collected DI status data is packed and uploaded to CPU through backplane; fault and wire-break information is synchronously transmitted to System800xA upper platform.
Real-time Status Indication: Channel LEDs light up synchronously with DI input or DO output status; corresponding indicator alarms once channel fault occurs.
Cyclic Steady Operation: The module repeats the cycle of data acquisition – logic processing – signal output – data upload under normal conditions to guarantee reliable round-the-clock operation of field interlock loops.

V. Application Scenarios

(1) Automatic Control System for Thermal/Cogeneration Boiler Auxiliaries

Collect local start-stop feedback, bearing temperature switch and lube oil pressure interlock signals as well as implement drive control for induced draft fans, forced draft fans, pulverized coal feeders and water pumps, integrated into DCS interlock protection logic.

(2) Process Control System for Petrochemical & Coal-Chemical Plants

Signal acquisition and valve driving for process shut-off valves, pump running feedback, local fault switches and safety interlock loops, adapted to corrosive and inverter-intensive harsh factory environments.

(3) Pump Room Automation for Municipal Sewage & Water Purification Plants

Status collection and remote start-stop control for intake pumps, aeration blowers and chemical dosing valves, supporting distributed I/O networking of whole water plant.

(4) Dust Removal & Belt Conveying System for Metallurgical & Steel Industry

Signal collection for dust removal fans, belt deviation/pull-cord switches and driving control of unloading valves, applicable to dusty workshops with frequent grid voltage fluctuation.

(5) Spare Part Replacement for Obsolete Advant500 DCS Systems

Replacement of faulty original BIO cards and I/O point expansion of legacy systems; direct in-situ installation without secondary circuit modification.
