Description
1. Product Overview

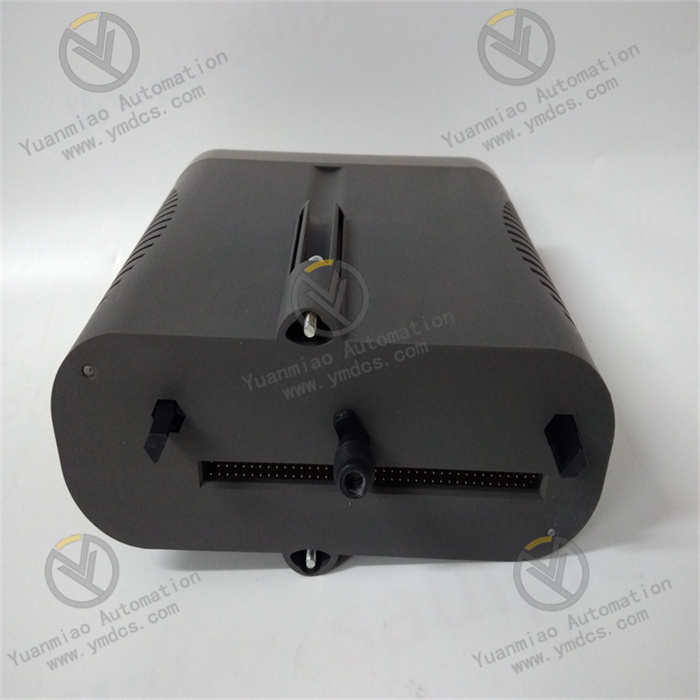

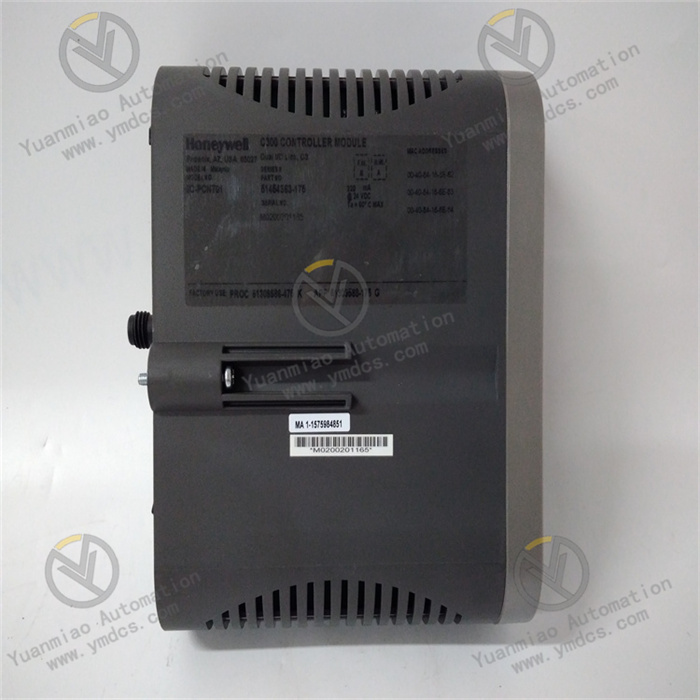

Honeywell 8C-PCNT01 is a high-precision 8-channel pulse counting I/O module of Honeywell Experion PKS Series 8. Designed for industrial high-speed pulse signal acquisition, position measurement, speed monitoring and incremental encoder signal processing, it matches the C300 Field Controller and serves as dedicated core hardware for motion control, flow accumulation, displacement monitoring and equipment speed management within DCS systems. Featuring conformal coating for triple-protection reinforcement, this industrial enhanced version enables long-term stable operation under harsh working conditions with dust, humidity and drastic temperature fluctuations.
The 8C-PCNT01 integrates 8 fully independent high-speed pulse counting channels to synchronously collect pulse signals from multiple incremental encoders, proximity switches, linear scales and flow meters. It delivers comprehensive functions including high-speed counting, phase discrimination, direction identification, accumulation measurement, threshold alarming and fault self-diagnosis. Compatible with the PKS system bus architecture and supporting online hot swapping and 7×24-hour uninterrupted operation, the module applies to high-precision measurement and motion control scenarios in chemical, oil & gas, metallurgy, power and automated production line industries. It is widely deployed in projects such as new system integration, expansion of existing measuring points and technical renovation for replacing pulse acquisition modules.
2. Functional Characteristics
2.1 8 Independent High-speed Pulse Acquisition Channels for Synchronous Multi-point Measurement
Equipped with 8 fully independent pulse counting channels, the module can simultaneously complete high-speed acquisition and calculation of 8-channel field pulse signals. Each channel operates independently without mutual interference and can be configured separately, greatly increasing the density of pulse measuring points in the DCS system while saving cabinet space and wiring costs. It supports mainstream signal types including single-phase pulses and AB-phase quadrature pulses, compatible with various pulse-output devices such as incremental encoders, high-frequency proximity switches, pulse flow meters and linear displacement scales. It can collect multi-dimensional process parameters such as speed, length, accumulated flow and displacement positioning concurrently to meet the demands of synchronous measurement and control for multiple industrial measuring points.
2.2 Quadrature Phase Recognition for Accurate Motion Direction Judgement
Supporting decoding of standard AB-phase quadrature pulses, the module automatically identifies forward/reverse and forward/backward motion of equipment, clearly distinguishing forward and reverse counting to eliminate measurement errors caused by mechanical return stroke or equipment reversal. Compared with ordinary single-channel counting modules, it perfectly suits scenarios requiring bidirectional motion monitoring such as conveyor belts, elevators, roller tables, precision displacement platforms and rotating mechanisms. It features high counting accuracy, no false direction judgement, no pulse loss and no counting jitter to guarantee precision of motion control and process measurement.
2.3 Multi-mode Counting Configuration with High Process Flexibility
Multiple operating modes including up-counting, down-counting, bidirectional quadrature counting and threshold-locked counting are available and can be freely switched via the host system to adapt to different process measurement logics. Extended functions such as pulse frequency monitoring, total pulse accumulation, instantaneous frequency conversion, count reset and threshold alarm output are provided. It can convert process parameters in real time, including equipment rotational speed, material flow rate, operating displacement and production steps, adapting to complex industrial working conditions such as batch production, continuous processes, reciprocating motion and high-frequency start-stop, and flexibly matching diverse automatic control logics.
2.4 Triple-protection Reinforcement & Industrial Anti-interference Design for High Operational Stability
Adopting exclusive triple-protection coating for the 8C series, the entire circuit board undergoes sealed reinforcement treatment for moisture-proof, dust-proof and anti-corrosion performance, capable of withstanding harsh on-site environments with humidity, dust, mild corrosive gas and sharp temperature changes. Built-in multi-stage electromagnetic filtering, high-frequency interference suppression and voltage transient protection circuits effectively resist electromagnetic crosstalk and pulse noise generated by frequency converters, high-voltage motors and high-frequency equipment, preventing false counting, lost pulses and counting drift to ensure long-term precise and stable high-speed pulse acquisition.
2.5 Hot-swappable O&M & System Compatibility for Ultra-low Maintenance Costs
Fully compatible with standalone and redundant architectures of the Honeywell C300 controller, and matched with the dedicated I/O backplane bus of the PKS system, it delivers stable communication, universal configuration and complete protocol adaptation. It supports online hot-swap replacement and maintenance; module overhaul, measuring point expansion and fault replacement can be implemented without shutdown or power cut of the plant, and will not interrupt continuous production of the whole process. Status indicator lights on the panel visually display module operation, bus communication, channel pulse input and fault abnormality, facilitating rapid on-site inspection and fault location and significantly reducing system maintenance difficulty and shutdown risks.
3. Technical Parameters
3.1 Core Adaptation Parameters
Product Model: 8C-PCNT01 Product Series: Honeywell Experion PKS Series 8 Product Type: 8-channel High-speed Pulse Counting Acquisition Module (Triple-protection Reinforced Type) Compatible Device: Honeywell C300 DCS Field Controller Core Functions: High-speed pulse signal acquisition, quadrature phase decoding, bidirectional counting, speed/flow/displacement measurement, threshold alarm, fault self-diagnosis, data upload Application Scenarios: Rotational speed monitoring of industrial equipment, material flow accumulation, mechanical displacement positioning, production line step counting, reciprocating equipment motion control, high-precision process parameter acquisition
3.2 Acquisition Electrical Performance Parameters
Input Signal Type: 24VDC pulse signal, AB-phase quadrature incremental pulse signal Number of Channels: 8 fully independent high-speed counting channels Operating Input Voltage: 24VDC industrial standard level Max Counting Frequency: Compatible with industrial high-frequency pulses for sampling of high-speed moving equipment Counting Modes: Configurable switching among up-counting, down-counting and bidirectional quadrature counting Recognition Capability: Support phase difference discrimination and automatic motion direction identification Protection Mechanism: Input overvoltage, overcurrent, pulse noise suppression, high-frequency interference filtering
3.3 Communication & System Adaptation Parameters
Communication Bus: Dedicated I/O backplane bus for PKS system System Architecture: Seamless compatibility with standalone and dual redundant architectures O&M Features: Support online hot swapping, maintenance without shutdown, expansion without shutdown Data Functions: Real-time pulse counting, frequency conversion, total accumulation, data upload Fault Feedback: Independent alarm for single-channel faults to precisely locate abnormal measuring points
3.4 Structure & Installation Parameters
Installation Method: Embedded installation in backplane slots of standard 9-inch DCS cabinets Structure Form: Series 8 standardized modular reinforced structure Hardware Technology: Industrial anti-aging PCB, whole-board triple-protection coating reinforcement, corrosion-resistant components Layout Feature: High-density integration of 8 channels with clearly partitioned terminals for neat wiring and convenient maintenance Version Feature: Conformal coating triple protection for harsh working conditions
3.5 Environmental Working Condition Parameters
Operating Temperature: -40℃～+70℃, stable operation under industrial ultra-wide temperature range Storage Temperature: -40℃～+85℃ Operating Humidity: 5%～95%RH (non-condensing), suitable for humid and dusty plant areas Vibration Resistance: Tolerate operational vibration and mechanical disturbance of industrial equipment Shock Resistance: Tolerate conventional industrial mechanical shock Operation Mode: Support 7×24-hour uninterrupted continuous operation all year round
4. Hardware Configuration and Structural Advantages
4.1 Core Hardware Configuration
The Honeywell 8C-PCNT01 module is equipped with 8 groups of independent high-speed pulse decoding and counting chips. Each channel implements hardware-based independent sampling, independent calculation and independent protection, thoroughly eliminating signal crosstalk and counting interference between channels to guarantee accurate and complete acquisition of pulse signals for every channel. The dedicated quadrature pulse decoding unit rapidly identifies AB-phase timing sequences and precisely judges equipment motion direction to avoid reverse counting errors. Onboard multi-stage high-frequency filter circuits, surge suppression and overcurrent protection chips automatically filter on-site noise interference, pulse jitter and voltage transients, resolving pulse loss, false counting and signal jump at the hardware level. All core control and communication components adopt high-reliability industrial materials, which have passed strict high-low temperature aging, vibration shock and EMC tests. The bus communication runs stably without packet loss, with no counting precision drift or performance degradation during long-term operation, meeting high-reliability requirements of continuous industrial high-precision measurement.
4.2 Structural Design Advantages
The module adopts the standardized reinforced modular structure of Honeywell Series 8. Its high-density 8-channel integrated design greatly saves cabinet installation space and adapts to compact layout of DCS control cabinets. The whole board is processed with triple-protection coating, delivering excellent dust-proof, moisture-proof, anti-corrosion and aging-resistant performance. Developed specifically for harsh environments in chemical, metallurgical, oil & gas industries, it outperforms ordinary uncoated modules in environmental adaptability. Internal circuits are scientifically partitioned; the signal acquisition area, operation processing area and bus communication area are fully physically isolated to effectively prevent electromagnetic interference and signal crosstalk. The standardized slot mounting structure features easy assembly and disassembly and firm positioning, supporting hot-swappable online maintenance without shutdown or power cut. Multi-status indicator lights integrated on the panel visually display module operation, bus communication, channel pulse input and fault status, facilitating rapid on-site inspection, fault location and maintenance troubleshooting and reducing system shutdown risks and maintenance costs.
5. Working Principle
The Honeywell 8C-PCNT01 pulse counting module achieves high-precision and highly stable acquisition and measurement of industrial equipment pulse parameters through a closed-loop working mechanism: Field Pulse Signal Acquisition → Hardware Filtering and Shaping → Phase Discrimination and Decoding → Counting Logic Calculation → Real-time Data Upload + Fault Monitoring and Protection.
After power-on, the module automatically completes hardware self-check, channel initialization, counting parameter configuration and backplane bus communication handshake. Once self-check is passed, it enters normal acquisition operation. Pulse signals output by field incremental encoders, pulse flow meters, proximity switches, linear scales and other devices are transmitted to the module via channel terminals. After multi-stage hardware filtering, signal shaping and noise elimination, the signals are converted into recognizable standard pulse levels. For AB-phase quadrature signals, the module rapidly analyzes phase timing of the two signals, automatically judges forward/reverse and forward/backward movement of equipment, and executes up-counting, down-counting or bidirectional differential counting according to preset configuration. It calculates total pulse accumulation, pulse frequency, equipment rotational speed, operating displacement and instantaneous flow rate and other process parameters in real time.
During operation, the module continuously monitors signal status, input level and loop conditions of each channel. Once signal abnormality, loop fault, input overvoltage or other faults are detected, a channel fault alarm will be triggered immediately to report abnormal measuring points accurately without affecting acquisition of other normal channels and preventing single-point fault spreading. The module uploads real-time counting values, accumulated quantities, converted process parameters and equipment status synchronously to the C300 controller and upper monitoring system via the PKS backplane bus, and receives remote configuration instructions to realize parameter modification, count reset, threshold setting and alarm linkage, comprehensively ensuring accurate, stable and continuous execution of industrial pulse measurement and motion control logic.
6. Application Scenarios
6.1 Flow & Conveying System Measurement for Chemical / Coal Chemical Industry
It is widely used for pulse flow meter signal acquisition in chemical and coal chemical plants for real-time accumulated pulse measurement of liquid, gas and material conveying flow. It precisely calculates instantaneous and cumulative flow of process media, providing accurate data support for material proportioning, energy consumption statistics and production measurement. Suitable for continuous processes and batch conveying in chemical industry, it effectively addresses pain points of traditional measurement methods such as large error, unstable data and incapability of bidirectional monitoring, ensuring precise and controllable measurement in chemical production.
6.2 Equipment Motion Control Monitoring in Metallurgical Industry
Applied to metallurgical rolling equipment, roller conveyors, heat treatment feeding platforms and reciprocating mechanisms, it collects quadrature pulse signals from encoders to realize rotational speed monitoring, travel displacement positioning, feeding step counting and forward/reverse status judgement. It precisely controls motion timing and process position parameters of metallurgical equipment, guarantees stability of rolling, heat treatment and material conveying processes, and adapts to harsh metallurgical working conditions with high temperature and strong electromagnetic interference.
6.3 Oil & Gas Transmission and Yard Equipment Monitoring
Deployed for pulse measuring equipment of long-distance oil & gas pipelines and gathering stations, it performs pipeline flow accumulation, operating condition monitoring of measuring equipment and rotational speed statistics of conveying equipment. Leveraging triple-protection reinforcement and strong anti-interference capability, it adapts to field station conditions featuring wide temperature variation, heavy dust and complex electromagnetic environment, ensuring accurate, continuous and traceable measurement data for oil & gas transmission and meeting production measurement and safety control standards of the oil & gas sector.
6.4 Precision Measurement & Control for Automated Production Lines
Suitable for light industry, machinery manufacturing and automated production lines, it implements pulse acquisition and position control for precision displacement platforms, conveyor lines and reciprocating processing equipment, achieving production line step counting, workpiece positioning and closed-loop monitoring of equipment rotational speed. With high-speed bidirectional counting and high-precision decoding capability, it guarantees precise actions, stable production rhythm and high consistency of finished products on automated lines, improving automatic control accuracy and production efficiency.
