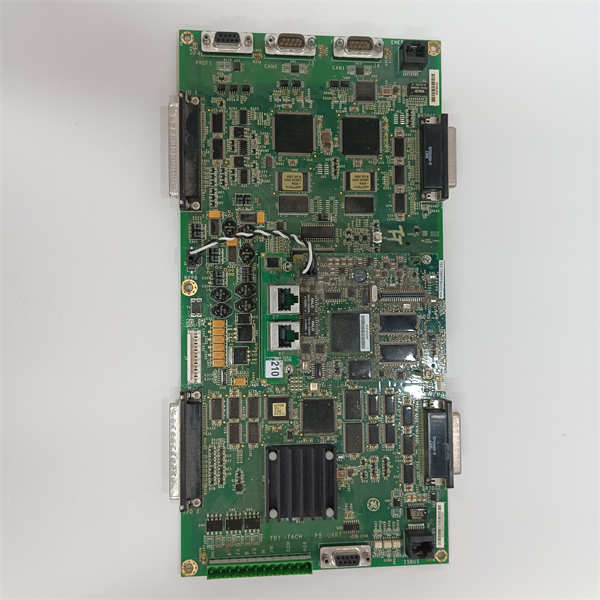

GE IS210MACCH1AGG Analogue I/O Communication Coprocessor Board

Description

I. Product Overview

GE IS210MACCH1AGG is a multi-function analog I/O communication co-processing board for GE Speedtronic Mark VIe turbine control system. It integrates analog signal conditioning acquisition and dual redundant IONET communication transmission. As the core data processing unit of distributed I/O racks, it undertakes AD conversion, filtering isolation and engineering value conversion of process signals such as temperature, pressure, flow and valve LVDT feedback. It uploads packaged data to the main controller via dual Gigabit Ethernet, receives analog regulation commands and outputs standard drive signals to field actuators, building a high-speed bidirectional data transmission channel between field sensors and upper control units. It is widely applied in gas/steam turbine units, EX2100e excitation systems and gas-driven compressor units in petrochemical industry for process monitoring, closed-loop speed regulation and safety protection。

Adopting multi-layer flame-retardant PCB and three-proof conformal coating design, the board is equipped with 32-bit industrial processor and 16-bit high-precision AD/DA chips. Each channel adopts independent optoelectronic isolation and surge suppression, supporting 4-20mA, 0-10V, RTD, thermocouple signal types. Compatible with simplex, dual hot-standby and TMR triple modular redundant architectures, it realizes full-channel self-diagnosis, line break detection and fault event local storage. Certified by CE, UL and Class I Div2 hazardous area standards, it can operate 24/7 under harsh industrial conditions of high temperature, dust, electromagnetic interference and long-term vibration, serving as a critical spare part for power plant overhaul, I/O expansion and faulty module replacement.

II. Hardware Structure and Composition

1. High-performance Signal Processing Unit

Equipped with 32-bit real-time processor and 16-bit high-resolution conversion chips, the board completes signal filtering, isolation calibration and range conversion in millisecond cycles, realizing bidirectional conversion between field analog signals and system digital instructions to guarantee high precision of closed-loop control loops such as speed, load and excitation regulation. The three-proof coating effectively improves environmental adaptability and prevents insulation degradation caused by moisture and dust.

2. Dual Redundant Gigabit IONET Communication Circuit

Two independent Gigabit Ethernet ports support hot-backup seamless switching within 10ms to avoid data loss caused by single-link failure. Compatible with Mark VIe dedicated IONET protocol, it supports logic downloading, parameter tuning, fault alarm uploading and remote firmware upgrade to meet multiple demands of system commissioning, operation monitoring and program maintenance.

3. VME Backplane Bus Interface

High-density gold-plated VME connectors realize high-speed bidirectional data interaction with all I/O modules in the rack, completing centralized collection of real-time channel data, fault codes and alarm information as well as distribution of upper control instructions. The gold-plated connector features excellent anti-oxidation and anti-vibration performance to avoid intermittent communication faults caused by long-term equipment vibration.

4. Isolated Power Conversion and Multi-level Protection Circuit

Supplied with standard 24VDC backplane power, the built-in isolated DC-DC module provides stable working voltage for core chips, with five-level hardware protection against overvoltage, undervoltage, overcurrent, reverse connection and surge. Single-channel load faults will be locally isolated without causing overall board power failure or rack communication paralysis.

5. On-board Diagnosis and Configuration Components

Multiple LED indicators display operating status including power supply, firmware, dual Ethernet, hardware fault and redundancy synchronization for rapid on-site troubleshooting. Reserved DIP switches support I/O rack address setting, redundancy mode and communication rate configuration to adapt to various safety control architectures.

III. Technical Specifications

(1) Electrical Parameters

Rated Input Voltage: 24VDC, allowable fluctuation range: 20～28VDC

Sampling Resolution: 16-bit, full-scale accuracy ±0.1%

Supported Signal Types: 4～20mA DC, 0～10V DC, RTD, Thermocouple

Typical Power Consumption: ≤12W

Communication Interface: Dual redundant Gigabit IONET Industrial Ethernet

Signal Processing Cycle: Millisecond-level multi-channel parallel AD/DA conversion

Redundancy Switching Time: ≤10ms

Protection: Full-channel optoelectronic isolation, overvoltage, undervoltage, overcurrent, reverse connection and surge multi-level protection

Operation Modes: Simplex, Dual Hot-standby, TMR Triple Modular Redundancy

Process: Whole board three-proof conformal coating

(2) Environmental Parameters

Operating Temperature: -40℃～+70℃, derating required above 1000m altitude

Storage & Transportation Temperature: -40℃～+85℃

Relative Humidity: 5%～95%RH, non-condensing, free of corrosive gas and conductive dust

Ingress Protection: IP20, only for indoor ventilated control cabinets

(3) Mechanical Parameters

Mounting: Standard VME rack vertical slot installation

Net Weight: Approx. 0.4kg

Fixing: Panel locking screws with independent star protective grounding terminal

IV. Product Functions and Features

Multi-signal Compatibility for Dual Scenarios of Turbine and Excitation System
It can be directly connected to various field transmitters and LVDT valve feedback sensors, and perfectly matches the signal collection and closed-loop regulation requirements of the EX2100e excitation system, reducing on-site wiring and renovation costs for process monitoring and control projects in multiple industries.
Full-channel Isolation & Dual Redundant Communication Ensures High Operational Reliability
Independent electrical isolation of each channel blocks electromagnetic crosstalk and realizes fault isolation to avoid system-wide control disorder caused by single-point faults. Native TMR triple redundant 2-out-of-3 voting design complies with SIL3 safety specifications and eliminates risks of unplanned unit shutdown caused by single hardware or communication failure.
Full-range On-board Self-diagnosis Realizes Traceable Fault Location
The board continuously monitors the integrity of power supply, processor, communication links and all I/O channels, latches fault information locally and uploads alarms to the upper system. Maintenance personnel can query historical fault logs to quickly locate faulty measurement points and shorten equipment maintenance downtime.
Full Compatibility with Mark VIe System Guarantees Convenient Spare Part Replacement
Standardized hardware size, backplane protocol and communication specification support direct replacement of legacy faulty boards, with functions including address configuration, channel calibration and online firmware upgrade, perfectly matching equipment overhaul, I/O expansion and safety architecture upgrading projects.
Industrial Wide-temperature Three-proof Design Delivers Long-term Stable Operation
Wide-temperature industrial components plus shielding PCB layout and conformal coating enable stable operation under high-temperature, dusty and vibrating cabinet environments, with MTBF exceeding 100,000 hours and low routine maintenance frequency.

V. Application Scenarios

Analog signal acquisition and closed-loop regulation hardware deployment for gas/steam turbine units adopting Mark VIe control system in thermal and combined-cycle power plants.
Hardware supporting and spare part replacement for excitation voltage and current signal collection of generator EX2100e excitation systems.
Process monitoring system hardware deployment and redundancy expansion for gas-driven compressor units in petroleum and chemical industries.
Safety monitoring and speed control I/O system supporting installation for waste heat power generation and large industrial drag turbines.
Same-model upgrading and replacement of communication-abnormal analog I/O co-processing boards during annual overhauls of legacy GE turbine and excitation control systems.
