ABB IGCT 5SHX10H6004 5SXE05-0152

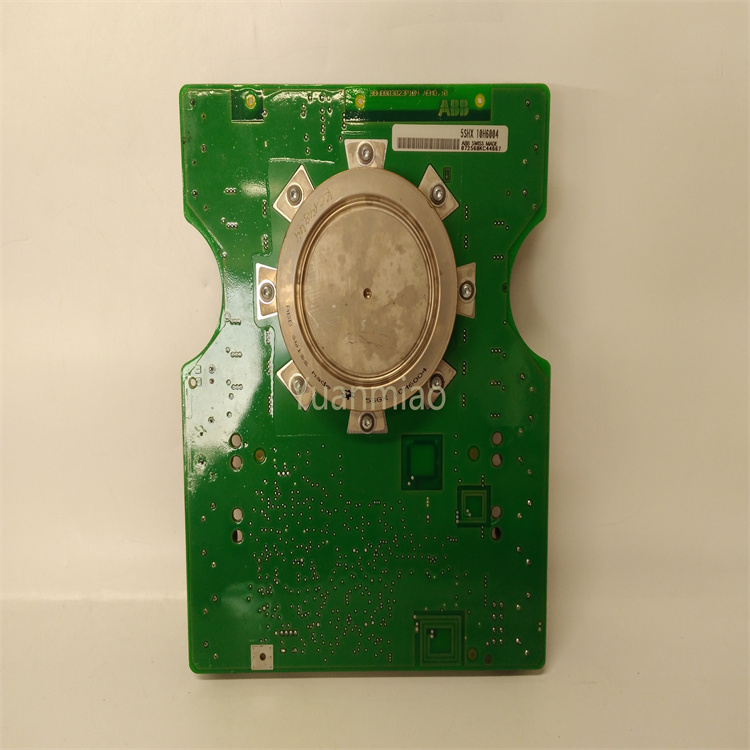

I. ABB 5SHX10H6004 High-performance Asymmetric IGCT Module

The ABB 5SHX10H6004 is a high-performance asymmetric Integrated Gate-Commutated Thyristor (IGCT) module. Adopting advanced semiconductor processes, it integrates a gate-commutated thyristor and a reverse conducting diode in a single package, and is tailor-made for high-power, high-demand industrial electronic applications. Relying on its fast switching performance and high reliability, it has become a core power device for medium and high-voltage, high-power systems. Originally produced in Switzerland, it features the advantage of brand-new in-stock supply.

(I) Technical Parameters

Rated Specifications: The rated repetitive peak off-state voltage reaches 3300V, and the peak current is up to 6kA, boasting an excellent capacity for handling high-voltage and high-current loads. It can stably withstand the load of medium and high-voltage heavy-duty working conditions and is suitable for the requirements of high-power density systems.
Operating Environment: The junction temperature operating range is -40℃ to +125℃ with excellent wide-temperature adaptability; the thermal resistance is as low as 0.04 K/W for high heat dissipation efficiency. It is resistant to cosmic radiation (suitable for sea-level operation) and can run stably for a long time in harsh industrial environments; its protection grade complies with industrial standards, adapting to various heavy-duty scenarios.
Key Performance: It features fast switching response with turn-on delay ＜3μs, turn-off delay ＜6μs and timing accuracy ＜800ns, as well as low switching loss. Adopting a direct optical fiber control interface, it realizes noise-free signal transmission and has an extremely strong electromagnetic interference (EMI) resistance, suitable for industrial sites with high electromagnetic interference. Equipped with ABB's patented free-floating silicon technology, it further optimizes electro-thermal performance, reduces operating loss and improves module reliability.
Installation Specifications: Adopting a press-pack mounting design with a compact structure, it has dimensions of 439mm×173mm×41mm and a weight of about 2.9kg. It can be efficiently integrated into various high-power density systems with convenient installation and maintenance, meeting the integration requirements of large industrial equipment.

(II) Features and Advantages

High-power Adaptability: The asymmetric structural design is optimized for high-power industrial electronic applications, and can effectively meet the precise control requirements of medium-voltage drives, traction systems and power converters. It performs outstandingly in high-voltage and high-current scenarios and can achieve stable turn-off without complex snubber circuits.
Intelligent Stability: Relying on the optical fiber control interface and patented silicon technology, it realizes interference-free signal transmission and high-efficiency electro-thermal conversion. Combined with its excellent environmental adaptability, it can effectively avoid the impact of electromagnetic interference and temperature fluctuations in industrial sites on equipment operation, reduce the failure rate, improve the operational stability and service life of the system, and comply with industrial-grade reliability standards.
High Energy Efficiency: With low switching loss, small thermal resistance and high energy conversion efficiency, it can effectively reduce the energy consumption of industrial equipment. Especially in long-term heavy-duty operation scenarios, it can significantly reduce energy waste, lower the operating costs for enterprises, and is also suitable for energy recovery-related applications.
High Reliability: Manufactured in accordance with strict quality control standards, it has excellent voltage and current withstanding capacity, can withstand harsh industrial environments and cosmic radiation, and is suitable for long-term continuous operation requirements. It reduces unplanned downtime, ensures the continuity of industrial production, and complies with the high-quality standards of ABB industrial devices.

(III) Application Fields

By virtue of its excellent high-power control performance, this module is widely used in high-power industrial drives, power transmission, renewable energy and other fields, and is especially suitable for heavy-duty and high-voltage scenarios, including:

Renewable Energy Field: Wind power generation systems and high-power converters provide technical support for the efficient access and utilization of renewable energy, adapting to the power conversion requirements of new energy equipment such as wind power and photovoltaic power.
Rail Transit Field: Rail transit traction converters provide key power support for rail transit systems such as subways and high-speed railways, ensure the stable operation of traction systems, and meet the high-voltage and high-current control requirements of traction converters.
Industrial Drive Field: Variable frequency speed regulation control of large fans and pumps, high-power motor drives in iron and steel, mining and other industries, power transformer control, etc. It is suitable for the precise control requirements of heavy-duty industrial equipment and can be used as a freewheeling diode in motor drive circuits.
Power System Field: Medium-voltage drives, grid converters, industrial inverters, high-voltage direct current (HVDC) related equipment, realizing efficient energy conversion and control, adapting to the needs of power transmission and energy management, and can also be used in power electronic equipment such as UPS.
Other Fields: Occasions requiring high-reliability power conversion such as electric vehicle charging piles, as well as various high-voltage and high-current control projects in industrial automation, adapting to the high-power equipment control requirements of chemical, water treatment and other industries.

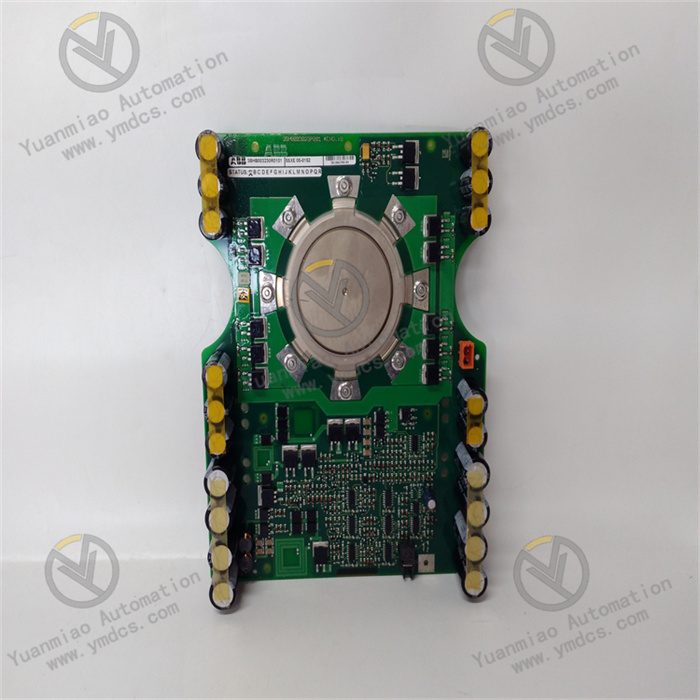

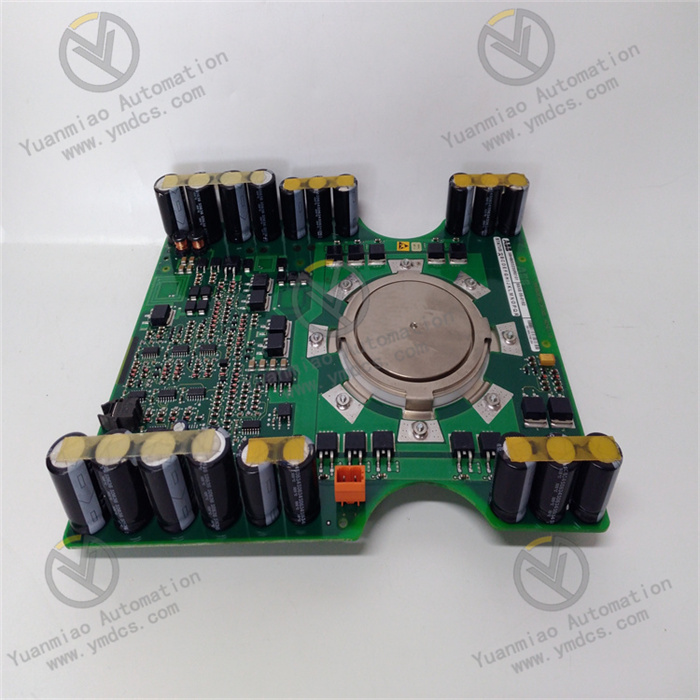

II. ABB 5SXE05-0152 Thyristor Module

The ABB 5SXE05-0152 is a high-performance semiconductor thyristor module (thyristor rectifier component) with a four-layer three PN-junction structure. It is small in size, simple in structure and powerful in function, belonging to a general-purpose power control device. It is mainly used for power control and regulation in industrial control systems, adapting to the control requirements of medium and high-power loads. It can be used with a variety of ABB industrial modules and is widely applied in various industrial automation scenarios.

(I) Technical Parameters and Features

Rated Specifications: It has excellent high-voltage and current carrying capacity, adapting to the control and regulation requirements of medium and high-power loads, with stable conduction performance and the ability to provide continuous and reliable power output. For specific parameters, please refer to the ABB official data sheet and supporting application instructions. It has good parameter compatibility with devices of the same series (such as 5SHX1445H0001).
Core Performance: It features excellent switching characteristics, low conduction loss and high control precision, and can realize various functions such as controlled rectification, inversion, frequency conversion, voltage regulation and contactless switching, adapting to the power regulation requirements of different scenarios. With fast response, it can quickly adapt to load changes, ensure stable power output, and comply with industrial-grade control precision standards.
Protection Functions: Built-in overcurrent and overvoltage protection mechanisms; overheating protection can be achieved with the cooperation of external protection circuits in some scenarios. It can effectively resist the damage of circuit faults to the module and the entire system, improve the operational safety of the system, reduce the cost of fault maintenance, and comply with the relevant IEC industrial safety standards.
Structure and Compatibility: Adopting a modular and compact design, it is small in size and easy to install, maintain and replace, and can be used efficiently with other industrial components (such as heat sinks and drive circuits). It can be seamlessly adapted to ABB industrial control systems, run in conjunction with a variety of ABB power modules and controllers with strong compatibility, and also support the adaptation requirements related to common industrial communications such as RS-232/RS-485 (matching corresponding control circuits is required).

(II) Application Fields

By virtue of its general-purpose power control capability and high reliability, this thyristor module is widely used in various industrial fields, especially suitable for scenarios requiring precise power regulation, including:

Industrial Automation Field: Speed regulation of industrial motors, dimming, voltage regulation, temperature regulation control, and power regulation in various industrial control circuits. It is suitable for the control requirements of equipment such as automated production lines and industrial machine tools, and can be used as a core power regulation device to ensure the precise operation of equipment and realize automatic control in cooperation with PLC.
Power Electronics Field: Core power control of controlled rectifier circuits, inverter circuits, frequency conversion circuits, voltage regulation circuits, UPS equipment, switching power supplies, chargers and other power electronic equipment. It is suitable for the high-efficiency operation requirements of power electronic equipment, and can be used as a rectifier or freewheeling component to improve the operational efficiency and stability of equipment.
General Industrial Field: Power control and regulation applications in power systems, manufacturing, chemical industry, water treatment, papermaking and other industries, adapting to various medium and high-power industrial equipment. It can be used with ABB ACS series frequency converters and other equipment to realize integrated power control. It is also suitable for the power control requirements in the digital upgrading of old factories and compatible with solutions such as smartLink.
Other Fields: Contactless switch control, motor drive auxiliary circuits, power supply control of industrial equipment, etc. It is suitable for various scenarios requiring stable power regulation, and can be used as an auxiliary power device to improve the overall operational stability of the system and reduce the equipment failure rate, adapting to occasions requiring fast response such as high-frequency switching power supplies and motor drives.

III. Differences and Adaptation Suggestions of the Two Devices

Positioning Differences: The 5SHX10H6004 is a high-power asymmetric IGCT module, focusing on high-voltage and high-current (3300V, 6kA peak) and fast switching, suitable for high-power density and heavy-duty scenarios, and is mainly used for power conversion and drive; the 5SXE05-0152 is a general-purpose thyristor module, focusing on medium and high-power regulation, with a simple structure and strong compatibility, mainly used for general power control scenarios such as rectification, frequency conversion and voltage regulation. It is more positioned as a general-purpose regulation device and forms a complement to the 5SHX10H6004 in terms of power level and function.
Technical Differences: The 5SHX10H6004 adopts press-pack installation and optical fiber control, has wide-temperature adaptability, low loss, high EMI resistance, and is equipped with patented silicon technology; the 5SXE05-0152 adopts modular installation with a simple structure, focuses on general regulation, has complete protection functions, adapts to a variety of industrial control circuits, does not require complex control interfaces, and is more convenient for installation and commissioning. The two devices have significant differences in installation methods, control interfaces and the focus of core technologies, adapting to the requirements of industrial systems with different complexities.
Adaptation Suggestions: For high-voltage and heavy-duty scenarios such as rail transit traction, wind power converters and large motor drives, the 5SHX10H6004 is the preferred choice; for medium and high-power regulation scenarios such as industrial automation voltage regulation, general rectification and variable frequency speed regulation, the 5SXE05-0152 is the preferred choice. At the same time, according to system requirements, the two devices can be used in conjunction with ABB ACS series frequency converters, PLC and other equipment to achieve high-efficiency system operation, give full play to the compatibility advantages of ABB devices, improve the overall stability and operational efficiency of industrial systems, reduce system operation and maintenance costs, and adapt to the industrial control requirements of different industries and power levels. In addition, the appropriate device can be selected in combination with the aging degree of equipment and the demand for digital upgrading to achieve a balance between system performance optimization and cost control.

IV. General Installation and Maintenance Notes

To ensure the safe and stable operation of the devices and the entire industrial system, the following requirements must be followed for installation and maintenance, which shall be performed by professionally qualified personnel who are familiar with the details of ABB devices and industrial electrical specifications:

Pre-installation Inspection: Visually inspect the integrity of the device, ensure no damage to pins/interfaces and no breakage of the package, confirm that the device model matches the system requirements, check the adjustment status of supporting protection devices, and conduct installation only after confirming no abnormalities. At the same time, clean up dust and debris in the installation area to avoid affecting the heat dissipation and interface connection of the device, ensure that the installation environment meets the device working requirements (temperature, humidity, etc.), and check the matching of installation dimensions and methods to avoid device damage or system failure caused by improper installation.
Safe Operation: Before installation and maintenance, all power supplies of the system (including power circuits and auxiliary circuits) must be cut off, the switch must be set to the off position, and the device must be operated after it is completely cooled; if complete power failure is not possible, appropriate personal protective equipment (insulating gloves, insulating tools, etc.) must be equipped, and industrial electrical safety specifications must be strictly followed to avoid safety accidents such as electric shock and device damage. At the same time, avoid device damage caused by electrostatic interference, handle the device with care during operation, avoid colliding with the device package and pins/interfaces, and prevent package breakage or interface loosening from affecting device performance.
Regular Maintenance: Conduct a comprehensive maintenance once a year under normal operating conditions; the maintenance interval shall be shortened to 6 months if the operating environment is harsh (high temperature, high humidity, heavy dust) or faults such as short circuit and overcurrent have occurred. Maintenance contents include: removing dust and smoke stains on the device surface and installation area with a dry and clean cloth; checking the tightness of pins/interfaces and connection parts, cleaning the pluggable contacts and lubricating them appropriately; testing the switching performance, protection functions and relay action of the device; checking the operation status of the heat sink to ensure unobstructed heat dissipation and avoid overheating damage of the device caused by poor heat dissipation. At the same time, check the device operating parameters to ensure they are consistent with the system requirements, timely detect and handle problems such as abnormal parameters and device aging, extend the service life of the device, and ensure the long-term stable operation of the system. No-load test must be conducted after maintenance, and the device can be put into actual use only after confirming its normal operation. Records shall be kept during maintenance to facilitate subsequent fault diagnosis and system optimization.
