Description
1. Product Overview

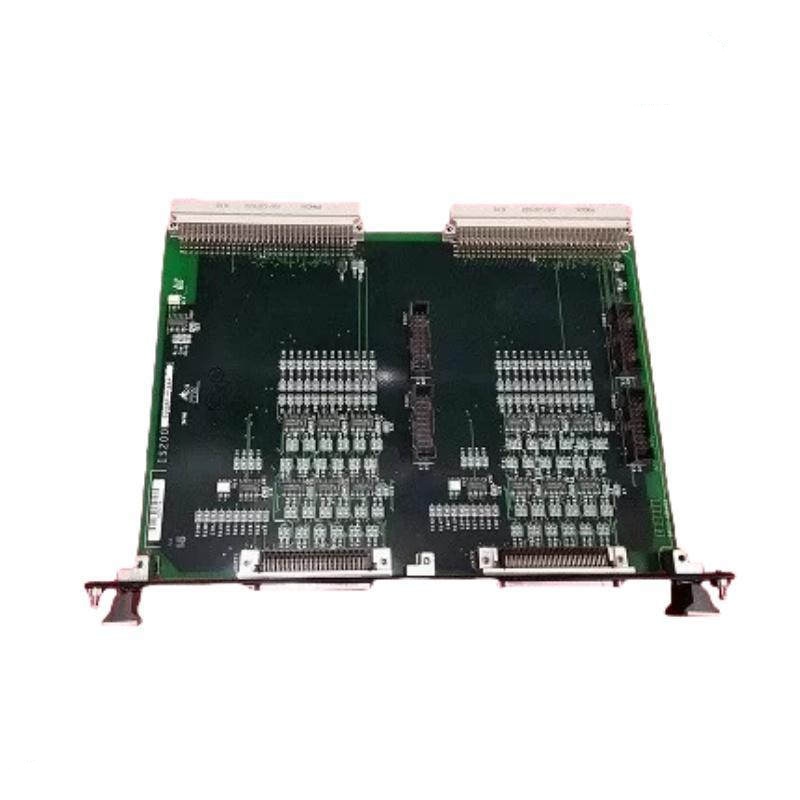

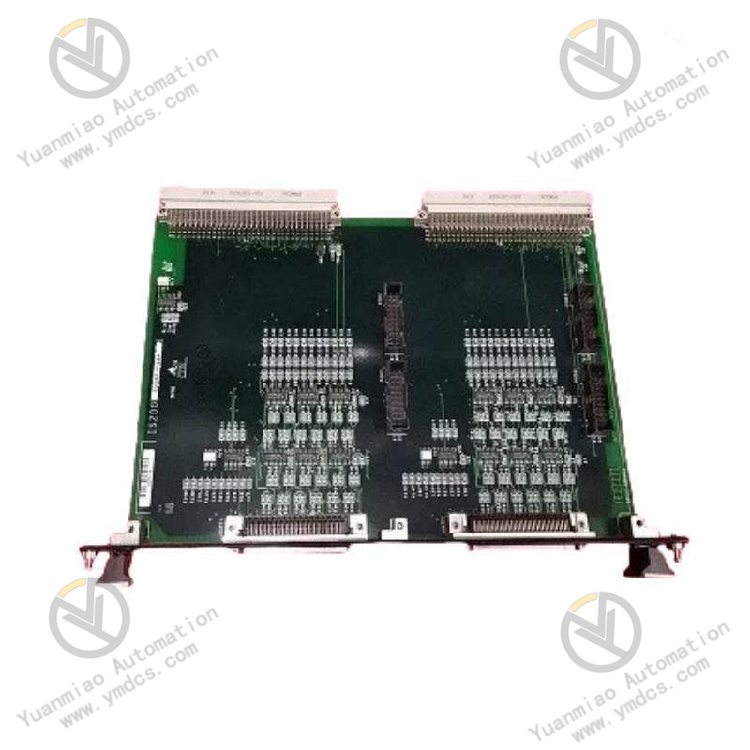

Part Number: IS200BPIIH1AAA
Manufacturer: General Electric (GE)Compatible System: Exclusively designed for GE Speedtronic Mark VI turbine control rack, mandatorily installed only in Rack Slot 6 with no cross-slot interchange. It acts as a signal bridge between IGCT power switching units, IS200GGXIG load source boards and BICI main control boards. RS-422 bus transmits gate trigger commands and feedback status, serving as the core signal hub for closed-loop control of high-power variable frequency and excitation units.
2. Hardware Structure & Six Functional Units
2.1 RS-422 Differential Bus Gate Signal Relay Unit
Onboard multiple RS-422 transceiver ICs adopt point-to-point differential transmission to send IGCT on/off trigger signals and collect device status feedback. Differential anti-interference suppresses EMI noise from excitation and VFD switching. The system triggers immediate fault alert once communication cable is broken to prevent uncontrolled power device misfiring.
2.2 Link Integrity Verification & ID Recognition Unit
Onboard serial PROM chip and pull-up resistor network verify hardware ID and full signal path connectivity during power-on. Loose wiring, detached cables or pin poor contact cause abnormal pull-up level and latched fault data uploaded to CPU for rapid fault location without manual line inspection.
2.3 Front Dual JGATE External Interface Unit
Two independent 68-pin D-SUB connectors labeled JGATE1 and JGATE2 on front panel connect two IS200GGXIG load boards separately to expand IGCT mounting capacity. Built-in locking latches secure cables against vibration-induced disconnection on site.
2.4 Rear Dual 128-Pin Backplane Bus Unit
Two 128-pin gold-plated high-density backplane connectors P1 & P2 plug into Mark VI baseboard for bidirectional high-speed data exchange with BICI and system CPU. Dual connectors provide redundant backup for basic communication if one path has poor contact.
2.5 Slot Lock & Anti-Misinstallation Unit
Front panel is clearly marked SLOT 6 ONLY with mechanical positioning limit. Insertion into wrong slot causes pin bending and permanent PCB damage. Two fastener clamps lock the board into rack to avoid displacement and bad contact under long-term turbine vibration.
2.6 Industrial Reinforced PCB with Conformal Coating
Multi-layer gold-plated flame-retardant FR-4 PCB fully coated with moisture, corrosion and salt-spray resistant conformal coating. Fanless passive cooling via rack airflow supports 24/7 continuous operation under high cabinet temperature, humid coastal atmosphere and mechanical vibration.
3. Detailed Technical Specifications
(1) Core Interface & Hardware Parameters
| Item | Specification |
|---|---|
| Model | IS200BPIIH1AAA BPII Bridge Power Interface Board |
| Platform | GE Speedtronic Mark VI Gas & Steam Turbine Control System |
| Mandatory Slot | Fixed Slot 6 only, cross-slot installation prohibited |
| Front Interfaces | JGATE1, JGATE2 × 68-pin D-SUB connectors |
| Rear Interfaces | P1, P2 × 128-pin rack backplane gold-plated connectors |
| Communication Bus | RS-422 differential serial bus, point-to-point transmission |
| Signal Relay Capacity | Max 24 IGCT gate trigger commands + 24 status feedback channels |
| Hardware Identification | Onboard PROM + pull-up circuit for link continuity & board ID auto-check |
| Onboard Components | No field-replaceable fuses, test points, LED indicators or adjustable trimmers |
(2) Electrical & Communication Parameters
- Power Supply: Centralized power feeding from Mark VI rack backplane per official specification
- Signal Level: Standard RS-422 differential level with strong common-mode noise rejection
- Fault Logic: Fault code reported instantly for cable open, interface disconnection or ID mismatch
- Bus Protocol: Native Mark VI parallel backplane bus with no extra protocol converter
- Hot Swap Restriction: Hot plugging while rack is energized is strictly prohibited, which permanently breaks backplane pins and transceiver chips.
(3) Environmental Operating Parameters
- Operating Temperature: -20℃ ~ +65℃
- Storage & Transport Temperature: -40℃ ~ +70℃
- Humidity: 5%~95%RH non-condensing, no corrosive gas or salt fog deposition
- Ingress Rating: IP20 for installation inside sealed industrial control cabinets only
(4) Mechanical Mounting Dimensions
- Mounting: Horizontal plug-in into standard Mark VI rack slot, fixed with locking screws
- Net Weight: Approx. 1.2kg
- PCB Finish: Anti-oxidation gold plating on traces and backplane contacts for repeated maintenance plugging
- Structure: Standard rack-width integrated non-detachable modular design
4. Product Advantages
- Dedicated signal isolation bridge for IGCT drive separates main control logic from high-power drive circuits to eliminate EMI crosstalk preventing spurious trips and misoperation.
- End-to-end auto-diagnosis distinguishes faults among board itself, front cable, GGXI slave board and backplane slot via upper diagnostic software to cut outage troubleshooting time.
- Dual JGATE ports support two load expansion boards on single board to reduce rack slot occupation and cabinet wiring complexity with fewer failure nodes.
- Physical slot restriction eliminates configuration mismatch error caused by human misinsertion from hardware installation level.
- Wear-free component-free design requires only annual latch inspection during unit overhaul cycles with minimal routine maintenance workload.
- Full native Mark VI protocol compatibility enables plug-and-play replacement without program or configuration modification after spare part swap.
5. Application Scenarios
Combined-Cycle Thermal Power Gas Turbine Main Control System
Serves as dedicated signal bridge between BICI main board and GGXI drive boards for IGCT excitation unit and variable-frequency startup loop, transmitting excitation regulation and unit start/stop trigger signals while collecting overcurrent/overheat fault feedback, critical for grid-connected power generation load adjustment.
Petrochemical Large Compressor Drive Control System
Used in Mark VI control system of cracking gas compressors and process drive turbines for command forwarding and status monitoring of high-power IGCT variable-frequency modules to guarantee closed-loop speed regulation and anti-surge interlock signal stability.
Legacy Mark VI System Retrofit & Spare Part Replacement
In-situ replacement for aging boards suffering from pin oxidation, chip damage and link verification errors; additional installation for new IGCT drive branches to expand system signal channels.
Preventive Spare Part Inventory for Power Plants
Stocked as critical automation spare parts to respond to sudden board failure and avoid unit load reduction or unplanned shutdown due to excitation loop disconnection and power device runaway.
