1. Product Overview

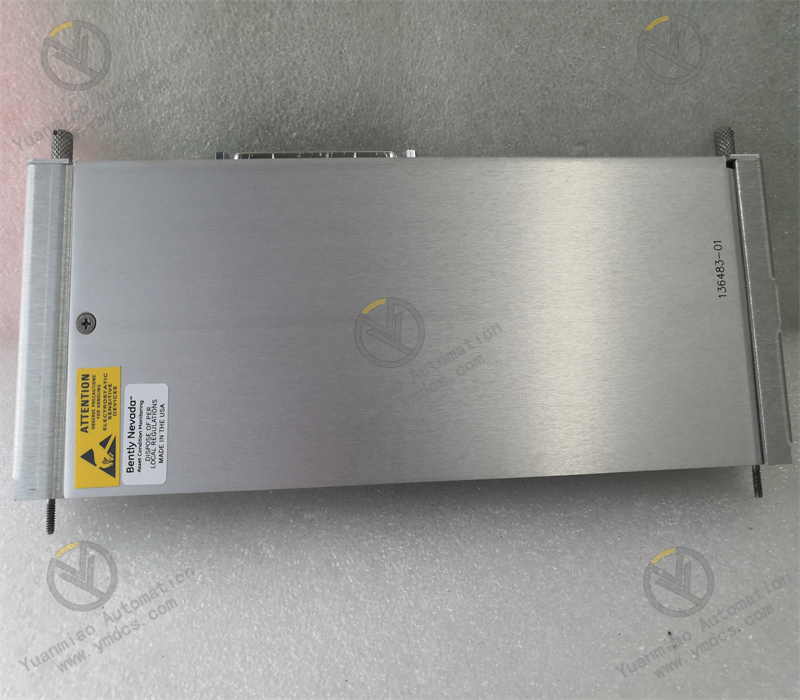

Bently Nevada 136483‑01 is an isolated I/O rear‑card module for the 3500‑series system. It is a dedicated back‑end signal isolation and transition unit matched with the 3500 machinery protection monitoring system, fully compatible with the Bently Nevada 3500 rack monitoring architecture. The module is mainly used for isolation, filtering, anti‑interference processing and signal transition of field sensor signals. It supports signal access from front‑end devices such as eddy‑current probes, velocity transducers and temperature sensors, and effectively isolates strong electromagnetic interference, signal clutter and potential‑difference interference on industrial sites. Featuring high‑fidelity signal transmission, stable isolation performance, strong compatibility and drift‑free long‑term operation, it serves as a core front‑end signal‑protection component of the 3500 system to ensure accurate and stable monitoring data of vibration, displacement, rotating speed, temperature and other parameters. Widely deployed in on‑line monitoring systems for large‑scale rotating equipment in power generation, petrochemical, oil‑gas, metallurgy and other industries, it is an essential auxiliary module for unit condition monitoring and safety protection.
2. Core Functions
- High‑precision Signal Isolation Protection: Adopting a dedicated electrical‑isolation architecture, it effectively isolates on‑site high‑low potential differences, common‑mode interference and electromagnetic‑radiation interference, prevents signal crosstalk and waveform distortion, guarantees complete and faithful transmission of original monitoring signals, and improves the accuracy of equipment monitoring data at the source.
- Multi‑type Sensor Signal Compatibility: It is compatible with all front‑end sensor signals of the 3500 system, and supports transition and isolation processing for eddy‑current displacement signals, vibration velocity signals, analog temperature signals and rotating‑speed pulse signals. It fits monitoring loops of various rotating machinery such as steam turbines, compressors, fans and pumps.
- EMI/RFI Anti‑interference Filtering: Built‑in professional signal‑filter circuits eliminate high‑frequency clutter and transient interference generated by frequency‑conversion and high‑power equipment on‑site. It greatly enhances system stability under harsh complex operating conditions and avoids false alarms and data jitter.
- Standardized System Signal Transition: Acting as a core intermediate unit for signal transmission between the field sensors and main monitoring cards inside the 3500 rack, it completes signal interconnection, impedance matching and level adaptation, optimizes the signal‑transmission link and solves problems of signal attenuation and distortion caused by long‑distance cable transmission.
- Long‑term Stable Industrial‑grade Operation: Designed with industrial‑grade components and reinforced circuits, it resists high‑low temperature, aging and vibration. It supports 7×24‑hour non‑stop on‑line operation with zero drift and no signal attenuation, well suited for long‑term continuous monitoring tasks in industrial environments.
- Fast Installation & Replacement: Built to the standard rack‑slot footprint of the 3500 series, it adopts a plug‑in installation structure, enabling quick replacement of legacy modules and system expansion retrofits without modifying existing monitoring loops or control logic, which facilitates easy maintenance.
3. Technical Specifications
| Parameter Item | Technical Specification |
|---|---|
| Product Model | 136483‑01 |
| Product Brand | Bently Nevada (Baker Hughes) |
| Product Type | 3500‑Series Isolated I/O Rear‑card Module |
| Compatible System | Full‑range Bently Nevada 3500 Machinery‑protection Monitoring System Racks |
| Core Functions | Signal isolation, impedance matching, clutter filtering, anti‑interference processing, signal transition |
| Supported Signal Types | Eddy‑current displacement, vibration, temperature, rotating‑speed pulse analog signals |
| Anti‑interference Performance | EMI/RFI shielding, common‑mode interference isolation |
| Applicable Standards | ISO 10819 industrial standard for mechanical‑vibration monitoring; CE / UL / CSA certification |
| Operating Temperature | ‑40 ℃ ~ +70 ℃ |
| Installation Method | Plug‑in mounting into standard 3500 rack slots |
| Core Features | High‑fidelity signal transmission, powerful anti‑interference capability, precise impedance matching, maintenance‑free, excellent compatibility |
4. Working Principle
The Bently Nevada 136483‑01 isolation rear‑card module implements a closed‑loop transmission workflow: signal reception → isolation & filtering → impedance matching → high‑fidelity output. Raw signals of vibration, displacement, temperature and rotating speed collected by field‑installed sensors are fed into the module’s input terminals. Its internal isolation circuitry breaks the direct electrical connection between field equipment and system main monitoring cards, thoroughly isolating potential‑difference, common‑mode and high‑frequency electromagnetic interference.
Meanwhile, the module performs precise impedance matching and waveform correction to compensate for signal attenuation and waveform distortion caused by long‑cable transmission. After filtering, waveform shaping and voltage‑stabilization processing, clean, stable and undistorted standard signals are delivered to the main monitoring cards of the 3500 system. It effectively prevents data fluctuation, false alarms and logic misjudgment triggered by interference, ensures accurate evaluation of unit operating status, and provides authentic and reliable raw‑data support for equipment condition analysis, fault early‑warning and interlock protection.
5. System Architecture Compatibility
This module is an original matching rear‑card component for the Bently Nevada 3500 monitoring system. It is fully compatible with all 3500‑series front‑end monitoring cards, system racks and power‑supply modules. Plug‑and‑play without extra calibration, it can work cooperatively with various monitoring cards including 3500/42, 3500/44 and 3500/50.
It can seamlessly connect to the full portfolio of Bently Nevada eddy‑current probes, velocity transducers, temperature sensors and other front‑end sensing devices while preserving the original monitoring‑loop architecture. Standard signals processed by the module can be directly sent to downstream DCS, PLC and upper‑level monitoring platforms to realize centralized data upload and remote supervision. The standardized rack‑mount design supports retrofitting of old 3500 systems, module replacement and monitoring‑loop expansion, with no requirement to modify main control logic or on‑site wiring. It delivers outstanding adaptability and universality.
6. Application Scenarios
This product is specially designed as an accessory for on‑line monitoring systems of critical large‑scale industrial rotating machinery under harsh, high‑interference and continuous‑operation conditions. In the power sector, it provides signal isolation for vibration‑displacement monitoring systems of steam‑turbine generator sets, gas turbines and large auxiliary equipment. In petrochemical and oil‑gas industries, it offers signal protection for condition‑monitoring loops of large centrifugal compressors, boosters, process pumps and fans.
It is also widely deployed in large rotating‑equipment monitoring systems across metallurgy, air separation, coal‑chemical and other industries. It resolves signal‑interference and data‑distortion issues in complex electromagnetic environments on‑site, ensures long‑term, stable and accurate operation of the 3500 machinery‑protection system, and avoids production shutdowns and equipment risks caused by false alarms and spurious interlocks. It is an indispensable core auxiliary module for on‑line condition‑monitoring systems of large industrial units.
