1. Product Overview

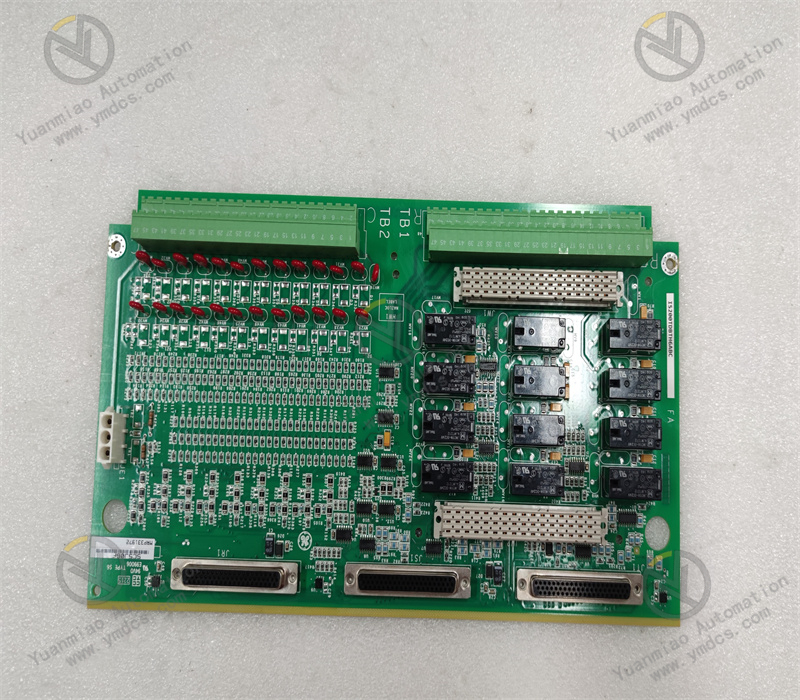

IS200TDBTH6ACD is a high‑density discrete I/O terminal board dedicated for GE (General Electric, USA) Speedtronic Mark VI / VIe control system. It serves as a core digital‑signal acquisition and actuator‑drive module in automatic‑control systems of gas‑turbine and steam‑turbine generator units, designed for signal transfer and logic drive of unit digital measurement‑points, relay loops and solenoid‑valve control loops.
Acting as the signal‑transfer hub between the main‑control system and field discrete devices, this board integrates multi‑channel isolated digital‑input, relay‑output, signal conditioning and loop‑protection functions. It undertakes key control tasks including auxiliary‑equipment status feedback, equipment start‑stop logic, interlock switch signals and relay‑drive output, and functions as a critical I/O terminal board for turbine‑unit sequence control, auxiliary‑system linkage, operating‑condition judgment and start‑stop interlock management. Built with high‑density industrial PCB architecture, full‑channel electrical isolation and reinforced SMT technology, the board is equipped with on‑board adjustable potentiometers and multi‑level overload‑protection structures. It features high channel density, wide‑range signal compatibility, stable output drive, strong anti‑interference performance and zero drift during long‑time operation. Natively compatible with the full‑range GE Mark VI / VIe turbine‑control systems, it supports both TMR (Triple Modular Redundancy) and simplex architectures. Coated with industrial conformal coating, it adapts to harsh power‑plant operating‑conditions including high temperature, intensive electromagnetic interference, mechanical vibration and 24‑hour non‑stop heavy‑duty operation. With plug‑and‑play capability and excellent interchangeability, it is widely deployed in automatic‑control systems of thermal‑power plants, gas‑turbine stations and combined‑cycle power plants.
2. Core Functions
High‑density discrete‑signal acquisition and output driveThe board is configured with 24 isolated digital‑input channels and 12 relay‑output channels with well‑defined channel allocation. It can synchronously collect massive digital signals such as dry‑contact status of field devices, limit switches, interlock contacts and operation feedback of auxiliary equipment. Meanwhile, its relay‑output loops drive field intermediate relays, small‑size solenoid valves, indicator lamps and start‑stop control circuits. It completes discrete‑signal acquisition and logic execution in one unit, meeting the requirement of centralized management for large‑scale auxiliary‑control loops.
Multi‑voltage‑level signal compatibilityIt supports industrial DC signals of multiple voltage levels, including 24 VDC, 48 VDC and 125 VDC, which are widely adopted in power‑plant digital loops. Without extra signal‑conversion modules, it is compatible with high‑and‑low‑voltage discrete measurement‑points of generating units, and perfectly fits signal specifications for auxiliary‑equipment control, interlock loops, auxiliary trip circuits and equipment‑status monitoring in power plants, delivering outstanding scenario adaptability.
On‑board precise adjustable parameter calibrationTwelve factory‑preset adjustable potentiometers (variable resistors) are provided for on‑site threshold fine‑tuning and loop‑matching calibration. Signal matching performance can be flexibly optimized according to actual unit operating‑conditions, line impedance and equipment parameters. It solves problems such as line loss, signal deviation and loop‑matching imbalance, and greatly improves the accuracy and stability of discrete‑control loops.
Full‑channel electrical isolation and multi‑layer loop protection500 VAC independent full‑channel electrical‑isolation design thoroughly suppresses high‑low‑voltage crosstalk, ground‑potential difference and electromagnetic noise interference from field side, preventing main‑control hardware damage caused by high‑voltage intrusion. Built‑in self‑locking protection against over‑voltage, over‑current and short‑circuit isolates faulty loops automatically without affecting other functional channels. It effectively avoids equipment failures and system mal‑operations triggered by relay burnout, circuit short‑circuit and load overload.
Real‑time status monitoring and fault self‑diagnosisIt supports real‑time channel inspection, signal‑anomaly identification and loop continuity monitoring. Faults such as open circuit, signal loss, load abnormality and loop short‑circuit can be accurately located. Operating status and fault codes are uploaded to the upper monitoring system in real‑time, which greatly reduces troubleshooting workload and maintenance difficulty of unit discrete loops.
- Industrial‑reinforced long‑term stable operationHigh‑shock‑resistant PCB structure and reinforced SMT technology enable the board to withstand mechanical shock up to 10 G. Together with full‑unit conformal coating, it achieves dust‑proof, moisture‑proof, corrosion‑resistant, anti‑ageing and vibration‑proof performance. It is well suited for complex electromagnetic environments and 7×24‑hour continuous heavy‑load operation all year round, featuring ultra‑low temperature drift, no performance degradation and excellent maintenance‑free performance.
3. Technical Specifications
| Parameter Item | Technical Specification |
|---|---|
| Model No. | IS200TDBTH6ACD |
| Brand | GE (General Electric, USA) |
| Product Series | GE Speedtronic Mark VI / VIe Turbine‑Control System |
| Product Type | High‑density discrete I/O terminal board, digital input‑output board |
| Channel Configuration | 24 isolated digital‑input channels, 12 relay‑output channels |
| Applicable Signal Voltage | Multi‑level DC signal compatibility: 24 VDC / 48 VDC / 125 VDC |
| System Operating Voltage | 24 VDC |
| Single‑Channel Output Current | Max. 0.5 A; total load for 8 continuous channels ≤ 2 A |
| Electrical‑Isolation Rating | 500 VAC full‑channel high‑voltage electrical isolation |
| Calibration Configuration | 12 on‑board adjustable potentiometers for on‑site fine‑tuning calibration |
| Protection Features | Self‑locking protection against over‑voltage, over‑current and short‑circuit; single‑loop fault isolation |
| Supported Architectures | TMR (Triple Modular Redundancy), Simplex |
| Vibration‑Resistance Rating | Withstand 10 G mechanical shock |
| Operating Temperature | -40 ℃ ~ +70 ℃, wide industrial operating temperature range |
| Storage Temperature | -25 ℃ ~ +85 ℃, wide storage temperature range |
| Protection Process | Industrial conformal coating, reinforced PCB, vibration‑proof, dust‑proof, moisture‑proof & anti‑ageing |
| Physical Dimensions | 160 mm × 160 mm × 120 mm, weight approx. 0.74‑0.8 kg |
| Key Features | High‑density channels, multi‑voltage compatibility, adjustable calibration, high‑voltage isolation, comprehensive protection, vibration‑&‑interference resistance, long‑term stability |
4. Working Principle
IS200TDBTH6ACD discrete I/O terminal board follows a complete workflow: field digital‑signal input → electrical‑isolation & filtering → parameter calibration & signal conditioning → signal upload for logic computation → relay‑drive output → closed‑loop fault protection.
During unit operation, digital signals from field dry‑contact devices, limit switches, interlock contacts and auxiliary‑equipment status are fed into the 24 input channels. After 500 VAC electrical isolation and electromagnetic noise reduction, voltage noise, ground interference and induced signals from field cables are eliminated to guarantee authentic and stable input signals.
Loop parameters are precisely calibrated by on‑board potentiometers to correct line‑impedance‑caused signal deviation. Standardized digital signals are then transmitted to the Mark VI / VIe main‑control system for logic judgment, interlock calculation and sequence control. Upon receiving start‑stop commands issued by the main controller, the board drives field actuators through its 12 relay‑output loops to realize equipment start‑stop, interlock switching and circuit on‑off control. The board continuously monitors current, voltage and load status of every channel. Once overload, short‑circuit or signal anomaly is detected, self‑locking protection will be triggered immediately to isolate the faulty channel and upload fault information. Under redundant architectures, it cooperates with the control system to implement fault‑tolerant operation, ensuring accurate, stable and safe performance of unit discrete‑control loops.
5. System‑Architecture Compatibility
This original‑GE high‑density discrete‑I/O terminal board for Mark VI / VIe control systems features hardware dimensions, channel definitions, electrical parameters and bus‑interaction logic fully natively compatible with GE Speedtronic Mark VI / VIe gas‑ and steam‑turbine control systems. It can operate in seamless coordination with EX2100/EX2100E generator excitation‑control systems and fully supports both TMR triple‑modular‑redundant and simplex architectures. No extra signal conversion, hardware modification or complicated programming configuration is required. Plug‑and‑play replacement is available for aged, faulty or worn‑out boards of the same model, making it suitable for power‑plant maintenance, I/O‑loop expansion, discrete‑control‑accuracy optimization and legacy‑system‑retrofit projects.
It seamlessly interfaces with various field devices in power plants including dry‑contact equipment, limit switches, interlock units, small‑size solenoid valves and intermediate relays, and is fully compatible with full‑chain discrete‑control logic for auxiliary‑equipment control, sequential start‑stop, safety interlock and status‑monitoring, without modifying existing main‑control programs, protection logic or wiring specifications. Its standardized industrial hardware design fits conventional power‑plant control‑cabinet layouts. It can be rapidly integrated into new‑build control‑system projects and automation‑upgrade retrofits of legacy units, delivering excellent adaptability, interchangeability and scalability.
6. Application Scenarios
Benefiting from high‑density channel layout, multi‑voltage‑signal compatibility, precise adjustable calibration, strong isolation & anti‑interference capability and vibration‑resistant long‑term stability, this board is engineered for harsh operating‑conditions of turbine‑generator units, including wide temperature‑humidity fluctuation, intensive electromagnetic interference, high‑frequency mechanical vibration, frequent load variation and 24‑hour non‑stop heavy‑duty operation. It is widely deployed in GE Mark VI / VIe turbine‑control systems and auxiliary‑control systems for large‑scale thermal‑power plants, gas‑turbine power stations and combined‑cycle power plants.
It undertakes key tasks such as auxiliary‑equipment status acquisition, start‑stop logic control, safety‑interlock‑loop management, limit‑signal monitoring, fault‑switch feedback and relay‑drive output, covering all common discrete‑control scenarios of generating units. It is a core I/O board for turbine‑unit sequence control, auxiliary‑system linkage and safety‑interlock protection. Widely applied in routine power‑plant maintenance, legacy‑control‑system upgrades, discrete‑I/O‑loop optimization, channel‑expansion retrofits and faulty‑board replacement, it solves common defects of traditional I/O boards such as low channel density, single‑signal compatibility, absence of calibration function, weak anti‑interference performance and high risk of mal‑operation. The accuracy, stability and reliability of the unit discrete‑control system are greatly improved, ensuring long‑term safe, efficient and stable grid‑connected power generation of generator units.
