Description

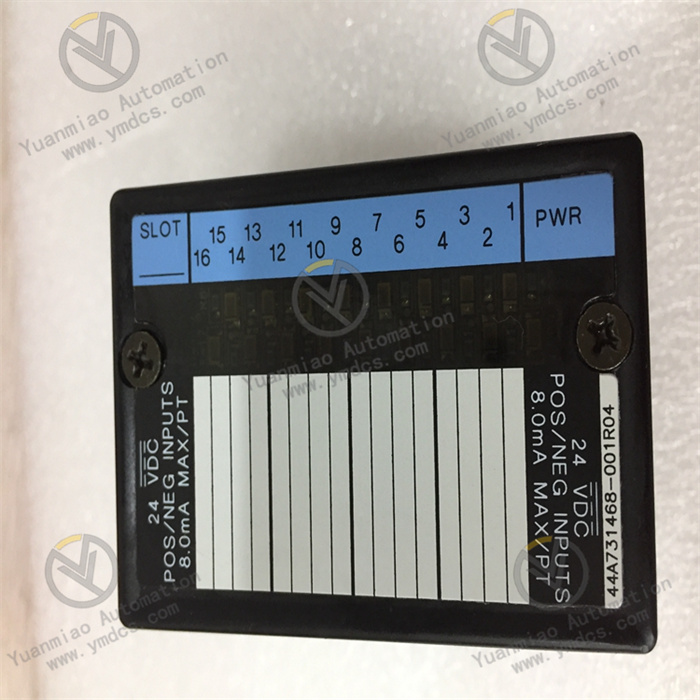

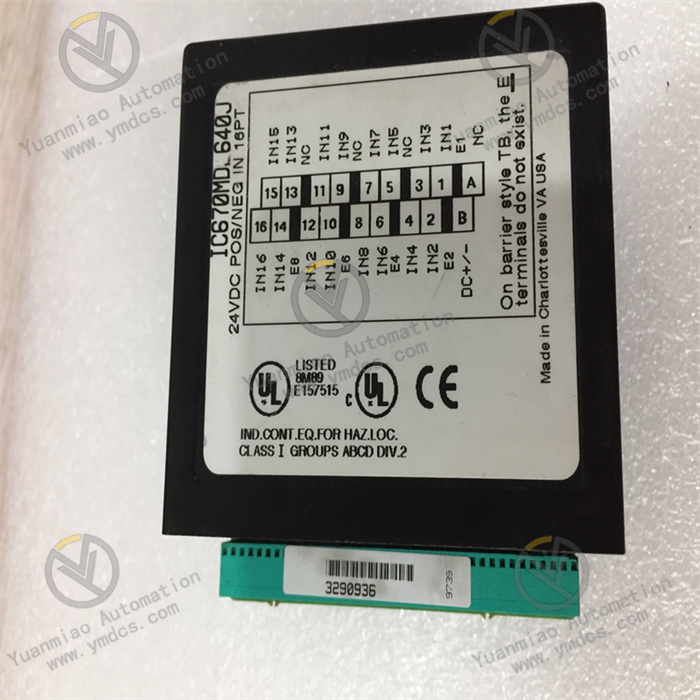

GE IC670MDL640
I. Product Overview
As a high-performance digital input module, GE IC670MDL640 belongs to the GE Fanuc RX3i series PLC system. It is specially designed for the collection of a large number of digital signals in industrial sites and serves as an important bridge connecting on-site sensors and PLC control systems.
It can accurately and quickly transmit digital signals (such as switching signals, status signals, etc.) from various switches and sensors (such as photoelectric sensors, proximity switches, limit switches, etc.) to the PLC CPU, providing a reliable basis for the system's logical judgment and control decisions. Whether in the equipment status monitoring of automated production lines or the safety interlock control of large industrial equipment, IC670MDL640 can ensure that the system grasps the operating status of on-site equipment in real-time with its stable performance and efficient signal collection capability. It is widely used in automobile manufacturing, food processing, machinery manufacturing, logistics and warehousing and many other industries, providing strong support for the precise operation of industrial automation control systems.
II. Technical Parameters
(I) Input Signal Characteristics
- Number and Type of Input Channels: It has 32 input channels with an isolated design. Each channel is independent and can collect one digital signal separately. This multi-channel design can meet the demand for digital signal collection in medium and large-scale control scenarios, and can connect 32 different digital signal sources at the same time, such as multiple limit switches and photoelectric sensors, to realize simultaneous monitoring of the status of multiple devices or workstations. The input type is DC digital input, suitable for receiving DC 24V digital signals, which matches the output signals of commonly used sensors in industrial sites, eliminating the need for additional signal conversion equipment and simplifying system connections.
- Input Signal Range and Response Time: The input signal voltage range is usually 18-30V DC, which can adapt to normal fluctuations of the power supply voltage in industrial sites, ensuring accurate identification of signal status even when the voltage fluctuates slightly. The signal response time is short, generally within 1ms, which can quickly capture changes in on-site signals. It is particularly important for status monitoring of high-speed operating equipment. For example, on high-speed conveyor lines, it can timely detect the passing signal of workpieces, avoiding control errors caused by response delays.
(II) Electrical Parameter Characteristics
- Power Supply Parameters: The working power supply is DC 24V, and the power input range has a certain tolerance (usually 19.2-28.8V DC), which is compatible with DC power supply systems commonly used in industrial sites, facilitating system integration. The power consumption of the module is low. Under normal operation, the current consumption of each channel usually does not exceed 10mA, and the overall power consumption is reasonable, which will not cause too much burden on the system power supply and is conducive to reducing the overall energy consumption of the system.
- Isolation Performance: It adopts inter-channel optoelectronic isolation technology with an isolation voltage of up to 2500V AC, which can effectively prevent signal interference between channels and avoid the impact of abnormal signals in one channel on the normal operation of other channels or the module as a whole. At the same time, this isolation design can also protect the module and PLC system from the impact of abnormal voltages such as high voltage and surges on site, improving the safety and reliability of the system, especially suitable for industrial sites with strong electromagnetic interference or high voltage.
(III) Physical and Installation Parameters
- Overall Dimensions: It adopts a compact modular design with small overall dimensions, conforming to the standard dimensions of GE Fanuc RX3i series modules. It can be compactly installed on the rack with other modules of the same series, saving installation space in the control cabinet. Its specific dimensions are adapted to the standard PLC rack slots, and no additional adjustment is required during installation, facilitating the neat layout and installation of the system.
- Installation Method: It adopts a combination of guide rail installation and rack installation, and can be directly installed on the standard rack of RX3i series PLC. The electrical connection with the system is realized through the connector on the rack, and the installation process is simple and fast. The module is equipped with a firm fixing device to ensure stable installation in the vibration environment of industrial sites and avoid signal collection interference caused by module loosening due to vibration.
(IV) Environmental Adaptability Parameters
- Working Environment Range: The working temperature range is 0-60°C, which can work stably in the common temperature environment of industrial sites. Whether it is a high-temperature production workshop or a relatively low-temperature warehouse area, it can ensure the normal signal collection function of the module. It can also work reliably in an environment with a relative humidity of 5%-95% (no condensation), and has a certain moisture-proof ability to adapt to humid industrial environments, such as food processing workshops and near cleaning equipment.
- Anti-interference and Protection Performance: Through optimized circuit design and electromagnetic shielding measures, it has strong resistance to electromagnetic interference (EMI) and radio frequency interference (RFI), and can resist electromagnetic interference generated by equipment such as motors, frequency converters, and relays in industrial sites, ensuring accurate collection and transmission of input signals and reducing signal misjudgment caused by interference. The protection level reaches IP20, which can effectively prevent dust, debris, and other foreign objects from entering the module, protect internal circuit components, and extend the service life of the module.
III. Functional Characteristics
(I) Efficient and Accurate Signal Collection Capability
- Multi-channel Parallel Collection: 32 input channels can work in parallel at the same time, capable of independently and quickly collecting digital signals connected to each, without mutual interference. This parallel collection method ensures that the status of multiple signal sources can be monitored simultaneously. For multiple devices or workstations that need to work together, the operating status of each part can be grasped in real-time, providing an accurate signal basis for the synchronous control of the system. For example, in an automated assembly line, 32 channels can respectively collect the part arrival signals of different assembly stations. The PLC judges whether each station is ready according to these signals, and then controls the assembly robots to perform collaborative operations.
- Accurate Signal Recognition: It has good signal discrimination ability, can accurately distinguish effective signals from interference signals, and reduce false signals generated by on-site interference through internal filter circuits and signal shaping circuits, ensuring that the collected signals truly reflect the status of on-site equipment. Even when the signal has slight fluctuations or noise, it can stably identify the high and low level status of the signal, improving the reliability of system signal collection.
(II) Reliable Electrical Isolation and Protection
- Inter-channel Isolation: Each input channel is isolated from other channels and the internal circuit of the module by optoelectronic isolation technology, achieving complete electrical isolation. This isolation design can effectively block the interference path between channels, prevent the impact of overvoltage, overcurrent and other faults in one channel on the normal operation of other channels or the module as a whole, and improve the anti-fault ability of the module. For example, when a short-circuit fault occurs in a connected sensor, the isolation design can limit the fault to that channel, and other channels can still collect signals normally.
- Overvoltage and Overcurrent Protection: The module integrates an overvoltage and overcurrent protection circuit. When the input signal voltage exceeds the rated range or overcurrent occurs, the protection circuit will act quickly to limit the current and voltage flowing into the module, preventing damage to the internal circuit of the module due to overvoltage and overcurrent, and also protecting the connected PLC system from impact, reducing the risk of damage to the system caused by on-site line faults or equipment abnormalities.
(III) Convenient Installation and Maintenance
- Modular Installation Design: It adopts a standardized modular design, which perfectly fits the rack of GE Fanuc RX3i series PLC. During installation, you only need to insert the module along the rack guide rail and lock it, without complex wiring and debugging, which greatly shortens the system installation time. The front panel of the module is equipped with clear channel number marks, which is convenient for connecting the corresponding channel and sensor during on-site wiring, reducing wiring errors.
- Status Indication and Diagnostic Function: Each channel on the front panel of the module is equipped with an LED status indicator. When the channel collects an effective signal (high level), the indicator light is on; otherwise, it is off. Maintenance personnel can intuitively understand the signal status of each channel through the indicator light, quickly judge whether the channel works normally and whether the sensor outputs a signal. At the same time, the module supports diagnostic communication with the PLC system, and can feed back the working status of the module (such as power status, communication status, etc.) to the PLC. When the module has power failure, communication abnormality and other situations, the PLC can timely issue alarm information, facilitating maintenance personnel to quickly locate faults and shorten fault troubleshooting time.
IV. Application Scenarios
(I) Automobile Manufacturing Industry
In the automobile welding production line, there are a large number of welding robots, conveying equipment, positioning fixtures, etc., which need to monitor the working status of each equipment and the position status of workpieces in real-time. IC670MDL640 can connect digital signals such as limit switches (detecting whether the fixture clamps the workpiece), photoelectric sensors (detecting whether the workpiece is in place), and emergency stop button status of each welding station through 32 input channels, and transmit these signals to the PLC in real-time. The PLC judges whether each station meets the welding conditions according to the collected signals, and then controls the start and stop of the welding robot, ensuring the safety and accuracy of the welding process, and improving welding quality and production efficiency.
(II) Food Processing Industry
In the food packaging production line, it is necessary to monitor the supply status of packaging materials, the conveying position of products, the running status of packaging machines, etc. IC670MDL640 can collect digital signals from packaging material detection sensors (detecting whether materials are used up), conveyor belt positioning sensors (detecting whether products reach the packaging position), equipment running status switches (such as whether the motor is running), etc. The PLC controls the start and stop of the packaging machine, the speed of the conveyor belt and the supply of packaging materials according to these signals, realizing the automatic control of the food packaging process, ensuring the continuous and stable packaging process, and reducing production interruption caused by untimely manual monitoring.
(III) Machinery Manufacturing Industry
In the CNC machine tool production line, it is necessary to monitor multiple digital signals such as the door control status of the machine tool (whether the protective door is closed), tool change status, and workpiece clamping status. IC670MDL640 can collect these signals and transmit them to the PLC, and the PLC controls the operation of the machine tool according to the signal status. For example, when the protective door is not closed, the PLC prohibits the start of the machine tool spindle to avoid safety accidents; when the workpiece is not clamped, it prohibits the machine tool from processing operations to protect tools and workpieces. Through accurate signal collection and control, the operation safety and processing accuracy of CNC machine tools are improved.
(IV) Logistics and Warehousing Industry
In the automated three-dimensional warehouse, the running position of the stacker, the status of goods in the Storage location，the running status of the conveyor, etc. need to be monitored through digital signals. IC670MDL640 can connect the limit switch of the stacker (detecting whether the stacker reaches the designated Storage location), the Storage location sensor (detecting whether there is goods in the Storage location), the start-stop status switch of the conveyor, etc., and transmit the collected signals to the PLC of the warehouse management system in real-time. The PLC controls the operation of the stacker and the start-stop of the conveyor according to these signals, realizing the automatic access and handling of goods, and improving the automation level and operation efficiency of logistics and warehousing.
