Description

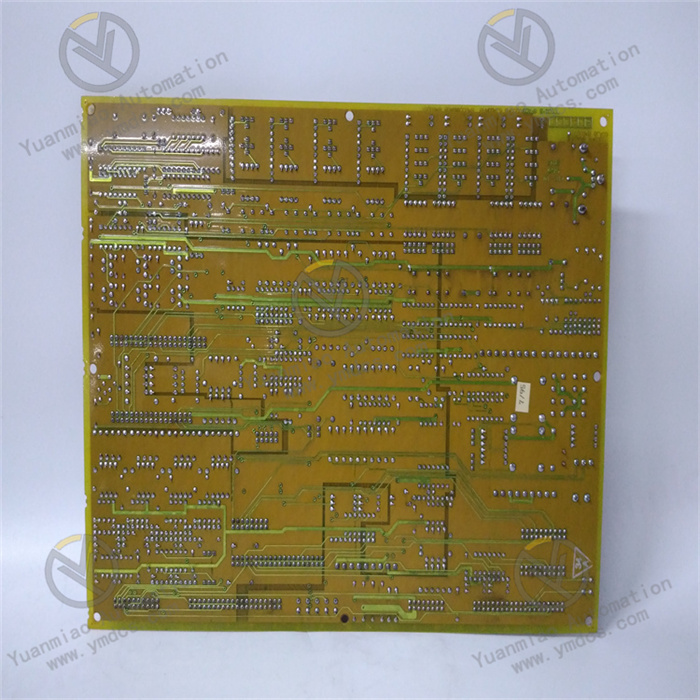

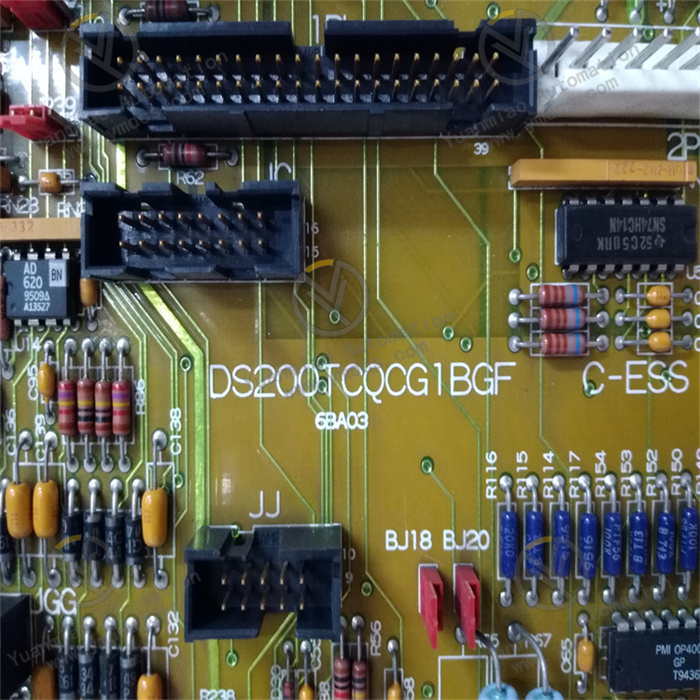

GE DS200TCQCG1BGF
Overview
The GE DS200TCQCG1BGF is a critical industrial component designed for complex automation systems, typically applied in power generation, petrochemical, and heavy machinery control scenarios. As part of GE's DS200 series, this device serves as a specialized terminal board or control module, focusing on analog signal processing and system interface expansion. It enables seamless integration with sensors, actuators, and supervisory control systems, ensuring precise data transmission and real-time monitoring in harsh industrial environments.
Technical Parameters
- Power Supply:
- Voltage: 24V DC (±10% tolerance)
- Power Consumption: ≤15W
- Electrical Characteristics:
- Input Range: -10V to +10V (analog signals)
- Output Range: 4-20mA (standard industrial current loop)
- Isolation Voltage: 2500Vrms (between input/output channels)
- Communication:
- Interface: RS485 (Modbus RTU protocol)
- Baud Rate: 9600 to 115200 bps (configurable)
- Mechanical & Environmental:
- Dimensions: 150mm × 100mm × 50mm
- Operating Temperature: -20°C to +70°C
- Protection Level: IP20 (dust-tight, no water protection)
Working Principle
The DS200TCQCG1BGF operates as an analog signal conditioning and transmission hub. Its core functionality includes:
- Signal Acquisition: Converting physical parameters (e.g., temperature, pressure) from sensors into electrical signals (voltage/current).
- Amplification & Filtering: Processing raw signals to eliminate noise and ensure accuracy through built-in operational amplifiers and analog filters.
- Isolation & Conversion: Using optocouplers or magnetic isolation to separate input/output circuits, preventing ground loops and electromagnetic interference (EMI). Converting voltage signals to industry-standard 4-20mA for long-distance transmission.
- Communication Protocol Conversion: Translating analog data into digital formats compatible with Modbus or other industrial protocols for integration with PLCs or SCADA systems.
- Fault Monitoring: Continuously checking signal integrity and triggering alarms for overrange, underrange, or open-circuit conditions via built-in diagnostic logic.
