Description

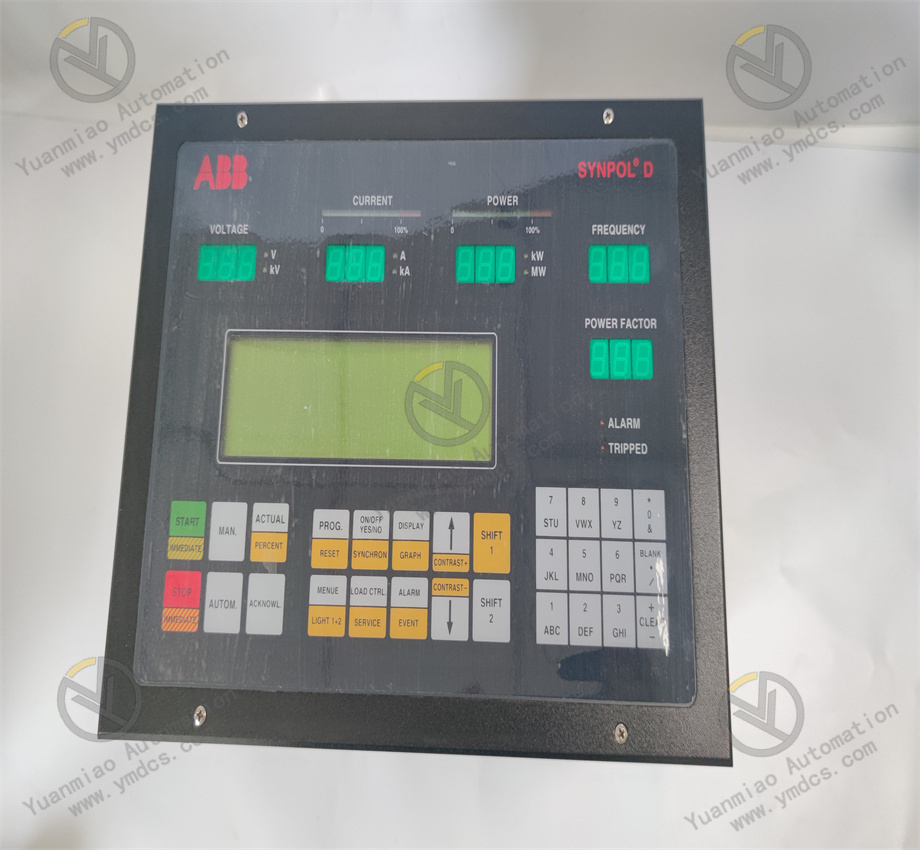

ABB CMA112 3DDE300013

ABB CMA112 3DDE300013 is a control and display panel for diesel generating sets, designed as a local human-machine interface unit for diesel generators and marine main/auxiliary engines. It integrates four core functions: real-time parameter display, manual operation intervention, parameter setting, and alarm indication. As an indispensable operation terminal in ABB marine and power plant automation solutions, it is natively paired with the CMA114 3DDE300013 control module. It is widely used in scenarios such as marine engine rooms, offshore platform captive power plants, oil/gas field/mine diesel power stations, and data center backup generator sets. It adapts to harsh industrial and marine environments characterized by limited space, high dust, strong electromagnetic interference, and large temperature fluctuations. With prominent advantages including classification society certification, high vibration resistance, and wide temperature adaptability, it provides convenient and reliable operational support for local operation and maintenance of diesel units.

This panel mainly displays key operating parameters of diesel units (speed, oil pressure, water temperature, load, etc.) in real time, receives local commands from operators (start, stop, emergency stop, speed regulation, alarm reset, etc.), synchronously shows unit operating status and fault alarm information, and stores historical fault records. It achieves seamless data synchronization with the CMA114 control module via a dedicated internal bus. Protection thresholds and control parameters of the CMA114 can be modified directly on the panel without additional configuration tools. It is compatible with the ABB Synpol D diesel control system and 800xA automation platform, and can perfectly match the CMA114 control module as well as various sensors and actuators for diesel units. It complies with international industrial standards and classification society certifications including CE, cULus, DNV, ABS, and LR, ensuring compliance and long‑term operational reliability in marine and industrial applications.

It features a compact industrial sealed design that balances durability and ease of operation. Dimensions are approximately 152mm × 152mm × 76mm (15.2cm × 15.2cm × 7.6cm, official spare part data), weight about 0.7kg (may be 0.64kg in different production batches, subject to physical product). It supports standard flush panel mounting, matching instrument cutout sizes in marine engine rooms and power plant control cabinets. The keypad layout is clear and reasonable, equipped with a backlit LCD display for easy operation and reading in dim environments, suitable for complex on‑site industrial operating conditions.

1. Technical Specifications

Power Specifications
Supply voltage: 24 VDC (marine/industrial standard DC power), voltage tolerance ±15%, with short‑term surge immunity, adapting to on‑site power fluctuations.
Rated power consumption: ≤5W, low‑power design. Can be powered directly from the CMA114 control module or by an independent DC supply without extra burden on battery systems.
Equipped with polarity‑protected terminals and reverse polarity protection, effectively preventing damage from incorrect wiring and improving operational safety.
Display & Operation Specifications
128×64 pixel monochrome backlit LCD display, supporting multi‑page switching to clearly show real‑time operating parameters, status icons, fault alarm texts, and operation prompts.
Full‑function keypad including start, stop, emergency stop, speed increase/decrease, enter, reset, etc., with clear key feedback and convenient operation.
Display refresh cycle ≤200 ms, data synchronization delay with CMA114 <50 ms, ensuring real‑time parameter display.
Built‑in EEPROM memory chip retains parameter settings and historical alarm records after power loss for later fault tracing.
Communication & Compatibility Specifications
Dedicated internal bus interface for plug‑and‑play pairing with the CMA114 control module, no complex configuration required, with stable and low‑latency data transmission.
Supports indirect access to Modbus RTU (RS‑485) and CANopen via the CMA114 control module, enabling data exchange with marine PMS (Power Management System) and host SCADA systems, synchronously uploading panel operation logs and unit operating parameters.
Fully compatible with all ABB Synpol D series diesel control units. As the standard companion display panel for the CMA114, it quickly forms an integrated “control + display” solution.
Environmental Specifications
Operating temperature: -25°C to +70°C. Wide‑temperature design withstands extreme temperature fluctuations in marine engine rooms and outdoor power plants without additional temperature control equipment.
Storage temperature: -40°C to +85°C, suitable for long‑term storage of industrial spare parts.
Protection class: IP54 (front panel). Sealed design effectively resists dust and water splashing, as well as industrial dust and engine room oil mist.
Vibration resistance: 2g (10–500Hz), complying with marine equipment standards, ensuring stable operation under vibration from ship navigation and unit operation.
Fanless natural cooling, no mechanical failure points, maintenance‑free operation, extended service life.

2. Features

Accurate Display & Convenient Operation
The backlit LCD clearly presents all key operating parameters of diesel units (speed, oil pressure, water temperature, load, etc.) with multi‑page view. Backlight can be activated manually or automatically, suitable for low‑light environments such as night or dim engine rooms.
Rational keypad layout allows operators to directly perform start/stop, speed regulation, emergency stop, alarm reset, and other operations on the panel without additional debugging tools, improving on‑site efficiency.
Native Pairing & Seamless Cooperation
Natively designed as a companion product for the CMA114 3DDE300013 control module. Dedicated bus enables plug‑and‑play and zero‑latency data synchronization.
Protection thresholds (overspeed, low oil pressure, etc.) and control parameters of the CMA114 can be edited directly on the panel without connecting to host software, simplifying commissioning and maintenance and reducing engineering costs.
Clear Alarm & Event Tracing
Upon unit failure, the LCD immediately displays clear alarm text, while corresponding LED status indicators (alarm/fault) flash or stay lit to promptly alert operators.
Supports storage of multiple historical fault codes and event timestamps. Maintenance personnel can query directly on the panel to quickly identify root causes and reduce downtime.
High Reliability & Harsh Environment Adaptability
Industrial‑grade high‑quality components and sealed construction provide excellent EMI and vibration resistance. Certified by major classification societies including DNV, ABS, and LR for long‑term stable operation in harsh marine and industrial environments.
No vulnerable parts; long‑life materials for keys and LCD reduce maintenance frequency.
Easy Installation & Maintenance Friendly
Standard flush panel mounting with standardized cutout size allows quick installation and replacement without re‑drilling.
Supports exporting historical fault records and operation logs via the CMA114 control module or host software for system maintenance and fault analysis.
Smooth, easy‑to‑clean panel surface resists engine room oil mist and dust buildup.

3. Applications & Case Examples

Marine Main/Auxiliary Engine Display & Control
In engine rooms of bulk carriers and container ships, each diesel generator is equipped with a CMA112 3DDE300013 panel on the instrument panel. Operators can start/stop units, adjust speed, view real‑time parameters, and handle alarms locally. Together with the CMA114 control module and marine PMS, it enables unattended and efficient operation of the marine power plant.
Offshore Platform Captive Power Plant
In diesel power stations on offshore oil and gas platforms, CMA112 panels are installed both in the main control room and locally at the units, providing dual assurance of remote monitoring and local operation. Operators can quickly intervene as needed to ensure stable power supply for platform drilling and living facilities.
Remote Oil/Gas Field / Mine Power Plants
In off‑grid diesel power stations in remote oil/gas fields and mines, operators monitor unit status locally via the CMA112 panel, modify parameters and reset alarms without a laptop, greatly improving O&M convenience in remote areas and avoiding unit failures due to limited maintenance access.
Data Center Backup Diesel Generators
In backup generator rooms of large data centers, CMA112 panels are mounted in control cabinets. When mains power fails, operators quickly confirm unit start status and monitor key parameters during power switching, ensuring uninterrupted operation of servers and core equipment and enhancing data center power supply reliability.

4. Product Advantages

Native pairing, plug‑and‑play: Perfect compatibility with the CMA114 control module via dedicated bus without configuration, simplifying system integration, reducing engineering and commissioning costs, and accelerating project implementation.
Classification certified, stable and reliable: Approved by DNV, ABS, LR and other major societies; wide temperature, vibration‑resistant, dustproof and splash‑proof, suitable for harsh marine and industrial environments with low long‑term failure rate.
User‑friendly HMI, easy operation: Clear LCD and logical keypad support operation in dim environments. All core functions can be performed locally without host software, reducing operator training costs.
Easy maintenance, cost‑effective: Readable fault codes, traceable events, no vulnerable parts, convenient spare part replacement, and maintenance‑free cooling greatly reduce later O&M workload and cost.
Ecosystem compatible, highly scalable: Integrates into ABB Synpol D and 800xA platforms, works seamlessly with ABB series products, and supports third‑party diesel unit equipment, adapting to automation systems of various scales.
