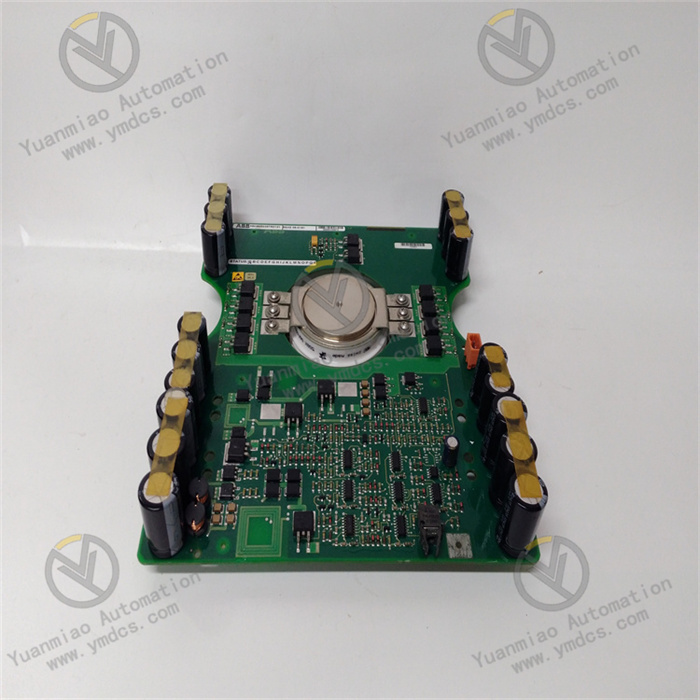

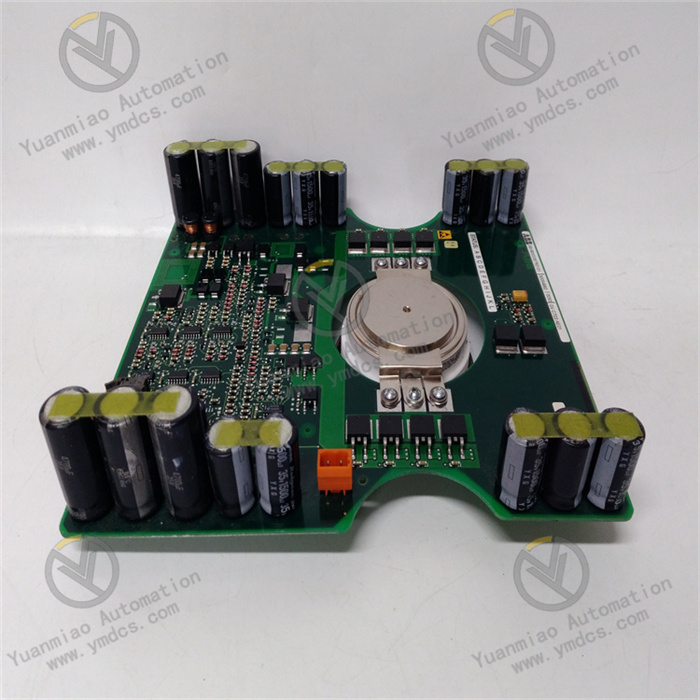

ABB IGCT 5SHX06F6004 5SXE05-0151

I. ABB 5SHX06F6004 High-performance IGCT Module

ABB 5SHX06F6004 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module. Adopting advanced semiconductor technology, it integrates a Gate Turn-Off Thyristor (GTO) and an anti-parallel diode in a single package, with core optimizations to the switching characteristics of traditional GTOs. Tailor-made for high-voltage and high-current power conversion scenarios, it has become a core device for medium and high-voltage power systems by virtue of its low loss and high reliability. Widely applied in various high-power industrial drives and power conversion equipment, it features genuine factory quality assurance and stable supply advantages.

(I) Technical Parameters

Rated Specifications: Adapted to high-voltage and high-current working conditions, it supports buffer-free operation at high current density with dv/dt control. Its power range can be extended to 100 MVA through efficient series and parallel connection, and it can stably withstand medium and high-voltage heavy-duty loads. For specific rated voltage and current parameters, please refer to the official ABB data sheet. It is suitable for industrial application requirements of different power levels, and its core function is to meet the power conversion needs of high-power equipment.
Operating Environment: It has excellent environmental adaptability and can operate stably for a long time in complex industrial environments, suitable for harsh working conditions such as high temperature and high humidity. With outstanding thermal stability, it can effectively meet the high-frequency operation requirements under continuous and dynamic conditions. Its protection grade complies with industrial standards, adapting to various harsh operating scenarios such as power systems and heavy industry.
Key Performance: It features excellent switching characteristics with significantly reduced on and off losses, enabling stable turn-off at high voltage without complex snubber circuits. It has optimized gate drive requirements, especially reducing the gate drive load during conduction, with strong di/dt adaptability and support for high-frequency operation. Equipped with advanced semiconductor technology, it achieves a balanced electro-thermal performance, further improving the operational reliability and service life of the module and reducing the system failure rate.
Installation Specifications: Adopting a modular and compact design with a highly integrated package, it effectively reduces component complexity and quantity, and improves system reliability per MVA. The installation method is adapted to the integration requirements of industrial high-power equipment, facilitating collaborative installation with heat sinks and drive modules (e.g., 5SXE05-0151). It is easy to maintain and saves internal installation space of the equipment.

(II) Features and Advantages

High-efficiency Power Conversion: The integrated package design reduces the number of external components, simplifies the system structure and improves power conversion efficiency, making it particularly suitable for high-power inverters, rectifiers and other equipment. It can realize efficient energy conversion and bidirectional drive, adapting to the power conversion needs of new energy grid connection, high-voltage direct current (HVDC) transmission and other scenarios.
Reliable and Stable Operation: Optimized switching characteristics and electro-thermal design enable it to maintain stable operation under high-frequency, high-voltage and high-current working conditions, with strong anti-interference capability. It can effectively resist electromagnetic interference and voltage fluctuations in industrial sites, reduce the probability of unplanned downtime, ensure the continuity of industrial production and power transmission, and comply with industrial-grade high reliability standards.
Economical Use Cost: Low on and off losses can significantly reduce equipment energy consumption and save operating costs for enterprises; the integrated design reduces the number of components and system complexity, lowering the costs of equipment installation, commissioning and maintenance; the modular structure facilitates fault diagnosis and component replacement, further improving operation and maintenance efficiency.
Wide Compatibility: It can work in conjunction with a variety of ABB gate drive modules (including 5SXE05-0151), frequency converters and control units, and is also compatible with supporting control equipment of other brands. Meanwhile, it supports flexible series and parallel connection, adapting to the system design requirements of different power levels with strong versatility.

(III) Application Fields

By virtue of its excellent high-power conversion performance, this module is widely used in industrial fields related to high voltage and high current, especially suitable for power conversion and motor drive scenarios, including:

Power System Field: High-voltage direct current (HVDC) transmission, Static Var Compensators (SVC), grid converters, grid-connected inverters, etc. It is used to realize efficient conversion between alternating current and direct current, balance grid load, improve the operational stability of the power grid, and adapt to the upgrading and optimization needs of power systems.
Industrial Drive Field: Large industrial motor drives, steel mill rolling mills, mining equipment, large conveyor belt systems, etc. It is used to control the speed and torque of motors, realize precise drive of high-power equipment, adapt to the operation needs of heavy-duty working conditions in heavy industry, and improve production efficiency.
Renewable Energy Field: High-power converters for wind power and solar power generation systems. It is used to connect power generation equipment to the power grid, realize efficient access and energy conversion of renewable energy, boost the large-scale development of the new energy industry, and adapt to the power transmission needs of new energy scenarios such as wind power and photovoltaic power.
Other Fields: Temperature control of industrial furnaces and melting furnaces, AC power regulation, electrical equipment protection, etc. It is also suitable for high-power automation equipment in chemical, water treatment, papermaking and other industries, used for electrical energy control and power regulation to ensure the stable operation of equipment.

II. ABB 5SXE05-0151 Gate Pulse Amplifier Module

ABB 5SXE05-0151 is a high-performance gate pulse amplifier module belonging to ABB's supporting control product line for power semiconductors. Designed specifically for the control of GTO, IGBT and thyristor valves in the industrial automation field, its core function is to amplify control signals into high-current pulses sufficient to reliably trigger high-power semiconductor devices (e.g., 5SHX06F6004 IGCT, IGBT). As a core component of the gate drive system, it plays a key role in excitation systems and power conversion equipment, and can work in conjunction with a variety of ABB power devices to improve the control accuracy and stability of the system.

(I) Technical Parameters and Features

Rated Specifications: The power supply voltage is 24 VDC, the output peak gate current can reach 15A, and the pulse width is adjustable (10-100μs). It can be flexibly configured according to the triggering requirements of different high-power devices to ensure sufficient and stable trigger signals, adapting to the triggering needs of various models of GTO, IGBT and IGCT devices.
Core Performance: It features an extremely fast response speed with a trigger-to-output response time of ＜1μs, ensuring precise switching control of high-power semiconductor devices and optimizing the overall performance of the power conversion system. Adopting an optical fiber input interface, it realizes electrical isolation between the control side and the power side, with extremely strong electromagnetic interference (EMI) resistance, suitable for industrial sites with high electromagnetic interference.
Protection Functions: Built-in overcurrent, short-circuit and thermal protection circuits can effectively prevent false triggering and damage to the module itself, and indirectly protect the matched high-power semiconductor devices at the same time, reducing the system failure rate, improving the operational safety of the overall system, and complying with the relevant IEC industrial safety standards.
Structure and Compatibility: Adopting a compact modular design, it has dimensions of approximately 136mm×106mm×54mm and a weight of about 0.25-1.3kg (depending on configuration). It supports PCB mounting or DIN rail subassembly for convenient installation and maintenance, and can work in conjunction with components such as the 3BHB003387R0101 GTO valve control unit to form a complete gate drive solution. Meanwhile, it can be seamlessly adapted to ABB 5SHX series IGCT modules (including 5SHX06F6004).

(II) Application Fields

By virtue of its precise pulse amplification and trigger control capabilities, this gate pulse amplifier module is widely used in industrial fields requiring high-reliability power control, serving as a core supporting component for high-power semiconductor devices, including:

Power System Field: Used in the valve base electronic equipment of high-voltage direct current (HVDC) transmission and Static Var Compensator (SVC) systems to trigger and control thyristors and IGCT devices, realizing grid voltage regulation and reactive power compensation. For example, in large SVC stations, it can be used in conjunction with IGCT modules to significantly reduce voltage fluctuations and improve grid stability.
Industrial Drive and Excitation Field: Used in large motor drive systems and power plant excitation systems to trigger and control high-power IGBT and IGCT devices, ensuring precise control of motor speed and torque and the stability of generator excitation. It can improve the voltage regulation accuracy to a higher level and ensure the efficient operation of equipment.
Renewable Energy Field: Used in high-power converters of wind power and solar power generation systems, matching with IGCT modules such as 5SHX06F6004 to realize precise triggering and switching control of power devices, ensuring efficient conversion and grid-connected transmission of renewable energy and improving the utilization efficiency of new energy.
Other Fields: Rail transit traction systems, industrial power supply equipment, high-power frequency converters, etc. It is used to support the triggering and control of various high-power semiconductor devices, adapting to the harsh operation requirements of heavy industry fields such as metallurgy, mining and chemical industry, improving the control accuracy and reliability of the system and reducing the equipment failure downtime.

III. Differences and Collaborative Adaptation Suggestions of the Two Devices

Positioning and Functional Differences: 5SHX06F6004 is a core power device, essentially an IGCT module, whose core function is to realize high-voltage and high-current power conversion and bidirectional drive, serving as the executive core of the power system; 5SXE05-0151 is a supporting control module, essentially a gate pulse amplifier module, whose core function is pulse amplification and device triggering, serving as the auxiliary control core of the power system. The two devices are complementary in function and jointly form a complete power control link.
Technical and Application Differences: 5SHX06F6004 focuses on high-voltage and high-current bearing as well as low-loss power conversion, adapting to high-power and high-voltage scenarios, and its core is to solve the problem of power transmission and conversion; 5SXE05-0151 focuses on pulse amplification, precise triggering and electrical isolation, adapting to various scenarios that require triggering and controlling high-power semiconductor devices, and its core is to solve the problem of device triggering and control. It is compatible with a variety of power devices with stronger versatility.
Collaborative and Adaptation Suggestions: The two devices can work collaboratively—5SXE05-0151, as a gate pulse amplifier module, can provide sufficient and precise trigger pulses for 5SHX06F6004 to realize their efficient linkage, optimize the performance of the power conversion system, and adapt to high-end scenarios such as HVDC transmission and large motor drives. If only high-power conversion is required, 5SHX06F6004 can be selected alone and matched with other suitable gate drive modules; if it is necessary to configure trigger control components for existing GTO, IGBT and IGCT devices, 5SXE05-0151 can be selected alone without replacing the core power devices, reducing the system upgrade cost.
