Description

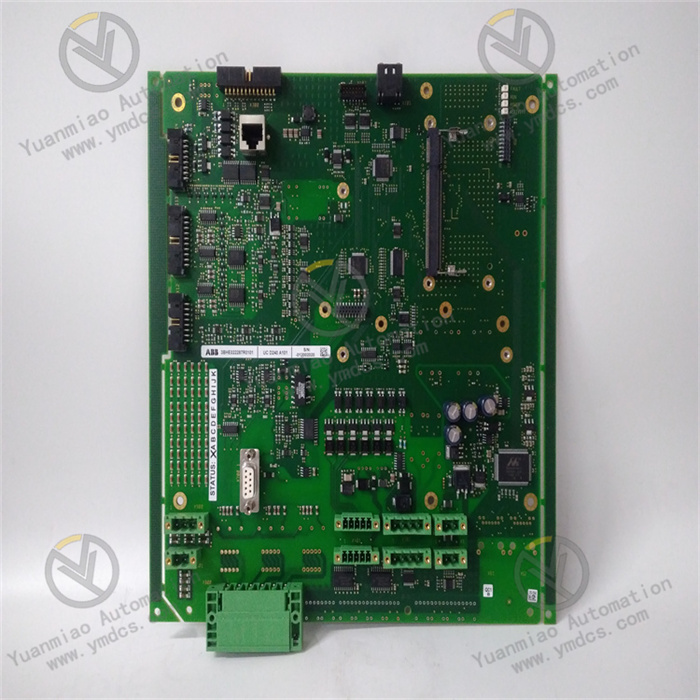

ABB UDC920BE01 3BHE034863R0001

I. Basic Information

ABB UDC920BE01 3BHE034863R0001 is a high-speed, high-precision signal acquisition and control module designed for the AC800PEC industrial control system. As a dedicated core component for electric drive and process control, it is compatible with ABB high-end DCS, variable-frequency drive, generator excitation and power automation control systems. Built on a high-speed microprocessor architecture, the module integrates high-precision signal sampling, fast logic operation and bus communication interfaces, supporting microsecond-level fast control cycles for high-precision and high real-time industrial control applications.

Equipped with robust electrical isolation and anti-interference protection circuits, the module supports high-speed multi-bus communication via PROFIBUS-DP and RS485. It features outstanding signal acquisition accuracy, fast response, superior operational stability and excellent expandability. Capable of precise acquisition of field analog and digital process signals as well as rapid closed-loop regulation and logic control, it is widely deployed in power generation, high-voltage variable frequency, metallurgical drive and fine chemical process industries. It is commonly used for upgrading signal acquisition modules on legacy equipment, drop-in replacement of faulty modules and functional expansion of advanced automation systems to satisfy the demand for round-the-clock non-stop operation under harsh industrial conditions.

II. Technical Specifications

(1) Basic Hardware Parameters

Full Part Number: UDC920BE01 3BHE034863R0001
Brand: ABB
Device Type: High-speed High-precision Signal Acquisition & Control Module
Applicable Systems: ABB AC800PEC control system, high-voltage variable frequency system, generator excitation system, power automation DCS system
Hardware Architecture: High-speed microprocessor-based computing framework with microsecond control cycle and integrated high-precision AD/DA conversion unit
Mounting: Standard snap-on mounting on 35mm DIN rail to fit standard control cabinet layout
Protection Class: IP30 (high-standard indoor industrial protection)
Overall Weight: Approx. 2.0kg with ruggedized compact industrial design
Status Indication: 6 sets of dual-color LED indicators for real-time visual display of operation, communication and fault status
Core Function: High-speed field signal acquisition, precise closed-loop regulation, bus-based data exchange and auxiliary system logic control

(2) Electrical & Power Supply Parameters

Rated Supply Voltage: 24VDC regulated industrial power with wide compatible input ranging from 9～36VDC
Voltage Tolerance: Tolerates ±20% mains voltage fluctuation to accommodate unstable on-site grid conditions
Typical Power Consumption: ≤15W for low heat loss and long-term energy-efficient operation
Electrical Isolation: 1500VAC isolation across all ports to fully isolate interference between internal and external circuits
Surge & Lightning Protection: Onboard 4000V lightning protection, 600W surge suppression and 1.5A overcurrent protection for multi-layer electrical safety
Operational Efficiency: Highly integrated circuitry delivers minimal signal conversion loss and exceptional long-term stability

(3) Signal Acquisition & Control Parameters

Supported Signal Types: Multi-channel analog and digital signal input acquisition plus output control
Single-channel Response: Less than 1ms to instantly capture transient process variations
Control Cycle: 100μs microsecond-level high-speed control loop for high-precision closed-loop regulation
Sampling Precision: Advanced high-precision AD conversion algorithm with negligible conversion error and zero data drift or distortion
Output Driver: Stable transistor output with strong load capacity to drive standard field actuators

(4) Communication Specifications

Supported Bus Protocols: Dual-bus interface for PROFIBUS-DP and RS485
PROFIBUS-DP Baud Rate: Up to 12Mbps adaptive high-speed transmission
RS485 Baud Rate: Max.115200bps for low-speed high-accuracy data exchange
Transmission Feature: Supports long-distance fiber optic communication up to 20km with strong anti-interference and zero data packet loss
Communication Stability: Reliable multi-device parallel communication with ultra-low latency for high-frequency real-time data interaction

(5) Environmental Specifications

Operating Temperature: -25℃～+70℃ wide industrial operating range
Storage Temperature: -40℃～+85℃
Operating Humidity: 5%～95%RH (non-condensing)
Environmental Resistance: High immunity against EMI, mechanical shock, ambient temperature swing and aging; PCB coated with three-proof conformal coating
Vibration Resistance: Withstands mechanical vibration of 10–500Hz, ≤5g for heavy-duty vibrating working conditions
Cooling Method: Passive natural convection cooling with fanless maintenance-free design
Pollution Degree: Class 2 industrial pollution protection for dusty and slightly humid workshop environments

III. Key Features

Microsecond-level High-speed Precision Control: Powered by high-performance processor to execute 100μs ultra-short control cycles and millisecond-level signal response, enabling instant capture of transient field changes and high-precision closed-loop regulation ideal for high real-time power and drive control applications.
Multi-type Compatible Signal Collection: Integrated all-in-one analog/digital input & output function synchronously acquires multi-dimensional field data including pressure, temperature, flow and switch status, combining signal monitoring and logic control with high integration and comprehensive functionality.
Expandable Dual-bus High-speed Communication: Dual PROFIBUS-DP/RS485 communication architecture supports switchable high/low-speed data transfer and 20km fiber-optic transmission, enabling flexible networking and stable connection between main control systems and field smart devices.
Comprehensive Electrical Safety Protection: Multi-layer safeguards including 1500VAC isolation, 4000V lightning protection, surge suppression, overcurrent and overvoltage protection effectively resist grid fluctuation, electromagnetic interference and transient inrush current to avoid abnormal signals and hardware damage.
Excellent Adaptability to Severe Working Conditions: Wide-temperature rated, vibration-resistant and anti-aging PCB with three-proof coating enables stable 7×24-hour continuous operation in dusty, high-EMI and widely fluctuating temperature environments with very low failure rate.
Visualized Easy Maintenance: Six groups of dual-color LEDs clearly indicate running, communication, fault and alarm status to help maintenance staff quickly locate abnormal points and shorten troubleshooting time.
High Compatibility & Easy Installation/Expansion: Compact DIN rail mounting saves cabinet space; drop-in compatible with full ABB AC800PEC product range without rewiring or program modification for fast legacy module replacement and system capacity expansion.
Low-loss Long-term Stable Operation: Optimized low-power circuitry reduces heat generation and power consumption; fanless design eliminates mechanical wear to secure consistent long-run performance and cut overall maintenance cost.

IV. Working Principle

Power-on Initialization & Self-test: After 24VDC power is applied, the module automatically runs hardware self-check, input channel calibration, communication protocol initialization and port protection inspection. Once all functional units pass verification, it completes bus handshaking with the master controller and enters standby mode.
Multi-channel High-speed Signal Acquisition: During operation, the module continuously scans all input channels to collect analog process variables and digital switch status. Built-in high-precision AD circuits perform signal calibration, filtering and noise reduction to remove interference and restore authentic field data.

High-speed Logic Calculation & Closed-loop Regulation: Within the 100μs control cycle, the module receives commands from the master unit, executes logic and PID computation based on real-time sampled data, and outputs precise control signals to drive field actuators for steady closed-loop process control.
Dual-bus Bidirectional Data Transfer: The module automatically selects PROFIBUS-DP high-speed or RS485 conventional transmission according to operating conditions. It uploads sampled data and device status to upper-level controllers while downloading regulation commands and parameter settings to achieve real-time data synchronization.

Real-time Fault Monitoring & Protection: Continuous monitoring of supply voltage, signal channels, communication links and internal temperature. The protection circuit activates immediately upon overvoltage, overcurrent, signal failure or communication dropout to lock faulty channels and report fault codes and prevent fault propagation.
Long-distance Stable Signal Transmission: Fiber-based communication breaks the distance limit of conventional cables, delivering attenuation-free, delay-free and lossless signals over long spans to guarantee coordinated operation between remote field equipment and central control.
Visual Status Feedback: Onboard dual-color LEDs continuously display running, communication, fault and alarm information to provide intuitive reference for on-site commissioning, maintenance and troubleshooting.

V. Application Fields

(1) Power Generation Automation System

Widely used in generator excitation control and auxiliary power station control systems. It precisely collects core parameters such as unit voltage, current, power and rotating speed, cooperates with master controllers to implement excitation adjustment, grid synchronization and load sharing, and ensures safe and stable grid-connected operation thanks to superior real-time performance and reliability.

(2) High-voltage Variable Frequency Drive Control System

Matched with ABB high-voltage variable frequency drives for signal acquisition and speed regulation of large-capacity high-voltage equipment including fans, water pumps and compressors. It rapidly responds to dynamic load variation and optimizes operating conditions to realize energy conservation and steady continuous production for heavy industries.

(3) Metallurgical Heavy-industry Automation System

Deployed for harsh steel rolling, sintering and bulk material conveying processes. With excellent anti-vibration, anti-interference and fast sampling capability, it monitors production parameters in real time and executes interlock logic control to guarantee non-stop operation of heavy-duty production lines.

(4) Fine Chemical Process Control System

Installed on chemical and petrochemical production lines to accurately sample reaction temperature, pressure, flow and liquid level for high-precision closed-loop control, satisfying strict stability and accuracy requirements of fine chemical processes and securing stable production of high-risk manufacturing processes.

(5) Upgrade & Retrofit of Legacy ABB Automation Systems

Used as drop-in replacement for aged, slow-response and low-precision signal acquisition modules on legacy AC800PEC systems. No cabinet modification or program revision is required to improve sampling accuracy and control responsiveness at low cost, resolving inherent drawbacks including sluggish control, data distortion and high failure rates of old systems.
