I. Basic Information

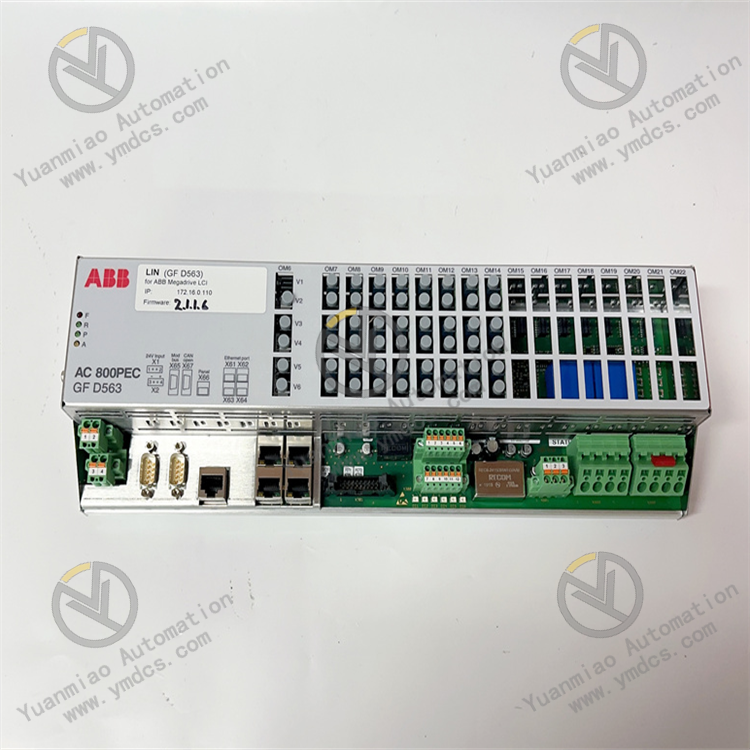

Model: GFD563A101
ABB Part No.: 3BHE046836R0101
Brand: ABB
Series: AC800PEC High-power Drive Control Series, UNITROL Generator Excitation System Supporting Series
Product Type: Integrated High-precision Excitation Drive & Grid Frequency Monitoring Control Module
Compatible Systems: ABB UNITROL full-series generator excitation systems, AC800PEC industrial process controllers, high-power variable frequency/DC drive control systems. It is specially used for generator excitation power unit drive, grid frequency real-time monitoring and unit closed-loop regulation in thermal power, hydropower and self-owned power stations.
Product Positioning
As the core functional module of ABB excitation and high-power drive control system, this module integrates high-precision grid frequency acquisition, excitation pulse drive, analog signal conditioning and industrial communication interaction. It accurately outputs excitation drive pulses to control the SCR rectifier unit and realize closed-loop adjustment of excitation current, and completes real-time monitoring and data upload of grid operating parameters. With excellent anti-interference performance, it ensures stable operation of generator voltage, reactive power and frequency, and is widely used in spare part replacement, system upgrading and technical renovation of power generation and industrial drive control systems.
Hardware Architecture
1. High-precision Grid Frequency Monitoring Unit: Adopts high-speed sampling chip to collect grid and unit frequency signals in milliseconds, capturing tiny frequency fluctuations accurately, and providing high-precision data support for unit primary frequency modulation and steady-state frequency stabilization control.
2. Excitation Power Drive Output Unit: The special pulse drive circuit stably outputs thyristor trigger pulses to precisely drive the excitation SCR rectifier bridge, realizing stepless closed-loop adjustment of excitation current and adapting to full working conditions of generators.
3. Multi-protocol Industrial Communication Unit: Equipped with isolated communication interfaces, supporting Modbus, Profibus, industrial Ethernet and other mainstream protocols, realizing high-speed data interaction with upper controllers and monitoring systems.
4. Multi-channel Signal Conditioning Unit: Supports 4-20mA/0-10V analog signal acquisition, with built-in filtering, level conversion and isolation circuits to eliminate on-site harmonic interference and ensure signal stability.
5. Multi-level Hardware Protection & Fault Latching Unit: Integrates reverse power, overvoltage/overcurrent, ESD, short-circuit and surge protection. It latches fault codes and triggers local alarms to quickly locate equipment abnormalities.
6. Industrial Reinforced Structure: Full conformal coated PCB, compact cabinet installation design and reasonable heat dissipation structure, adapting to harsh working conditions such as high temperature, dust and vibration in closed control cabinets.
Mounting Specifications
- Operating Power Supply: DC24V±10%, typical power consumption ≤5W
- Analog Signal Input: 4-20mA, 0-10V standard industrial signals
- Communication Protocols: Modbus, Profibus, Industrial Ethernet
- Dynamic Response Time: ≤10ms
- Mounting Mode: Standard cabinet guide rail/card slot embedded installation
- Dimension: 250mm × 245mm × 245mm
- Net Weight: 0.92kg
- Protection Class: IP20 (indoor closed cabinet installation only)
- Supporting Equipment: UNITROL excitation main control unit, SCR excitation rectifier bridge, AC800PEC controller, shielded communication cables, 24VDC redundant control power supply
- Commissioning Tools: ABB official excitation debugging software, multimeter, insulation resistance tester, signal calibrator, anti-static wristband
Supporting System
Supporting Hardware
UNITROL series generator excitation cabinet, AC800PEC high-power drive controller, SCR thyristor rectifier unit, industrial redundant switch, DC operation power system, working condition acquisition sensors.
Commissioning Software
ABB special excitation system configuration software, used for module parameter configuration, frequency sampling calibration, excitation drive parameter setting, communication configuration and fault log reading.
Upper-level System
Plant DCS, SIS and SCADA platforms realize remote centralized monitoring of unit frequency, excitation current, equipment operating status and fault alarms, supporting equipment fault traceability and predictive maintenance.
Typical Application Industries
Thermal/hydropower generating units, petrochemical self-owned power stations, natural gas compressor stations, steel waste heat power plants, waste incineration power plants and large industrial high-power drive control systems.
Product Features
1. High-precision Frequency & Excitation Control: Millisecond-level sampling and fast closed-loop adjustment, with voltage regulation accuracy ≤±0.2% and reactive power distribution accuracy ≤±2%, effectively avoiding unit frequency and voltage oscillation.
2. Strong Compatibility & Flexibility: Compatible with mainstream industrial signals and multiple communication protocols, seamlessly docking with ABB full-series systems and third-party automatic control systems to reduce system transformation costs.
3. Excellent EMC Anti-interference Performance: Adopts photoelectric isolation, RC filtering and multi-stage surge absorption to suppress on-site harmonic and high-frequency interference, ensuring stable signal acquisition and drive output.
4. Fast Fault Diagnosis & Traceability: Real-time full-loop status monitoring, automatic fault latching and dual local/remote alarm functions, greatly shortening on-site troubleshooting time.
5. Wide-temperature Rugged Industrial Design: Conformal coated PCB, vibration and humidity resistance, supporting 24/7 uninterrupted long-term operation with high stability.
6. Plug-and-play Compatible Replacement: Fully consistent hardware size, interface definition and protocol parameters with the same series of modules, enabling rapid in-situ replacement without on-site wiring and configuration modification.
II. Technical Specifications
2.1 Electrical Parameters
- Model: GFD563A101, Part No.: 3BHE046836R0101
- Rated Power Supply: DC24V±10%, power consumption ≤5W
- Analog Acquisition: 4-20mA, 0-10V standard industrial signals
- Control Accuracy: Voltage regulation ≤±0.2%, reactive power distribution ≤±2%
- Dynamic Response Time: ≤10ms
- Communication Protocols: Modbus, Profibus, Industrial Ethernet
- Dielectric Withstand Voltage: Electrical isolation for power, signal and communication loops
- Built-in Protection: Reverse polarity, overvoltage/overcurrent, short-circuit, ESD, surge absorption, fault latching protection
- Core Functions: Grid frequency monitoring, excitation pulse drive, analog signal conditioning, industrial data communication, fault diagnosis and alarm, unit parameter closed-loop regulation
2.2 Mechanical Parameters
- Mounting Mode: Standard industrial cabinet guide rail/card slot embedded installation
- Structure: Flame-retardant multi-layer PCB, reinforced industrial shell, status indicator LED array
- Interfaces: Analog signal terminal, 24V power terminal, multi-protocol communication interface, drive output terminal
- Dimension: 250mm × 245mm × 245mm
- Net Weight: 0.92kg
2.3 Environmental Specifications
- Operating Temperature: -20℃ ~ +60℃
- Storage Temperature: -40℃ ~ +85℃
- Humidity: 5%~95%RH, non-condensing, no corrosive gas or conductive dust
III. Key Features
1. High-precision Real-time Grid Frequency Monitoring: High-speed sampling of grid and unit frequency signals captures subtle fluctuations, providing accurate data support for unit primary frequency modulation, steady-state frequency stabilization and grid-connected quasi-synchronization control.
2. Precise Drive of Excitation Power Unit: Outputs high-precision thyristor trigger pulses to control the conduction angle of SCR rectifier bridge, realizing stepless closed-loop adjustment of excitation current and stabilizing unit terminal voltage and reactive power output under full working conditions.
3. Multi-channel Analog Signal Acquisition & Conditioning: Collects and conditions standard industrial analog signals, filters interference and uploads accurate operating parameters to the main control system for closed-loop control feedback.
4. Multi-protocol Redundant Data Interaction: Realizes two-way high-speed data transmission with excitation main control, drive controller and upper monitoring system, supporting remote parameter reading and writing and online program backup for intelligent remote operation and maintenance.
5. Full-loop Fault Diagnosis & Early Warning: Identifies hidden faults such as signal disconnection, abnormal voltage and communication interruption, automatically latches fault information and triggers dual local and remote alarms to realize predictive equipment maintenance.
6. Core Supporting Control Unit for Excitation & Drive Systems: Standard core module for UNITROL excitation system and AC800PEC drive system, widely used in new unit commissioning, old equipment overhaul, control precision upgrading and fault spare part replacement.
IV. Working Principle
After DC24V power-on and full hardware self-test of power supply, sampling circuit, drive unit and communication port, the module enters normal operating mode. It continuously collects grid frequency and unit analog operating signals, and transmits calibrated data to the main control system after isolation and filtering. Meanwhile, it receives excitation adjustment commands from the upper system, outputs accurate trigger pulses after operation and analysis, and drives the SCR rectifier unit to complete closed-loop adjustment of excitation current, unit voltage and reactive power.
During operation, the module synchronously uploads operating parameters and equipment status through multi-protocol bus. When abnormal conditions such as power failure, signal disconnection and communication fault are detected, it immediately activates hardware protection, latches fault codes, triggers alarms and uploads fault information to avoid unit operation instability. After troubleshooting, system reset can clear fault latching and restore normal functions.
V. Application Scenarios
1. Overhaul and fault module replacement of UNITROL excitation systems in thermal and hydropower plants to solve problems such as unstable unit frequency modulation and drifting excitation adjustment.
2. Intelligent upgrading of excitation systems in petrochemical, gas station and steel self-owned power stations to optimize frequency monitoring and excitation control accuracy.
3. Maintenance and precision calibration of AC800PEC high-power drive control systems for large industrial enterprises to ensure stable operation of high-power drive equipment.
4. Renovation of old excitation control systems in waste incineration and cogeneration power plants to improve fault diagnosis and remote monitoring capabilities.
5. Preventive spare part reserve and annual overhaul loop verification for power generation equipment to ensure long-term safe and stable operation of excitation and drive systems.
