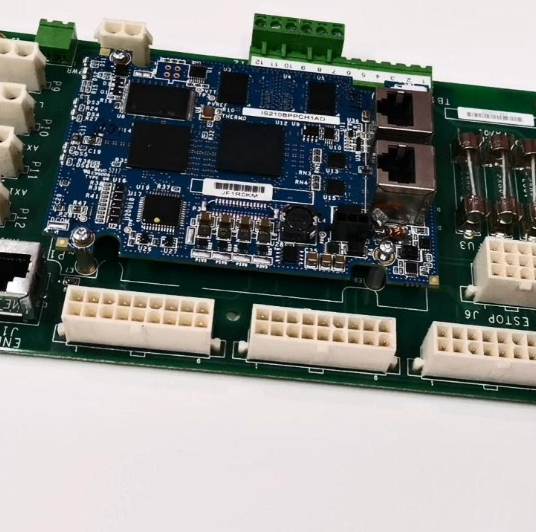

GE IS210BPPCH1AD I/O Packet Processor Board (BPPC Board)

Description

I. Product Overview

GE IS210BPPCH1AD is an I/O Pack Processor Board (BPPC Board) specially developed by General Electric for the Mark VIe turbine control system, serving as the core data processing unit of distributed I/O racks. It is mainly responsible for preprocessing, filtering, range conversion and data packaging uploading of all analog and digital field signals inside the local I/O pack. Meanwhile, it receives control instructions issued by the main controller and forwards them to each I/O sub-module, realizing data interaction and forwarding between field sensors, actuators and upper-level controllers. It is a key hardware component of the distributed control architecture for gas turbine and steam turbine generator units.

Adopting SMT double-sided patch technology, this board is equipped with a high-speed industrial processor and dual redundant Ethernet communication ports, supporting simplex, dual hot-standby and TMR triple modular redundant deployment modes. It features on-board hardware self-diagnosis, signal abnormality identification and link break detection functions. Certified by CE, UL and Class I Div2 hazardous area certification, it can operate continuously for 24/7 under harsh industrial conditions including high temperature, dust, strong electromagnetic interference and long-term equipment vibration in power plants. It is widely used in thermal combined-cycle power plants, petrochemical gas-driven compressor units and waste heat power generation turbine control projects, acting as a critical spare part for system capacity expansion, annual overhaul and faulty module replacement.

II. Hardware Structure and Composition

1. High-speed Signal Processing Unit

Equipped with a dedicated real-time industrial processor and on-board flash memory & cache, the board completes filtering, optoelectronic isolation verification, engineering quantity conversion and fault latch of multi-channel raw I/O signals in millisecond level. It packages I/O data packets for uploading to the main controller, and distributes speed regulation, interlock and valve drive instructions to corresponding I/O channels, reducing the data processing load of the main CPU and improving system real-time response.

2. Dual Redundant Industrial Ethernet Communication Circuit

Two independent Gigabit Ethernet ports are configured for hot-backup data transmission. Automatic channel switching ensures no data loss or delay when a single link fails. Compatible with Mark VIe dedicated industrial communication protocol, it supports logic downloading, parameter tuning, fault record uploading and remote firmware upgrading between main control boards, protection boards and engineering workstations.

3. Multi-channel I/O Backplane Bus Interface

It connects with the I/O rack backplane via high-density gold-plated connectors to realize bus data interaction with all digital/analog I/O modules in the same pack. It uniformly collects channel status, fault codes and alarm information, and forwards upper control instructions to realize centralized management of distributed I/O devices.

4. Isolated Power Conversion & Multi-level Hardware Protection Circuit

Designed for standard 24VDC cabinet power input, the built-in isolated DC-DC circuit provides stable working voltage for core chips. Multi-level protection against overvoltage, undervoltage, overcurrent, reverse connection and surge effectively prevents hardware damage caused by grid fluctuation, lightning surge and wrong wiring, and avoids system-wide communication breakdown triggered by single-channel load faults.

5. On-board Status Indicator & Configuration Components

Multiple LED indicators display power status, processor operation, Ethernet communication, hardware and bus faults for rapid on-site troubleshooting. Reserved DIP switches support station address setting, redundancy mode and communication rate configuration, adapting to various system architecture deployment requirements.

III. Technical Specifications

(1) Electrical Parameters

Rated Input Voltage: 24VDC, allowable fluctuation: 20～28VDC

Typical Power Consumption: ≤8W

Communication Interface: Dual redundant industrial Ethernet ports

Signal Processing Cycle: Millisecond-level real-time data packaging

Operation Modes: Simplex, Dual Hot-standby, TMR Triple Modular Redundancy

Protection: Multi-level isolation protection against overvoltage, undervoltage, overcurrent, reverse connection and surge

(2) Environmental Parameters

Operating Temperature: 0℃～+60℃ (derating required above 1000m altitude)

Storage & Transportation Temperature: -40℃～+85℃

Relative Humidity: 5%～95%RH, non-condensing, no corrosive gas or conductive dust

Vibration Compliance: IEC 60068-2-6 industrial anti-vibration standard

Ingress Protection: IP20, for indoor ventilated control cabinets only

(3) Mechanical Parameters

Mounting: Vertical slot installation on I/O rack backplane

Dimensions: 183mm×122mm×30mm

Net Weight: Approx. 0.58kg

Fixing: Panel locking screws, independent star protective grounding terminal

IV. Product Functions and Features

Distributed I/O Preprocessing Optimizes Main Controller Load
It preprocesses dozens of field process signals locally, converts raw data into standardized packets to reduce bus occupancy, optimizing computing resources and guaranteeing real-time performance of key control loops such as speed regulation, load control and interlock protection.
Dual Redundant Communication & Multi-mode Redundancy Ensures Data Continuity
Dual Ethernet links realize seamless hot switching to avoid I/O signal loss caused by single-point communication faults. Native TMR triple redundant design complies with SIL3 safety requirements, adopting 2-out-of-3 hardware voting to prevent false signal collection and interlock misoperation.
Full-channel Self-diagnosis Enables Traceable Fault Location
It continuously monitors power supply, processor, communication links and all I/O channels, latches fault codes, time and channel information locally and uploads alarms to the upper system, supporting historical log query to shorten maintenance downtime.
Full Compatibility with Mark VIe Control System
Standardized backplane protocol and communication specification support direct replacement of faulty boards. It is compatible with all series I/O modules and supports offline configuration, parameter calibration and firmware upgrade for plant overhaul, cabinet expansion and safety architecture upgrading projects.
Industrial Wide-temperature & EMC Anti-interference Design
All components are industrial wide-temperature grade with optoelectronic isolation and shielding on all interfaces, resisting strong electromagnetic interference from inverters and high-voltage equipment. It delivers long MTBF and low maintenance frequency under dusty, high-temperature and long-term vibration working conditions.

V. Application Scenarios

Local signal preprocessing and data forwarding for distributed I/O cabinets of GE Mark VIe control systems in thermal and combined-cycle power plants.
I/O redundancy expansion and faulty spare part replacement for gas-driven compressor units and offshore power generation systems in petroleum and chemical industries.
Hardware supporting deployment for safety monitoring and speed control I/O systems of blast furnace blowers and waste heat power generation industrial turbines.
Same-model replacement and upgrading of aging, communication-fault I/O processing boards during annual overhauls of legacy GE turbine control systems.
Hardware renovation projects for adding process monitoring points, optimizing distributed control architecture and upgrading TMR safety systems in power plants.
