Description
1. Product Overview

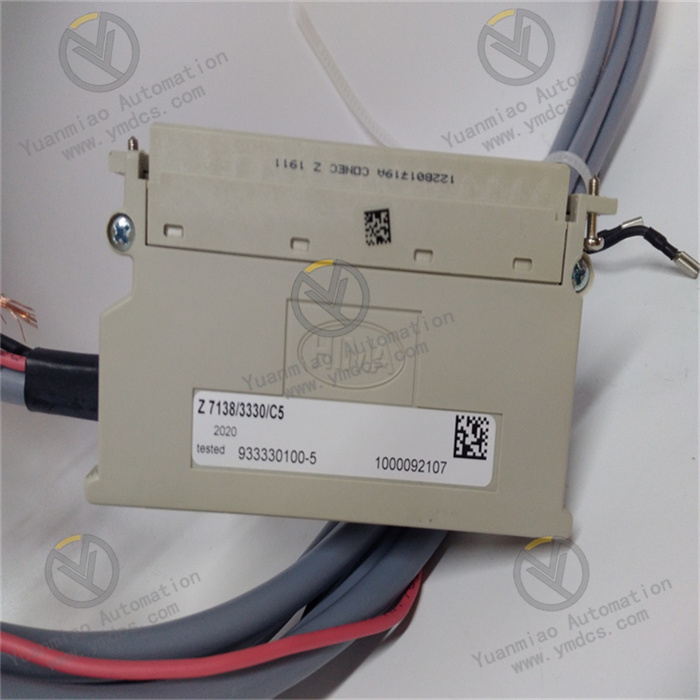

HIMA Z7138/3330/C5 is an original LED cable plug assembly for digital outputs of safety systems, manufactured by HIMA Germany. It is specially designed for HIMax and HIMatrix series SIS safety instrumented systems, serving as a dedicated signal connection component between safety cards and field actuators. Integrated with shielded transmission cables, redundant plug structure and channel status LED indicator unit, it is mainly used for stable transmission of digital output signals in safety systems, visual monitoring of link status and electrical connection of equipment. Widely applied in SIS safety interlock control systems of petrochemical, chemical, power and oil & gas industries, it is a core spare part to guarantee reliable signal transmission of safety loops.
This assembly is equipped with a 5-meter custom shielded cable as standard. Featuring an industrial reinforced integrated structure, it is anti-interference, anti-aging and bending-resistant, suitable for complex and harsh working conditions on industrial sites. Different from ordinary industrial connectors, Z7138/3330/C5 is optimized to meet the high reliability and high fault tolerance requirements of safety systems. It supports redundant signal transmission, real-time link diagnosis and visual feedback of channel status, fully complying with IEC 61508 SIL3 safety level application standards. As an original standardized matching accessory, it is plug-and-play without commissioning, and can directly replace old plug assemblies of the same specification in situ. It is applicable to daily maintenance, fault replacement and project expansion & reconstruction of safety systems, and supports stable operation of safety loops for 7×24 hours non-stop.
2. Functional Features
2.1 Visual LED Status Indication for Intuitive and Efficient Maintenance
High-brightness LED status indicators are built into the plug, which can synchronously feed back the working status of safety channels such as on/off, signal output and link anomalies in real time. Without professional testing equipment, maintenance personnel can directly judge the operating conditions of channels and quickly identify hidden faults including signal disconnection, poor contact and loop abnormalities. It thoroughly solves the problem of cumbersome fault troubleshooting caused by traditional connectors without visual link monitoring, greatly improving the efficiency of routine inspection and fault handling of SIS safety systems, and ensuring that safety loops are always in a controllable, visible and stable state.
2.2 Redundant Shielded Transmission Design for Safe and Reliable Signal Transmission
Adopting a dedicated redundant plug architecture and full-length shielded cable design, it can effectively isolate electromagnetic interference, radio frequency clutter and voltage fluctuations generated by inverters, high-voltage equipment and high-power units on industrial sites, preventing safety signal distortion, jump and false transmission. Optimized for the stringent signal transmission requirements of SIS safety interlock systems, it ensures accurate, stable and delay-free transmission of digital output signals, effectively avoiding risks of false action or failure to act of interlocks caused by abnormal signals, and fully meeting the SIL3 high-reliability operation standards of industrial safety systems.
2.3 Original Precise Matching for Commissioning-free Rapid Replacement
As an original supporting dedicated assembly of HIMA, Z7138/3330/C5 features pin definition, electrical parameters, cable specifications and installation dimensions fully matching all safety cards of HIMA HIMax and HIMatrix, achieving 100% in-situ compatibility. On-site replacement requires no wiring modification, re-configuration or system shutdown commissioning. Replacement can be completed and put into normal operation via plug-in connection, greatly shortening the emergency repair time of safety system faults and reducing unplanned shutdown losses of plants. It fits scenarios including emergency maintenance, periodic spare parts replacement and system expansion & upgrade on industrial sites.
2.4 Industrial Reinforced Weather-resistant Structure Adapted to Harsh Working Conditions
The plug housing is made of high-strength flame-retardant industrial plastic, with corrosion resistance, impact resistance, dust & moisture resistance and oil stain resistance. The supporting cable adopts a flexible bending-resistant shielded structure, resisting long-term repeated bending, mechanical pulling and on-site friction and wear, and is not prone to cracking, wire breakage or aging. The whole product has passed rigorous industrial condition tests, and can be applied to complex environments with heavy dust, high humidity, strong electromagnetic interference and large temperature fluctuations in petrochemical, chemical and power plants for long-term operation. It has a long service life and ultra-low failure rate, satisfying the demand for year-round non-stop continuous operation of industrial plants.
2.5 Compliant Safety Design Meeting High-level Safety Certifications
Developed and manufactured in accordance with international safety standards, the product is suitable for safety instrumented systems of SIL3 safety level. Its electrical insulation performance, shielding performance and loop fault tolerance comply with IEC 61508 and IEC 61511 industrial safety codes. The structure has high insulation protection grade, which can effectively eliminate electrical hazards such as electric leakage, short circuit and signal crosstalk, guaranteeing the integrity and independence of safety interlock loops, and providing reliable hardware support for emergency interlock, shutdown protection and safety management of industrial plants.
3. Technical Parameters
3.1 Core Adaptation Parameters
Model: Z7138/3330/C5 Brand: HIMA Germany Product Type: LED cable plug assembly dedicated for digital outputs of SIS safety systems Applicable Systems: HIMA HIMax, HIMatrix series safety instrumented systems Applicable Cards: All supporting digital output safety cards Cable Length: 5 meters, original factory standard custom length Core Functions: Shielded transmission of safety digital signals, visual LED indication of channel status, redundant link connection, electrical isolation of safety loops, intuitive fault early warning Applicable Scenarios: SIS interlock systems for petrochemical and chemical industries, safety control systems of power units, safety instrumented systems for oil & gas storage and transportation, maintenance & replacement of safety systems, upgrade & reconstruction of old equipment
3.2 Signal Transmission Parameters
Applicable Signal Type: Digital output discrete signals of safety systems Transmission Characteristics: Full-length shielding for anti-interference; signals free of distortion, delay and crosstalk Structural Characteristics: Redundant plug connection design with high loop fault tolerance Status Indication: Built-in LED indicators to feed back channel on-off and operating status in real time Safety Level: Suitable for supporting application in SIL3 safety loops, complying with industrial safety standards
3.3 Electrical Operating Parameters
Rated Operating Voltage: 24V DC, standard voltage for industrial safety systems Insulation Performance: High-insulation protection design to effectively eliminate hidden dangers of electric leakage and short circuit Shielding Performance: Fully wrapped shielding layer with excellent resistance to electromagnetic and radio frequency interference Electrical Protection: Overcurrent protection, signal crosstalk prevention, transient electrical surge protection Loop Characteristics: Independent transmission of safety loops without interfering with signals of other channels
3.4 Structure and Installation Parameters
Installation Method: In-situ plug-in connection at the front end of the card, tool-free quick installation Structure Form: Integrated assembly of plug and shielded cable Cable Technology: Flexible bending-resistant shielded cable, wear-resistant, anti-aging and anti-cracking Housing Technology: High-strength flame-retardant and anti-corrosion housing, dust-proof, moisture-proof and impact-resistant Replacement Advantage: Precisely matched with original interfaces; no rewiring, configuration or commissioning required
3.5 Environmental Operating Parameters
Operating Temperature: -20℃ ~ +70℃, stable transmission performance across the full temperature range Storage Temperature: -30℃ ~ +80℃ Operating Humidity: 10% ~ 95%RH (non-condensing), suitable for high-humidity industrial working conditions Environmental Resistance: Tolerates industrial dust, oil contamination, slight corrosion, mechanical vibration and temperature fluctuation Operation Mode: Supports 7×24 hours non-stop continuous operation all year round
4. Hardware Configuration and Structural Advantages
4.1 Core Hardware Configuration
HIMA Z7138/3330/C5 assembly is integrated with original high-precision plug terminals, built-in LED indication module, fully wrapped shielding layer, high-purity copper core transmission cables and flame-retardant protective outer sheath. The terminals adopt gold-plated precision connection technology, featuring low contact resistance, stable conduction and resistance to oxidation and loosening, ensuring long-term electrical connection reliability. The core wire adopts high-purity bare copper material with excellent conductivity for lossless and lag-free signal transmission. The built-in dedicated LED status monitoring unit can collect and visually display channel operating status synchronously without external power supply, and monitor loop health in real time. The cable adopts a multi-layer shielding structure with inner insulation layer, middle shielding layer and outer protective layer to comprehensively resist electromagnetic interference and environmental erosion on industrial sites. All components have passed rigorous original factory tests including aging, bending, insulation and anti-interference tests, fully meeting the requirements of SIS safety systems for high reliability and long service life.
4.2 Structural Design Advantages
The whole assembly adopts an integrated lightweight structure with seamless connection between plug and cable and excellent sealing performance, which can effectively prevent dust, water vapor and oil contamination from entering the interior of the connector, eliminating common faults such as poor contact, short circuit and oxidative corrosion. The plug-in quick connection structure features precise alignment and firm buckle, anti-vibration and anti-loosening, tolerating vibration from equipment operation and disturbance from on-site manual operation, and is not easy to fall off or loosen during long-term operation. The flexible cable adapts to complex wiring scenarios, can be bent freely for routing and resists cracking and wire breakage, meeting the demands of dense wiring in control cabinets and long-distance connection of field equipment. The visual LED design revolutionizes the traditional connector structure without monitoring, realizing visual maintenance of safety loop status, greatly reducing risks of hidden faults in safety systems and improving the stability and maintainability of safety control systems.
5. Working Principle
HIMA Z7138/3330/C5 cable plug assembly adopts a closed-loop working mechanism: Electrical connection and conduction → shielded signal transmission → real-time status collection → LED visual feedback → full-process fault monitoring and protection. It undertakes the core tasks of signal transmission and status monitoring for digital output loops of HIMA safety systems.
The assembly completes electrical connection with the front interface of the safety card through the original precision plug, building a dedicated signal transmission link between the card and field actuators. During system operation, digital discrete signals output by the safety card are transmitted losslessly, anti-interferentially and stably to field solenoid valves, relays, actuators and other equipment through high-purity copper core cables and multi-layer shielding structure, ensuring accurate execution of safety interlock commands. Meanwhile, the built-in LED monitoring unit collects channel conduction status and signal output status in real time. The indicator keeps normally lit under normal working conditions; when line disconnection, poor contact, abnormal signals or loop faults occur, the indicator changes status to visually reflect the fault point.
During full-cycle operation, the multi-layer shielding structure continuously isolates external electromagnetic interference to prevent signal distortion and false transmission. The redundant connection architecture guarantees loop fault tolerance, and single-channel faults are isolated independently without affecting the whole safety system and other loops. Dual guarantees of stable signal transmission and visual status monitoring comprehensively ensure that SIS safety interlock loops act accurately, remain controllable and enable fault tracing, so as to guarantee safe and stable operation of industrial plants.
6. Application Scenarios
6.1 SIS Safety Interlock Systems for Petrochemical and Chemical Industries
Widely used in SIS safety instrumented systems of petrochemical, fine chemical and coal chemical plants for signal transmission and status monitoring of digital output loops such as emergency shutdown interlock, process over-limit protection, pressure and liquid level safety interlock. With features of high anti-interference, high reliability and visual maintenance, it adapts to harsh working conditions of strong electromagnetic interference, high humidity and dust as well as continuous production in chemical plants. It ensures accurate transmission of safety interlock commands and real-time controllability of loop status, avoiding risks of interlock failure or false action and guaranteeing safe production of chemical plants.
6.2 Safety Control Systems of Power and Energy Units
Suitable for safety instrumented control systems of thermal power plants, thermal power stations and new energy supporting units for digital output signal transmission of auxiliary machine safety interlock, shutdown protection and process safety management of units. With SIL3 safety adaptability and stable transmission performance, it guarantees reliable operation of safety loops of power units, eliminates unit safety hazards caused by abnormal signals, and meets the high-standard maintenance requirements of safety control systems in the power industry.
6.3 Safety Instrumented Systems for Oil & Gas Storage and Transportation
Applied in safety automatic control systems of long-distance oil & gas pipelines, oil & gas storage tank farms and LNG plants, undertaking signal transmission of loops such as tank farm pressure over-limit interlock, emergency shut-off valve control and storage & transportation safety protection. It tolerates corrosive, dusty and complex electromagnetic environments in oil & gas plants, ensuring long-term stable operation of safety interlock systems for storage and transportation facilities and preventing safety accidents.
6.4 Maintenance, Replacement and Expansion & Reconstruction of Safety Systems
As an original dedicated supporting spare part for HIMA safety systems, it can directly replace aging, damaged plug assemblies with poor contact or failed indicators. No circuit modification or system configuration is required to quickly restore the operating performance of safety loops. It is also applicable to system integration of new projects and expansion & reconstruction of old safety systems, perfectly compatible with the original system architecture and reducing technical renovation costs and construction difficulty.
6.5 Preventive Spare Parts Inventory for Industrial Safety Equipment
To meet the routine and preventive maintenance demands of SIS systems in chemical, power and oil & gas enterprises, Z7138/3330/C5 serves as a core standing supporting spare part, which can deal with common problems such as plug aging, cable damage, indicator faults and poor contact. Pre-stocking this spare part enables rapid handling of sudden equipment faults, shortens shutdown maintenance time of safety systems, ensures the integrity, reliability and controllability of safety loops of industrial plants, and fits the lean safety maintenance system.
