Description
I. Product Overview

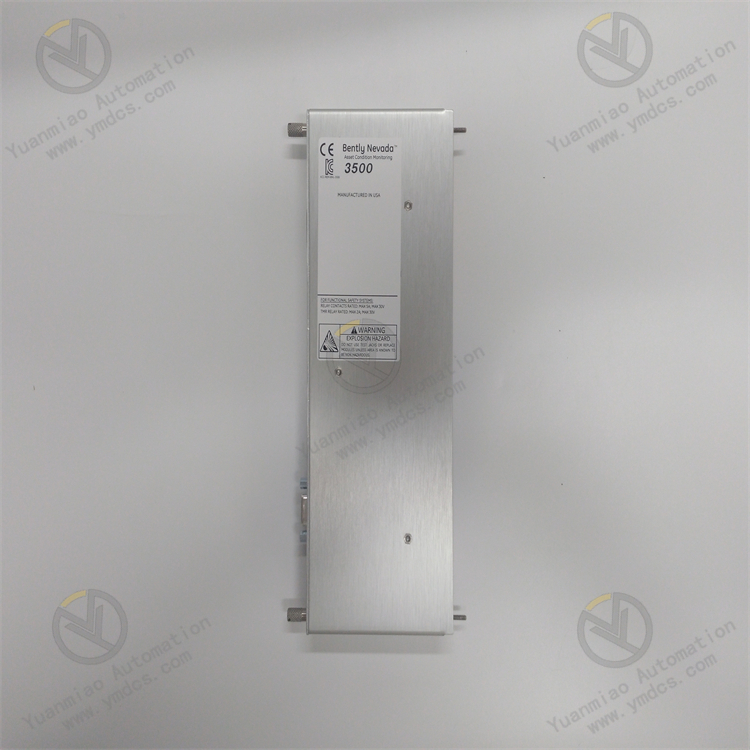

Bently Nevada 3500/92 (Part No.125736-01) is a multi-protocol communication gateway module for the 3500 machinery protection system. It collects real-time measurement data, alarm status and fault diagnostic information from all rack modules, realizing data interconnection between the 3500 system and DCS, SCADA and System 1 predictive maintenance platforms via Ethernet TCP/IP and RS232/422/485 serial interfaces.Supporting Modbus TCP, Modbus RTU and proprietary Bently configuration protocols, the module adopts configurable Modbus register technology to achieve seamless compatibility with legacy 3500/90 gateway projects. Multiple gateways can be deployed in a single rack for redundant communication, and the module will not interfere with unit safety interlock logic even in case of hardware failure. Certified by CE and UL, it is widely used in centralized monitoring renovation, spare part replacement and intelligent operation upgrading of rotating equipment protection systems in power, petrochemical and metallurgical industries.
II. Hardware Structure and Composition
1. Rack Backplane High-speed Data Acquisition Unit
The module polls all rack monitoring, power supply and relay modules through the proprietary redundant backplane bus, completes data filtering, timestamp tagging and packaged transmission. The configurable register function supports selective uploading of measuring points to optimize industrial network transmission load and adapt to large-scale multi-point centralized monitoring scenarios.
2. Multi-interface Multi-protocol Communication Unit
Equipped with one 10Mbps RJ45 Ethernet port for remote configuration, firmware upgrade and high-speed data upload; the matched rear I/O module supports optional RS232/422/485 serial interfaces for Modbus RTU bus access to legacy automation control systems. Dual-link simultaneous data transmission is supported to realize redundant data uploading for two independent monitoring platforms.
3. Configurable Modbus Register Management Unit
The upgraded register configuration tool breaks the fixed address limitation of the previous generation gateway, supports template batch import and single-point custom mapping, enabling seamless migration of original upper computer monitoring programs without modifying DCS control logic, greatly shortening the on-site commissioning cycle of system upgrading.
4. Status Indication & Industrial Protection Unit
Front-panel LED indicators intuitively display module operation, data transceiving and hardware fault status. With multi-level surge and reverse voltage protection, the three-proof coated PCB and metal reinforced housing ensure stable operation under harsh cabinet environments such as high temperature, dust and strong electromagnetic interference.
5. Standard Full-height Rack Mounting Unit
Single full-slot installation compatible with all 3500 series racks, supporting direct in-situ replacement of 3500/90 legacy gateways. Multiple modules can be installed in the same rack to build hot-standby redundant communication architecture and ensure uninterrupted data transmission of key unit operating parameters.
III. Technical Specifications
(1) Electrical Parameters
- Power Supply: Rack backplane DC power supply, typical power consumption 5W
- Ethernet: RJ45 10BASE-T, Modbus TCP, Bently proprietary configuration protocol
- Serial Interface: Optional RS232/422/485, Modbus RTU, maximum 32 slave stations per bus
- Core Function: Full rack data polling, timestamp event caching, user-defined Modbus register mapping
- Safety Isolation: Communication fault will not affect all safety monitoring and interlock functions of the 3500 system
- Redundancy Support: Multi-module hot standby deployment, dual-link simultaneous data transmission
(2) Environmental Parameters
- Operating Temperature: -30℃～+65℃; Storage Temperature: -40℃～+85℃
- Relative Humidity: 5%～95%RH, non-condensing, no corrosive gas or conductive dust
- Ingress Protection: IP20, installed only in indoor ventilated control cabinets
(3) Mechanical Parameters
- Mounting: Standard full-height single-slot rack installation with matched rear I/O terminal module
- Net Weight: Approx. 0.45kg
- Protection Process: Metal reinforced housing, three-proof conformal coated anti-vibration PCB
- Redundancy Scheme: Multi-module parallel hot standby for communication link backup
- Origin: United States
IV. Product Functions and Features
1. Multi-protocol Compatibility Realizes Seamless Upgrading of New and Old Systems
Dual Ethernet and serial communication modes adapt to various industrial control architectures, and the customizable register function avoids the transformation of upper computer control logic, effectively reducing the renovation investment and equipment downtime of factory automation projects.
2. Global Centralized Data Collection Simplifies On-site Hardware Layout
A single gateway realizes unified acquisition and transmission of all vibration, temperature, speed and pressure measuring points in the rack, replacing multiple independent data acquisition devices, optimizing cabinet wiring and industrial network topology, and facilitating centralized equipment operation and maintenance management.
3. Safety Isolation Architecture Eliminates Communication-type Protection Failure Risks
The gateway only undertakes data forwarding and remote configuration tasks without participating in safety interlock operation. Hardware or link faults will not trigger unit mis-trip or protection failure, fully complying with API 670 safety specifications for critical rotating machinery.
4. Redundant Hot Standby Deployment Ensures Continuous Data Monitoring
Dual-gateway hot backup prevents data loss and alarm failure caused by single network link interruption, providing complete original operation data support for equipment fault traceability and safety compliance audit of high-risk process devices.
5. Remote Network Configuration Improves Intelligent O&M Efficiency
Ethernet remote access supports one-click rack parameter backup, firmware online upgrade and historical fault log export, realizing centralized remote debugging and maintenance of distributed units across factories and greatly reducing on-site travel and maintenance costs.
6. Rugged Fanless Design Supports 24/7 Unattended Stable Operation
Wide-temperature industrial components and three-proof circuit structure adapt to long-term continuous harsh industrial operation, requiring only regular link inspection and terminal tightening for daily maintenance to guarantee reliable data transmission throughout the unit service cycle.
V. Application Scenarios
- Data centralized uploading from turbine auxiliary equipment 3500 protection system to plant DCS and SIS monitoring platforms in thermal and gas power plants.
- Access of compressor vibration and temperature operating data to real-time database and System 1 predictive maintenance system in petrochemical and LNG facilities.
- Spare part replacement and technical upgrading of legacy 3500/90 communication gateways with compatible register mapping for original monitoring programs.
- Communication link redundancy renovation for key rotating equipment to avoid operational data loss caused by single network failure.
- Centralized remote configuration and intelligent operation management of multi-site distributed machinery condition monitoring systems.
