Description
1. Product Overview

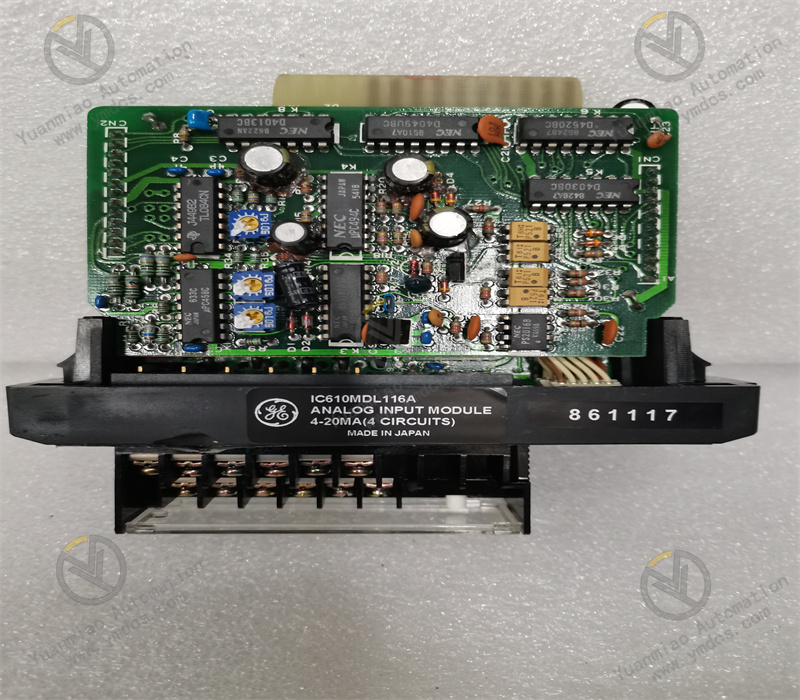

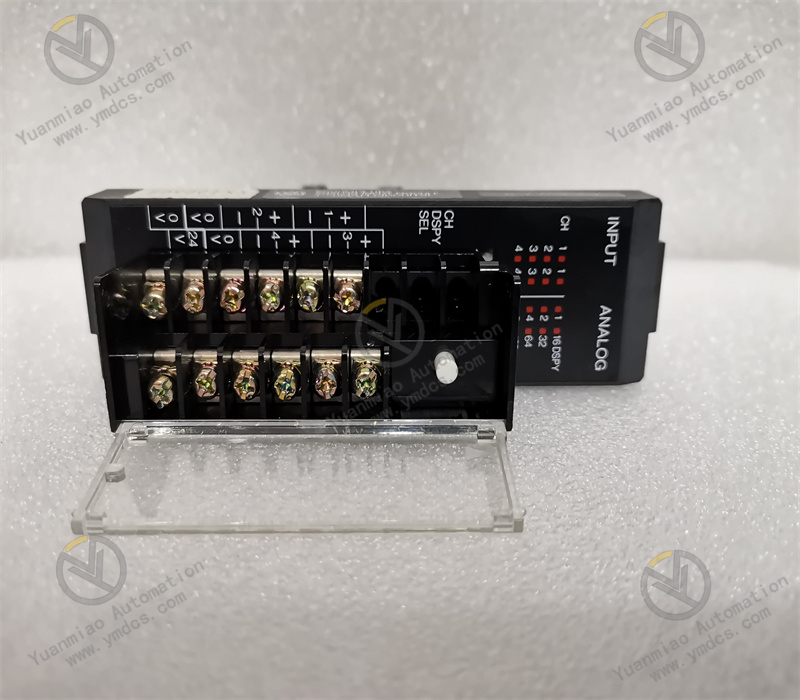

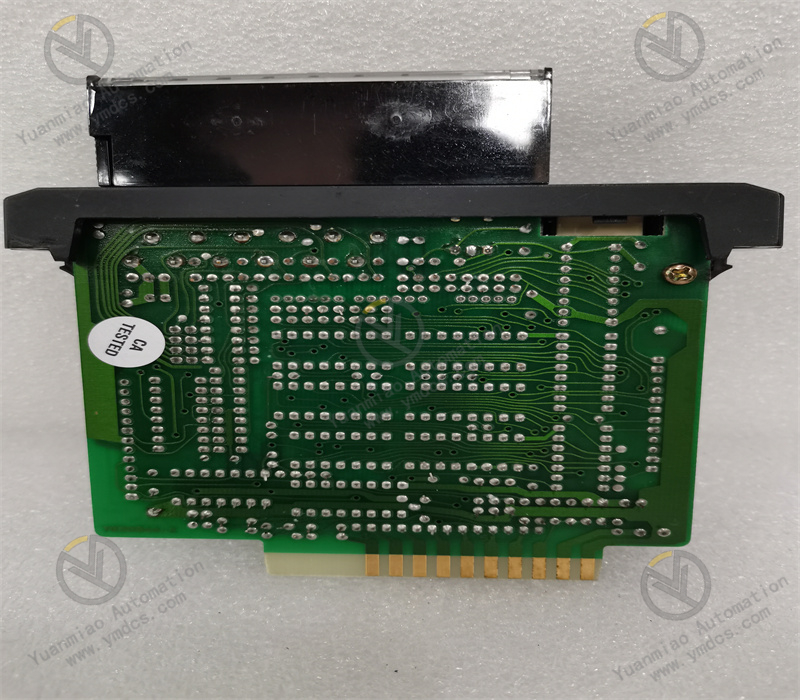

IC610MDL116A is a high‑accuracy 4‑channel analog‑input module of the Series Six product family manufactured by General Electric (GE Fanuc). It serves as a core data‑acquisition unit for GE’s classic large‑and‑medium‑sized PLC control systems, designed for field‑side analog process‑signal acquisition, operating‑condition monitoring and transmitter‑signal collection. As the field‑terminal hardware for analog‑signal acquisition within the PLC system, the module precisely converts standard analog signals output by on‑site sensors and transmitters into digital signals recognizable by the PLC. It delivers high‑precision raw data for process calculation, closed‑loop regulation, data monitoring and interlock protection, acting as a critical hardware component for accurate automation control and condition supervision in process‑industry applications.
As an original industrial‑grade analog‑input module from GE, the IC610MDL116A adopts a 16‑bit high‑resolution A/D conversion architecture and accepts both industrial voltage and current analog inputs. Its key advantages include high acquisition precision, excellent signal linearity, low temperature drift and powerful anti‑interference performance. Equipped with independent channel isolation, multi‑stage signal filtering and input over‑voltage / over‑current protection circuitry, it resolves common drawbacks of conventional analog modules, such as distorted sampling, signal drift, crosstalk between channels, loss of accuracy at low temperatures and data fluctuation caused by electromagnetic noise. Built with a reinforced industrial housing and mature, stable hardware technology, the module operates reliably inside standard industrial cabinets for long‑term continuous service. It is widely deployed for new‑system configuration, legacy analog‑module replacement, process‑acquisition‑accuracy upgrading, monitoring‑point expansion and automation‑system‑stability‑optimization projects across chemical, power‑generation, water‑treatment, metallurgical, HVAC and light‑manufacturing industries using the Series Six platform.
2. Core Functions
High‑precision independent analog acquisition over 4 channels: Four fully isolated analog‑input channels operate without mutual interference. The compact multi‑channel layout minimizes cabinet space occupation while enabling simultaneous sampling of multiple process variables, satisfying multi‑parameter monitoring requirements (temperature, pressure, flow, liquid level, valve opening etc.) for small‑to‑medium process‑automation applications and supporting coordinated supervision of multiple control loops.
Dual‑compatibility for voltage and current signals: Natively supports two widely‑adopted industrial analog standards: 1‑5 VDC voltage signals and 4‑20 mA current signals. It is directly compatible with most commercially‑available temperature, pressure, flow, liquid‑level and humidity transmitters, eliminating the need for extra signal‑conversion accessories and delivering high flexibility for field‑side analog‑sampling loops.
16‑bit high‑resolution A/D conversion: Integrated 16‑bit high‑precision analog‑to‑digital converter provides an overall acquisition accuracy of ±0.1 % FS (Full‑Scale). High signal resolution and negligible linear error allow detection of subtle on‑site process‑parameter variations, preventing regulation deviations caused by sampling distortion, data jump or insufficient resolution and ensuring accurate execution of PID control, closed‑loop process regulation and high‑precision condition monitoring.
Independent channel‑level galvanic isolation and safety protection: Channel‑by‑channel electrical isolation suppresses inter‑channel crosstalk and ground‑loop interference, so that a fault on one loop will not affect other sampling channels. Built‑in protection against input over‑voltage, over‑current and transient surges shields the module from damage induced by transmitter malfunction, wiring leakage or voltage fluctuation, greatly improving equipment safety and service life.
Multi‑stage filtering for noise immunity and stable sampling: Hardware‑based multi‑stage filtering and signal‑conditioning circuits filter high‑frequency electromagnetic noise, signal spikes and interference coupled from motor startup‑stop events, variable‑frequency drives and high‑power cables. Sampled data is smoothed to eliminate analog‑value jitter, enabling reliable long‑term high‑precision acquisition under harsh factory environments with strong electromagnetic interference.
- Standardized compatibility and convenient maintenance‑oriented upgrades: Fully compliant with GE Series Six hardware specifications, including slot definitions, bus protocols, electrical parameters and mechanical dimensions. Plug‑and‑play hot‑swap‑capable replacement can be performed for older analog modules of the same series without modifying control programs, re‑calibrating configurations or altering on‑site wiring. This reduces construction and maintenance costs and facilitates accuracy upgrades and I/O‑point expansion for legacy automation systems.
3. Technical Specifications
| Parameter Item | Technical Specification |
|---|---|
| Model No. | IC610MDL116A |
| Brand | GE (General Electric / GE Fanuc) |
| Product Series | Series‑Six PLC Analog I/O Module Series |
| Product Type | 4‑Channel Analog‑Input Module, High‑Accuracy A/D Acquisition Module |
| Compatible Systems | Full‑range GE Series‑Six PLC Control Systems |
| Channel Quantity | 4 galvanically‑isolated independent analog‑input channels |
| Input‑Signal Types | 1‑5 VDC voltage / 4‑20 mA current (dual‑standard compatible) |
| Sampling Resolution | 16‑bit high‑precision analog‑to‑digital conversion |
| Acquisition Accuracy | ±0.1 % FS (Full‑Scale) |
| Isolation Scheme | Channel‑wise independent galvanic isolation; no inter‑channel crosstalk |
| Protection Features | Input over‑voltage, over‑current and transient‑surge protection; wiring‑fault damage prevention |
| Anti‑Interference Design | Multi‑stage hardware filtering, signal conditioning, electromagnetic‑interference suppression for high‑frequency noise |
| Operating Temperature | 0 ℃ ~ +55 ℃, industrial‑standard cabinet‑environment suitability |
| Storage Temperature | -40 ℃ ~ +85 ℃ |
| Ambient Humidity | 5 %‑95 % RH, non‑condensing, suitable for thermostatically‑controlled industrial cabinets |
| Operational Characteristics | High‑resolution sampling, excellent linearity, low temperature drift, stable readings, strong noise immunity, long‑term acquisition accuracy |
| Hardware Construction | Industrial‑grade reinforced plastic housing, ageing‑resistant PCB, precision A‑D chip, heavy‑duty terminal blocks |
| Mounting Method | Embedded installation inside standard GE Series‑Six racks |
| Key Advantages | 16‑bit high‑precision sampling, four isolated channels, dual voltage‑/current‑signal compatibility, drift‑free stable data, strong noise immunity, compatibility with most industrial transmitters, non‑disruptive legacy‑module replacement, improved process‑control accuracy and system stability |
4. Working Principle
The IC610MDL116A analog‑input module operates via a closed‑loop acquisition workflow: field‑signal reception → filtering & conditioning → galvanic isolation → high‑precision A/D conversion → digital‑data upload → stable‑value output. After rack mounting, terminal wiring and backplane‑bus connection, the module automatically runs power‑on self‑diagnostics, channel initialization and accuracy calibration. Once the health of all channel circuits, conversion chip and communication links is verified, the unit enters continuous analog‑sampling mode.
During runtime, physical process parameters (temperature, pressure, flow, liquid‑level and so on) are converted by field transmitters into standard 1‑5 VDC or 4‑20 mA analog signals delivered to each independent input channel. Incoming signals first pass through multi‑stage front‑end filters to remove high‑frequency electromagnetic interference and signal spikes, then go through galvanic‑isolation circuits for potential balancing, eliminating ground‑loop noise and inter‑channel crosstalk and ensuring distortion‑free input waveforms.
The conditioned, isolated analog signals are fed to the 16‑bit high‑precision A‑D converter. High‑speed sampling and mathematical transformation convert continuous analog waveforms linearly into high‑resolution digital values. Digital data is packed, error‑checked and transmitted to the PLC main‑control CPU following the rack‑bus communication protocol. The CPU uses the sampled high‑precision process data to execute parameter monitoring, logic operations, PID closed‑loop regulation, over‑limit alarming and equipment interlock protection. The module continuously monitors every channel’s input status and optimizes sampled readings in response to wiring anomalies, out‑of‑range signals and transient interference, suppressing data jumps and sustaining long‑run acquisition precision and control‑system stability.
5. System‑Architecture Compatibility
The IC610MDL116A is an original‑equipment dedicated high‑accuracy analog‑input module for the GE Series‑Six PLC platform. Its electrical parameters, A‑D conversion logic, bus‑communication protocol, rack‑mount dimensions and channel‑terminal pin‑out definitions are fully matched to the Series‑Six hardware ecosystem. It achieves 100 % seamless interoperability with Series‑Six CPUs, power‑supply units, communication boards and the full portfolio of I/O expansion modules and serves as the factory‑specified high‑end analog‑acquisition hardware for this control family.
Purpose‑built for the legacy Series‑Six industrial‑control system, its sampling accuracy, signal‑input range and isolation specifications satisfy native system acquisition requirements. Precise bus‑data timing, high conversion linearity and excellent channel‑to‑channel consistency support multi‑variable, high‑precision, highly‑stable analog sampling and closed‑loop control for process‑industry plants. The standardized rack‑mount layout conforms to industrial‑cabinet design rules, making the module suitable for analog‑point configuration on new automation projects, replacement of low‑precision legacy Series‑Six analog boards, process‑measurement‑accuracy upgrades, field‑loop optimization and control‑system noise‑immunity improvements. Retrofit upgrades require no changes to existing control logic, process algorithms or field wiring. Plug‑and‑play deployment eliminates commissioning overhead and adaptation risk. After installation, process‑monitoring precision, regulation stability and data reliability are significantly enhanced, resolving historical instability issues such as inaccurate sampling, measurement drift and electromagnetic susceptibility of older hardware.
6. Application Scenarios
Designed to overcome limitations of conventional analog‑input modules (low measurement precision, severe data drift, inter‑channel crosstalk, narrow signal compatibility, weak noise immunity and large process‑regulation offsets), the IC610MDL116A targets process‑industry applications requiring high‑precision parameter monitoring and closed‑loop control. Its core strengths are 16‑bit high‑resolution sampling, four galvanically‑isolated channels, dual voltage‑/current‑signal support, stable readings and strong electromagnetic‑interference resistance.
The module is widely deployed in thermal‑power‑plant auxiliary control systems, petrochemical‑process automation, fine‑chemical‑manufacturing lines, water‑treatment environmental‑control equipment, metallurgical‑furnace temperature regulation, HVAC energy‑saving automation, light‑industry pharmaceutical production and intelligent‑equipment process supervision, and is fully compatible with GE Series‑Six PLC hardware. It performs high‑precision real‑time sampling and monitoring for process variables including temperature, pressure, flow rate, liquid‑level, concentration, valve opening and medium density. Suitable projects include complete analog‑I/O configuration for new‑build process‑automation installations, fault‑replacement of failed legacy analog modules, system process‑accuracy upgrades, production‑line parameter‑monitoring optimization and stability retrofits for precision closed‑loop regulation systems. It mitigates operational risks such as distorted process data, measurement jumps, regulation lag and insufficient control accuracy. The module improves overall monitoring precision, process stability, regulation synchronism and operational reliability of industrial process‑control systems, enabling long‑term safe, steady, accurate, efficient and non‑stop production for process‑industry facilities.
