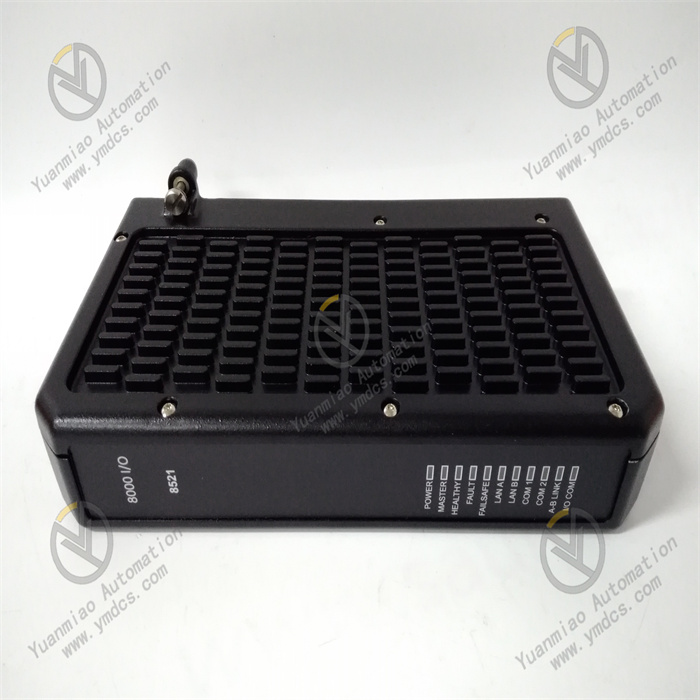

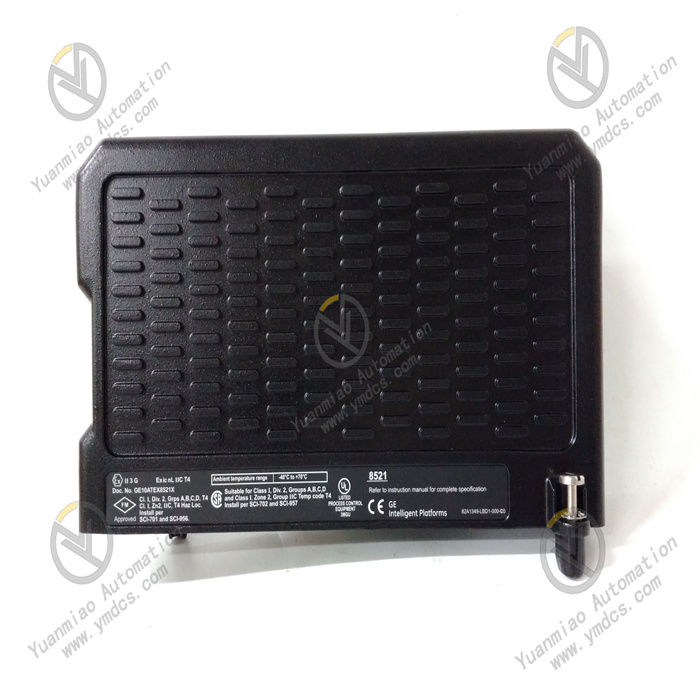

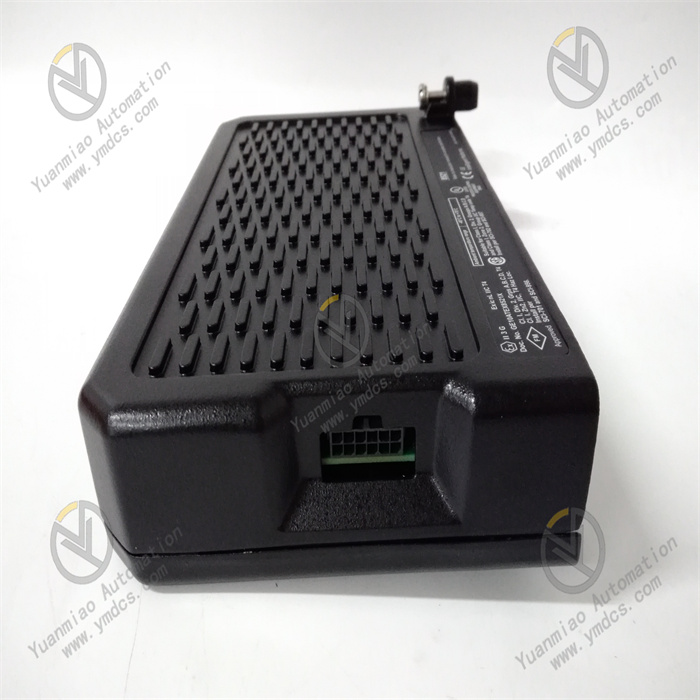

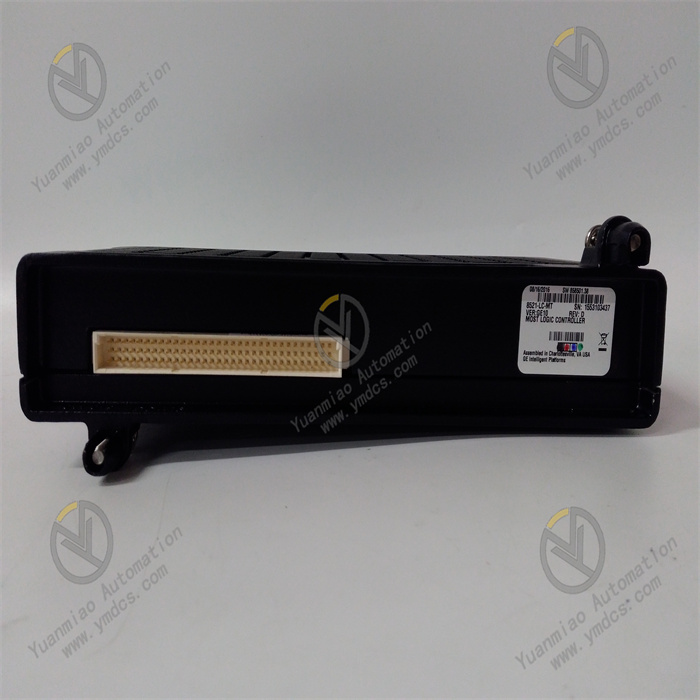

GE 8521-LC-MT
I. Overview
The GE 8521-LC-MT is a compact SafetyNet safety controller specifically designed for safety control tasks in industrial scenarios with high space requirements and clear safety level demands. As a key member of GE's safety control system family, it takes high integration and high reliability as its core advantages. Equipped with a 32-bit Reduced Instruction Set Computing (RISC) processor, it can stably run critical programs such as safety interlock logic and emergency shutdown control, enabling real-time monitoring and rapid response to potential risks in the industrial production process.
This controller supports high-speed data interaction with up to 32 I/O modules and builds a flexible communication network through single/dual redundant Ethernet interfaces. It can not only independently undertake small and medium-sized safety control tasks but also serve as a sub-node in large-scale safety systems, widely adapting to Safety Instrumented Systems (SIS) in industries such as petrochemicals, food processing, and water treatment. It has obtained SIL 2 (Safety Integrity Level 2) certification and is compatible with installation standards for Class 1, Div 2 hazardous areas. Combined with a comprehensive self-inspection and fault diagnosis mechanism, it ensures continuous and reliable safety assurance in complex industrial environments, acting as a key safety hub connecting on-site equipment and upper-level management systems.
II. Technical Specifications
(I) Core Performance Parameters
- Processor and Storage: Equipped with a 32-bit industrial-grade RISC processor with a clock speed of 200MHz, along with 128MB DDR3 RAM (for real-time data processing) and 256MB flash memory (for program and configuration storage). It supports the efficient operation of complex safety logic algorithms, with a minimum program execution cycle of 10ms.
- Communication Capability:

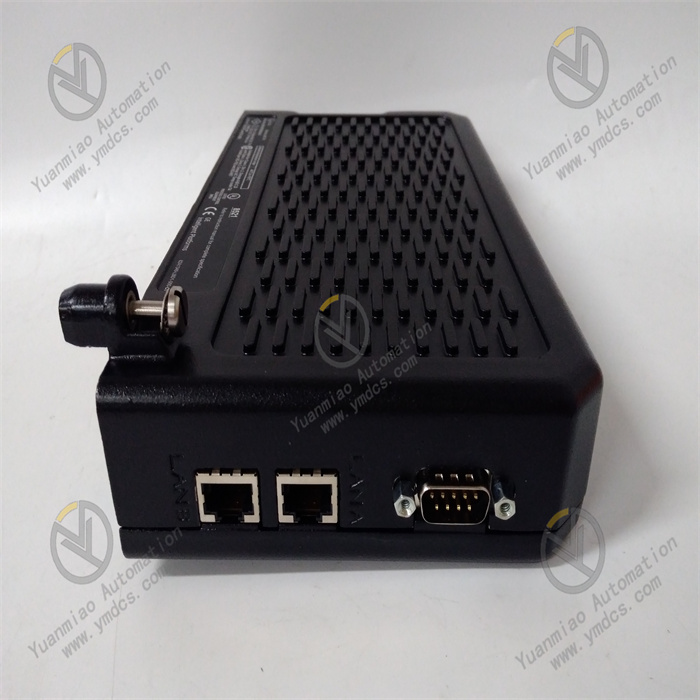

- 1-2 redundant Ethernet ports (RJ45), supporting industrial protocols such as Modbus-TCP and EtherNet/IP, with an adaptive communication rate of 10/100Mbps;
- 1 RS485 serial port, supporting asynchronous transmission at 1.2-115.2kbits/s, compatible with the Modbus-RTU protocol, used for connecting HMIs (Human-Machine Interfaces) or third-party devices;
- Built-in rail bus (with a rate of 1Mbps), which can connect up to 32 I/O modules to achieve point-to-point real-time data exchange.
- Safety Certifications: Certified to IEC 61508 SIL 2, compliant with FM and CSA Class 1, Div 2, Grps A-D T4 hazardous area standards, with an IP20 protection rating (panel-mounted), and Ethernet isolation withstand voltage of 1500V AC (for 1 minute).
(II) Power Supply and Physical Parameters
- Power Requirements: Must be paired with the GE 8912-PS-DC power module, supporting wide-voltage input of 12-24VDC. The typical operating current is 0.3A (at 12VDC) and 0.2A (at 24VDC), with a maximum power consumption of 6W. It supports reverse connection protection and overvoltage protection (with a threshold of 30VDC).
- Dimensions and Weight: Physical dimensions are 48mm (width) × 190mm (length) × 120mm (height), adopting a DIN rail mounting design and weighing approximately 0.8kg, suitable for dense layout in control cabinets.
- Environmental Adaptability: Operating temperature range is -40℃ to +70℃, storage temperature range is -40℃ to +85℃, and relative humidity is 5%-95% (non-condensing). Its anti-vibration performance (10-500Hz, acceleration of 5g) and anti-shock performance (15g, 11ms) comply with the IEC 60068-2 standard.
(III) Redundancy and Expansion Parameters
- Redundancy Configuration: Supports two operating modes: 1oo1 (single module) or 1oo1d (master-standby redundancy). In redundancy mode, no additional software is required; the standby module automatically completes program synchronization (synchronization time ≤ 30s) after being inserted, with a switching time ≤ 100ms to achieve disturbance-free transition.
- I/O Compatibility: Must be installed on a dedicated 8750-CA-NS carrier (supporting 2 controller modules), compatible with GE I/O modules such as 8511-IO-DC (digital input/output) and 8510-HI-TX (analog input with HART function), and supports hot-swapping of modules.
- Event Logging: Built-in event logging function, capable of storing 5000 system events (including timestamps, event types, and fault codes), supporting export to upper-level computers via Ethernet, and the log storage can be retained for ≥10 years even after power failure.
III. Functional Features
(I) High Integration and Space Adaptability
The GE 8521-LC-MT adopts a compact design with a width of only 48mm, saving 40% of installation space compared to larger controllers in the same series. It is particularly suitable for small and medium-sized control cabinets or industrial scenarios with limited space (such as small chemical plants and food production lines). While ensuring a small size, its core performance is not compromised. The combination of a 32-bit processor and a high-speed bus can meet the real-time control needs of 32 I/O modules, enabling the construction of a complete safety control subsystem without additional expansion units.
(II) Flexible Redundancy, Safety and Reliability
This controller supports two modes: master-standby redundancy (1oo1d) and single module (1oo1), allowing users to choose flexibly according to safety requirements: the single-module mode is suitable for low-risk scenarios (such as ordinary water treatment equipment), while the redundancy mode is adapted to high-risk scenarios (such as safety interlocks for chemical reactors). The redundancy switching process requires no manual intervention; the system automatically completes program synchronization and fault detection, with a switching time ≤ 100ms to ensure uninterrupted safety control functions. Combined with hardware-level self-inspection (such as real-time diagnosis of CPU, memory, and communication interfaces), potential faults can be detected in a timely manner and alarms triggered, minimizing system risks.
(III) Convenient Communication and Integration
Through redundant Ethernet ports, the GE 8521-LC-MT can be seamlessly connected to industrial Ethernet, enabling data interaction with operation stations, HMIs, and historian systems, and supporting remote monitoring and parameter configuration. The RS485 port provides a flexible access method for on-site small devices (such as local touchscreens and intelligent sensors). Its supported HART pass-through function allows parameter calibration and fault diagnosis of on-site HART instruments (such as pressure transmitters) through the controller without interrupting safety control, eliminating the need for additional wiring and significantly improving maintenance efficiency.
(IV) Simplified Maintenance and Debugging
Support for online configuration and hot-swapping is a core advantage of this controller: maintenance personnel can replace I/O modules or modify safety logic parameters while the system is running, without stopping the production process. The supporting GE CIMPLICITY Safety programming software provides a graphical programming interface (supporting Function Block Diagram - FBD) and built-in common safety logic templates (such as emergency shutdown and interlock protection), reducing programming difficulty and allowing beginners to get started quickly. The event logging function automatically records fault information and operation records, and when combined with the fault diagnosis tool built into the software, it can quickly locate the root cause of problems (such as I/O module address conflicts and communication line faults), shortening fault troubleshooting time.
(V) Adaptability to Hazardous Areas
For Class 1, Div 2 hazardous areas (such as chemical workshops and fuel storage areas), the GE 8521-LC-MT adopts a special circuit design: all external interfaces are equipped with anti-spark isolation measures, and internal components are made of flame-retardant materials, allowing direct installation without additional explosion-proof enclosures. Its wide-temperature design (-40℃ to +70℃) and anti-vibration performance enable it to adapt to high-temperature, dusty, and humid industrial environments, eliminating the need for additional temperature control or protective equipment and reducing system integration costs.
IV. Application Scenarios
(I) Safety Interlock Systems for Small and Medium-Sized Chemical Plants
In the control of reactors in fine chemical enterprises, the GE 8521-LC-MT can serve as the core controller to monitor key parameters of reactors such as temperature, pressure, and liquid level. When parameters exceed safety thresholds, it immediately triggers emergency shutdown procedures (such as cutting off feed valves and opening pressure relief valves). Its redundancy mode and adaptability to hazardous areas ensure reliable operation in flammable and explosive environments. The expansion capability of 32 I/O modules can cover the safety control needs of 2-3 reactors, eliminating the need for complex system construction and reducing costs while ensuring production safety.
(II) Safety Control in Food Processing
In food sterilization production lines, this controller can be used to monitor parameters such as sterilization temperature (e.g., 121℃ high-temperature sterilization) and conveyor belt speed. When temperature is abnormal or the conveyor belt jams, it triggers shutdown interlocks and alarms to prevent unqualified products from entering the next process. Its compact design is suitable for small control cabinets in food workshops, and its wide-temperature and moisture-resistant performance can cope with high-temperature and high-humidity environments in workshops. The support for HART pass-through function facilitates regular calibration of temperature sensors by maintenance personnel, ensuring detection accuracy.
(III) Safety Monitoring of Water Treatment Equipment
In the control systems of aeration tanks and sedimentation tanks in sewage treatment plants, the GE 8521-LC-MT can monitor parameters such as dissolved oxygen concentration and water pump operation status. When dissolved oxygen is too low or the water pump fails, it automatically switches to standby equipment or adjusts operating parameters. The single-module mode meets the needs of low-risk scenarios and simplifies system design; the RS485 port can connect to on-site touchscreens for local operation and status display, and the Ethernet port uploads data to the central monitoring system of the water plant to realize remote management.
(IV) Safety Isolation in Clean Areas of the Pharmaceutical Industry
In aseptic clean areas of pharmaceutical enterprises (such as injection production workshops), this controller can be used for equipment interlock control between clean areas and non-clean areas (such as air purification systems and personnel access doors) to prevent cross-contamination. Its fanless design (natural heat dissipation) avoids air disturbance, meeting the environmental requirements of clean areas. The support for online maintenance allows module replacement without interrupting production, satisfying the strict requirements for continuous production in the pharmaceutical industry.
V. Common Faults and Troubleshooting Methods
(I) Ethernet Communication Interruption
Possible Causes:
- Loose Ethernet cables or damaged RJ45 connectors (e.g., contact oxidation);
- Incorrect redundant Ethernet configuration (e.g., IP address conflict between master and standby controllers);
- Faulty switch ports or mismatched communication rates (e.g., the controller is set to 100Mbps full-duplex, while the switch is set to 10Mbps half-duplex).
Troubleshooting Methods:
- Reconnect the Ethernet cable, use a cable tester to check the continuity of the line, and replace damaged RJ45 connectors;
- Check the IP addresses of the master and standby controllers through the controller's local panel or programming software to ensure no conflicts;
- Replace the faulty switch port, set the controller's communication rate to "auto-negotiation" in the programming software, or manually match the switch port rate (100Mbps full-duplex is recommended).
(II) Redundancy Switching Failure
Possible Causes:
- The standby controller fails to complete program synchronization (e.g., power failure during synchronization);
- Poor contact of the carrier slot (e.g., dust accumulation, pin oxidation);
- Unstable output voltage of the power module (e.g., 12VDC fluctuation exceeding ±10%).
Troubleshooting Methods:
- Check the controller's status indicator lights: if the "synchronization" light of the standby module is flashing (synchronization not completed), re-download the program and wait for synchronization to finish (a steady light indicates successful synchronization);
- Turn off the system power, pull out the controller, clean the carrier slot pins with anhydrous alcohol, reinsert the controller, and ensure it is firmly seated;
- Use a multimeter to detect the output voltage of the power module (which should be within the range of 10.8-13.2VDC), replace the faulty power module, and add a power filter if necessary to suppress voltage fluctuations.
(III) I/O Module Communication Failure
Possible Causes:
- Unconfigured terminal resistors for the rail bus (120Ω resistors need to be installed at both ends of the bus, no installation required at intermediate nodes);
- I/O module address conflict (e.g., two modules are both set to address 01);
- Bus cable length exceeding the maximum transmission distance (≤80 meters is recommended).
Troubleshooting Methods:
- Check whether 120Ω terminal resistors are installed at both ends of the rail bus, measure the resistance value (normally around 120Ω), and install additional resistors if missing;
- Scan the I/O modules through the programming software, check the address assignment, and modify the addresses of conflicting modules (ensure each module has a unique address within the range of 01-32);
- Shorten the bus cable length, or add a bus repeater (such as the GE 8750-RP repeater module) in the middle to reduce signal attenuation.
(IV) Unable to Export Event Logs
Possible Causes:
- Unstable Ethernet connection (e.g., excessive packet loss rate);
- Faulty log storage chip (e.g., damaged flash memory);
- Outdated programming software version (does not support log export function).
Troubleshooting Methods:
- Use the ping command to test the network connectivity between the controller and the upper-level computer, check if the network switch is congested, and restart the switch if necessary;
- Enter the controller's diagnostic mode (via the local panel) to check the status of the storage chip; if "fault" is displayed, contact GE after-sales service to replace the controller module;
- Upgrade the programming software to the latest version (e.g., CIMPLICITY Safety V12.0 or above), and retry exporting logs according to the software instructions.
(V) False Triggering of Safety Logic
Possible Causes:
- Incorrect configuration of the safety logic program (e.g., inverted interlock conditions, such as "shutdown when temperature > 150℃" incorrectly set to "shutdown when temperature < 150℃");
- Input signal interference (e.g., sensor cables routed in parallel with power cables, introducing electromagnetic interference);
- Faulty input module (e.g., channel drift, displaying false values when there is no signal).
Troubleshooting Methods:
- Open the safety logic program offline, check the interlock conditions and output actions, and correct the logic according to process requirements (it is recommended to test the program correctness through the simulation function);
- Reroute the sensor cables, ensuring a distance of ≥30cm from power cables, or use shielded cables (grounded at one end) to reduce electromagnetic interference;
- Replace the faulty input module, use a signal generator to simulate standard signals (e.g., 4-20mA), and verify the module's acquisition accuracy to ensure no drift.
