Description

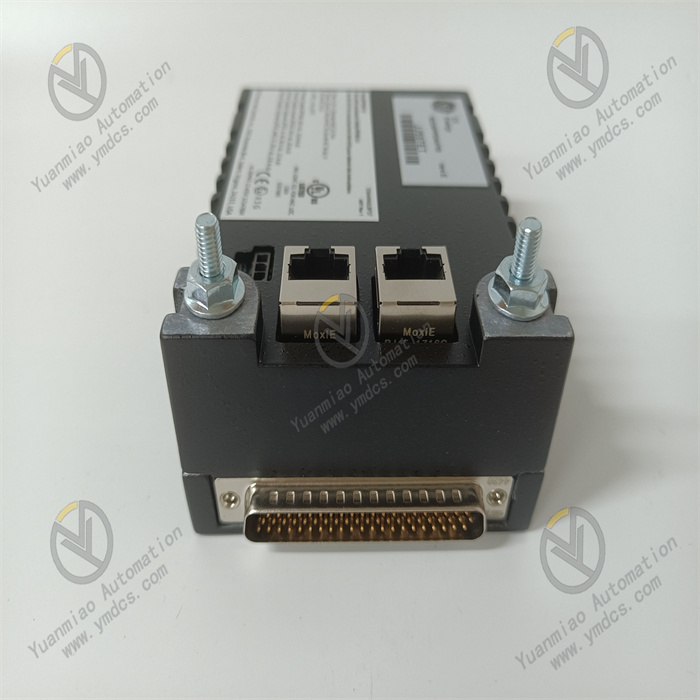

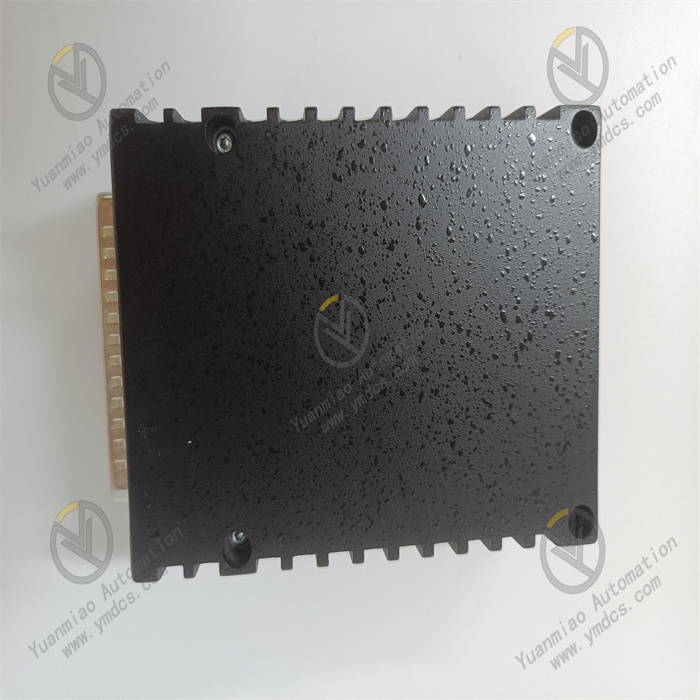

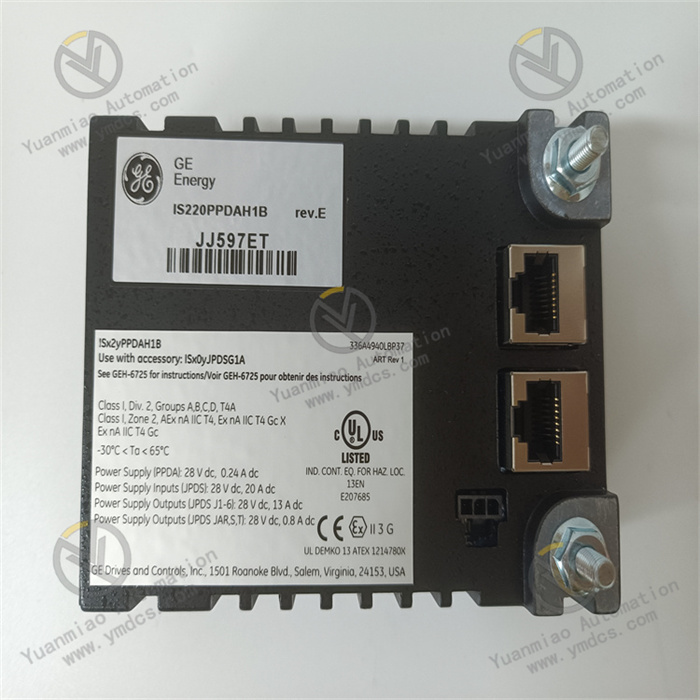

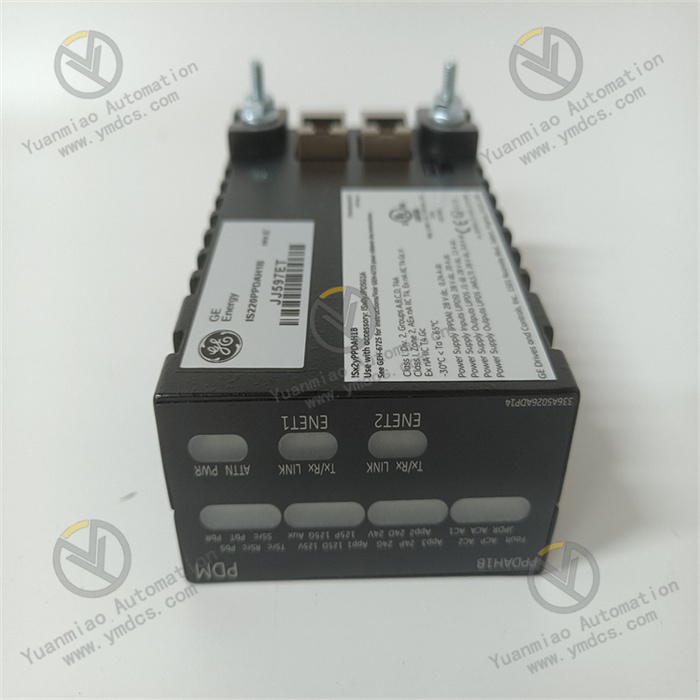

GE IS220PPDAH1B
I. Product Overview
The GE IS220PPDAH1B is a multi-parameter process data acquisition module specifically designed for the Mark VIe control system. It needs to be used in conjunction with Mark VIe main controllers (e.g., IS220PPROH1A), on-site sensors (4-20mA pressure transmitters, PT100 temperature sensors, digital limit switches), and the Ionet redundant bus. Its core functions include:
- Integrated Acquisition of Multiple Signal Types: Supports 16-channel analog input (AI, compatible with 4-20mA/0-10V/PT100) + 8-channel digital input (DI, 24V DC dry contact), enabling integrated acquisition of pressure, temperature, flow rate, and equipment status. No additional modules are required, reducing the space occupied in the control cabinet by 30%.
- High Precision and High Synchronization: The AI channel has a 16-bit resolution, with an acquisition accuracy of ±0.05% FS (for current/voltage) and ±0.1°C (for RTD). The synchronization error of 16-channel AI acquisition is ≤300μs, meeting the requirements of multi-parameter coordinated co
- ntrol (e.g., gas turbine fuel-pressure linkage regulation).
- Full-Link Redundancy Design: Equipped with dual Ionet bus ports and dual backups for key circuits (ADC, power supply). When the main bus fails, it switches to the standby bus within 0.5ms without data loss; supports online hot swapping, ensuring no system shutdown during replacement.
- Strong Anti-Interference and Wide-Temperature Adaptability: Features a metal shielded housing (shielding effectiveness ≥50dB) + channel photoelectric isolation (2kVrms) to resist electromagnetic interference (e.g., around 10kV frequency converters). The operating temperature range is -20°C to 70°C, and the storage temperature range is -40°C to 85°C, making it suitable for power plants in northern winter and workshops in southern summer.
- Intelligent Diagnosis and Software Configuration: Built-in 32-bit MCU, supporting signal filtering (adjustable from 0.1Hz to 1kHz) and fault self-diagnosis (channel short circuit/overvoltage, communication interruption). Parameters (range, filtering time) can be configured and status monitored via GE Control ST software, eliminating the need for on-site hardwiring adjustments.
From the perspective of application value: In the gas turbine control system of a combined cycle power plant, the IS220PPDAH1B uses 16 AI channels to collect 8 channels of fuel pressure (4-20mA), 4 channels of turbine exhaust temperature (PT100), and 4 channels of lubricating oil flow rate (0-10V), while 8 DI channels monitor valve limit status. The acquisition synchronization error is ≤200μs, and the fuel regulation accuracy is improved from ±0.5% to ±0.2%, avoiding unit output deviation. In the steam turbine system of a coal-fired power plant, the module's dual Ionet bus redundancy design copes with electromagnetic interference; when the main bus is interrupted, it switches to the standby bus within 0.4ms without pressure data loss or steam turbine control fluctuations (traditional non-redundant modules require shutdown for recovery, resulting in a single loss of over 800,000 yuan). In the rolling mill hydraulic system of a metallurgical plant, the module withstands alternating environments of -18°C low temperature and 65°C high temperature, operating continuously for 365 days without faults. Its Mean Time Between Failures (MTBF) is ≥90,000 hours, meeting the demand for "24/7 uninterrupted production".
II. Technical Parameters
1. Signal Acquisition Parameters
| Parameter Category | Specific Specifications (Analog Input, AI) | Specific Specifications (Digital Input, DI) |
|---|---|---|
| Number of Channels | 16-channel differential AI, with independent signal conditioning circuits for every 4 channels | 8-channel isolated DI, 24V DC dry contact (high level ≥18V, low level ≤5V) |
| Signal Type | 4-20mA (input impedance 250Ω), 0-10V (input impedance ≥1MΩ), PT100 (-200°C~600°C)/PT1000 (-200°C~850°C) | Compatible with NPN/PNP sensor signals, supporting high/low level activation (configurable via software) |
| Precision & Resolution | 16-bit Δ-Σ ADC, precision ±0.05% FS (at 25°C), ±0.1% FS (-20°C~70°C); RTD precision ±0.1°C (0°C~100°C) | Response time ≤1ms, input current ≤10mA (high level), ≤1mA (low level) |
| Synchronization Performance | Synchronization trigger deviation of 16-channel AI acquisition ≤300μs, supporting data synchronization with other Mark VIe modules (e.g., DO modules) (deviation ≤1ms) | Synchronization deviation of 8-channel DI acquisition ≤100μs, supporting associated analysis with AI data (e.g., linkage judgment of "pressure exceeding threshold + valve status") |
2. Communication and Redundancy Parameters
| Parameter Category | Specific Specifications |
|---|---|
| Communication Interface | 2-channel Ionet redundant bus (100Mbps full-duplex), data transmission delay ≤5ms, supporting Cyclic/Acyclic transmission |
| Redundancy Design | Automatic dual-bus switching (switching time ≤0.5ms), dual backups for key circuits (ADC/MCU/power supply) |
| Compatibility | Compatible with Mark VIe V6.0 and above systems, requiring matching with GE Control ST V05.06+ software |
| Data Storage | 64MB Flash (stores configuration parameters/fault logs) + 32MB RAM (caches real-time data), supporting online firmware upgrade |
3. Environmental and Reliability Parameters
| Parameter Category | Specific Specifications |
|---|---|
| Operating Temperature | -20°C~70°C (natural heat dissipation, no fan); Storage temperature: -40°C~85°C |
| Electromagnetic Interference Resistance | Emission: EN 55032 Class B; Immunity: ESD ±8kV (contact)/±15kV (air), EFT ±4kV (power supply)/±2kV (signal) |
| Protection Level | IP20 (dust-proof, finger-touch proof), suitable for installation in industrial control cabinets |
| Power Supply Requirement | 24V DC ±20%, maximum power consumption ≤15W (16-channel AI + 8-channel DI under full-load acquisition) |
| Dimensions & Weight | 140mm×175mm×85mm (L×W×H), 3U height, compatible with Mark VIe standard racks; Weight ≤2.0kg |
III. Functional Features
1. Integrated Acquisition of Multiple Signal Types, Simplifying System Integration
Centered on "16-channel AI + 8-channel DI integration", the IS220PPDAH1B addresses the pain points of traditional acquisition solutions such as "multiple module stacking and complex wiring":
- Reduced Number of Devices: A single module replaces one 16-channel AI module + one 8-channel DI module. In a gas turbine control system, the number of modules is reduced from 6 to 3, cutting the space occupied in the control cabinet by 40% and reducing wiring work by 50%.
- Signal Type Compatibility: AI channels are compatible with current/voltage/RTD, and DI channels are adapted to dry contact/sensor signals. In a steam turbine system, a single module collects pressure (AI), temperature (AI), and valve status (DI) without the need for signal conversion modules, improving integration efficiency by 60%.
- Associated Data Acquisition: AI and DI acquisition are synchronized (deviation ≤300μs). In a compressor system, the linkage judgment of "pressure exceeding threshold (AI) + valve closing signal (DI)" shortens the fault response time from 50ms to 10ms, preventing equipment overload.
2. High Precision and High Synchronization, Ensuring Control Accuracy
To meet the "multi-parameter coordinated control" needs of industrial equipment, the module achieves precise acquisition through hardware optimization:
- High Precision of ±0.05% FS: AI channels adopt 16-bit Δ-Σ ADC, with a current/voltage acquisition error of ±0.05% FS. In the auxiliary feedwater system of a nuclear power plant, the pressure acquisition error is reduced from ±0.2% FS to ±0.03% FS, and the feedwater flow control accuracy is improved to ±0.3%.
- 300μs Synchronized Acquisition: 16-channel AI acquisition is triggered synchronously with a deviation ≤300μs. In the multi-stage pressure monitoring of a large fan, the pressure gradient calculation error is reduced from ±1.2% to ±0.3%, and the anti-surge control response speed is increased by 40%.
- Precise RTD Compensation: PT100 channels support 3-wire/4-wire lead resistance compensation (adjustable from 0-10Ω). In the bearing temperature monitoring of a metallurgical rolling mill, the temperature measurement error is reduced from ±0.5°C to ±0.1°C, enabling early warning of bearing overheating 3 hours in advance.
3. Redundancy and Fault-Tolerance Design, Ensuring Uninterrupted Operation
To meet the "non-stop" requirement of medium and large-sized equipment, the module adopts full-link redundancy:
- Dual Ionet Bus Redundancy: The main and standby buses transmit data synchronously. When the main bus fails, switching occurs within 0.5ms. In the steam turbine system of a thermal power plant, when the main bus is interrupted due to lightning strikes, the standby bus takes over seamlessly without data loss or unit load reduction (traditional modules require 1 hour of shutdown for recovery, resulting in a loss of over 500,000 yuan).
- Dual Redundancy for Key Circuits: Dual backups for ADC, MCU, and power supply. When a single circuit fails, it switches to the standby circuit within 0.1ms. In the fuel pressure acquisition module of a gas turbine, an ADC fault does not affect data output, avoiding fuel regulation inaccuracies.
- Online Hot Swapping: Supports hot swapping of modules; redundant modules maintain acquisition during replacement. In a power plant, replacing a faulty module takes only 10 minutes without affecting boiler control (traditional modules require 30 minutes of shutdown, resulting in a loss of over 200,000 yuan).
4. Strong Anti-Interference and Wide-Temperature Adaptability, Suitable for Harsh Environments
Industrial sites face significant electromagnetic interference and temperature fluctuations; the module ensures stability through multi-layer protection:
- Full-Link Anti-Interference: Metal housing shielding (≥50dB) + channel photoelectric isolation (2kVrms) + twisted-pair input. Around 10kV frequency converters (electromagnetic radiation 50V/m), the signal-to-noise ratio of AI signals is increased from 65dB to 90dB, eliminating signal jumps caused by interference.
- Wide Temperature Range of -20°C~70°C: Uses low-temperature resistant capacitors (starting at -40°C) and high-temperature ceramic chips (withstanding 125°C), enabling continuous operation in northern winter power plants (-18°C) and southern summer workshops (65°C) without attenuation of acquisition precision.
- Overvoltage and Short-Circuit Protection: AI channels have overvoltage protection (maximum 30V DC), and DI channels have short-circuit protection (response ≤1μs). When a sensor in a chemical enterprise is short-circuited, only the faulty channel alarms, while other channels continue normal acquisition (traditional modules may experience overall failure).
