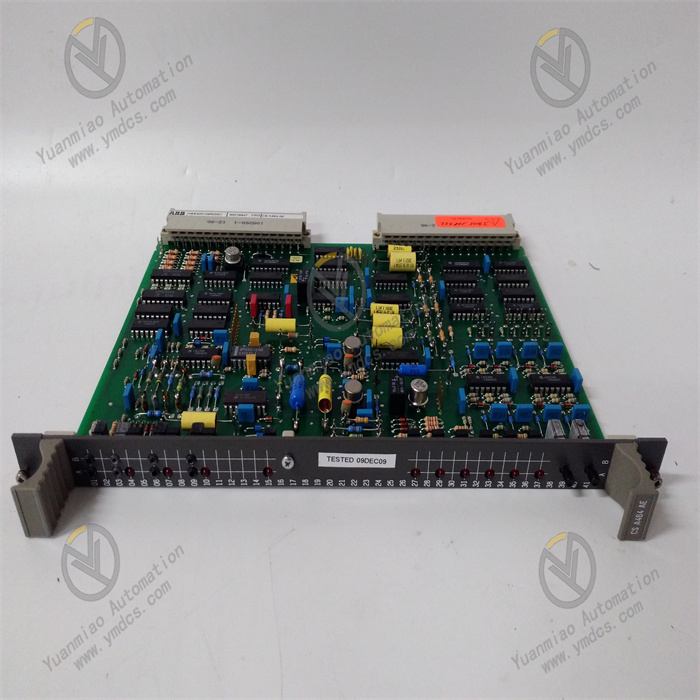

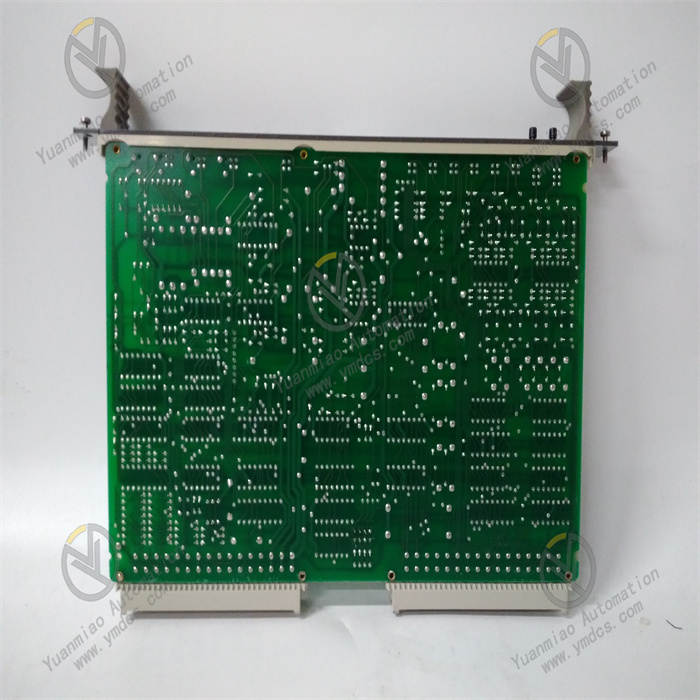

ABB CSA464AE HIEE400106R0001 Signal Processing Board

Description

1. Product Overview

CSA464AE (Order No. HIEE400106R0001) is a high‑performance signal‑processing board within ABB’s industrial control product line, belonging to the ABB HIEE hardware series. It is widely deployed in cabinets of ABB AC800PEC, UNITROL excitation systems, electric drives and power‑plant DCS/SIS control systems.

Designed for industrial scenarios including power plants, substations, metallurgy and oil‑gas facilities, the board performs high‑speed analog‑signal acquisition, signal conditioning, analog‑to‑digital conversion and pre‑processing, as well as backplane bus interaction. It captures fast‑changing process variables such as voltage, current, power and vibration, converts field analog signals into digital data and transmits them to the main‑control unit. It serves as core hardware for high‑speed signal‑acquisition links in power‑control and drive systems.

Adopting standard rack‑mount backplane installation, the board has passed reliability tests including high‑temperature aging, vibration‑shock and EMC electromagnetic compatibility. It supports 7×24‑hour continuous stable operation in heavy‑EMI industrial control cabinets. It is commonly used for spare‑part replacement, on‑site maintenance and technical‑retrofit projects of generator‑set excitation systems, variable‑frequency drives and grid‑protection systems.

2. Functional Features

2.1 Multi‑Channel High‑Speed Analog Acquisition

Multiple independent acquisition channels are integrated for AC/DC voltage and current analog‑signal measurement. Equipped with high‑speed A/D conversion capability, it is suitable for capturing fast transient signals in power systems and meets high‑speed sampling requirements for excitation and power‑energy regulation.

2.2 Signal Filtering and Galvanic Isolation

Built‑in signal‑conditioning and isolation circuits implement hardware filtering for input signals to suppress high‑frequency noise and common‑mode interference. Galvanic isolation is realized between field primary loops and main‑control backplane to block surges and over‑voltages, protecting main‑control CPU and backplane hardware.

2.3 On‑Board Signal Pre‑Processing

Signal scaling, offset correction and RMS value calculation are completed locally on‑board. This reduces computing load on the main‑control CPU and improves real‑time system response.

2.4 Hardware Self‑Test and Fault Diagnosis

On‑board self‑diagnosis circuits continuously monitor board power supply, channel wire‑break conditions, signal out‑of‑range status and hardware chip faults. Upon anomaly detection, fault alarms are triggered and pop‑up alerts appear on upper‑level HMI.

2.5 High‑Speed Backplane Bus Communication

Bidirectional high‑speed communication with the main controller via ABB proprietary backplane bus. It uploads acquired signal data and channel diagnostic status, and receives channel‑configuration parameters issued by the main controller.

2.6 Standard Backplane‑Slot Mounting

Directly inserts into backplane slots of system cabinets with locking‑latch structure for easy installation and removal. Uniform cabinet architecture for ABB series boards simplifies spare‑part replacement.

2.7 Harsh‑Industrial‑Environment Adaptability

Wide‑temperature operation, anti‑vibration, anti‑shock and high electromagnetic‑interference immunity. It adapts to power‑plant cabinet conditions including high temperature, dust and electromagnetic interference generated by high‑power excitation units and frequency converters.

3. Technical Specifications

3.1 Core Compatibility Parameters

3.2 Electrical Performance Parameters

3.3 Environmental and Physical Parameters

4. Hardware Configuration & Structural Advantages

4.1 Core Hardware Configuration

CSA464AE HIEE400106R0001 consists of backplane‑bus interface circuit, channel signal‑conditioning unit, multi‑channel high‑speed A/D conversion module, on‑board data‑pre‑processing MCU, isolation‑conversion loop, on‑board power‑conversion unit, self‑diagnosis monitoring circuit, front‑panel status LED indicators, backplane gold‑finger interface and metal‑reinforced front panel.

The system main controller sends channel‑configuration parameters over the backplane bus. External field analog signals enter board terminals, pass through isolation and hardware filtering, and are fed into the A/D conversion unit. Converted digital signals undergo on‑board pre‑processing and are transmitted to the main‑control unit via backplane bus. Self‑diagnosis circuits continuously monitor board power supply and input‑channel anomalies and activate front‑panel alarm LEDs upon faults. Backplane gold‑fingers realize backplane communication and power intake. The metal front panel enhances anti‑shock protection.

4.2 Structural & Engineering Advantages

Standard plug‑in backplane mounting. Spare‑part replacement requires no extensive modification of external wiring and shortens maintenance downtime. Signal‑isolation design prevents interference and surges from field primary side from coupling backward into main‑control system and protects backplane and main‑control CPU.

Multiple high‑speed acquisition channels are integrated onto one single board for high integration and reduced cabinet‑space occupation. On‑board local pre‑processing reduces bus data volume and improves system real‑time performance. Hardware‑level self‑diagnosis enables real‑time channel‑status monitoring and rapid faulty‑channel localization to shorten on‑site troubleshooting time. Fully compatible with supporting ABB‑system hardware ecosystem, it benefits from a mature spare‑part supply chain and is widely adopted for maintenance and upgrade‑retrofit projects of existing generator‑set excitation and drive equipment.

5. Working Principle

Working sequence of CSA464AE HIEE400106R0001: Field analog signal → terminal access → signal isolation & filtering → A/D conversion → on‑board local data pre‑processing → backplane bus → ABB main‑control unit; board diagnostic‑status signals → backplane bus → main controller; hardware self‑diagnosis runs in parallel.

During normal unit operation, field analog quantities such as voltage and current are fed into board input terminals. Interference is eliminated via isolation‑conditioning circuits, and high‑speed AD converts analog quantities into digital values. The on‑board MCU completes pre‑processing including signal scaling and RMS calculation, and uploads processed data to the main controller for excitation regulation, power control and system monitoring.

On‑board self‑diagnosis circuits uninterruptedly monitor power‑supply status, input wire‑break conditions and signal out‑of‑range status. When faults are detected, front‑panel LEDs activate alarms and fault information is uploaded to HMI to notify maintenance staff, preventing mis‑operation of excitation regulation caused by abnormal acquired signals.

6. Common Faults and Troubleshooting

6.1 Fault LED illuminated after power‑on; system reports board fault

6.2 Board communication interruption; main controller cannot read acquired data or download parameters

6.3 Large deviation or complete loss of acquired signals received by main controller

6.4 Persistent channel wire‑break fault alarm reported by system with intact external wiring
