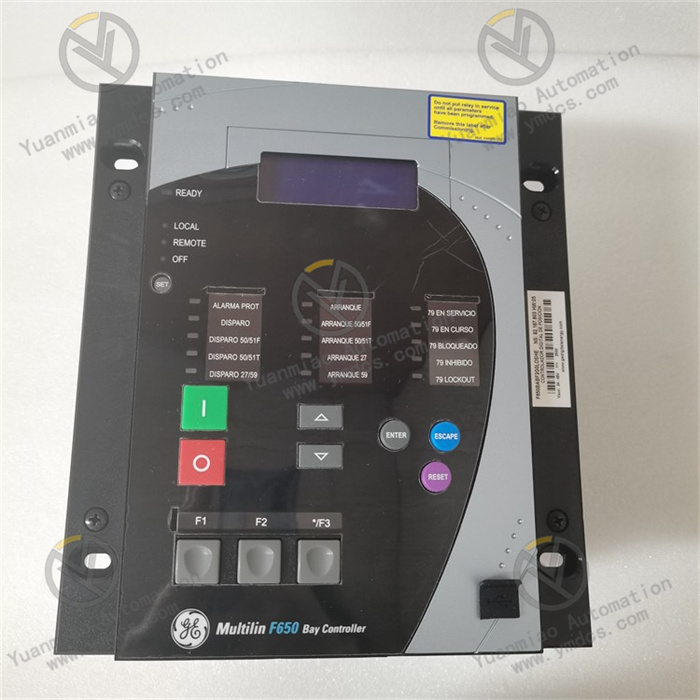

GE Multilin F650BABF2G0LOSHE

Overview

Technical Parameters

• Power Parameters: Supports a 24V DC working power supply, with a wide voltage fluctuation adaptation capability of ±15%, and can be stably connected to the common industrial DC power supply system to meet the needs of complex power supply environments.
• Protection Function Parameters:
• Overcurrent Protection: Covers instantaneous and time-delayed overcurrent functions for phase, neutral point, ground/sensitive ground, and is equipped with time-delayed overcurrent protection for negative sequence current. It has IEEE/ANSI, IEC A/B/C/long inverse time/short inverse time, GE IAC, I²t, definite time, rectifier curves, and four user-defined curves, adapting to the overcurrent characteristics of different power systems.
• Directional Elements: Phase, neutral point, ground, and sensitive ground currents are all equipped with directional functions. The neutral point/ground directional element can be programmed to operate based on zero-sequence voltage, ground sensitive current, or dual polarization conditions.
• Voltage Protection: Provides phase/auxiliary overvoltage, undervoltage, as well as neutral point and negative sequence overvoltage protection, comprehensively ensuring the voltage stability of the power system.
• Frequency Elements: Equipped with three independent frequency units, which can flexibly set underfrequency or overfrequency protection, commonly used in power system load rejection scenarios.
• Circuit Breaker Failure: Has two levels of current and two levels of time delay settings, including a tripping function without a current element and an internal arcing current detection element. The circuit breaker failure element is divided into three levels: "re-trip" or "monitoring", "high level", and "low level". Its function can be activated or blocked through digital input and communication.
• Automatic Reclosing: Applicable to three-phase tripping schemes and single circuit breaker applications, can perform 4 closing operations before locking, and each closing time can be independently set. The automatic reclosing output can be used to adjust the circuit protection settings between closings.
• Communication Interfaces: Equipped with RS232 and RS485 interfaces with a maximum rate of 115,200 bps; has a 10/100BaseTX Ethernet interface, supporting multiple communication protocols such as ModBus RTU and TCP/IP, DNP 3.0 Level 2, IEC 60870-5-104, IEC 61850, facilitating integration with various monitoring systems.
• I/O Interfaces: Can flexibly choose within the range of 16-32 digital inputs and 8-16 digital outputs. Digital inputs support customization and are equipped with independent debounce and vibration delay functions; some inputs support programmable "approximate analog", which can adapt to different voltage levels by setting thresholds.
• Network Performance: The Ethernet interface supports a transmission rate of 10/100Mbps and has an auto-negotiation function, which can adapt to the connection needs of different network devices and ensure stable data transmission.
• Environmental Adaptability: The operating temperature range is -10℃ to +60℃, and the storage temperature range is -40℃ to +85℃; the relative humidity is 5%-95% (non-condensing); the protection level reaches IP20, suitable for installation in control cabinets to resist dust and slight moisture, ensuring stable operation in industrial environments.
• Physical Specifications: The overall size is compact, facilitating installation and layout; specific dimensions can refer to the product manual; supports DIN rail mounting, effectively saving space in the control cabinet.
• Certification Standards: Strictly complies with standards such as CE and UL 508, and has passed industrial electromagnetic compatibility (EMC) testing, ensuring the stability and reliability of communication and functions in complex electromagnetic environments.

Functional Features

• Comprehensive Power Protection Functions: Integrates multiple protection functions such as overcurrent, voltage, frequency, circuit breaker failure, and automatic reclosing, comprehensively protecting the power system and effectively preventing power outages and equipment damage caused by various faults.
• Flexible Protection Characteristic Configuration: Multiple time curves, directional element polarization modes, and protection setting groups allow flexible adjustment of protection parameters according to the needs and operating conditions of different power systems, achieving personalized and precise protection.
• Stable and Reliable Communication Capability: Rich communication interfaces and extensive support for communication protocols ensure efficient data interaction with upper computers, SCADA systems, and other intelligent devices, enabling remote monitoring and rapid issuance of control commands.
• Convenient User Interaction Experience: Equipped with a graphical human-machine interface (HMI), which can intuitively display monitoring, measurement, and alarm information of the power system; supports EnerVista software, simplifying the configuration process of interlocks and switch sequences, reducing operation difficulty, and improving operation and maintenance efficiency.
• Durable Industrial Design: Has good environmental adaptability and a high protection level, can work stably in harsh industrial environments, and the modular design facilitates installation, maintenance, and upgrading, reducing the total lifecycle cost of the equipment.

Application Fields

• Power Transmission and Distribution Systems: In the distribution network, it is used for feeder protection and control, quickly cutting off faulty lines to ensure normal power supply in non-faulty areas; in substations, it can serve as a backup protection device for buses, transformers, and transmission lines, improving the overall reliability of the power system.
• Industrial Enterprise Power Consumption: Suitable for large industrial enterprises such as steel, chemical, and papermaking industries, protecting distribution lines, motors, and other key power equipment in the factory area, preventing power faults from affecting normal production processes and reducing economic losses.
• Commercial Building Power Supply: Provides protection and control for the power systems of commercial buildings such as shopping malls and office buildings, ensuring stable power supply, guaranteeing the continuity of commercial operations, and enhancing user experience.
• New Energy Power Generation Access: In new energy power stations such as wind power and photovoltaic power generation, it is used to protect power generation equipment and grid connection lines, ensuring that new energy power is safely and stably integrated into the grid, and promoting the efficient utilization of clean energy.
