Description

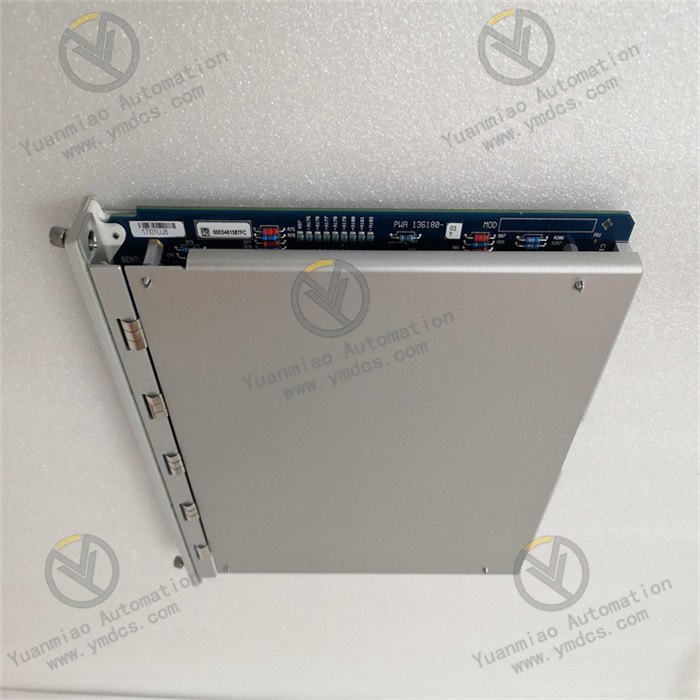

Bently Nevada 3500/92 136180-01

Bently Nevada 3500/92 (Part Number: 136180-01) is a standard communication gateway module for the 3500 Series machinery protection system. Its core function is to enable data interoperability between the 3500 system and upper-level control systems such as plant DCS, PLC, and SCADA. As the core communication interface of the system, it transmits real-time data including vibration, displacement, speed, temperature, alarm status, and system information from all monitoring modules in the rack to the plant control network in a standardized format via dual Ethernet and serial links. It also supports remote configuration and diagnostics, serving as a critical bridge connecting the field machinery protection system to the plant information layer. The module features a full-height rack-mounted design, is manufactured in the USA, adapts to harsh industrial environments, and provides highly reliable communication support for rotating machinery condition monitoring.

1. Positioning and System Relationship

1.1 System Affiliation

It belongs to the Bently Nevada 3500 Series machinery condition monitoring and protection system as a core communication interface module (not a monitoring, I/O, or display module). Model: 3500/92, Part Number: 136180-01. It must be installed in a standard 3500 rack (14-slot full-size / 7-slot mini-frame) and operates cooperatively with the Rack Interface Module (RIM), power supply module, and various monitoring modules via the backplane bus; it cannot run independently. It is exclusively compatible with the 3500 Series and is not compatible with other Bently Nevada series or third-party monitoring systems.

1.2 Core Role

It is positioned as the data communication hub of the 3500 system, with core responsibilities:

Data Upload: Collects real-time measurements, alarm statuses, module health status, and event logs from all modules in the rack, and uploads them to the plant control system via standard protocols.
Protocol Conversion: Converts the proprietary data format of the 3500 system into industry-standard protocols (Modbus) for seamless cross-platform connectivity.
Remote Access: Allows engineers to perform system configuration, commissioning, and diagnostics remotely via Ethernet using 3500 Rack Configuration Software.
Dual Redundancy: Provides dual Ethernet ports to support network redundancy, ensuring uninterrupted data transmission for critical equipment.

1.3 Mounting Position

Physical Specification: Full-height module design, occupying one standard rack slot, front-insert installation, with dedicated I/O terminal blocks at the rear.
Communication Connections: Dual RJ45 Ethernet ports and status indicators on the front panel; RS-232/422/485 serial interfaces in the rear I/O area.
Installation Requirement: Mounted in a standard cabinet, powered directly by the 3500 rack backplane with no external power supply needed.

1.4 System Architecture

As the data outlet of the 3500 system, it forms a complete communication chain:Sensor signals → 3500 monitoring modules (acquisition/processing) → backplane bus → 3500/92 gateway (protocol conversion) → Ethernet/serial → DCS/PLC/host computer (data monitoring/storage).

It also supports the reverse link:Remote configuration commands → 3500/92 → backplane bus → various modules (parameter configuration/update).

2. Functions and Technical Features

2.1 Dual-Interface, Multi-Protocol Communication

Ethernet Interface: Dual 10/100Base-TX (RJ45), supporting Modbus TCP/IP and Bently proprietary protocol (for connecting to System 1 software).
Serial Interface: 3-in-1 RS-232/422/485, supporting Modbus RTU protocol.
Data Acquisition: High-speed scanning of all rack channels, with real-time refresh of measurements, alarm statuses, and events.

2.2 Highly Reliable Industrial Design

Redundant Network: Dual ports support redundancy; single-network failure does not affect data transmission.
Low Power Consumption: Typical power consumption approx. 5.0~5.6W, fanless, long MTBF, suitable for 7×24-hour continuous operation.
High Immunity: Complies with industrial EMC standards, resisting strong electromagnetic interference from plant variable-frequency drives and high-voltage cabinets.
Wide Temperature Range: Operating temperature -30°C~+65°C, storage temperature -40°C~+85°C, adapting to extreme field environments.

2.3 Easy Configuration and Maintenance

Plug-and-Play: Automatically recognized when inserted into the rack, no hardware setup required.
Remote Configuration: Remote download/upload of configurations, calibration parameters, and viewing of diagnostic logs via Ethernet.
Status Diagnosis: OK and TX/RX indicators on the front panel display real-time module operation and communication status.

2.4 Wide Compatibility

Upper-Level Systems: Directly connects to mainstream DCS/PLC systems including Honeywell, Siemens, ABB, and Emerson.
Software Platforms: Supports Bently System 1 condition monitoring software and data integration with plant MES/ERP systems.
Rack Compatibility: Compatible with 3500 full-size and mini racks, supporting centralized monitoring of single or multiple racks via network.

3. Technical Specifications

Product Identification

Model: 3500/92
Part Number: 136180-01
Type: Full-height communication gateway module
Country of Origin: USA
Power Consumption: 5.0W (RS-232/422); 5.6W (RS-485)
Weight: Approx. 0.44kg
Warranty: 12 months for new original products

Communication Parameters

Ethernet: Dual 10/100M RJ45, Modbus TCP/IP, Bently proprietary protocol
Serial Port: RS-232/422/485, Modbus RTU
Data Update: Real-time refresh, supporting millisecond-level data acquisition

Physical and Environmental

Dimensions: Full-height module (241mm×23mm×279mm)
Installation: Front-insert type in 3500 rack, occupying 1 slot
Operating Temperature: -30°C~+65°C
Humidity: 5~95% (non-condensing)

Functional Features

Supported Protocols: Modbus TCP/IP, Modbus RTU, Bently Host Protocol
Data Content: Measurements, alarm status, module status, event list, configuration parameters
Remote Functions: Remote configuration, diagnostics, software upgrade, data upload
Redundancy: Dual Ethernet port redundancy

4. Compatible Systems and Supporting Components

4.1 Required System Components

Standard 3500 rack (3500/05)
Rack Interface Module (3500/20)
Power Supply Module (3500/15)
Monitoring modules (e.g., 3500/40M, 3500/50, 3500/60, etc.)

4.2 Communication Accessories

Ethernet cable (CAT5e or higher)
Serial communication cable (RS-232/422/485)
Rear I/O terminal block (standard with the module)

4.3 Software Support

3500 Rack Configuration Software
Bently System 1 (condition monitoring and analysis)
Third-party DCS/PLC drivers (Modbus TCP/RTU)

5. Application Scenarios

Power Industry: Vibration data from steam turbines, generators, and hydraulic turbines connected to DCS for remote monitoring of shaft vibration, displacement, and differential expansion.
Petrochemical Industry: Condition data from compressors, pumps, and fans uploaded to SCADA for real-time alarming and interlock protection.
Metallurgy Industry: Monitoring data from rolling mills, blowers, and turbines connected to the plant network to support predictive maintenance.
Remote Operation and Maintenance: Centralized monitoring across plant areas, with remote diagnostics, configuration, and troubleshooting by engineers.
