Description
Triconex 3511

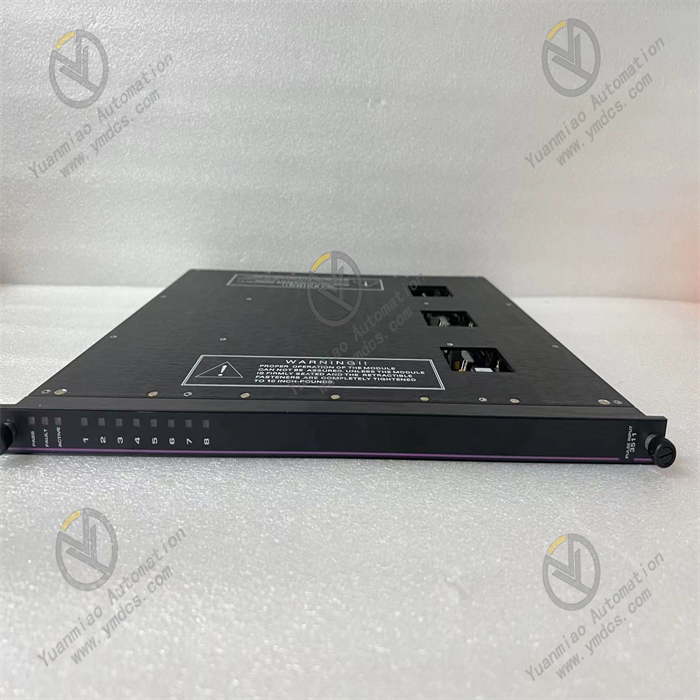

Triconex 3511 is a high‑reliability pulse input module for safety instrumented systems (SIS), part of Schneider Electric’s Triconex TMR (Triple Modular Redundant) safety control platform. It acquires high‑frequency pulse signals from field devices—typically non‑amplifying magnetic speed sensors—to monitor rotating equipment speed, frequency, and flow metering, enabling critical safety logic such as overspeed protection (ETS) and emergency shutdown (ESD).
1. Core Positioning & Scenario Adaptability
SIS‑Grade Pulse Data Acquisition
The 3511 is purpose‑built for high‑integrity process safety, converting high‑speed pulse inputs into actionable data for TMR controllers. It excels in applications requiring precision timing and frequency measurement, such as turbine/compressor speed monitoring, flow totalization, and position feedback from incremental encoders. Its 1‑µs pulse resolution ensures accurate capture of rapid transients, supporting millisecond‑scale safety responses in power, oil & gas, and chemical plants.
Harsh‑Environment Robustness
Engineered for severe industrial conditions, the module operates over −40 °C to +70 °C with 5–95% relative humidity (non‑condensing). It features strong EMC/EMI resilience:
- Common‑mode rejection: −100 VDC to +100 VDC
- Normal‑mode range: 1.5 V to 200 V
- Overrange protection: ±150 VDCSuitable for installation in Class I, Div 2 hazardous areas when installed in an IP54+ sealed cabinet, withstanding vibration, salt spray, and electrical noise from high‑voltage machinery and excitation systems.
TMR System Integration
As a key component of Triconex TMR architectures (Tricon/Trident), the 3511 implements three independent input channels with majority voting, eliminating single‑point failures. It hot‑plugs into standard Triconex chassis slots, communicates via the redundant backplane, and integrates with controllers like the 3009 CPU module. No extra drivers are needed; configuration, diagnostics, and testing use Triconex EDM/TriStation 1131 software, supporting pre‑commissioning logic simulation and fault injection.
2. Key Functions & Technical Advantages
High‑Fidelity Pulse Acquisition
- 8 isolated, non‑common input channels (optimized for non‑amplifying magnetic speed sensors)
- 16‑bit resolution with ±0.01% accuracy (1000 Hz–20 kHz)
- 1‑µs pulse counting resolution for precise time‑stamping and frequency measurement
- Frequency range: 1 Hz–100 kHz (supports speed/RPM monitoring of turbines, compressors, and pumps)
Advanced Diagnostics & Availability
Each channel runs independent self‑diagnostics to detect wire breaks, short circuits, or out‑of‑range signals. Faults trigger LED indicators and alarm signals to the controller, isolating the faulty channel while maintaining system operation—critical for continuous process safety. Hot‑swap capability minimizes downtime, as replacement requires no system shutdown and the TMR architecture automatically resynchronizes data.
Safety & Reliability
Compliant with IEC 61508 SIL 3 (the highest safety integrity level), the 3511 ensures fault‑tolerant operation in life‑critical applications. Industrial‑grade components and stress screening (temperature cycling, vibration, shock) deliver a long service life with no battery‑dependent maintenance, supporting 24/7 mission‑critical operation.
3. Typical Applications
- Power Generation: Turbine/compressor speed monitoring for ETS/ESD in thermal, combined‑cycle, and nuclear auxiliary systems
- Oil & Gas: Flow metering and compressor surge control in refineries, offshore platforms, and FPSOs
- Chemical Processing: Agitator/pump speed protection and batch‑process flow totalization
- Legacy System Upgrades: Direct replacement of older pulse input modules without rewiring, reducing upgrade costs and downtime
4. Technical Specifications
| Parameter | Details |
|---|---|
| Model | Triconex 3511 (Schneider Electric) |
| Type | Pulse Input Module (TMR) |
| Input Channels | 8, isolated, non‑common |
| Signal Type | Pulse/square wave (non‑amplifying magnetic speed sensors) |
| Frequency Range | 1 Hz–100 kHz |
| Resolution/Accuracy | 16‑bit; ±0.01% (1000 Hz–20 kHz); 1‑µs pulse resolution |
| Input Voltage/Current | 24 VDC nominal (18–30 V); 10 mA/channel (typical) |
| EMC/Protection | CMR: −100 VDC to +100 VDC; overrange: ±150 VDC |
| Operating Temp | −40 °C to +70 °C |
| Humidity | 5–95% (non‑condensing) |
| Mounting | Triconex chassis slot, rack‑mount |
| Software | EDM, TriStation 1131 |
| Weight | ~0.6 kg (module only) |
