Description
Product Overview

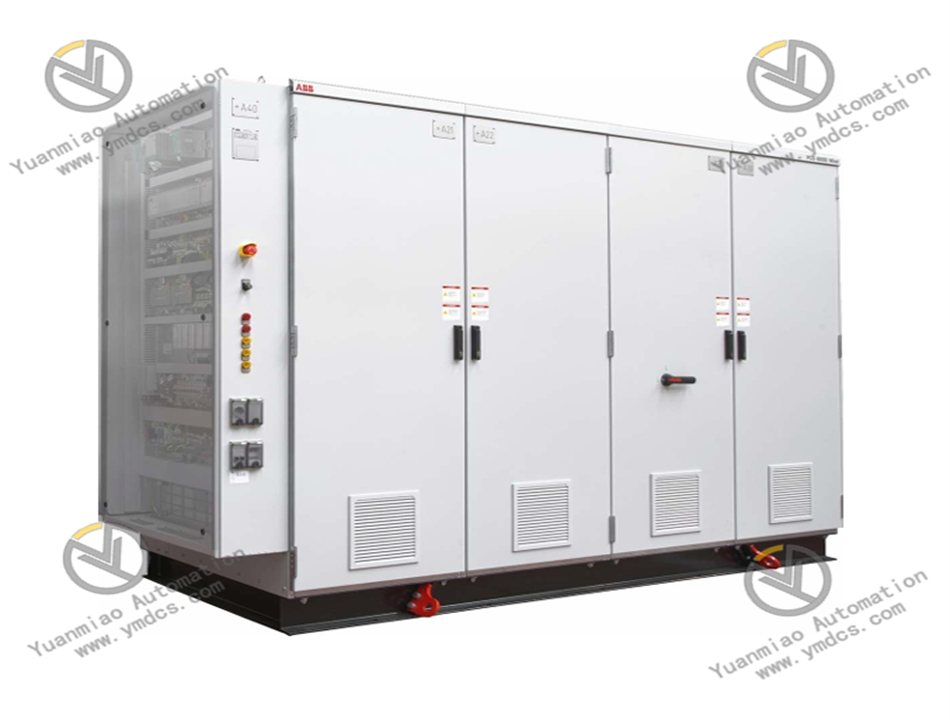

ABB PCS6000 is a medium voltage full power converter specially developed for high-power wind turbines. Moreover, it uses advanced IGCT power semiconductor technology and three-level NPC four-quadrant topology. This converter realizes complete electrical decoupling between the generator and power grid, and it converts variable-frequency power from the wind generator into stable grid-compliant power. It applies closed-loop liquid cooling and modular cabinet layout, and installers can place the whole unit either inside the nacelle or at the tower base. It integrates pre-charging, voltage limiting and cooling components in one IP54 cabinet, and it supports remote diagnosis and condition-based maintenance for wind farm operation teams.
Core Features
- Model: PCS6000, ABB medium voltage full-power wind turbine converter
- Power coverage: 4MW up to 15MW, suitable for large onshore and offshore turbines
- IGCT three-level 4-quadrant topology, fuseless design for higher reliability
- Closed-loop liquid cooling system, high power density and low loss
- Rated efficiency reaches over 98%, optimizes annual energy production
- Full decoupling between generator and grid, supports LVRT and HVRT functions
- Built-in active harmonic suppression, excellent performance under weak grid conditions
- Supports motor mode for factory thermal test and rotor positioning operation
- Multiple communication protocols: Profinet, Profibus DP, Modbus TCP and EtherCat
- IP54 cabinet protection grade, compact modular layout with flexible arrangement
Application Fields
The PCS6000 converter serves large-scale wind power projects. First, it matches permanent magnet and induction generators of high-power wind turbines. Next, it fulfills grid interconnection requirements for onshore wind farms and offshore wind platforms. It also acts as the core conversion equipment for wind turbine renovation and capacity upgrade projects.
