Description
Product Overview

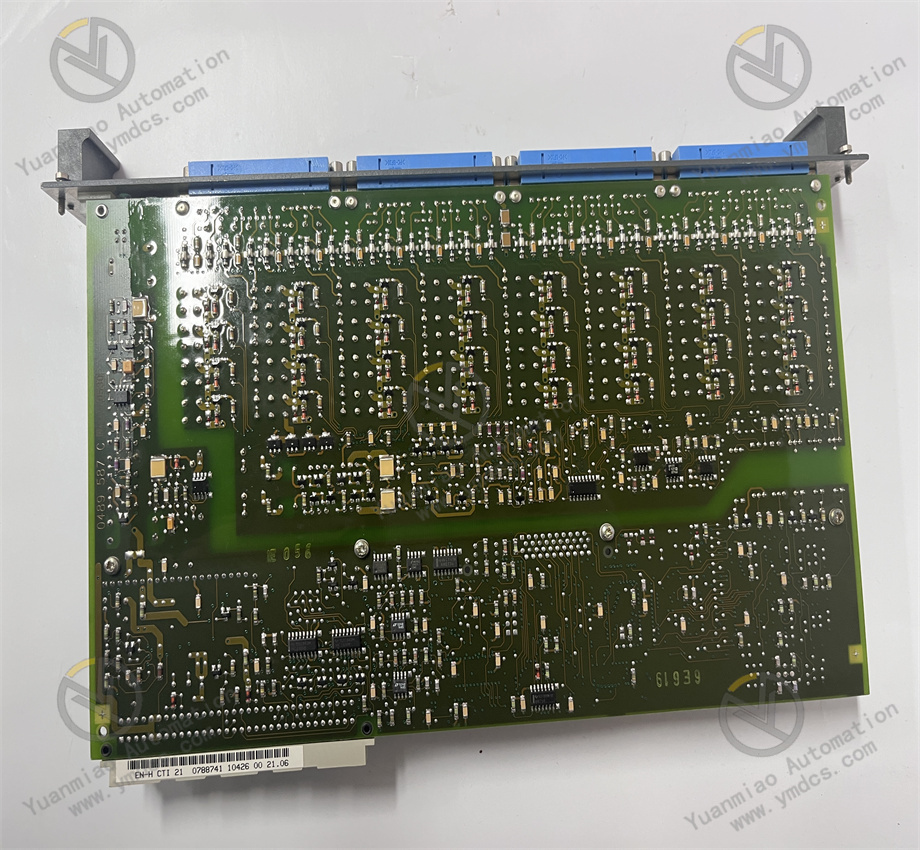

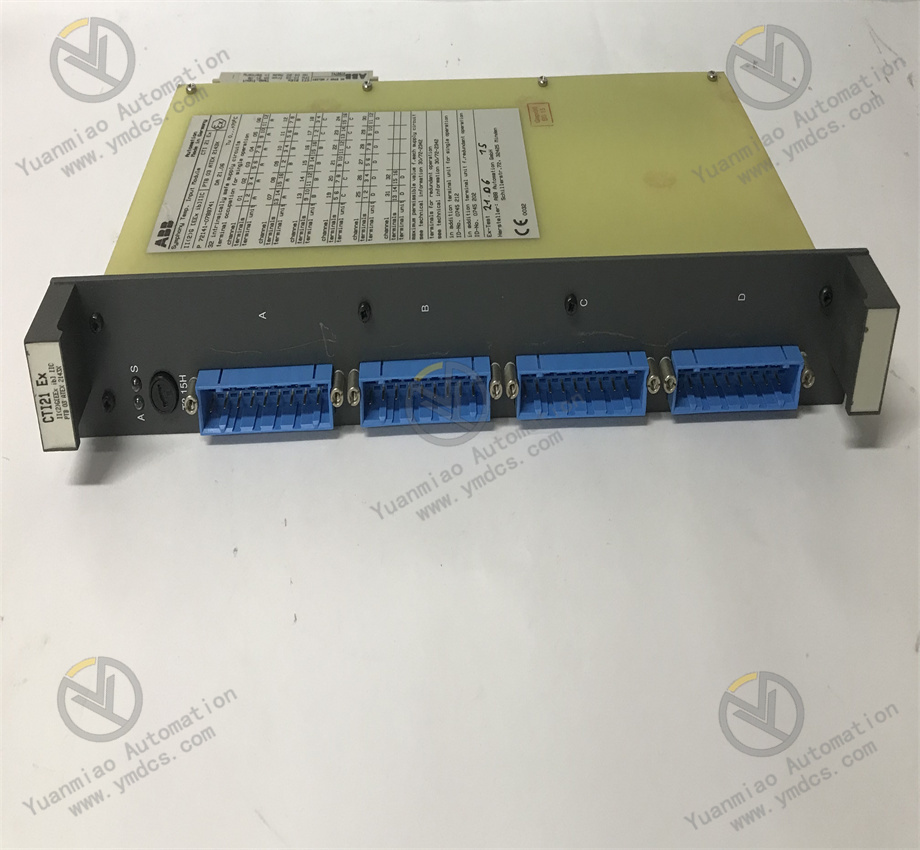

ABB 3BDH000741R1 CTI21-P Ex belongs to the Symphony Plus DCS system, and it functions as an intrinsically safe temperature input module. First of all, this card connects directly with RTD and thermocouple temperature sensors located in hazardous zones. It converts weak temperature signals into digital data that the DCS controller can process. Moreover, it carries ATEX and IECEx explosion-proof certification, so it isolates the safe control side and the explosive field side. It delivers reliable temperature measurement for process loops in oil, gas and chemical plants.
Core Features
- Part No: 3BDH000741R1, Model: CTI21-P Ex, ABB Symphony Plus temperature input module
- Compatible system: ABB Symphony Plus (S+ Control) distributed control system
- Supported sensors: RTD platinum resistance, multiple types of thermocouples
- Explosion protection: ATEX / IECEx certified for hazardous area signal acquisition
- Intrinsic safety isolation design to prevent energy transfer to explosive atmosphere
- High resolution signal sampling for stable and accurate temperature reading
- Status LED indicators for channel diagnosis and fault alarm
- Standard rack mounting for Symphony Plus backplane
Application
Automation engineers install the CTI21-P Ex 3BDH000741R1 inside DCS cabinets for temperature monitoring. Besides, it suits chemical production, oil & gas, refining and other sites with flammable gas or dust. It collects furnace, pipeline and reactor temperature data to support closed-loop temperature regulation and safety interlock protection.
