Description
1. Product Overview

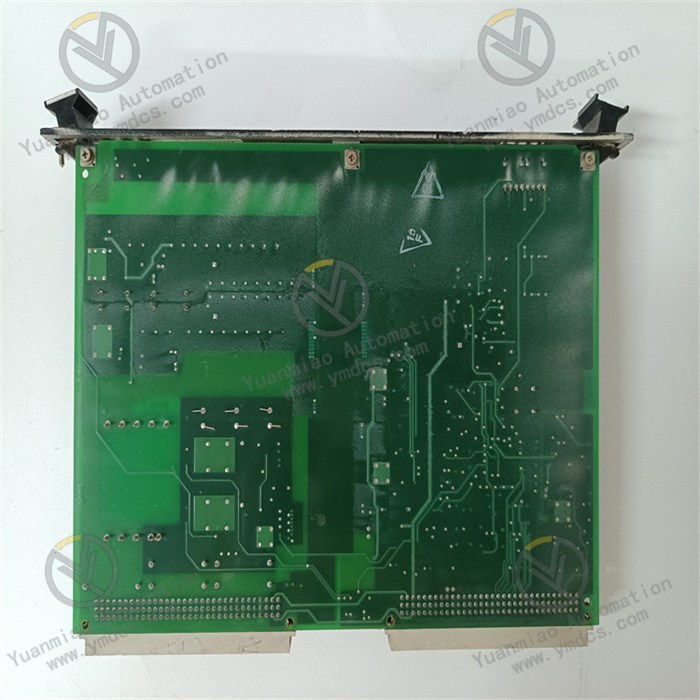

GE IS200EGDMH1A is an Exciter Ground Detect Module (EGDM) released by GE Energy. As one of the core boards for the EX2100 excitation control system, it is designed for insulation monitoring and ground‑fault protection of excitation systems in large‑scale thermal‑power, nuclear‑power and gas‑turbine generator sets. Serving as a critical safety‑monitoring unit of the excitation system, the module performs real‑time on‑line detection of insulation conditions and single‑point ground faults in excitation windings and excitation circuits. It accurately identifies hidden hazards such as insulation degradation, ground leakage and circuit anomalies, acting as a core industrial control module to ensure safe, stable and continuous operation of generator‑set excitation systems.
Adopting GE‑standard 6U dual‑slot board‑level hardware architecture, the module fits standard mounting slots of the Exciter Power Back‑plane (EPBP) rack and can work in coordination with the EXAM excitation monitor module. Equipped with industrial‑grade high‑precision sampling circuits and dedicated fault‑judgment algorithms, it delivers high measurement accuracy, fast response and strong anti‑interference capability for harsh plant conditions featuring high temperature, intensive electromagnetic interference and 24‑hour continuous operation. Widely deployed in combined‑cycle power plants, large steam‑turbine generator units, pumped‑storage units and new‑energy supporting generating units, it effectively prevents major accidents including unit tripping, equipment burnout and system oscillation caused by excitation‑related ground faults.
2. Functional Features
High‑precision Insulation and Ground‑fault Detection for Excitation Circuits
With dedicated excitation‑insulation monitoring algorithms and high‑speed AD sampling units, it supports full‑time on‑line insulation‑resistance measurement and single‑point ground‑fault identification for excitation circuits. The insulation measurement range covers 0 Ω‑200 kΩ with measurement accuracy up to ±5%. It detects minor insulation deterioration, local leakage and latent ground faults in advance, predicts ageing and hidden failures of excitation systems, and avoids missed detection and misjudgment common in conventional protective devices to meet stringent monitoring requirements of large‑scale generator sets.
Ultra‑fast Fault Response and Graded Protection
Fault response time is ≤10 ms, enabling millisecond‑level capture of ground anomalies in excitation circuits, with real‑time fault latching and continuous status monitoring. Embedded graded‑fault logic differentiates slight insulation degradation, marginal ground fault and full ground fault, and outputs corresponding alarm, pre‑warning and interlock protection signals. It implements hierarchical management of “pre‑warning before protection”, mitigating severe equipment damage while reducing unnecessary unit shutdowns to preserve operational continuity.
Integrated Signal Acquisition and On‑board Self‑diagnosis
Multi‑channel synchronous voltage‑and‑current acquisition monitors 0‑400 V AC and 0‑400 A AC in excitation circuits for insulation calculation and fault evaluation. Full‑time hardware self‑test performs automatic initialization calibration, channel checking and circuit‑fault detection upon power‑on. During operation, it continuously validates board hardware and signal‑link health to prevent monitoring failure induced by internal module faults and guarantee reliability of closed‑loop supervision.
Visual Status Indication and Streamlined Maintenance
Three onboard LED indicators intuitively display module run status, normal monitoring and fault alarm for fast on‑site condition assessment. Back‑end data upload and fault‑code logging enable traceback of fault timestamp, insulation parameters and circuit status for troubleshooting, inspection and calibration. Critical parameters are non‑volatile and retained after power loss without re‑commissioning, greatly lowering routine maintenance workload for power plants.
Broad Compatibility and Industrial‑grade Anti‑interference Performance
Engineered for heavy‑EMI power‑plant environments and compliant with power‑industry EMC standards, it resists excitation‑system harmonics, high‑frequency electromagnetic radiation, voltage fluctuations and lightning‑induced surges. Designed for wide temperature‑humidity ranges and 24‑hour non‑stop operation, it features dust‑proof, vibration‑resistant, ageing‑resistant and moisture‑tolerant properties suitable for demanding conditions in thermal‑power plants, nuclear facilities, offshore wind farms and pumped‑storage power stations.
3. Technical Specifications
3.1 Core Detection Parameters
Device Type: Exciter Ground Detect Module (EGDM) Compatible System: Full series of GE EX2100 excitation control systems Insulation Measurement Range: 0 Ω‑200 kΩ Measurement Accuracy: ±5% (steady‑state accuracy over full scale) Fault Response Time: ≤10 ms Voltage Measurement Range: 0‑400 V AC Current Measurement Range: 0‑400 A AC
3.2 Electrical Operating Parameters
Operating Supply: 24 VDC industrial control power Applicable Circuit Voltage: 200 V AC‑600 V DC excitation circuit voltage range Power Consumption: Low‑power industrial design for long‑term continuous operation Signal Output: Dry‑contact interlock output, system bus data upload
3.3 Physical Specifications
Hardware Form Factor: 6U standard dual‑slot board Mounting Location: Exciter Power Back‑plane (EPBP) rack Dimensions: 233.1 mm × 101.6 mm × 152.4 mm Weight: Approx. 1.1 kg (2.4 lb)
3.4 Environmental and Protection Specifications
Operating Temperature: ‑30 ℃ ~ +65 ℃ Storage Temperature: ‑40 ℃ ~ +85 ℃ Operating Humidity: 10%‑95% RH (non‑condensing) Protection Class: IP20 (standard for cabinet‑mount installation) EMC Performance: Compliant with power‑plant industrial EMC anti‑interference standards
4. Hardware Configuration & Structural Advantages
4.1 Core Hardware Configuration
Built upon GE industrial‑grade standardized board architecture, the module integrates power‑oriented high‑precision sampling chips, high‑speed logic processors and independent signal‑conditioning circuits to ensure accurate insulation‑parameter acquisition and efficient fault judgment. Dedicated ground‑detection loops, signal‑filtering modules and electrical‑isolation units suppress high‑frequency harmonics and spurious noise from excitation circuits to eliminate measurement drift and false tripping. Three‑channel LED status indicators, non‑volatile memory chips and relay output modules deliver integrated visual status feedback, fault‑data logging and interlock signalling. Military‑grade temperature‑resistant and ageing‑resistant components withstand long‑term heavy‑duty continuous operation in power‑plant environments.
4.2 Structural Design Advantages
The standardized compact 6U dual‑slot form‑factor fits directly into native slots of the GE EX2100 EPBP rack without mechanical modification. Circuit zones for sampling, computation, output and power supply are physically partitioned to minimise crosstalk and improve interference immunity and operational stability.
Plug‑in modular construction supports quick installation, removal and replacement to reduce maintenance and spare‑part‑swap costs. Clearly labelled terminals simplify field wiring and troubleshooting. Fan‑less passive cooling eliminates moving‑part failure risks and dust accumulation, extending service life and suiting unattended continuous power‑plant operation.
5. Working Principle
The GE IS200EGDMH1A ground‑detect module implements a closed‑loop workflow: real‑time signal acquisition → insulation‑parameter calculation → fault‑logic judgment → status output and protection, providing full‑time on‑line insulation monitoring and early‑warning safety protection for generator‑set excitation circuits.
After power‑on initialization, hardware self‑test and channel calibration, the module enters continuous monitoring mode. High‑precision sampling circuits capture working voltage and current of the exciter field winding. Raw signals pass through filtering, isolation and conditioning before feeding to the core processing unit. Based on proprietary insulation algorithms, the processor calculates real‑time circuit‑to‑ground insulation resistance and compares readings against pre‑configured thresholds and fault criteria.
Under normal conditions, insulation resistance stays within acceptable limits. The module asserts normal‑run status, activates corresponding LED indicators and streams real‑time measurements to the EX2100 excitation control system. When winding ageing, moisture ingress, physical damage or circuit defects cause insulation degradation or single‑point ground faults and resistance drops below set thresholds, the module rapidly classifies fault severity (slight deterioration / marginal fault / full ground fault) and triggers millisecond‑level pre‑warning or protection actions.
Upon fault detection, fault LEDs activate, fault status is latched, and fault events and parameters are stored. Interlock alarm signals are sent to the main control system to initiate alerts, circuit protection or unit interlock logic within the excitation system. This contains fault propagation and prevents catastrophic consequences such as generator‑rotor burnout, excitation‑system tripping and unit outage, securing stable and safe generator‑set performance.
6. Application Scenarios
Large‑scale Thermal‑power and Nuclear‑power Generator Sets
Widely deployed within EX2100 excitation systems for 600‑1300 MW thermal‑power and nuclear‑power steam‑turbine units. It continuously monitors winding insulation and ground faults, delivers high‑safety‑grade excitation‑system insulation protection, mitigates excitation‑caused forced outages and supports long‑term reliable operation of base‑load generating units.
Gas‑turbine Combined‑cycle Power Plants
Applied to heavy‑duty gas‑turbine units including 9FA, 9FB and 7HA series as primary or backup insulation‑monitoring hardware for excitation systems. It identifies latent excitation‑circuit faults under frequent start‑stop and dynamically‑variable‑load conditions to enhance overall plant reliability.
Pumped‑storage and Synchronous‑condenser Power Stations
Installed in excitation control systems for pumped‑storage units and grid synchronous condensers. Suited to frequent mode transitions and forward/reverse rotation, it tracks insulation stability and responds promptly to transient ground anomalies to guarantee safe performance during grid frequency‑regulation and voltage‑regulation duties.
Offshore Wind and Offshore‑platform Power Plants
Benefiting from superior moisture‑proof, corrosion‑resistant and anti‑interference characteristics, it operates reliably under offshore conditions with high humidity, salt spray and heavy electromagnetic noise. Used for excitation‑system insulation supervision of offshore wind‑farm generators and offshore‑oil‑platform captive power plants, it prevents insulation breakdown and ground faults induced by humid marine environments.
Large‑scale Industrial Captive‑power Generator Sets
Suitable for captive power plants and waste‑heat recovery generators in energy‑intensive industries such as chemical, metallurgical and building‑materials manufacturing. It provides comprehensive ground‑fault protection and insulation monitoring for industrial excitation systems, stabilises power supply for continuous production and mitigates economic losses caused by generator forced shutdowns.
