1. Overview

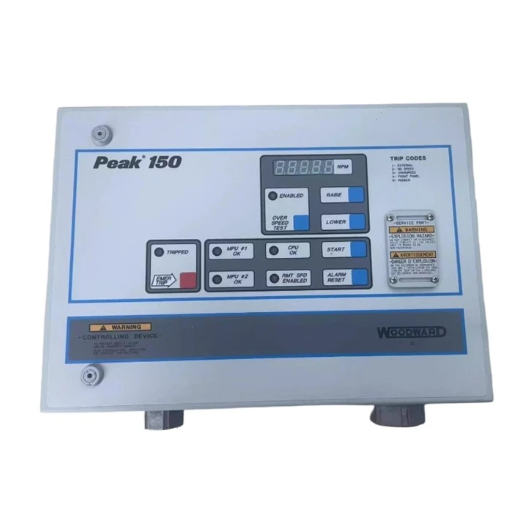

The Woodward PEAK-150 (9905-864) is a high-performance cost-effective digital governor dedicated to mechanical drive steam turbines. Designed for industrial turbine speed regulation and safety protection, it provides precise closed-loop speed control, remote speed setpoint adjustment, dual dynamic regulation logic and overspeed trip test functions. As the core control unit for fan, pump and compressor drive turbine systems, it ensures stable, low-disturbance and continuous operation of industrial turbine units.
Equipped with dual speed signal high-select inputs and multi-protocol communication interfaces including Modbus TCP/IP, PROFIBUS DP and Ethernet/IP, the 9905-864 features strong anti-interference capability and high control accuracy. With industrial reinforced structure and wide temperature adaptability, it is widely used in petrochemical, power and metallurgical industrial steam turbine control systems.
2. Technical Features
2.1 High-Precision Steam Turbine Speed Regulation
Optimized for mechanical drive steam turbine characteristics, it complies with NEMA D high-precision speed control standards. Dual dynamic PID regulation logic automatically adapts to unit start-stop, load change and steady-state conditions, effectively suppressing speed drift and load fluctuation, ensuring fast response and stable speed regulation.
2.2 Dual Speed Input High-Select Sampling
Two independent speed signal inputs adopt high-signal selection logic to ensure effective and reliable speed data participation in control. It supports 200Hz～15kHz wide frequency acquisition with 1Vrms minimum input voltage, avoiding control failure caused by single probe fault and signal distortion, greatly improving system fault tolerance.
2.3 Rich Analog Interface for Remote Regulation
Standard 4-20mA/1-5VDC remote speed setpoint input supports process system remote adjustment. Scalable 4-20mA/0-1mA analog output feeds back real-time speed and load status to DCS/PLC systems, realizing seamless closed-loop linkage control of industrial units.
2.4 Integrated Overspeed Trip Test Function
Built-in dedicated overspeed test logic supports online static and dynamic overspeed verification without shutdown or external test equipment. It can accurately calibrate overspeed set value and protection loop reliability, simplifying regular safety test procedures and ensuring long-term validity of turbine overspeed protection.
2.5 Multi-Protocol Industrial Communication Networking
Natively supports Modbus TCP/IP, PROFIBUS DP and Ethernet/IP mainstream industrial protocols. It realizes real-time data upload, remote parameter reading and writing, fault transmission and online configuration, adapting to intelligent monitoring, remote operation and system expansion scenarios.
2.6 Industrial Reinforced Wide-Condition Design
Adopting standard 19-inch rack-mounted structure, the controller passes strict temperature, humidity, vibration and EMC tests. Operating temperature ranges from -25℃ to +60℃, storage temperature from -40℃ to +85℃. Low power consumption (max 38W) ensures long-term stable operation in harsh industrial cabinet environments.
2.7 Simplified Configuration & Low Maintenance Cost
Visualized simplified configuration logic requires no complex programming, enabling rapid parameter matching and logic setting. Plug-and-play replacement supports renovation and upgrading of old speed regulation systems, reducing on-site commissioning and operation difficulty.
3. Detailed Specifications
3.1 Basic Hardware Parameters
- Model: PEAK-150 / 9905-864
- Manufacturer: Woodward (USA)
- Series: PEAK-150 Industrial Steam Turbine Digital Governor
- Type: Dedicated Digital Controller for Mechanical Drive Steam Turbines
- Applicable Equipment: Medium and Small Steam Turbines for Fan, Pump, Compressor Driving
- Core Functions: Precision Speed Closed-Loop Control, Remote Setpoint, Dual Dynamic Regulation, Overspeed Test, Industrial Communication
- Official Manual: 85565
- Application Fields: Petrochemical, Power, Metallurgy Industrial Turbine Control System
3.2 Electrical Parameters
- Power Supply: 24VDC / 90–150VDC / 88–132VAC (47–63Hz)
- Power Consumption: Max 38W, Typical 15W
- Speed Input: Dual Independent Channels, High-Signal Select Logic
- Speed Signal Range: 1Vrms Min, 200Hz～15kHz Frequency
- Analog Input: 4-20mA / 1-5VDC Remote Speed Setpoint
- Analog Output: Scalable 4-20mA / 0-1mA Speed & Condition Feedback
- Control Standard: NEMA D High-Precision Speed Regulation
- Communication Protocol: Modbus TCP/IP, PROFIBUS DP, Ethernet/IP
3.3 Mechanical & Installation Parameters
- Installation Type: Standard 19-inch Rack Mount
- Dimension: 483mm (W) × 310mm (H) × 105mm (D)
- Structure: Industrial Reinforced Shell, Dustproof & Vibration Resistant
- Wiring Mode: Standard Terminal Wiring for Easy Maintenance
3.4 Environmental Parameters
- Operating Temperature: -25℃ ～ +60℃
- Storage Temperature: -40℃ ～ +85℃
- Humidity Standard: MIL-STD-810D (Non-Condensing)
- Environmental Resistance: Vibration, Impact, EMC Anti-Interference, Humidity Resistance
- Working Condition: Industrial Cabinet with High Temperature, Dust and Strong Electromagnetic Interference
4. Operating Principle
The Woodward 9905-864 PEAK-150 operates based on dual speed high-select sampling, dual dynamic PID closed-loop regulation, remote setpoint following and overspeed self-test logic. After power-on self-check and parameter loading, the controller enters standby control mode.
During unit operation, it collects dual speed frequency signals, screens valid and stable data through high-select logic, and compares with local or remote speed setpoints. The dual dynamic PID algorithm automatically adjusts parameters according to operating conditions, outputs control signals to the turbine actuator, and adjusts steam intake to realize constant speed closed-loop control, suppressing speed disturbance caused by load mutation and steam pressure fluctuation.
The controller uploads operating data to the upper system via analog output and industrial bus. The built-in overspeed test function verifies protection thresholds and loop reliability online, triggering interlock protection in case of abnormal speed to avoid turbine overspeed risks and ensure safe and stable unit operation.
5. Application Scenarios
1. Precision speed control for industrial steam turbine mechanical drive systems (fans, pumps, compressors).
2. Remote setpoint regulation and centralized automatic control via DCS/PLC upper system.
3. Online overspeed protection verification and regular safety test for turbine units.
4. Technical renovation and performance upgrading for old turbine speed regulation systems.
5. Multi-equipment linkage load matching and balanced operation control scenarios.
