Description
1. Overview

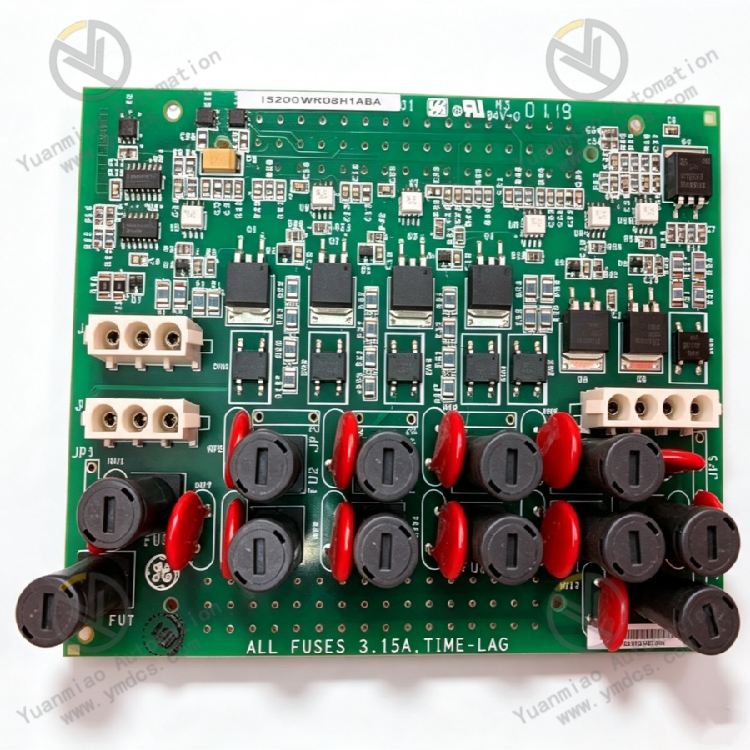

The GE IS200WROBH1ABA is a dedicated WROB relay fuse and power sensing board for GE MarkVIe turbine and gas turbine control systems. As the core supporting hardware of the PDIO discrete I/O subsystem, it is specially designed for high-reliability power unit control scenarios such as thermal power and combined cycle units.
The module supports simplex and TMR triple redundant fault-tolerant operating modes, and can work cooperatively with TDBT, SRLY, TDBS and other system boards. Equipped with 12 independent fuse protection branches and high-precision power sensing circuits, it realizes hierarchical overcurrent and short-circuit protection, real-time load condition monitoring and independent fault feedback, eliminating single-point power loop failure risks and ensuring long-term safe and stable operation of turbine control systems.
2. Technical Features
2.1 Dual Operating Modes, TMR Redundancy Compatible
Supports simplex independent operation and TMR triple redundant fault-tolerant operation. It flexibly adapts to conventional control and safety fault-tolerant scenarios. Single-branch faults are isolated independently without affecting the overall system operation, meeting the high safety level operation specifications of gas turbine and steam turbine control systems.
2.2 12 Independent Protection Branches, Hierarchical Circuit Protection
Built-in 12 independent fuse protection branches with a standard rated current of 3.15A and withstand voltage of 500VAC/400VDC. Each branch provides independent overcurrent and short-circuit protection. Faulty branches are isolated separately to avoid fault diffusion, maximizing system operation continuity.
2.3 High-Precision Power Sensing & Real-Time Monitoring
Integrated dedicated power sensing circuit to collect branch power, load current and operating status in real time. The sampling data is stable and lag-free, uploaded to the MarkVIe main control system to provide accurate data support for unit load regulation and fault early warning.
2.4 Independent Branch Status Feedback & Traceable Faults
Each branch is equipped with an independent status feedback mechanism, which is independent of conventional PPDA I/O feedback logic. It can accurately locate single-branch fusing, overload and short-circuit faults, realizing rapid troubleshooting and predictive maintenance.
2.5 Industrial-Grade Reinforced Design for Harsh Conditions
Strict component screening, aging tests and industrial three-proof coating enable the board to adapt to harsh working conditions such as temperature alternation, vibration and strong electromagnetic interference in power plants, supporting 24/7 uninterrupted long-term operation.
2.6 Original Standard Design & Full System Compatibility
100% compatible with GE MarkVIe system original racks, backplane buses and configuration logic. Plug-and-play without additional debugging, suitable for new project commissioning, board replacement and system technical renovation scenarios.
3. Detailed Specifications
3.1 Basic Hardware Parameters
- Model: IS200WROBH1ABA
- Manufacturer: GE General Electric
- Series: MarkVIe Turbine Control System WROB Power Protection & Sensing Board
- Type: Relay Fuse & Power Sensing Circuit Board
- Applicable System: GE MarkVIe Gas Turbine / Steam Turbine Control System
- Matching Devices: TDBT, SRLY, TDBS Series System Boards
- Installation: Original MarkVIe Cabinet Slot Mounting
- Core Architecture: 12 Independent Fuse Branches, High-Precision Power Sampling
- Features: TMR Redundancy Support, Independent Branch Protection, Full Status Diagnosis
3.2 Core Electrical Parameters
- Branch Quantity: 12 Independent Protection Branches
- Single-Branch Fuse Rated Current: 3.15A
- Withstand Voltage: 500VAC / 400VDC
- Operating Mode: Simplex Independent / TMR Triple Redundant Fault-Tolerant
- Sampling Performance: Real-Time Power & Load Current Sensing, High Stability
- Protection Mechanism: Automatic Overload & Short-Circuit Isolation for Single Branch
- Feedback Characteristic: Independent Branch Status Feedback, Separated from PPDA I/O Logic
3.3 Functional Parameters
- Operation Mode: 24/7 Uninterrupted Continuous Operation
- Maintenance Feature: Plug-and-Play, Standard Modular Replacement
- Diagnosis Function: Full Coverage of Fusing, Overload, Short-Circuit and Hardware Faults
- System Compatibility: Fully Compatible with MarkVIe Series Control Systems
- Protection Logic: Independent Fault Branch Isolation, Overall System Continuous Operation
3.4 Environmental Parameters
- Operating Temperature: -30℃ ～ +75℃
- Storage Temperature: -40℃ ～ +85℃
- Operating Humidity: 5%～95%RH (Non-Condensing)
- Environmental Resistance: Vibration-Proof, EMC Anti-Interference, Dust & Moisture Proof
- Applicable Scenarios: Thermal Power Plant, Gas Turbine & Combined Cycle Unit Control Room
4. Operating Principle
The GE IS200WROBH1ABA operates based on hierarchical branch protection, real-time power sensing and redundant fault-tolerant principles. The main power supply is distributed through 12 independent branches to provide power and protection for system relays, I/O subsystems and on-site actuators.
Each branch is equipped with a 3.15A fuse for overcurrent and short-circuit protection. Once a single branch fails, the fuse blows instantly to isolate the fault locally and prevent fault diffusion. The built-in high-precision sensing circuit collects real-time branch load and power data and uploads it to the MarkVIe main controller via an independent feedback channel.
Under TMR redundant mode, multiple boards cooperate to realize load balancing and synchronous fault monitoring. The main system completes unit load judgment, fault alarm and interlock logic judgment based on uploaded data, ensuring the safety and continuity of turbine power control systems.
5. Application Scenarios
1. Power loop protection and condition monitoring for gas turbine MarkVIe control systems.
2. Safety protection of steam turbine power control loops in thermal power units.
3. Redundant fault-tolerant control for large combined cycle power plant units.
4. Supporting protection for PDIO discrete I/O subsystems of power units.
5. Technical renovation and aging board replacement for legacy MarkVIe control systems.
