Description
1. Overview

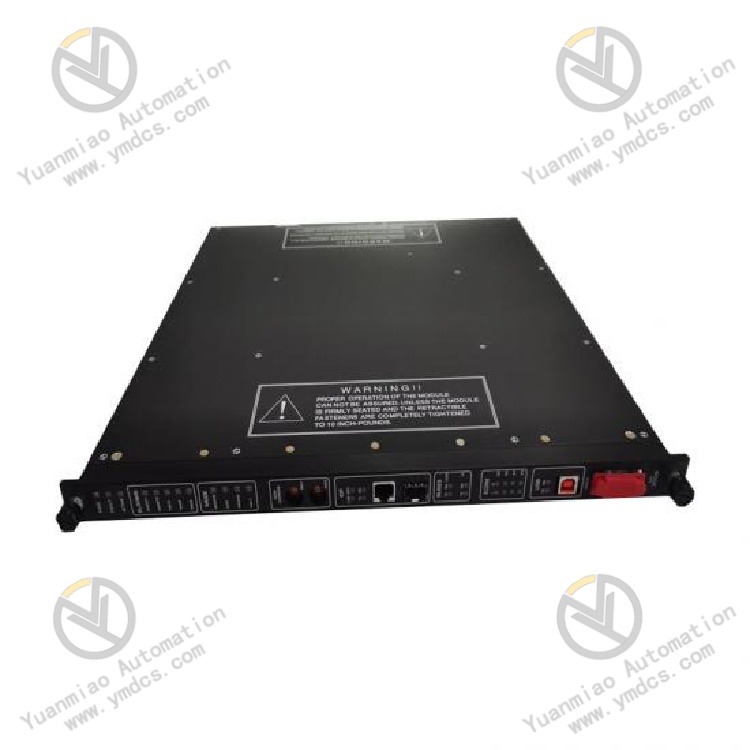

The Triconex 5351 is a TMR (Triple Modular Redundancy) main processor module dedicated to Schneider Tricon Trident SIS safety instrumented systems. As the core computing and control hub of the SIS system, it adopts a triple redundant fault-tolerant architecture with a 64-bit RISC high-speed processor. It undertakes full-station I/O data acquisition, interlock logic operation, safety judgment, command output and system communication management.
Supporting redundant hot-standby and bumpless switching, the 5351 provides excellent operational stability and fault tolerance, fully complying with IEC 61508 SIL3 functional safety standards. It is widely applied in petrochemical, power, metallurgy and oil & gas industries, ensuring intrinsic safety and continuous stable operation of high-risk process systems.
2. Technical Features
2.1 Native TMR Fault-Tolerant Architecture & SIL3 Safety
Equipped with three completely independent operation and data processing circuits, the module executes synchronous parallel computing and real-time data comparison. The 2-out-of-3 hardware voting mechanism tolerates single and dual hardware faults with automatic faulty unit isolation. It eliminates interlock misoperation and refusal risks, fully meeting strict SIL3 safety requirements for high-risk industrial safety systems.
2.2 64-Bit High-Speed Computing Core
Adopts 64-bit RISC industrial processor with 1GB RAM and 8GB solid-state storage, delivering sufficient computing power and high-precision logic processing. It realizes fast full-station I/O scanning and rapid emergency interlock response, ensuring accurate and timely safety protection actions for transient process abnormalities.
2.3 Multi-Interface Integrated Communication
Integrates dual Ethernet ports, RS-232 and dual RS-485 serial ports, supporting Modbus master/slave protocols and dedicated system bus communication. It seamlessly connects with DCS, PLC and upper monitoring platforms to realize remote configuration, data upload and cross-system linkage control with strong compatibility and flexible networking.
2.4 Full-Dimension Intelligent Self-Diagnosis
Real-time monitoring of processor operation, memory status, communication links, I/O interaction and hardware circuit conditions. It accurately identifies operation abnormalities, communication failures and data deviations, automatically records fault logs and triggers local alarms, supporting efficient fault location and traceability.
2.5 Redundant Hot-Standby Bumpless Switching
Supports dual-main redundant hot-standby architecture with real-time data synchronization. Millisecond-level bumpless automatic switching occurs during main module failure without system interruption or data loss. Non-stop module maintenance significantly improves system availability for 24/7 continuous industrial production.
2.6 Industrial-Grade Harsh Environment Adaptability
Designed in accordance with ISA S71.04 G3 anti-corrosion standards with reinforced moisture-proof, dust-proof and anti-interference processing. It resists temperature & humidity fluctuations, vibration and electromagnetic interference, maintaining stable long-term performance in complex industrial computer room environments.
2.7 Anti-Misplug & Hot-Swap Maintenance
Exclusive mechanical keying structure avoids incorrect installation. Online hot-swap support enables module replacement without system shutdown or power failure, minimizing maintenance downtime and ensuring production continuity.
3. Detailed Specifications
3.1 Basic Hardware Parameters
- Model: 5351
- Manufacturer: Schneider Triconex (Invensys)
- Series: Tricon Trident TMR Fault-Tolerant SIS System
- Type: Triple Modular Redundant Main Processor Module
- CPU: 64-bit RISC Industrial High-Speed Processor
- RAM: 1GB
- Storage: 8GB SSD
- Installation: Dedicated Tricon Rack Slot Mounting
- Protection Grade: IP65
- Environmental Grade: ISA S71.04 G3 Anti-Corrosion
- Features: Anti-Misplug, Hot-Swap, Redundant Hot-Standby, Fault Self-Isolation
3.2 Communication Interface Parameters
- Ethernet Port: 2 Independent Industrial Ethernet Ports
- Serial Port: 1 × RS-232, 2 × RS-485
- Protocol: Modbus RTU/TCP, Dedicated System Bus Protocol
- Functions: Remote Configuration, Data Upload, Fault Trace, Parameter Backup
- Networking: Multi-Device Networking, Master-Slave Communication, Cross-System Interaction
3.3 Electrical Parameters
- Rated Voltage: 24V DC Industrial Standard Power Supply
- Power Supply Mode: Rack Redundant Centralized Power Supply
- Protection: Overvoltage, Undervoltage, Overload, Short-Circuit & Surge Protection
- Power Consumption: Low Power Design, Stable Long-Term Operation
3.4 Functional Parameters
- Fault-Tolerant Logic: 2-out-of-3 Hardware Voting
- Operation Mode: Single Main Operation / Dual Hot-Standby Bumpless Switching
- Scanning Performance: High-Speed Full-Station I/O Scanning
- Diagnosis: Full Hardware & Communication Self-Diagnosis
- Maintenance: Online Hot-Swap, Non-Stop Maintenance
- Compatibility: Fully Compatible with Tricon Trident SIS Series
3.5 Environmental Parameters
- Operating Temperature: -40℃ ～ +70℃
- Storage Temperature: -55℃ ～ +85℃
- Operating Humidity: 5%～95%RH (Non-Condensing)
- Environmental Resistance: G3 Anti-Corrosion, Dust-Proof, Vibration & EMC Resistance
- Applicable Environment: Industrial SIS Cabinet Room, Central Control Room
4. Operating Principle
The Triconex 5351 main processor adopts TMR triple modular redundancy fault-tolerant principle. Integrated with three independent computing, data acquisition and logic judgment units, the module synchronously collects full-station I/O process data and executes parallel independent logic operations to generate three groups of operation results.
The hardware real-time 2-out-of-3 voting mechanism verifies and screens valid logic instructions to drive output modules to execute interlock actions, equipment startup/shutdown and emergency shutdown control. When one or two circuits fail abnormally, the system automatically isolates faulty units and maintains complete logic operation through healthy circuits to avoid interlock refusal or misoperation.
Full-time intelligent self-diagnosis monitors hardware status, communication quality and data integrity, recording and uploading fault information in real time. The dual hot-standby architecture ensures real-time data synchronization and millisecond-level bumpless switching, realizing long-term uninterrupted and high-reliability operation of the SIS system.
5. Application Scenarios
1. Core main control unit for SIS safety instrumented systems in petrochemical and chemical plants.
2. BMS/ETS safety control system logic management for thermal power generation units.
3. Safety interlock control for oil & gas storage and long-distance transmission stations.
4. High-risk process protection and furnace safety control for metallurgical industry.
5. System capacity expansion, version upgrade and aging module replacement for Tricon Trident SIS systems.
