Description
1. Product Overview

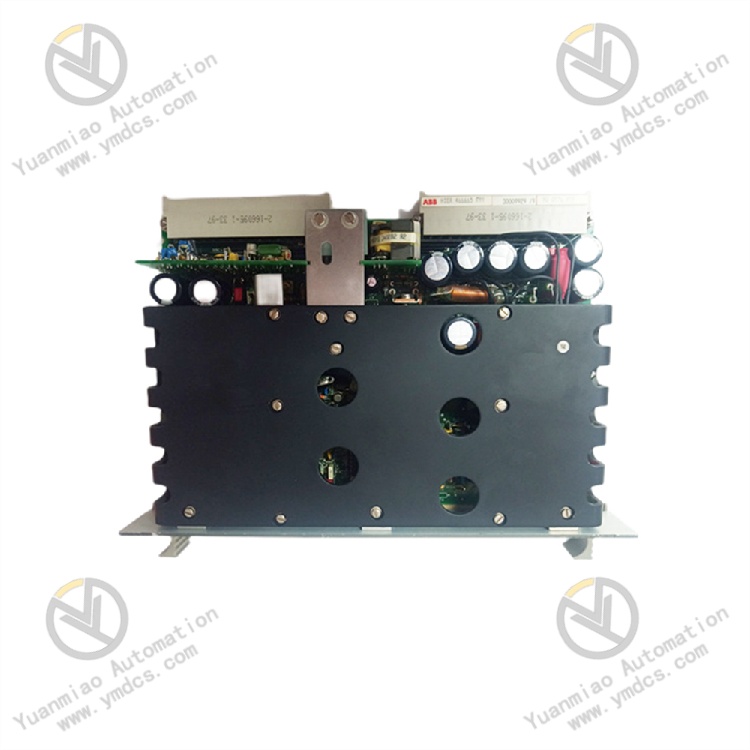

Part Number: NU8976A99, ABB factory exclusive part code HIER466665R0099. Fixed hardware version with no universal substitute, fully interchangeable for on-site replacement without program adaptation.
Manufacturer: ABB
System Compatibility: Compatible with ABB Freelance, Symphony and turbine auxiliary control systems. Widely applied in thermal power and combined-cycle power plants for auxiliary equipment signal acquisition, logic interlock and drive control. serving as a high-frequency replacement spare part for legacy power plant systems.
Model Coding Definition
1. NU: ABB power plant on-site control I/O board series prefix;
2. 8976: Fixed hardware structure, channel configuration and main control program version;
3. A99: Final mass-production hardware revision and factory firmware batch;
4. HIER466665R0099: ABB primary factory traceability code for system matching and spare part verification.
Product Definition: Industrial integrated multi-function main control I/O drive module. It integrates analog sampling, digital logic input, relay drive output, local operation and bus communication. It independently completes on-site auxiliary equipment signal collection, interlock logic, load drive and status upload without external expansion modules, serving as the core integrated control unit for power plant on-site automation.
2. Six Core Hardware Functional Units
2.1 Multi-Channel Mixed Signal High-Speed Acquisition Unit
Built-in high-precision AD and signal conditioning circuits synchronously collect analog parameters such as pressure, temperature, opening and electrical values, as well as digital signals including equipment start/stop, limit and fault feedback. Multi-stage hardware filtering eliminates on-site EMI and line noise to ensure stable and accurate sampling data for local operation and upper monitoring.
2.2 Local Independent Logic Operation Unit
Solidified industrial control logic supports on-site interlock judgment, delay control, trigger response and closed-loop regulation without DCS instructions. Power-off logic retention ensures automatic state recovery after restart, adapting to long-term continuous operation of power plant auxiliary equipment.
2.3 High-Reliability Relay Drive Output Unit
Integrated industrial high-power relay outputs with arc extinction and surge suppression circuits absorb equipment inrush current effectively. It drives on-site solenoid valves, actuators and contactor coils stably, avoiding contact ablation and adhesion faults.
2.4 Multi-Protocol Bus Communication Unit
Ethernet, RS485 and USB triple interfaces support Modbus RTU/TCP and Profinet protocols, seamlessly connecting with ABB DCS and third-party automation systems. It realizes real-time data upload, remote configuration, online debugging and fault code feedback for intelligent operation and maintenance.
2.5 Full-Coverage Self-Diagnosis & Protection Unit
Full hardware self-check during power-on and real-time monitoring of power abnormality, channel breakage, load short circuit and communication failure during operation. It locks fault status, cuts off abnormal outputs and triggers alarms accurately to realize fault tracing and prevent fault expansion.
2.6 Industrial Wide-Temperature Reinforced Anti-Interference Unit
Wide-temperature industrial components and full conformal PCB coating adapt to high temperature, humidity, dust and vibration in power plant sites. Three-level galvanic isolation eliminates ground loop interference and equipment radiation noise. Fanless passive cooling ensures 24/7 stable maintenance-free operation.
3. Technical Specifications
3.1 Basic Hardware Specifications
Item | Specification |
|---|---|
Full Part Number | NU8976A99 / HIER466665R0099 |
Device Type | Power Plant Integrated Multi-Function I/O Main Control Drive Module |
Mounting | Standard DIN rail / cabinet embedded mounting |
Input Power | 100~240V AC wide-range industrial power |
Aux Output Power | 24V DC isolated sensor power supply |
Power Consumption | ≤12W |
Protection Class | IP20 |
Dimension | 200mm × 150mm × 50mm |
3.2 Core I/O & Electrical Parameters
- Analog Input: 4 channels, 0~10V / ±20mA, 0.1%FS high precision
- Digital Input: Multi-channel universal DI, 0~30V DC signal adaptation
- Relay Output: Multi-channel SPDT passive contact, 2A/250V AC load capacity
- Aux Power Output: 24V DC isolated power for field sensors
- Communication Interfaces: Ethernet, RS485, USB
- Supported Protocols: Modbus RTU/TCP, Profinet
- Isolation Performance: Three-level isolation for power, signal and load circuits
3.3 Environmental & Compliance Standards
- Operating Temperature: -40℃ ~ +70℃
- Storage Temperature: -40℃ ~ +85℃
- Humidity: 5%~95%RH non-condensing
4. Product Advantages
1. All-in-one integrated design replaces multiple discrete I/O boards, simplifying cabinet structure and wiring to reduce failure points.
2. Independent local control ensures continuous auxiliary equipment operation during communication interruption and upper system abnormality, improving system redundancy reliability.
3. Multi-protocol compatibility adapts to new and legacy ABB systems and third-party automation devices with strong renovation and expansion adaptability.
4. Wide-temperature and conformal coating reinforcement adapts to harsh high-temperature, high-humidity and high-EMI power plant environments.
5. Complete self-diagnosis and hardware lockout protection accurately locates faults and avoids equipment damage and mis-operation.
6. Factory pre-programmed parameters support direct drop-in replacement without logic modification, lowering maintenance and renovation costs.
5. Application Scenarios
1. Thermal Power Plant Boiler Auxiliary Control: Integrates signal acquisition, interlock logic and drive control for fans, dampers and desulfurization/denitrification auxiliary equipment.
2. Combined-Cycle Power Plant Auxiliary System: Controls gas turbine air intake, exhaust and cooling system on-site equipment to ensure stable unit startup and variable-load operation.
3. Power Plant Pump & Heat Exchange Automation: Realizes unattended automatic operation and remote monitoring of circulating pumps, solenoid valves and heat exchange devices.
4. Captive & Waste Heat Power Plant Control: Simplifies system architecture and improves operational stability for small and medium-sized power plant automation systems.
