I. Basic Information

Product Positioning

Hardware Architecture

1. Opto-isolated Multi-protocol Communication Conditioning Unit: Supports ABB proprietary bus, Profibus-DP and Modbus, filters and converts communication signals to eliminate ground-loop common-mode interference and avoid data packet loss and control drift faults.
2. Internal Main Control Bus Data Interaction Unit: Real-time bidirectional data exchange with DCS main CPU to upload drive operating parameters and forward upper control instructions, ensuring high real-time performance of closed-loop speed regulation.
3. Hardware Fault Diagnosis & Latching Unit: Multiple LED status indicators display power, bus handshake, data transmit/receive and link fault status; fault codes are latched and readable via commissioning software for rapid on-site troubleshooting.
4. Backplane Powered Multi-protection Unit: 24VDC supplied by drive backplane, equipped with reverse polarity, surge, ESD and short-circuit protection; conformal coated PCB adapts to high-temperature, dusty and vibrating cabinet environments.
5. Rack Compact Slot Mount Structure: Standard internal card slot installation with metal reinforced panel, compact layout and excellent heat dissipation for long-term stable dense cabinet operation.

Mounting Specifications

• Operating Power Supply: 24VDC via drive backplane
• Supported Protocols: ABB proprietary serial bus, Profibus-DP, Modbus
• Max Communication Rate: 12Mbps, bus response time ＜5ms
• Dielectric Withstand Voltage: 1500VAC/1min between communication port and main control side
• Mounting: Internal card slot snap installation for DCS series drives
• Dimension: 235mm × 125mm × 20mm
• Net Weight: 0.2kg
• Protection Class: IP20 (indoor cabinet installation only)
• Supporting Equipment: DCS400/DCS500/DCS800 DC drive, shielded fieldbus cable, AC800M controller
• Commissioning Tools: ABB DriveWindow software, bus analyzer, multimeter, insulation tester, anti-static wristband

Supporting System

Supporting Hardware

Commissioning Software

Upper-level System

Typical Application Industries

Product Features

1. Multi-protocol Flexible Networking Compatibility: Adapts to proprietary and mainstream fieldbus protocols, realizing multi-drive synchronous linkage and third-party system seamless docking to reduce spare part inventory and transformation cost.
2. Optical Galvanic Isolation High Anti-interference Performance: Completely isolates strong and weak current loops to prevent high-frequency harmonic interference causing motor overspeed and production line unplanned shutdown accidents.
3. High-speed Real-time Data Transmission: Millisecond-level bus communication ensures precise closed-loop speed and tension control for multi-motor collaborative production processes.
4. Local Visual Rapid Fault Location: Onboard LED indicators enable quick troubleshooting of communication disconnection, address conflict and power abnormality without upper computer software.
5. Wide-temperature Rugged Conformal Coating Design: Stable operation from -25℃ to +70℃ compliant with IEC EMC standards, supporting 24/7 continuous high-reliability operation.
6. Plug-and-play Compatible Replacement: Identical mechanical dimension, bus protocol and pin definition enable direct in-situ replacement only by replicating original communication parameters to minimize equipment downtime.

II. Technical Specifications

2.1 Electrical Parameters

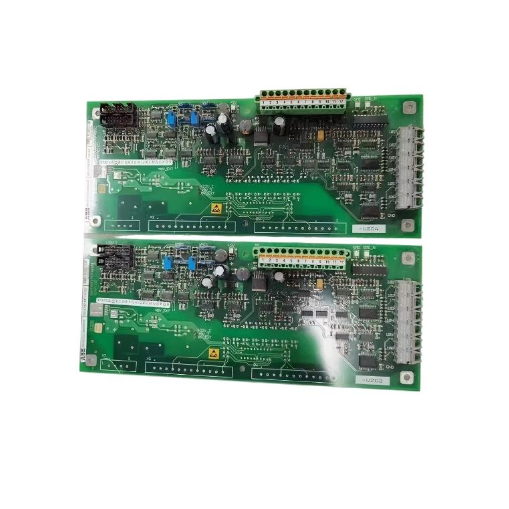

• Model: GDC742AE Var.02, No.:3BHE003748R0002
• Rated Supply: 24VDC, typical power consumption ≤5W
• Supported Protocols: ABB proprietary bus, Profibus-DP, Modbus-RTU
• Max Baud Rate: 12Mbps, bus response ＜5ms
• Dielectric Withstand Voltage: 1500VAC/1min for communication isolation channel
• Built-in Protection: Reverse polarity, surge, ESD, port short-circuit overcurrent protection
• Core Functions: Bidirectional drive data communication, remote speed & on-off control, fault alarm upload, online parameter configuration, bus diagnosis

2.2 Mechanical Parameters

• Mounting: Standard internal card slot snap installation for DCS drives
• Structure: Flame-retardant multilayer PCB, metal front panel, multi-channel status LEDs
• Interfaces: Fieldbus terminal, internal main control parallel bus, backplane power interface
• Dimension: 235 × 125 × 20mm
• Net Weight: 0.2kg

2.3 Environmental Specifications

• Operating Temperature: -25℃ ~ +70℃
• Storage Temperature: -25℃ ~ +85℃
• Humidity: 5%~95%RH, non-condensing, no corrosive or conductive dust

III. Key Features

1. Bidirectional Data Gateway for DC Drive Automation: Transmits real-time motor operating data and executes remote speed regulation, equipment interlock and fault reset commands to realize unattended automatic production control.
2. Multi-drive Synchronous Coordinated Control: Enables high-precision speed and tension linkage of multiple DC drives via proprietary bus to meet metallurgical rolling process requirements.
3. Real-time Communication Fault Monitoring & Safety Interlock: Latches fault records and triggers emergency shutdown once bus failure occurs to avoid equipment damage and safety accidents.
4. Online Parameter Backup & Accident Traceability: Supports drive program backup and fault waveform recording to provide accurate data for equipment failure analysis and control parameter optimization.
5. Galvanic Isolation Safety Barrier: Prevents high-voltage backfeed from field drive loops damaging upper-level DCS and PLC control hardware.
6. Standard Spare Part for DCS DC Drive System: Widely applied in old drive cabinet overhaul, industrial intelligent upgrading and centralized remote monitoring transformation projects of heavy-duty DC transmission equipment.

IV. Working Principle

V. Application Scenarios

1. Communication board replacement and bus synchronous control upgrading for metallurgical hot and cold rolling DC main drive systems.
2. Preventive spare deployment and remote safety interlock transformation for mine hoist high-power DC speed regulation equipment.
3. Intelligent networking renovation of DC auxiliary drive control systems in thermal power, chemical and paper plants to realize centralized workshop equipment monitoring.
4. Annual overhaul communication loop calibration and technical upgrading of oil & gas pipeline compressor transmission control systems.
5. Seamless docking transformation between old DC drive equipment and new automation control platforms to save equipment renovation investment.
