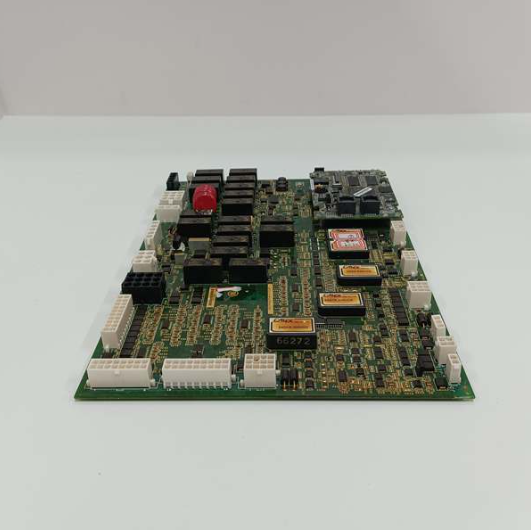

GE IS200AEPAH1ACB Analogue I/O Interface Processing Board

Description

I. Product Overview

GE IS200AEPAH1ACB is a high-precision analog I/O interface processing board for GE Speedtronic Mark VIe turbine control system. It is responsible for isolated signal acquisition, analog-to-digital conversion, signal conditioning and data packaging of process parameters such as temperature, pressure, flow and vibration from field sensors. Meanwhile, it receives analog output commands from the main controller to drive regulating actuators, building a data interaction channel between field equipment and upper control units. Widely applied in thermal power plants, petrochemical gas-driven compressor units and waste heat power generation projects, this board is an essential spare part for system overhaul, I/O channel expansion and faulty module replacement。

Adopting multi-layer high-density industrial PCB design, it is equipped with 16-bit high-resolution AD conversion chips and full-channel electrical isolation circuits, supporting 4-20mA, 0-10V, thermocouple, RTD and other common analog signal types. Compatible with simplex, dual hot-standby and TMR triple modular redundant architectures, it integrates comprehensive on-board self-diagnosis, line break detection and over-range alarm functions. Certified by CE, UL and Class I Div2 hazardous area standards, it can operate stably 24/7 under harsh industrial conditions including high temperature, dust, strong electromagnetic interference and long-term vibration。

II. Hardware Structure and Composition

1. High-precision Analog-Digital Signal Processing Unit

The 16-bit high-resolution AD/DA conversion module achieves a full-scale accuracy of ±0.1%. It implements signal filtering, isolation, range calibration and engineering value conversion, converting analog field signals into standardized digital data for upper transmission, and restoring digital control commands to analog driving signals for field actuators. Millisecond-level sampling ensures high precision of closed-loop control loops such as speed and load regulation.

2. Full-channel Isolated Signal Acquisition Circuit

Each I/O channel is equipped with independent optoelectronic isolation and surge suppression components to prevent hardware damage caused by lightning induction, electromagnetic interference and short-circuit wiring. Faults on a single channel will be isolated without affecting the whole board or system bus. Channel signal types can be flexibly configured via DIP switches to adapt to various field measurement points.

3. VME Backplane Bus Interface

The high-density gold-plated VME connector realizes high-speed data communication with BPPC processor boards and other I/O modules in the rack, uploading real-time channel data, fault codes and alarm information, and distributing control instructions to realize centralized management of distributed I/O devices. The gold-plated connector features excellent anti-vibration and anti-oxidation performance to avoid intermittent signal faults.

4. Isolated Power Conversion and Multi-level Protection Circuit

Supplied with standard 24VDC cabinet power, the built-in isolated DC-DC circuit provides stable working voltage for core functional units, with multi-level protection against overvoltage, undervoltage, overcurrent, reverse connection and surge to adapt to unstable DC power supply in power plant scenarios.

5. On-board Diagnosis and Configuration Components

Multiple LED indicators intuitively display operating status including power supply, bus communication, hardware fault and channel abnormality for rapid on-site troubleshooting. Reserved DIP switches support station address setting, signal type selection and redundancy mode configuration to match various system deployment architectures.

III. Technical Specifications

(1) Electrical Parameters

Rated Input Voltage: 24VDC, allowable fluctuation: 20～28VDC

Sampling Resolution: 16-bit, full-scale accuracy ±0.1%

Supported Signal Types: 4～20mA DC, 0～10V DC, Thermocouple, RTD

Typical Power Consumption: ≤10W

Processing Cycle: Millisecond-level real-time sampling

Protection: Full-channel optoelectronic isolation, overvoltage, overcurrent, reverse connection and surge protection

Operation Modes: Simplex, Dual Hot-standby, TMR Triple Modular Redundancy

(2) Environmental Parameters

Operating Temperature: 0℃～+60℃ (derating required above 1000m altitude)

Storage & Transportation Temperature: -40℃～+70℃

Relative Humidity: 5%～95%RH, non-condensing, free of corrosive gas and conductive dust

Vibration Standard: IEC 60068-2-6 industrial anti-vibration specification

Ingress Protection: IP20, for indoor ventilated control cabinets only

(3) Mechanical Parameters

Mounting: Standard VME rack vertical slot installation

Net Weight: Approx. 0.8kg

Fixing: Panel locking screws with independent star protective grounding terminal

IV. Product Functions and Features

Multi-signal Compatibility & Wide Application Range
Supports four mainstream industrial analog signal types, directly connecting various field sensors without additional signal conversion modules, reducing on-site wiring and renovation costs for process monitoring and control projects.
Full-channel Isolation with Strong Anti-interference Performance
Independent optoelectronic isolation for each channel blocks electromagnetic interference crosstalk and realizes fault isolation, avoiding system-wide shutdown caused by single-point line fault, which greatly improves the reliability of the control system in strong interference industrial environments.
Full-channel Self-diagnosis & Traceable Fault Location
Accurately identifies line break, sensor short-circuit, signal over-range and channel hardware damage, latches fault information locally and uploads alarms to the upper monitoring system, shortening equipment maintenance downtime via historical fault log query.
Full Compatibility with Mark VIe Control System
Standardized VME bus and communication protocol support direct replacement of legacy faulty boards, with functions including channel calibration, parameter downloading and online firmware upgrade, perfectly matching equipment overhaul, I/O expansion and safety architecture upgrading projects.
Industrial Wide-temperature & Anti-aging Hardware Design
Wide-temperature industrial components and shielded PCB layout ensure long-term stable operation under high-temperature, dusty and vibrating cabinet environments, featuring long MTBF and low routine maintenance frequency.

V. Application Scenarios

Analog signal acquisition and closed-loop regulation for gas/steam turbine units in thermal and combined-cycle power plants adopting Mark VIe control system.
Hardware supporting and spare part replacement for process monitoring systems of gas-driven compressor units in petroleum and chemical industries.
Process parameter collection and safety monitoring hardware deployment for waste heat power generation and large industrial drag turbines.
Same-model replacement of aging, precision-drifting analog I/O boards during annual overhauls of legacy GE turbine control systems.
Hardware renovation for adding measurement points and optimizing TMR safety redundant architecture in power plant control systems.
