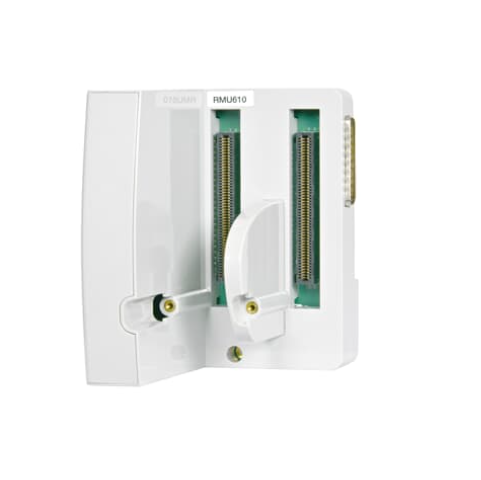

ABB RMU610 2VAA008425R1 Mounting base for redundant communication modules

I. Basic Information

Product Positioning

Hardware Architecture

1. Isolated Multi-channel Regulated Power Distribution Unit
   Built-in DC/DC isolated power distribution circuit, converting wide-range input voltage into stable working voltage for dual communication modules. Two mutually independent power loops adopt independent hardware fault protection, single-loop abnormality will not affect the normal operation of the other channel, effectively suppressing grid voltage surge and fluctuation damage to communication equipment.
2. Backplane High-speed Signal Interconnection & Shielding Grounding Unit
   Gold-plated backplane realizes lossless transmission of gigabit differential signals, matched with integral metal shielding grounding row to realize equipotential connection of modules and cable shielding layers, eliminating electromagnetic interference, static potential difference and avoiding network packet loss and communication intermittent faults.
3. Standard Mechanical Load-bearing & DIN Rail Installation Unit
   Dual-slot anti-loosening card slot structure ensures accurate docking and reliable contact of CRBX01 modules. DIN35 standard rail installation with anti-falling buckle adapts to cabinet vibration environment. Fanless passive heat dissipation design reduces mechanical failure points and supports hot-swap maintenance of redundant communication modules.
4. Hardware Status Monitoring & Safety Grounding Unit
   Reserved power loop sampling contacts cooperate with communication modules to realize remote diagnosis of power supply, grounding and backplane contact status. Multi-point dedicated grounding terminals eliminate static surge damage risk and improve system EMC performance.
5. Partition Wiring Terminal Integration Unit
   Strong and weak current terminals are physically isolated and arranged in partitions, equipped with spring-type fastening terminals and special cable routing channels, standardizing field wiring and effectively reducing short-circuit and signal crosstalk hidden dangers.

Mounting Specifications

• Power Input: DC 24~48VDC, single-channel maximum output current 2A, total power consumption ≤10W
• Load Capacity: Dual slots for 2 sets of CRBX01 gigabit redundant communication modules
• Redundant Switchover Index: Cooperated with CRBX01, network switching time ≤10ms
• Installation: DIN35 standard horizontal rail mounting
• Dimension: 227mm×103mm×100mm, Net Weight: 1.0kg
• Protection Class: IP20 (indoor closed dust-proof cabinet only)
• Supporting Tools: Symphony Engineering Tool, network cable tester, insulation resistance tester, anti-static wristband

Supporting System

Supporting Hardware

Commissioning Software

Upper-level System Connection

Typical Application Industries

Product Features

1. Dual independent isolated power supply realizes power redundancy fault tolerance, single-loop fault will not interrupt system communication.
2. Integrated metal shielding equipotential grounding structure has excellent anti-electromagnetic interference capability, ensuring stable high-speed data transmission of control network.
3. Guide-type dual-slot modular design supports hot-swap replacement of communication modules under redundant mode, minimizing unplanned shutdown risk.
4. Wide-temperature industrial three-proof design, strong vibration and moisture resistance, long-term stable operation for 24/7 unattended industrial scenarios.
5. Standard DIN rail installation and platform hardware compatibility realize rapid spare replacement without cabinet wiring renovation.
6. Multi-level hardware overvoltage, overcurrent and short-circuit protection effectively block fault spread and protect front-end communication modules and system power supply.

II. Technical Specifications

2.1 Electrical Parameters

• Model: RMU610, Part No.: 2VAA008425R1
• Input Voltage: DC 24～48VDC (±20% tolerance)
• Single-channel Rated Output Current: 2A, total maximum output 4A
• Dielectric Withstand Voltage: 1500VAC 1min isolation between input and dual output channels
• Load: Dual slots compatible with CRBX01 gigabit communication module
• Protection Functions: Reverse polarity, overvoltage, overcurrent, short-circuit, ESD electrostatic protection
• Core Functions: Mechanical fixing of redundant communication modules, isolated power distribution, high-speed backplane signal transmission, shielding equipotential grounding, strong and weak current wiring isolation, fault current limiting protection.

2.2 Mechanical Parameters

• Mounting Mode: DIN35 standard horizontal rail with anti-drop lock
• Housing: Flame-retardant ABS plastic with built-in metal shielding lining
• Terminals: DC power input, protective grounding, dual-channel module power output terminals
• Dimension: 227mm×103mm×100mm, Net Weight: 1.0kg
• Protection Class: IP20

2.3 Environmental Specifications

• Operating Temperature: -20℃ ~ +60℃
• Storage Temperature: -40℃ ~ +70℃
• Humidity: 5%~95%RH, non-condensing, no corrosive gas or conductive dust

III. Key Features

1. Provide standardized mechanical bearing and anti-loosening installation for dual redundant communication modules to avoid poor contact caused by cabinet vibration.
2. Realize isolated power distribution and multi-level safety protection to prevent equipment damage caused by power grid surge and wiring short circuit.
3. Adopt gold-plated backplane and integral shielding grounding to guarantee real-time and lossless transmission of DCS control network gigabit data.
4. Partition wiring and equipotential grounding design eliminate electromagnetic interference and potential difference hazards, reducing on-site wiring hidden faults.
5. Cooperate with CRBX01 module to realize millisecond-level network redundant switchover, ensuring uninterrupted control communication of continuous process industry.
6. As the basic supporting hardware of DCS redundant network, it is widely used in new projects, technical renovation and preventive spare parts reserve of industrial automation systems.

IV. Working Principle

V. Application Scenarios

1. Construction of redundant control network for thermal power, biomass power plant auxiliary DCS system, supporting CRBX01 communication module for boiler, ash removal and water treatment equipment remote control.
2. Hardware upgrading of petrochemical and coal chemical DCS system, optimizing power supply and grounding architecture to solve intermittent communication faults caused by electromagnetic interference.
3. Redundant network supporting of municipal water supply and sewage treatment automation projects to ensure stable transmission of pump valve and dosing process control signals.
4. Distributed control system capacity expansion projects in metallurgy, papermaking and building materials industries, realizing safe redundant deployment of remote I/O communication nodes.
5. Preventive spare parts reserve of industrial DCS equipment, used for emergency replacement of aging base, grounding failure and power circuit fault to quickly restore system redundant communication architecture.
