Description
1. Overview

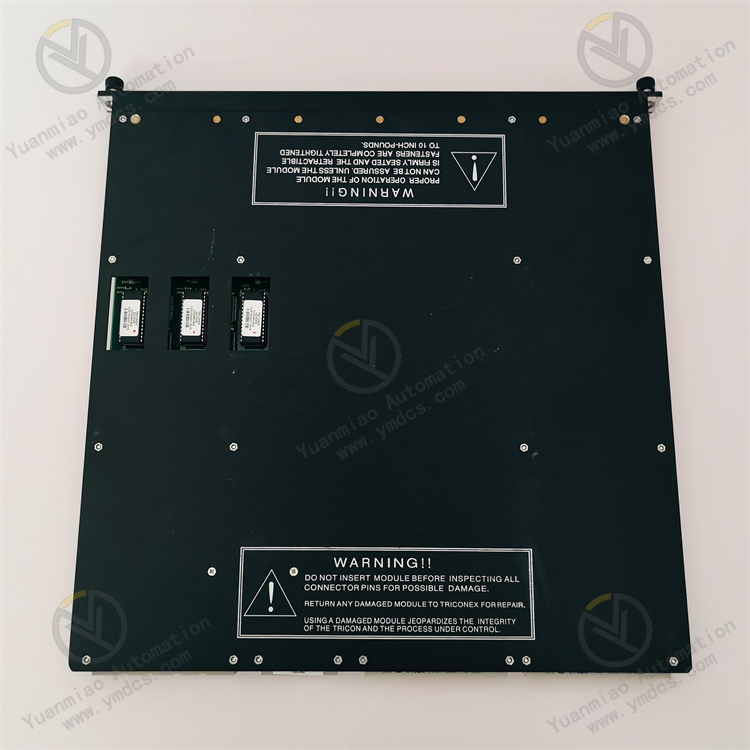

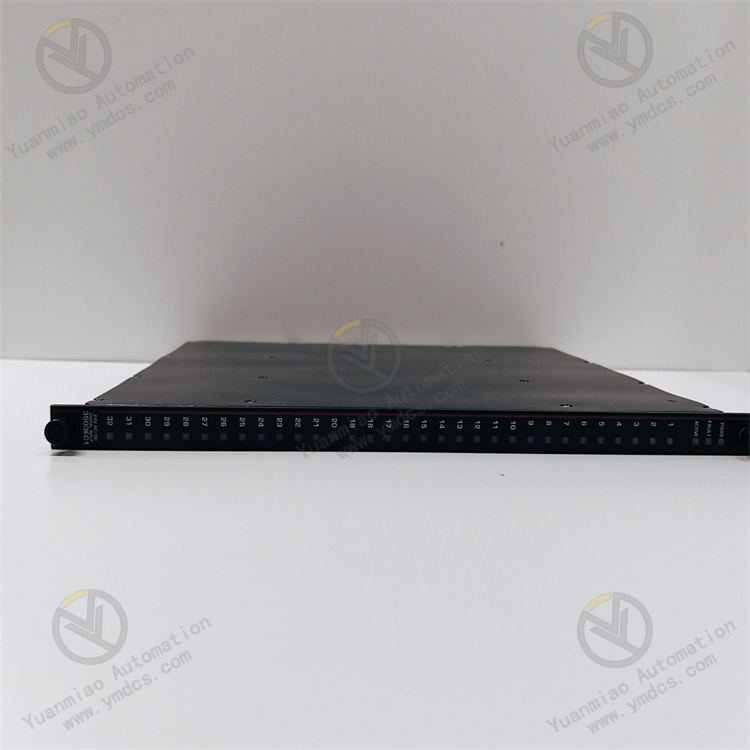

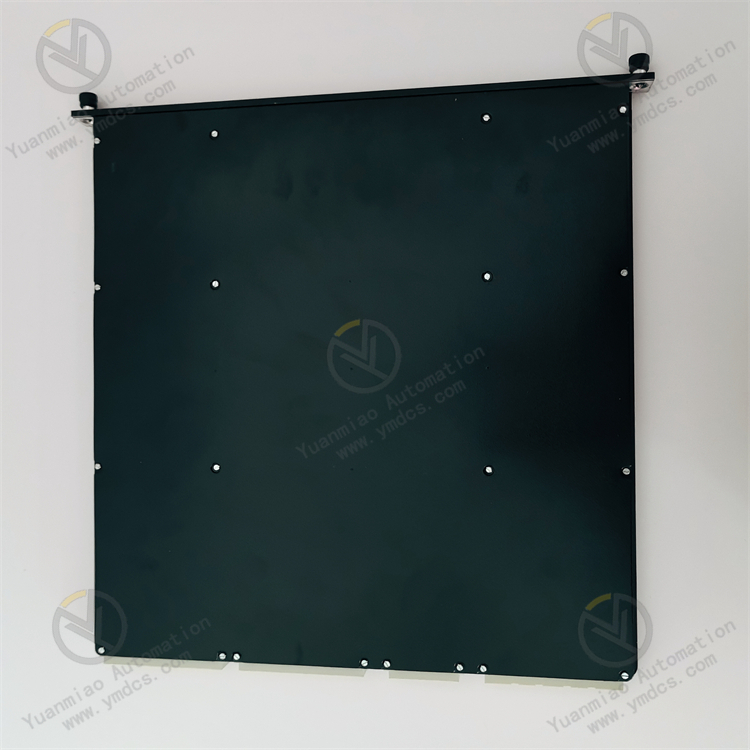

The TRICONEX 3503EC1 is a SIL3-level TMR (Triple Modular Redundancy) digital input module of Emerson Triconex 3500 series, specially designed for SIS safety instrumented systems, ESD emergency shutdown systems and F&G fire & gas interlock systems. It adopts triple redundant fault-tolerant architecture and 2-out-of-3 voting logic, providing 32-channel high-isolation digital signal acquisition for on-site switch status, dry contact and 24V AC/DC signals.
Supporting hot-swap online replacement, gamma electrical isolation and 0.5ms ultra-fast fault self-diagnosis, the module eliminates single-point failure risks fundamentally. Certified by IEC 61508 SIL3, it ensures accurate and stable safety signal collection. It is widely used in high-risk industries such as petrochemical, oil & gas, thermal power and pharmaceutical for safety interlock signal monitoring and equipment status feedback.
2. Technical Features
2.1 TMR Triple Redundant Architecture & SIL3 Safety
Equipped with three completely independent signal acquisition and voting channels with 2-out-of-3 fault-tolerant logic. Any single-channel fault is automatically isolated without data distortion or interlock disturbance. The strict SIL3 functional safety certification meets the highest safety control standards for high-risk industrial devices.
2.2 32-Channel High-Density Isolated Input
Integrates 32 digital input channels in independent groups of 8 channels, supporting both passive dry contact and active 24V AC/DC input modes. It is compatible with most industrial safety switch equipment, realizing batch acquisition of valve feedback, relay contact and interlock switch status with strong universality.
2.3 Wide Voltage Input & High-Speed Response
Covers wide input voltage range of 20~42.5VDC and 10~42.5VAC, adapting to on-site voltage fluctuation conditions. The maximum response time is ≤10ms. Built-in hardware anti-jitter and filter circuits effectively eliminate signal bounce and electromagnetic interference, ensuring accurate and stable signal judgment.
2.4 Gamma Electrical Isolation & Strong Anti-Interference
Adopts professional gamma isolation technology to completely isolate on-site field circuits from system control buses, blocking surge voltage and stray current interference. It avoids system disturbance and module breakdown caused by complex electromagnetic environment, ensuring long-term reliable signal acquisition.
2.5 0.5ms Ultra-Full-Coverage Self-Diagnosis
Millisecond-level full-coverage diagnosis detects channel disconnection, short circuit, overvoltage, undervoltage and hardware faults in real time. Intuitive LED indicators display operating and fault status, and fault logs are automatically recorded and uploaded to the upper system, supporting rapid fault location and predictive safety maintenance.
2.6 Hot-Swap Support & Non-Stop Maintenance
Native support for industrial safety-grade hot-swap. Module replacement can be completed without system shutdown or process degradation. Configuration parameters are automatically restored after reconnection, greatly simplifying on-site maintenance and eliminating production shutdown losses.
3. Detailed Specifications
3.1 Basic Hardware Parameters
- Model: 3503EC1
- Manufacturer: TRICONEX (Emerson)
- Series: Triconex 3500 SIS Safety System Module
- Type: TMR Triple Redundant Digital Input Module (DI)
- Safety Grade: IEC 61508 SIL3
- Architecture: TMR Triple Modular Redundancy, 2-out-of-3 Voting
- Channel Configuration: 32 Channels (8 Channels/Group)
- Input Mode: Dry Contact / 24V AC/DC Dual-Mode Compatible
- Core Function: SIS Interlock Signal Acquisition, ESD/F&G Status Monitoring
- Maintenance Feature: Hot-Swap, Non-Stop Replacement, Auto Configuration Recovery
3.2 Core Electrical Parameters
- DC Input Range: 20VDC～42.5VDC
- AC Input Range: 10VAC～42.5VAC (47~63Hz)
- Max Withstand Voltage: 42.5V AC/DC
- Signal Response Time: ≤10ms
- Fault Diagnosis Cycle: 0.5ms Ultra-Fast Detection
- Isolation Mode: Gamma Full Electrical Isolation
- Signal Processing: Hardware Anti-Jitter, Filtering & Shaping
- Fault Tolerance: Single-Channel Fault Zero Impact on System Logic
- Protection: Overvoltage, Undervoltage, Short Circuit & Surge Protection
3.3 Functional Parameters
- Operation Mode: 24/7 Uninterrupted Redundant Safety Operation
- Diagnosis Coverage: Full Detection of Circuit, Voltage, Hardware & Bus Faults
- Data Performance: Triple Synchronous Acquisition, Zero Drift & High Precision
- Maintenance: Online Hot-Swap, Auto Parameter Recovery, Fault Log Storage
- System Compatibility: Fully Compatible with TRICONEX SIS/ESD/F&G Systems
- Safety Logic: Automatic Fault Channel Shielding, No Signal Misjudgment
3.4 Environmental Parameters
- Standard Operating Temperature: -40℃ ～ +70℃
- Storage Temperature: -45℃ ～ +85℃
- Operating Humidity: 5%～95%RH (Non-Condensing)
- Environmental Resistance: Vibration-Proof, Impact-Proof, EMC Anti-Interference
4. Operating Principle
The TRICONEX 3503EC1 operates based on TMR triple redundant synchronous acquisition, 2-out-of-3 fault-tolerant voting, gamma electrical isolation and millisecond-level intelligent self-diagnosis. On-site switch signals such as valve feedback, relay contacts and interlock switches are isolated, filtered and shaped before synchronous collection by three independent redundant channels.
The module judges signal status through 2-out-of-3 voting logic to ensure accurate and effective input data for SIS controller safety logic operation. Single-channel faults are automatically shielded without data distortion or logic disturbance, fundamentally eliminating single-point failure risks.
Full-time 0.5ms self-diagnosis monitors channel status in real time, triggers alarms and records fault logs when abnormalities occur. Hot-swap maintenance supports non-stop module replacement and automatic configuration recovery, ensuring long-term stable and reliable operation of industrial safety interlock systems.
5. Application Scenarios
1. SIS safety interlock signal acquisition for petrochemical high-risk production plants.
2. F&G fire and gas linkage state monitoring for oil & gas stations.
3. Safety protection signal collection for thermal power and nuclear power equipment.
4. Real-time condition monitoring for continuous industrial production equipment.
5. Technical renovation and fault replacement for legacy TRICONEX 3500 SIS systems.
