Description
1. Overview

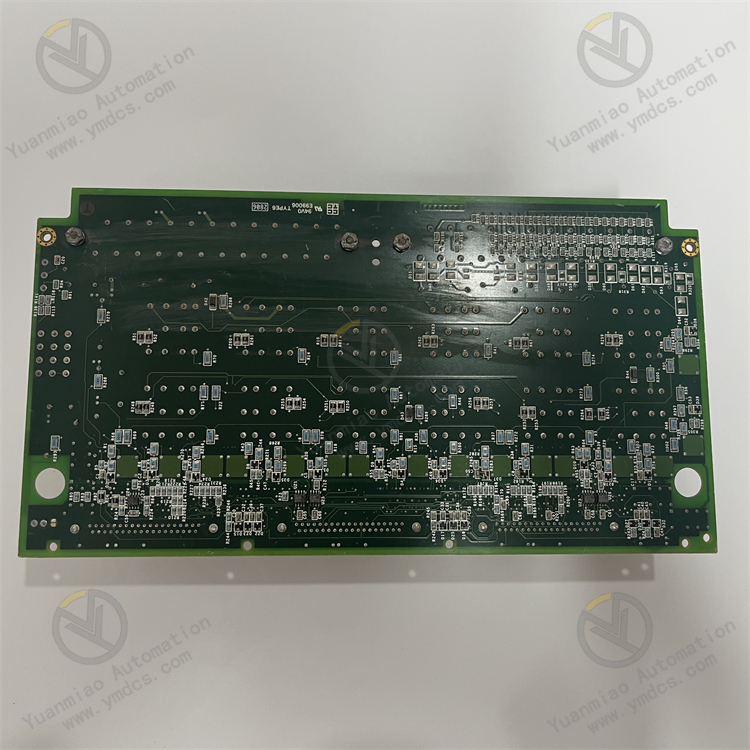

GE IS200TREGH1BDB is a dedicated TREG Governor Control Terminal Board for the GE Speedtronic Mark VIe Turbine Control System. It serves as the supporting interface base for unit closed-loop speed regulation, dynamic load control and actuator servo regulation, widely applied in control systems of gas turbines, steam turbines and combined-cycle generator units.As the core for signal transition and conditioning within governor loops, this board is specially responsible for receiving, filtering, isolating and standardizing transition of speed feedback signals, load feedback signals, servo valve control signals and valve position feedback signals. It is the critical underlying hardware ensuring precise speed governing, stable load and linear dynamic response of the unit.
Designed for high-precision turbine governing conditions, IS200TREGH1BDB is equipped with hardware governing filter circuits, signal shaping circuits and galvanic isolation protection mechanisms. It effectively filters on-site electromagnetic interference, signal jitter and transient clutter to guarantee clean, continuous and distortion-free governing feedback signals.Natively compatible with simplex / duplex / triple redundant fault-tolerant architecture of Mark VIe, the module supports complex operating conditions including steady-state continuous governing, transient load regulation, grid synchronization speed stabilization and load rejection speed control, featuring strong anti-interference performance, high stability and high signal fidelity.It is extensively adopted in complete governor system packages for new units, governing loop rectification for legacy units, servo control loop upgrades and technical retrofits for optimizing unit governing accuracy, delivering reliable signal link support for turbine closed-loop governing systems.
2. Technical Features
1. Dedicated Governing Signal Conditioning to Ensure High-Precision Closed-Loop Control
Circuit design optimized for precise control signals such as turbine speed, load and servo valve position. It enables accurate conditioning, amplitude normalization and waveform restoration for governing feedback signals across the full range from low to high speed.It effectively resolves on-site signal distortion, attenuation and jitter issues, supplying high-fidelity raw signals for main control PID governing calculation, dynamic load correction and precise valve position regulation. It greatly improves steady-state speed accuracy and transient regulation linearity of the unit, eliminating speed drift and load fluctuation.
2. Hardware High-Speed Filtering & Noise Reduction with Dynamic Response Matched to Unit Operating Conditions
Built-in dedicated hardware governing filter circuits meet millisecond-level dynamic governing response requirements. While removing high-frequency interference and harmonic clutter, valid process signals are not delayed, balancing anti-interference capability and dynamic response speed.Compared with ordinary terminal boards, it accurately retains effective signal variations during unit load ramping and operating mode switching, avoiding governing lag, sluggish response and dynamic instability induced by over-filtering.
3. Full Galvanic Isolation Protection with Excellent Loop Anti-Interference Capacity
Adopting channel-wise galvanic isolation, surge suppression and transient overvoltage absorption design, it isolates interference from on-site inverter harmonics, strong magnetic fields, line induced voltage and power supply fluctuations. It thoroughly prevents faults such as speed oscillation, valve position hunting and load jump triggered by disturbed governing signals.Independent loop protection ensures that anomalies on a single channel will not affect the operation of the overall governing loop, sustaining continuous stable operation of the closed-loop control system.
4. Compatibility with Full Redundant Systems to Meet High-Reliability Operation Standards
Fully compatible with simplex / duplex / TMR triple redundant fault-tolerant architecture of Mark VIe. It perfectly matches redundant governor main controllers and redundant signal loops, supporting synchronous comparison of multi-link signals and fault-tolerant selection.It satisfies stringent requirements for 24-hour uninterrupted unit operation and zero unplanned outages in power plants, eliminating risks of unit operating instability, false protection actuation and abnormal grid synchronization caused by single-point faults in governing loops.
5. Standardized Loop Layout for Convenient and Efficient Commissioning & Maintenance
Partitioned standardized terminal layout with clear separation for governing feedback, servo control, load signals and power circuits, together with standardized terminal marking. It facilitates on-site wiring matching, loop verification, fault troubleshooting and signal calibration.It supports online maintenance without shutdown and isolated single-loop commissioning, significantly shortening man-hours for governor system fault handling, parameter optimization and loop rectification, catering to efficient on-site operation & maintenance demands.
6. Rugged Industrial Design with Strong Adaptability to Harsh Operating Conditions
Constructed with industrial flame-retardant PCB materials, anti-aging components and rugged structural technology, the board has passed a full set of reliability tests including high-low temperature cycling, humidity-heat aging, vibration shock and EMC.It offers dustproof, moisture-proof, vibration-resistant, anti-electromagnetic interference characteristics and stable wide-temperature operation. It can operate reliably long-term in cabinet environments with high temperature, high humidity and heavy interference in power plants, featuring low failure rate and long service life.
3. Technical Specifications
1. Basic Parameters
Model: IS200TREGH1BDBBrand: GE (General Electric)Series: Speedtronic Mark VIe Turbine Control SystemBoard Type: TREG Governor Control Terminal BoardCompatible System: Complete GE Mark VIe Turbine Unit Control SystemCore Functions: Unit speed feedback signal conditioning, load feedback signal transition, servo valve control signal isolation, governing loop filtering & noise reduction, valve position feedback signal normalization, adaptation for redundant governing signal links, fault protection for governing loopsApplication Scenarios: Closed-loop speed regulation, dynamic load control and precise servo valve control systems for gas turbines, steam turbines and combined-cycle power plant units
2. Signal & Electrical Parameters
Supported Signals: Speed probe feedback signals, unit analog load feedback signals, servo valve control signals, valve position feedback signalsSignal Processing: Dedicated hardware governing filtering, waveform shaping, galvanic isolation, signal amplitude calibration, clutter eliminationResponse Characteristics: Millisecond-level signal response without lag of valid process signals, suitable for dynamic unit governingProtection Mechanisms: Independent channel isolation, surge suppression, overvoltage & current limiting, transient interference absorptionLoop Characteristics: Zero signal attenuation, drift and distortion to guarantee calculation accuracy of closed-loop governing
3. System Compatibility Parameters
System Compatibility: Fully compatible with simplex / duplex / triple redundant Mark VIe control systemsConfiguration Compatibility: Compatible with ControlST platform for signal monitoring, governing loop calibration, online commissioning and fault diagnosisFunctional Matching: Cooperates with system governor main control modules, servo control modules and speed acquisition modulesArchitecture Features: Supports redundant signal synchronization, multi-loop data comparison and fault-tolerant switching
4. Structural & O&M Parameters
Installation: Embedded mounting on standard Mark VIe racks, matched to system backplane bus interconnectionStructural Layout: Partitioned independent loop layout with separated governing signal, power and control circuitsWiring Method: Standard screw-clamp wiring for firm, anti-loosening and anti-vibration connectionO&M Features: Supports online loop verification, signal calibration, single-channel maintenance and rapid fault localizationHardware Technology: Rugged industrial PCB, flame-retardant & corrosion-resistant, anti-aging and anti-electromagnetic interference structure
5. Environmental Specifications
Operating Temperature: -30℃～+65℃Storage & Transportation Temperature: -40℃～+85℃Operating Humidity: 5%～95% RH (non-condensing, no corrosive gas)Environmental Resistance: Resistance to mechanical vibration & shock, strong electromagnetic interference, humidity-heat aging, dust and moistureApplicable Sites: Power plant main control cabinets, local power equipment cabinets and high-temperature, high-humidity, high-interference industrial automatic control sites
4. Operating Principle
The GE IS200TREGH1BDB Governor Control Terminal Board follows a standardized workflow:
Field governing signal access → Loop surge protection → Dedicated hardware governing filtering → Waveform shaping & amplitude calibration → Galvanic isolation against interference → Transmission of standardized signals to main control modules → Closed-loop governing calculation → Feedback transition of servo commands.
Raw process signals from unit speed probes, load sensors, valve position feedback and servo actuators are firstly connected to this terminal board. Onboard protection circuits absorb instantaneous high voltage and surge interference on cables, and dedicated governing filter circuits remove industrial clutter, signal jitter and harmonic interference.
Conditioned, calibrated and isolated high-fidelity standardized signals are stably uploaded to the Mark VIe governor main control module. Relying on accurate feedback data, the main controller executes speed PID closed-loop calculation, dynamic load correction and outputs valve position regulation commands.
5. Application Scenarios
1. High-Precision Closed-Loop Speed Regulation for Turbine Units
Acting as the core signal transition base of governor systems for gas turbines, steam turbines and combined-cycle units, it undertakes conditioning and transmission of critical speed, load and valve position signals.It ensures governing accuracy under all operating modes including unit startup and speed-up, steady-state speed holding, load ramping, grid synchronization and low-load stable combustion, eliminating speed fluctuation, load drift and valve position hunting, supporting efficient, stable and precise unit operation.
2. Adaptation for Precise Control Loops of Servo Actuators
Suitable for precise control loops of unit fuel valves, inlet guide vanes and servo actuators. Via clean and stable signal links, it guarantees accurate output of servo commands and true feedback of valve position, realizing refined valve opening regulation and precise matching of unit load.It improves unit regulation linearity, process stability and power generation efficiency, meeting demands for refined intelligent management and control of units.
3. Technical Retrofit and Upgrade of Governing Loops for Legacy Units
It can directly replace outdated governor terminal boards featuring weak filtering capacity, prone signal distortion, poor anti-interference and insufficient governing stability.No modification to system main control logic, I/O architecture and cabinet wiring is required. It enables low-cost, zero-risk upgrade of unit governing signal links, thoroughly resolving persistent problems such as governing drift, unstable load and sluggish response in legacy units, and significantly improving overall reliability and control accuracy of the unit governing system.
4. Construction of High-Reliability Redundant Governing Systems
Suitable for building triple redundant fault-tolerant governing systems for high-end power plants. It provides consistent, stable and comparable signal link foundation for redundant governing architecture, avoiding risks of improper regulation or failure of governing systems caused by abnormal single-loop signals.It satisfies design standards of high safety, high reliability and zero outage for large combined-cycle power plants and core power installations.
