Description
1. Product Overview

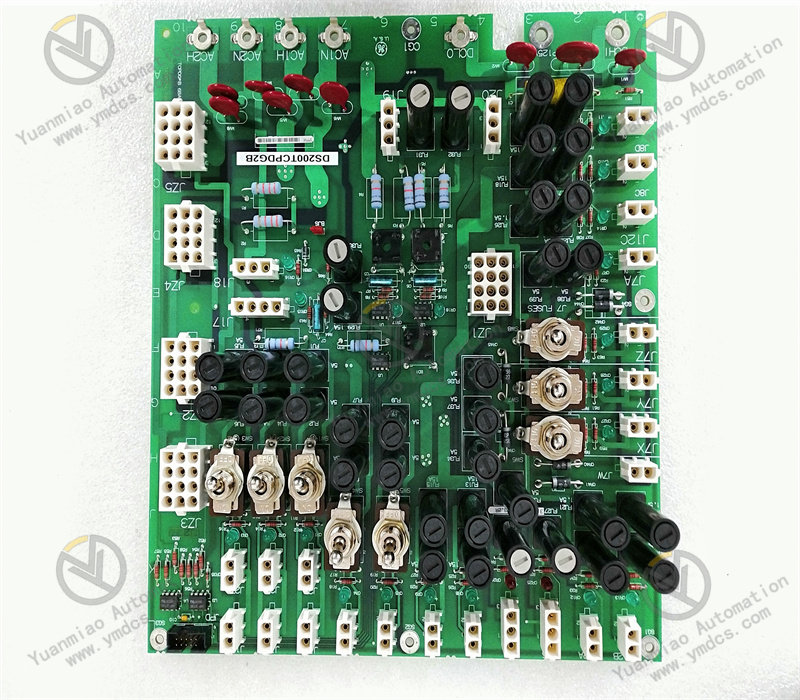

DS200TCPDG2B is a dedicated core power distribution circuit‑board for the Speedtronic Mark V turbine‑control system manufactured by General Electric (GE). It serves as a critical hardware unit for power‑supply management, loop power distribution and circuit safety protection within the main‑control system of gas turbines and steam turbines. Designed for the harsh operating conditions of heavy‑duty industrial turbine units, this board is mainly responsible for centralized DC‑power input, multi‑loop voltage‑stabilized distribution, graded circuit protection, power‑distribution‑status monitoring and signal transfer. It provides stable, safe and standardized power‑supply support for core equipment including turbine‑control power modules, electronic assemblies, speed‑governing units, boiler‑control units and base‑mounted control components.
As an original‑equipment dedicated power‑distribution board for the Mark V turbine system, it integrates multiple independent fuse‑protected loops, status‑monitoring indicator lamps, programmable toggle switches and dedicated signal terminals. It features high power‑distribution accuracy, secure loop isolation, rapid fault response and outstanding operational stability, and effectively resolves common problems of turbine‑control systems such as power‑supply noise, loop overload, uneven power distribution and single‑point‑fault propagation. Adopting industrial‑grade flame‑retardant PCB substrate, full‑circuit surge‑suppression circuits, EMC‑optimized layout and reinforced encapsulation technology, the board adapts to severe plant‑site environments with high temperature, dust, heavy electromagnetic interference and continuous heavy‑load operation. It supports 7×24‑hour non‑stop steady‑state operation of turbine units and is widely used in engineering projects such as new‑build automation‑system configuration, spare‑part replacement for aged boards, troubleshooting of power‑distribution faults and reliability‑upgrade retrofits for turbine‑control systems in thermal‑power plants, cogeneration plants, combined‑cycle power stations and large‑scale industrial power installations.
2. Core Functions
Multi‑channel independent voltage‑stabilized power‑distribution output: The board accepts a centralized 125 VDC standard DC input and delivers multiple regulated power outputs through 36 independent fuse‑protected loops. It supplies well‑matched operating power evenly and precisely to various main‑control assemblies, drive units and acquisition modules of the Mark V system, ensuring stable voltage for all hardware units in the turbine‑control system and eliminating turbine‑speed‑regulation anomalies, parameter drift and system trips triggered by power‑supply fluctuations.
Graded circuit fuse‑based safety protection: Each power‑distribution loop is fitted with an independent precision fuse to provide separate protection against overload, short‑circuit and over‑current faults on that loop. When a fault occurs on one single loop, its fuse blows independently to isolate the fault location, preventing single‑point power‑supply failures from spreading to the whole control system. This removes the drawback of full‑system shutdown caused by one‑loop failure in conventional power‑distribution systems and greatly improves fault tolerance and operational safety of the turbine unit.
Real‑time visual monitoring of power‑distribution status: Thirty‑six independent LED status indicators correspond one‑to‑one to the operating state of each distribution loop. The indicator lamp stays lit under normal power supply and turns off upon loop anomaly or fuse‑blown power loss. Field maintenance personnel can locate faulty loops intuitively and rapidly without complicated testing procedures, significantly shortening fault‑diagnosis and downtime‑repair duration and enhancing system maintainability.
Programmable switch‑based logic configuration: Eight industrial‑grade toggle switches are integrated to support on‑site custom configuration of power‑distribution logic, loop enable/disable status and power‑supply modes. Power‑distribution strategies can be flexibly adjusted according to different turbine‑unit operating conditions, load parameters and control processes, meeting power‑supply requirements during unit startup‑shutdown cycles, steady‑state operation and load fluctuations and delivering excellent adaptability and flexibility.
Standardized signal transfer and system interlocking: Four dedicated signal terminals and one 10‑pin dedicated system connector enable power‑distribution‑status signal acquisition, fault‑feedback signal transmission and power‑supply‑related system communication. Abnormal power‑supply events, loop faults and power‑supply interruptions are uploaded in real‑time to the turbine main‑control system to trigger fault alarms, load derating and interlock protection actions, forming a complete closed‑loop power‑supply monitoring and protection framework.
- Long‑term stable operation with industrial‑grade anti‑interference capability: Manufactured with 94V‑0 flame‑retardant PCB material, the board incorporates multi‑stage noise‑filtering and surge‑suppression circuits and an optimized power‑loop layout. It effectively resists strong electromagnetic radiation, grid voltage transients and line‑coupled interference inside power plants, preventing system mis‑operations and signal distortion induced by power‑supply noise. Reinforced against dust and moisture, the board withstands long‑term exposure to harsh power‑station environments without power‑distribution‑performance degradation or loop‑aging failures. Its extended maintenance‑free cycle reduces maintenance expenses and unplanned‑shutdown risks of turbine units.
3. Technical Specifications
| Parameter Item | Technical Specification |
|---|---|
| Product Model | DS200TCPDG2B |
| Brand | GE General Electric |
| Product Series | Speedtronic Mark V Turbine‑Control System Board Series |
| Product Type | Turbine‑system power‑distribution board, power‑distribution protection and monitoring board |
| Input Voltage | 125 VDC standard industrial DC input |
| Number of Distribution Loops | 36 independent fuse‑protected power‑distribution loops |
| Configuration Switches | 8‑channel programmable toggle function switches |
| Status Indication | 36 independent LED operating‑status indicator lamps |
| Signal Terminals | 4 dedicated signal wiring terminals, 10‑pin system communication connector |
| Total Power Consumption | Max. 15 W low‑power operation |
| PCB Flame‑Retardant Rating | 94V‑0 high‑grade industrial flame‑retardant standard |
| Core Functions | Multi‑loop power distribution, loop fuse protection, power‑distribution‑status monitoring, logic‑parameter configuration, fault‑signal feedback, noise‑filtered stabilized power supply |
| Circuit Characteristics | Independent single‑loop protection, multi‑stage noise‑reduction filtering, surge suppression, EMC compliance, fault‑isolation design |
| Compatible System | Full lineup of GE Speedtronic Mark V turbine‑control systems |
| Operating Temperature | ‑40 ℃ ~ +70 ℃ industrial ultra‑wide operating‑temperature range |
| Storage Temperature | ‑45 ℃ ~ +85 ℃ |
| Ambient Humidity | 5%‑95% RH, non‑condensing environment |
| Process Characteristics | Flame‑retardant reinforced PCB, independent‑loop protection, EMC electromagnetic‑compatibility optimization, dust‑proof and moisture‑proof industrial encapsulation |
| Operating Characteristics | Stable power distribution, accurate fault isolation, visible status feedback, low power consumption, strong anti‑interference performance, 7×24‑hour continuous heavy‑load operation |
| Safety Certification | UL 508 industrial electrical‑safety certification |
| Key Advantages | 100 % original compatibility with Mark V system, multi‑loop independent power‑distribution protection, visual fault detection, configurable logic, stable anti‑interference performance, no cross‑system fault propagation, 100 % drop‑in replacement compatibility, convenient maintenance |
4. Working Principle
The DS200TCPDG2B power‑distribution board operates according to a closed‑loop power‑supply workflow: centralized power input → multi‑stage filtering & voltage stabilization → multi‑channel independent‑loop distribution → fuse safety protection → status‑monitoring feedback → fault isolation & interlock. After being installed in the VME rack of the Mark V system and completing 125 VDC power‑on initialization, the board automatically carries out hardware self‑test, loop inspection, toggle‑switch‑logic matching and link calibration. Once all loops are confirmed healthy, it enters steady‑state power‑distribution standby mode.
During runtime, the incoming 125 VDC DC power first passes through on‑board filtering, surge‑suppression and voltage‑stabilization circuits to eliminate grid‑borne noise, voltage transients and interference, producing clean, stable standard DC power. The conditioned power is evenly distributed via the 36 independent fuse‑protected loops to all core hardware of the turbine‑control system, including power‑supply modules, electronic‑control assemblies, speed‑governing drive units, boiler‑control units and base‑mounted control modules, ensuring consistent supply voltage and stable operating conditions for every unit. Maintenance staff may use the eight toggle switches to configure loop‑enable status and operating logic to satisfy different turbine‑process requirements.
The board continuously monitors current, continuity and operating conditions for each distribution loop, and displays loop status via the 36 LED indicators. Whenever overload, short‑circuit or over‑current occurs on one loop, its corresponding fuse blows immediately to isolate the fault. Meanwhile, fault‑location and anomaly information is transmitted in real‑time to the turbine main‑control system through dedicated signal terminals and the 10‑pin connector, triggering system alarms, load protection and interlock actions to prevent fault propagation across the whole system. This mechanism guarantees safe, stable and fully‑controllable power supply for the turbine‑control system at all times.
5. System‑Architecture Compatibility
DS200TCPDG2B is an original‑equipment dedicated core power‑distribution board for the GE Speedtronic Mark V turbine‑control system. Its hardware‑pin definitions, power‑distribution logic, communication timing, electrical ratings and rack‑mount dimensions are fully compatible with all Mark V turbine‑control hosts and the VME rack architecture. Natively integrated with the original power‑supply topology and control logic, the board supports plug‑and‑play deployment without system‑program modification, power‑distribution‑parameter readjustment or additional adapter hardware, enabling 100 % loss‑free drop‑in replacement and optimized upgrading of the system’s power‑distribution functions.
This board seamlessly interoperates with the complete set of Mark V core hardware, including turbine main‑control boards, power‑supply modules, signal‑acquisition boards, drive boards and communication boards. It delivers precise power‑supply sequencing, well‑balanced loop‑load distribution and error‑free fault‑interlock logic, perfectly fitting the full closed‑loop control architecture for gas‑turbine and steam‑turbine units. Its standardized rack‑mount structure, terminal layout and board dimensions comply fully with original turbine‑control‑cabinet specifications. It can be deployed for complete power‑distribution‑system configuration in new‑build turbine projects, replacement of failed boards on legacy units, remediation of aged distribution loops and stability‑improvement retrofits for turbine power supplies. No cabinet‑structure, field‑wiring or control‑logic modifications are required during retrofit work. Replacement is fast and cost‑effective, resulting in substantially enhanced power‑supply stability, fault‑protection capability and overall unit reliability, together with excellent system expandability and versatility.
6. Application Scenarios
Developed to resolve industrial‑turbine‑control‑system pain‑points such as single‑path power‑distribution loops without independent protection, high risk of fault propagation, power‑supply fluctuations and time‑consuming fault diagnosis, DS200TCPDG2B leverages multi‑channel fuse‑protected power distribution, visual status monitoring, programmable‑logic configuration, robust noise‑filtered voltage stabilization and precise fault isolation for core power‑distribution and safety‑protection duties on large turbine‑unit control systems.
It is widely deployed across thermal‑power generation, cogeneration, gas‑fired power plants, combined‑cycle power stations and large‑scale industrial captive power plants, serving as the main‑control‑system power‑distribution hardware for GE Mark V‑based gas turbines, steam turbines and turbomachinery units. Its primary tasks include centralized power distribution for turbine‑control systems, multi‑loop safety protection, real‑time power‑supply‑status monitoring, fault‑signal feedback and noise‑suppressed stabilized power supply. Suitable engineering projects comprise power‑distribution hardware supply for new‑build turbine installations, spare‑part replacement for legacy Mark V boards, troubleshooting of unstable power‑supply conditions, safety upgrades for power‑distribution systems and optimization projects aiming to reduce unplanned turbine shutdowns. The board effectively mitigates failures such as loss of speed‑governing control, parameter drift, system trips and hardware burnout caused by power‑supply anomalies. It improves overall stability, safety and continuous‑operation capacity of large power‑generation assets, supporting long‑term, high‑efficiency, low‑fault and steady heavy‑load operation of power‑station turbine units.
