Allen-Bradley 1771-IFE | Analog Input Module

Description

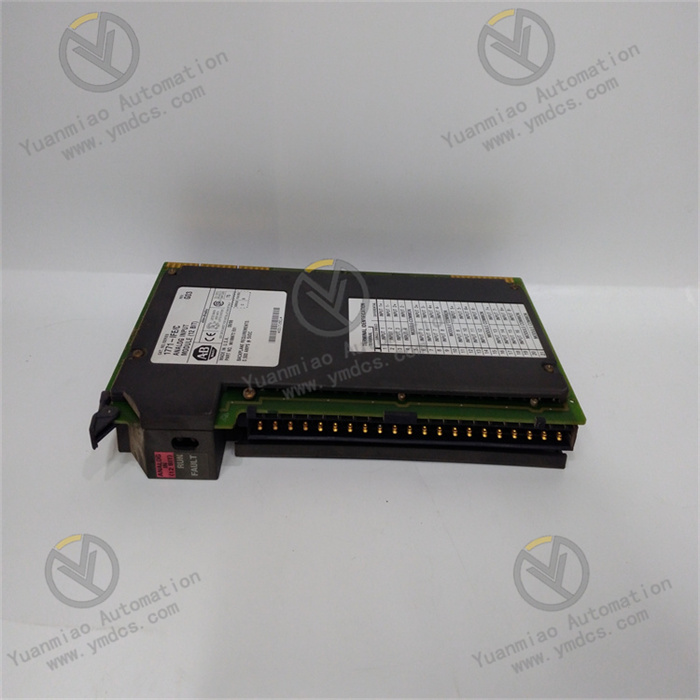

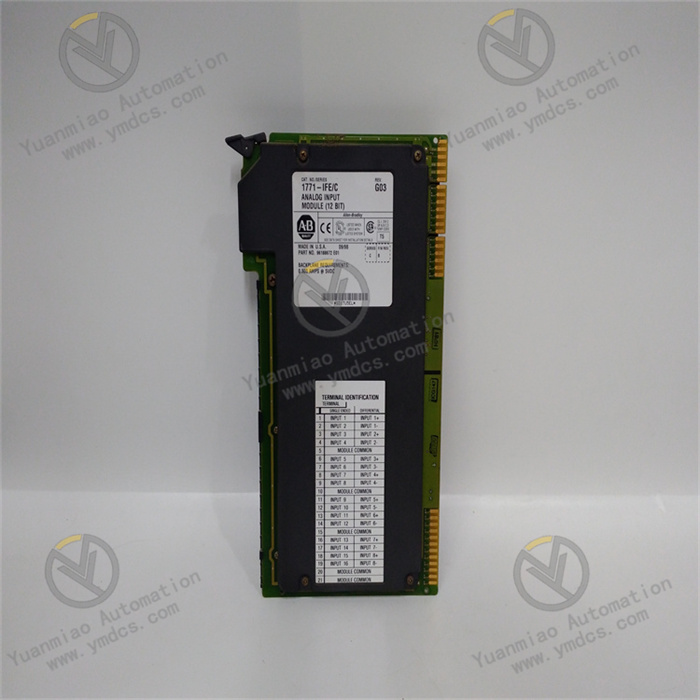

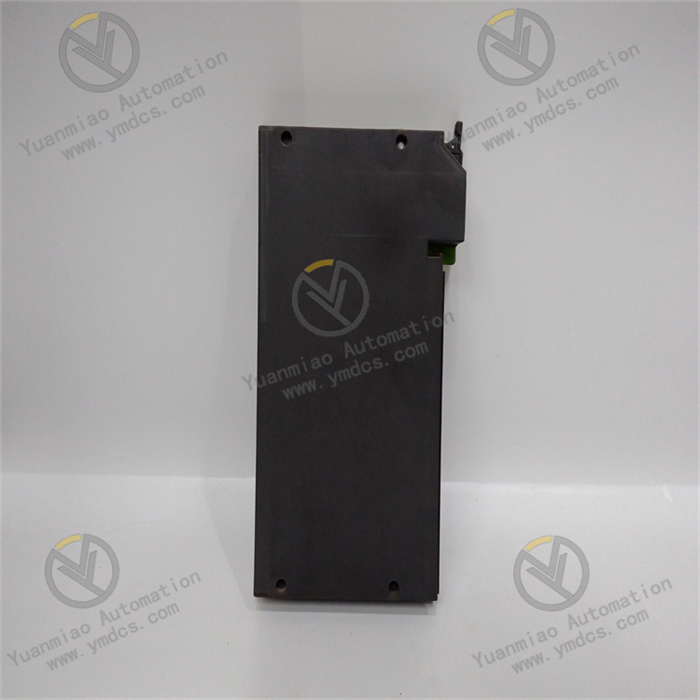

The Allen-Bradley 1771-IFE is a PLC5 analog input module that is compatible for installation with any 1771 I/O chassis. This module has Sixteen (16) Single-eneded channels or Eight (8) Differential input channels. Each channel are configurable for input Voltage and Current signal ranges of 1 to 5V dc, 0 to 5V dc, -5 to +5V, -10 to +10V dc, 0 to 10V dc, 4 to 20mA, 0 to 20mA, and 20 to +20mA. This module is used with Block transfer instructions such as BTW and BTR for sending and receiving analog data and instructions.

Technical Specifications for 1771-IFE

The Allen-Bradley 1771-IFE is a PLC5 Analog Input Module. This module interfaces analog inputs with PLC processors using block transfer programming. It uses a 16-bit resolution and performs the required analog-to-digital conversions and vice versa to interface analog signals with PLC data table values. If input communication is disrupted, it can respond automatically to the fault with the default user configuration. Thus, it provides a predictable and safe response to a fault and limits the extent of the fault. The 1771-IFE is compatible for use in various applications such as Temperature, Pressure, Level, Flow, and other applications. It contains Sixteen (16) single-ended or Eight (8) differential selectable inputs. It has Natural Binary or BCD scaling to a +/-9999 data format. It has a voltage range of -10 to 10 Volts DC and a current range of -20 to 20 mA. It has a backplane current load of 750 mA and a channel update time of 8 milliseconds for 8 channels, 36 milliseconds for 16 channels, and 12 bits plus sign resolution.

The 1771-IFE has a maximum power dissipation of 2.5 Watts and a thermal dissipation of 8.52 BTU/hour. It comes with a 1771-WG wiring arm to replace the module, eliminating the need to disconnect wiring. It requires one slot for installation in an I/O chassis and keying bands for correct installation is between pins 10 and 12 for the lower connector and pins 24 and 26 for the upper connector. The 1771-IFE module contains a green RUN and a red FAULT indicator light on the front panel. It contains optoelectrical isolation to protect the system circuits from electrical transients. It also contains an input filtering feature to reduce electrical noise. of input signal selection such as 1 to 5V dc, 0 to 5V dc, -5 to +5V, -10 to +10V dc, 0 to 10V dc, for Voltage and 4 to 20mA, 0 to 20mA, and -20 to +20mA for Current signals. This module is used to enable measurement of Process Variables (PV) such as Pressure, Level, Flow, Temperature, Speed, Viscosity, Turbidity, pH, Vibration, Displacement and many other parameters that may be represented by the selectable input signals. This module converts the receive signal to a proportional four-digit BCD or twelve-bit binary value.
