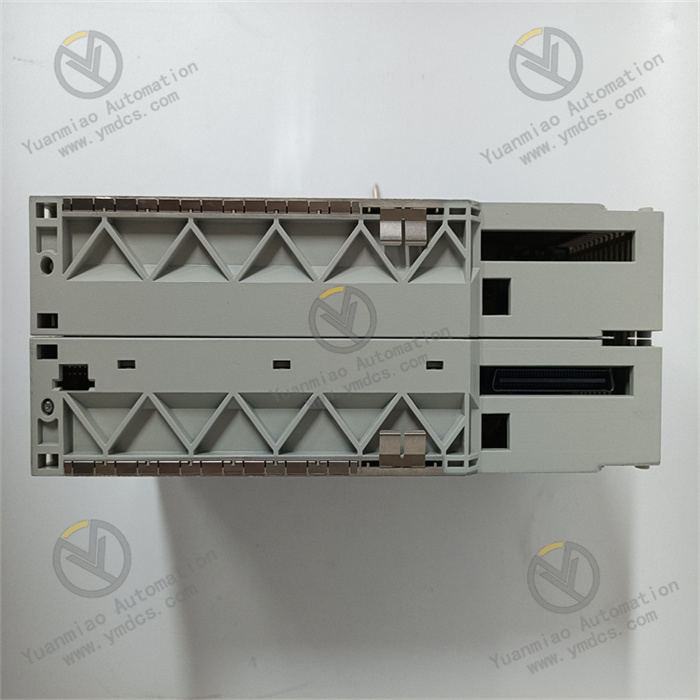

Schneider 140CPU53414A

I. Overview

Schneider 140CPU53414A is an industrial-grade processor unit. As the core control component of this series automation system, it is specially designed for large-scale industrial automatic control systems. It undertakes core tasks such as system control logic operation, data processing, equipment communication and command issuance, acting as the "brain" to ensure efficient, stable and reliable operation of the Modicon Quantum series system.

Manufactured with premium industrial-grade materials, it features a rugged structure suitable for harsh on-site industrial environments. The operating temperature ranges from 0℃ to 60℃, and the storage temperature from -40℃ to 85℃, delivering excellent environmental adaptability.

II. Product Parameters

III. Technical Features

• High-performance Computing Capability: Adopts 80586 (Intel 586 DX) processor at 133MHz with integrated math coprocessor. It not only executes control logic rapidly but also efficiently processes arithmetic-intensive applications such as complex calculation and data analysis, significantly boosting system processing speed and computing efficiency to meet complex control demands of large automation systems.

• Sufficient Memory & Data Processing Capacity: Built-in 2.7MB internal memory stores massive automation programs and operating data, supporting multi-process concurrent operation without performance degradation. It also supports up to 128KB unlocated data adapted for high-speed backplane applications, satisfying operation requirements of data-intensive industrial scenarios and ensuring smooth system data processing.

•


• Flexible Communication & Integration: Configured with 2 Modbus RS-232 ports and 1 Modbus Plus RS-485 port to realize seamless communication with various industrial devices and controllers, adapting to different industrial automation networking requirements. It allows integration of up to 6 extended modules to flexibly expand system functions and improve compatibility and scalability.

• High-security Design: The built-in key switch realizes secure access control of core system functions, preventing unauthorized modification of system configuration and ensuring operational safety. A 250ms software-adjustable watchdog timer monitors system running status in real time, detects and avoids operation faults timely to prevent failure escalation and ensure non-stop system operation.

•


• Reliable Power-off Data Protection: Equipped with a 3V / 1200mAh lithium battery with a 10-year service life. It continuously supplies power to internal memory during power failure to protect programs, configurations and operating data from loss. The system can resume normal operation quickly after power restoration, reducing production interruption and data loss caused by power cut.

• Excellent Environmental Adaptability: Operating temperature 0℃~60℃ and storage temperature -40℃~85℃. Made of high-strength industrial materials with rugged construction, it adapts to temperature fluctuations and complex working conditions on industrial sites, ensuring long-term stable operation in harsh environments and enhancing system reliability and durability.

•


• Good Model Compatibility: As an upgraded version of 140CPU53414, it can directly replace the base model with only firmware differences. It facilitates upgrading and renovation of legacy systems without large-scale modification of existing architecture, lowering upgrade cost and difficulty. Note that fully identical model versions must be used in Concept hot standby systems.
• Convenient System Configuration: Compatible with configuration software including Proworx32 V2.0 patch C, Concept V2.5 SR2 patch H and above versions. It enables fast system programming, parameter setting and maintenance, simplifying system construction and operation & maintenance procedures and improving work efficiency.

IV. Application Scenarios

1. Manufacturing Industry

Widely used in large automated production lines and smart workshops. As the core processor of Modicon Quantum systems, it undertakes control logic operation, coordinated equipment control, data acquisition and processing for production lines. It connects various I/O modules, sensors and actuators to realize automatic control and optimization of production workflows, improve production efficiency and product quality, and meet control demands of large-scale automated production.

2. Energy Industry

Suitable for control systems in power, new energy and other energy sectors. It serves as the core controller for key equipment such as generator sets, substations and new energy power stations, performing tasks including operating parameter collection, control command issuance and system status monitoring. With high computing performance and reliable operation, it ensures efficient and stable operation of energy systems and guarantees continuity and reliability of power supply.

3. Infrastructure Sector

Applied in automatic control systems of large transportation hubs, water conservancy projects and urban infrastructure. As the core control unit, it coordinates the operation of various monitoring and control equipment, realizes intelligent management and control of infrastructure, improves operational stability and safety, and fits large infrastructure projects with high requirements for system reliability and scalability.

4. Chemical, Oil & Gas Industry

Applied in production control systems of chemical, oil and gas industries. It executes control logic operation of complex production workflows, process parameter monitoring and coordinated equipment control. Featuring high reliability, excellent environmental adaptability and safety design, it operates stably in harsh industrial conditions, ensures safe and continuous production, and meets complex control requirements of chemical, oil and gas processes.

5. Legacy System Upgrade
