Description
1. Overview

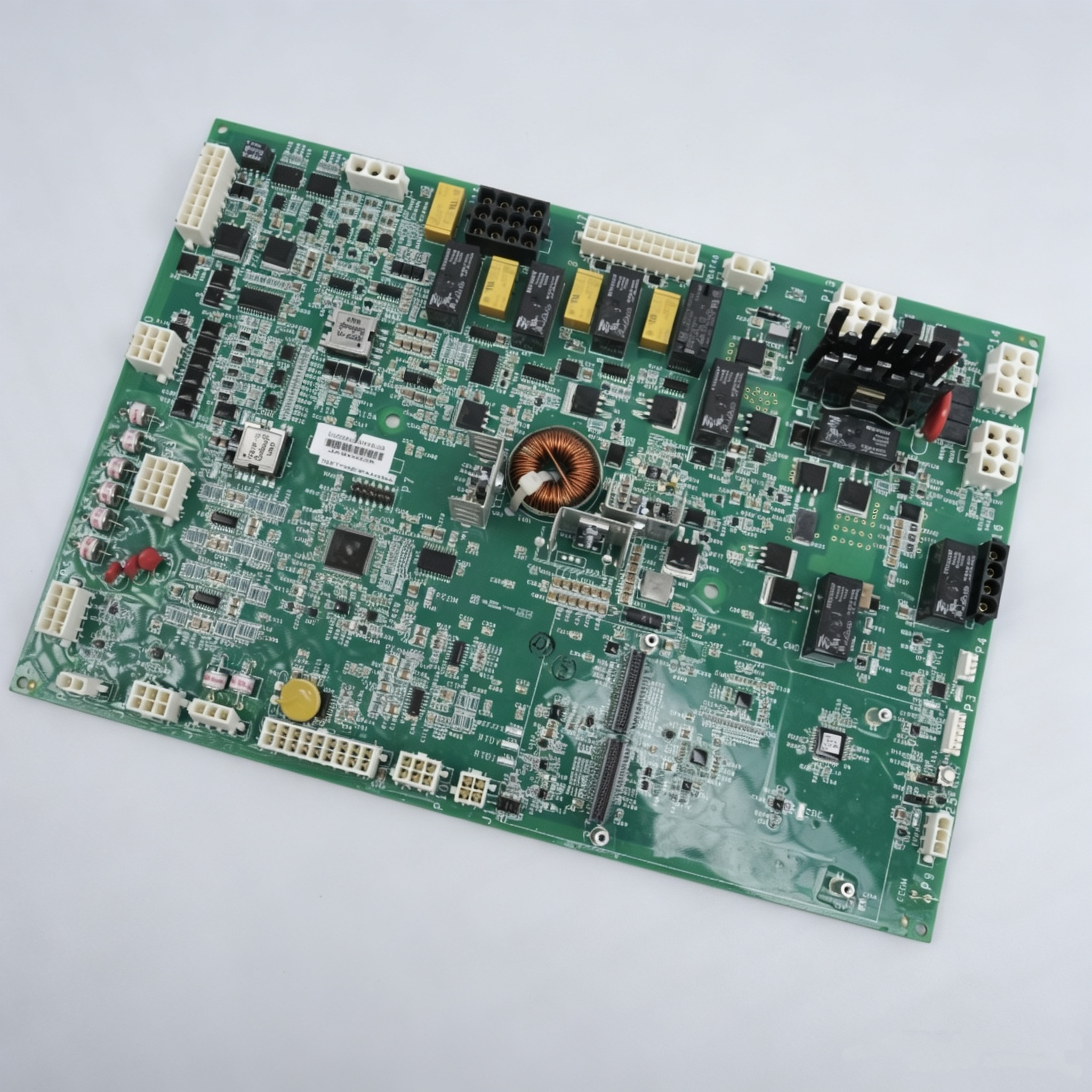

GE IS215WEPAH2BA is a dedicated I/O signal processing and control board designed for the EX2100 series generator excitation control system and Mark V/VIe unit control system, serving as a core functional module of power station excitation systems.
As the core unit for external signal interaction and logic regulation within the excitation system, it undertakes acquisition, parsing, logic calculation, command output and data forwarding of analog and discrete signals for the excitation system. It precisely interfaces with the generator excitation loop, field sensing equipment and main control system to realize core functions including excitation regulation, condition monitoring, fault protection and interlock control.
2. Technical Features
2.1 Customized for Excitation Systems with High Signal Processing Precision
Custom-developed exclusively for the complete GE EX2100 excitation control system, it perfectly matches the signal interaction logic of all analog and discrete quantities in the excitation system. It accurately collects key parameters such as excitation voltage, excitation current, generator stator voltage, stator current and rotating speed, while outputting excitation adjustment control commands.Built-in high-precision AD/DA conversion units and dedicated signal algorithms eliminate excitation fluctuation and signal deviation, ensuring real-time and accurate excitation regulation, stabilizing unit output voltage and reactive power, and meeting strict control requirements for generator grid synchronization, steady-state operation and variable load adjustment.
2.2 TMR Triple Redundancy Support with Excellent Fault Tolerance
Natively compatible with the TMR triple redundant architecture of unit control systems, it supports synchronous three-channel signal sampling, logic voting and redundant switching. It effectively avoids abnormal excitation regulation, signal loss and false interlock actions caused by hardware faults of a single module or loop.Single-point hardware faults, signal interference and link abnormalities will not propagate and disrupt the overall excitation system. With outstanding fault tolerance, it fully satisfies zero-shutdown and high-reliability safety operation standards for generating units and ensures long-term stable commissioning of excitation loops.
2.3 Comprehensive On-Board Self-Diagnosis for Traceable and Controllable Maintenance
A complete on-board online self-diagnosis system continuously monitors module power supply status, hardware circuit conditions, signal acquisition links, communication status and abnormal output loops, precisely identifying hidden troubles such as open circuits, short circuits, out-of-range signals, hardware aging and communication interruption.The module uploads fault codes, abnormal timestamps and operation logs in real time to enable accurate fault tracing and condition trend analysis. It greatly simplifies routine inspection, troubleshooting and loop commissioning of excitation systems, facilitates predictive maintenance and reduces the risk of unplanned unit outages.
2.4 Industrial Rugged Protection for Harsh Power Station Environments
Constructed with military-grade PCB substrates and thickened triple-proof (dustproof, moisture-proof, anti-corrosion) coatings, as well as integrated surge, overvoltage and overcurrent protection circuits. It features dust resistance, moisture resistance, vibration resistance, wide temperature adaptability and electromagnetic interference immunity.It effectively suppresses electromagnetic noise and voltage surges generated by high-voltage equipment, inverters and frequent startup/shutdown of heavy-duty units on site, adapting to complex cabinet environments with fluctuating temperature & humidity and heavy EMI. It supports 24/7 non-stop continuous operation with long service life and extremely low failure rate.
2.5 Highly Integrated Modular Design with Strong Compatibility and Easy Maintenance
The compact highly integrated modular structure saves cabinet installation space and fits the original rack mounting structure of EX2100 excitation systems and Mark V/VIe unit control systems.It supports online system configuration and function upgrading, and is compatible with excitation system retrofits and hardware replacement for both new and legacy units. Adopting an architecture allowing maintenance without system shutdown, faulty modules can be rapidly replaced to cut unit maintenance costs and downtime losses significantly.
3. Specification Parameters
3.1 Basic Model Information
- Model No.: IS215WEPAH2BA
- Brand & Series: GE Vernova EX2100 Excitation Control System / Mark V/VIe Unit Control System
- Device Type: Dedicated I/O signal control & processing board for excitation systems
- Core Functions: Excitation signal acquisition, logic calculation, excitation regulation command output, system data interaction, fault monitoring and protection
- Compatible Systems: GE EX2100 Generator Excitation Control System, Mark V/VIe Gas & Steam Turbine Control System
- Applicable Equipment: Excitation devices for gas turbines, steam turbines and combined-cycle power generating units
3.2 Electrical & Signal Parameters
- Rated Supply Voltage: 125 VDC (wide input range: 90 ~ 150 VDC)
- Control Voltage: 5 VDC
- Rated Operating Current: 15 A
- Transient Surge Withstand Current: 100 A
- Insulation Resistance: ≥ 1000 MΩ with excellent insulation performance
- Switching Response Frequency: 200 Hz for fast signal processing
- Signal Functions: Excitation analog quantity acquisition, discrete logic processing, regulation command output and loop condition monitoring
- Built-in Protection: Multi-layer protection against overvoltage, overcurrent, surge, short circuit and abnormal signals
3.3 Communication & System Parameters
- System Bus: Dedicated EX2100 excitation system bus + Mark series unit control bus
- Operation Architecture: TMR triple redundant synchronous calculation, fault voting and seamless redundant switching
- Data Functions: Real-time operating condition upload, fault log storage, operation timestamp recording and abnormal data tracing
- Configuration Method: Customizable signal range, regulation parameters and alarm thresholds via official GE configuration software
3.4 Environmental Parameters
- Operating Temperature: -40 ℃ ~ +70 ℃
- Storage Temperature: -55 ℃ ~ +125 ℃
- Operating Humidity: 5% ~ 95% RH (non-condensing)
- EMC Compliance: Meets industrial electromagnetic compatibility standards to withstand heavy EMI in power plants
- Protection Class: Industrial triple-proof protection, surge protection and electrical isolation protection
- Operation Mode: 24-hour non-stop continuous industrial operation
3.5 Mechanical & Maintenance Parameters
- Mounting Method: Standard rack embedded installation for EX2100 system cabinets
- Structural Features: Highly integrated modular PCB with thickened triple-proof coating, vibration and aging resistance
- Status Indication: Onboard LEDs for hardware run status, communication, faults and signal abnormalities
- Diagnostic Functions: Full-loop self-test, power supply detection, hardware fault identification and abnormal signal tracing
- Maintenance Adaptability: Suitable for retrofit replacement of legacy units, system hardware upgrade and online troubleshooting
4. Working Principle
Based on the EX2100 excitation system architecture and TMR triple modular redundant fault tolerance mechanism, the IS215WEPAH2BA implements a closed-loop excitation control workflow: field excitation signal collection → filtering & isolation processing → high-precision calculation & analysis → redundant logic voting → regulation command output → fault diagnosis & protection.
After power-on initialization, the module executes full hardware self-test, power supply loop verification, bus handshaking and signal link detection. It enters normal excitation signal processing and regulation mode only after confirming healthy hardware, loops and communication links.
During unit operation, the module continuously collects core process signals including excitation current, excitation voltage, stator voltage, stator current and turbine speed. After electrical isolation, noise reduction filtering and high-precision analog-to-digital conversion, data is sent to three redundant computing links for parallel calculation and logic voting to eliminate interference noise and single-point faulty readings, and accurately interpret real-time excitation conditions of the unit.
In accordance with preset excitation logic, closed-loop voltage control parameters and grid connection rules, standardized excitation adjustment commands are issued to precisely control the excitation device, stabilize unit output voltage and reactive power, and guarantee steady-state operation, variable load adjustment and seamless grid connection/disconnection of the generator.
The module constantly monitors its own hardware, power supply, acquisition loops and output links. Once abnormal power supply, signal drift, loop failure, hardware damage or communication loss is detected, local alarms and background system event logs are triggered immediately with fault isolation and fault-tolerant operation activated.
5. Application Scenarios
5.1 Excitation Control Systems for Thermal Power & Cogeneration Units
Widely deployed in EX2100 excitation systems of thermal power and cogeneration units as the core I/O control board. It performs excitation condition collection, closed-loop voltage regulation, reactive power control and fault protection, adapting to steady power generation and peak shaving load variation of thermal units. It eliminates voltage deviation, unit oscillation and grid synchronization abnormalities caused by excitation fluctuation to secure stable operation of main thermal power equipment.
5.2 Control Systems for Gas Turbine & Combined-Cycle Power Plants
Matched with excitation devices paired with Mark V/VIe control systems for gas turbine and combined-cycle power stations. It coordinates with the main unit control system to execute excitation regulation, condition matching and interlock protection logic. Adapted to frequent startup/shutdown and dynamic load change characteristics of combined-cycle units, it ensures fast and accurate response of the excitation system during startup, shutdown and load variation to improve power generation efficiency and unit stability.
5.3 Excitation Systems for Large On-Site Captive Power Generators in Industry
Applied to EX2100 excitation systems of large captive power units in chemical, oil & gas and heavy industry plants. Targeting large load fluctuation and complex electromagnetic environments within industrial sites, its strong anti-interference and high-precision control stabilize generator excitation output to maintain stable on-site power supply voltage and frequency. It avoids plant-wide power fluctuation and shutdown accidents originating from excitation faults and supports continuous production of industrial facilities.
5.4 Retrofit & Spare Part Replacement for Power Station Excitation Systems
As an original OEM core board for GE EX2100 excitation systems, it is perfectly compatible with upgrade renovation, faulty module replacement and hardware iteration of legacy power station excitation systems. It fully matches the original system architecture, control logic and wiring without extensive program or cabinet wiring modification, enabling fast equipment renewal to restore regulation accuracy and performance while cutting renovation and maintenance costs for power plants.
5.5 Generator Grid Synchronization & Power System Stabilization Control Systems
Leveraging high-precision excitation regulation and fault tolerance, it participates in generator grid connection control, grid reactive power regulation and power system stability control. It precisely matches grid operating parameters to ensure smooth grid synchronization and steady on-grid operation, suppress unit disturbance induced by grid load fluctuation, and enhance grid connection safety and overall power grid supply stability.
