Description
1. Overview
5SHX0445D0001 and 3BHL000382P0101 are matched core power electronic modules manufactured by ABB. Designed for paired application, they are widely deployed in high-voltage excitation systems, industrial frequency converters and power conversion equipment, serving as key power components for industrial control and power sectors.

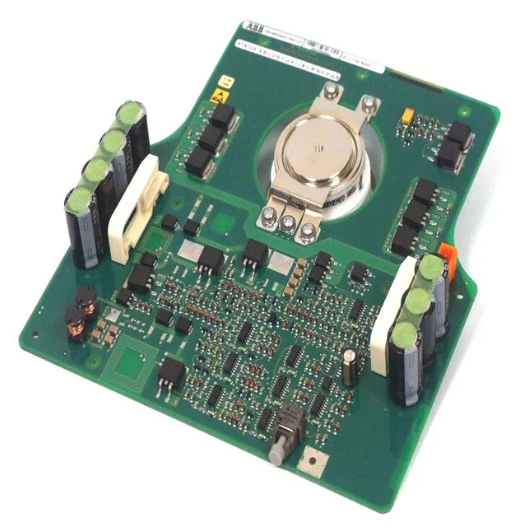

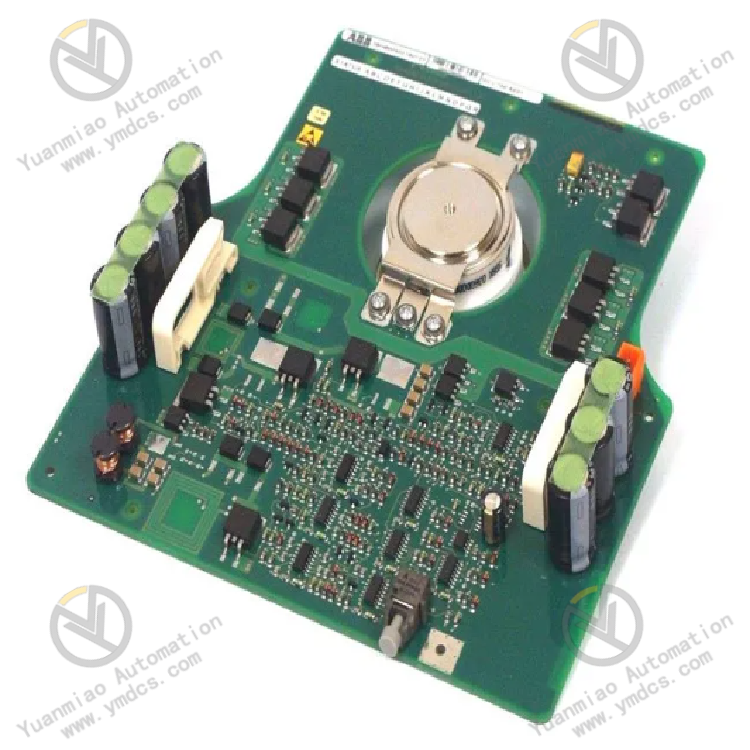

5SHX0445D0001 belongs to ABB 5SHX series high-performance Integrated Gate Commutated Thyristor (IGCT) module, which undertakes core power conversion tasks.3BHL000382P0101 is a dedicated supporting excitation power module and a critical component of ABB excitation systems, specially developed for excitation control of synchronous motors.
Featuring high-precision electric energy conversion and outstanding operational reliability, these two modules can withstand harsh industrial and power operating conditions. They are extensively adopted in power generation, industrial drive, rail transit, marine power and other fields, functioning as core assemblies to ensure stable and efficient equipment operation.2. Technical Features
2.1 High Power Handling & Energy Saving
Adopting ABB self-developed advanced chips and packaging processes, the modules boast strong power capacity and are applicable to high-voltage and high-current working conditions.The maximum power conversion efficiency exceeds 98%, significantly cutting equipment operating losses. Compared with traditional power modules, they deliver prominent energy-saving effects, lower long-term industrial power consumption and maintenance costs, and are well suited for continuous high-power operation.
2.2 Precise & Rapid Dynamic Response
The modules achieve millisecond-level response to working condition changes and nanosecond-level switching response. They dynamically adjust output current and voltage in real time against load and grid fluctuations, with excitation output control error limited within ±1% and extremely low waveform distortion of voltage and current.They effectively mitigate grid disturbance impacts on terminal equipment, guarantee stable operation of generators and motors, and adapt to complex dynamic working conditions including startup, speed regulation and sudden load variation.
2.3 Comprehensive Protection & Superior Reliability
Built-in all-round protection mechanisms cover overcurrent, overvoltage, overtemperature, loss of excitation and short-circuit faults. A short-circuit fault can be responded within 10 microseconds; the system automatically cuts off power output or triggers alarms upon abnormality to prevent damage to modules and peripheral equipment.With excellent resistance to vibration, impact and thermal cycling, the modules endure more than 100,000 thermal cycles, and can operate stably in harsh industrial sites with high temperature, high humidity and mechanical vibration.
2.4 High Integration & Strong Compatibility
Adopting integrated modular design with freewheeling diodes and auxiliary drive circuits embedded, the modules simplify peripheral circuit layout and reduce equipment volume and assembly cost.They are natively compatible with all ABB excitation systems and converters, and also support mainstream third-party industrial control and power equipment. With standard communication protocols supported, they can be quickly connected to PLC and upper computer systems for remote monitoring and parameter configuration, bringing great convenience to integration and on-site maintenance.
2.5 Wide Environmental Adaptability
The modules support a wide temperature and humidity operating range and work reliably under low temperature, high temperature and non-condensing high humidity environments. They tolerate ±10% grid voltage fluctuation, demonstrating far better environmental adaptability than general civil power modules.
3. Specification Parameters
3.1 Parameters of 5SHX0445D0001 IGCT Module
- Electrical Ratings: Rated blocking voltage 1700 V, rated operating current 450 A; typical collector-emitter saturation voltage 1.8 V at rated current; maximum switching frequency 10 kHz; turn-on time 50 ns, turn-off time 60 ns; short-circuit withstand duration 10 μs (capable of withstanding 5 times rated current).
- Thermal & Temperature Parameters: Junction-to-case thermal resistance 0.15 K/W; maximum allowable junction temperature 150 ℃; operating junction temperature range: -40 ℃ ~ 150 ℃; storage temperature range: -55 ℃ ~ 150 ℃.
- Mechanical Dimensions: Standard six-unit integrated packaging with three sets of IGCT and freewheeling diodes integrated; overall dimension 140 mm × 100 mm × 30 mm; approximate weight 500 g.
3.2 Parameters of 3BHL000382P0101 Excitation Power Module
- Input & Output Characteristics: Accepts 3-phase 380 V / 660 V AC input, compatible with 50 Hz / 60 Hz power frequency and ±10% grid voltage fluctuation tolerance; DC output current is widely adjustable to meet excitation demands of various synchronous motors.
- Efficiency & Control Index: Power conversion efficiency ≥ 95%, excitation output control error ≤ ±1%, millisecond-level dynamic response.
- Environmental Conditions: Operating temperature: -10 ℃ ~ +50 ℃; storage temperature: -40 ℃ ~ +85 ℃; relative humidity 5% ~ 95% (non-condensing) during operation.
- Structure & Heat Dissipation: Standardized modular structure fully interchangeable with accessories of ABB excitation systems; supports forced air cooling and water cooling, with heat dissipation solutions selectable according to actual load power.
4. Working Principle
These two modules operate in coordination to complete electric energy conversion and precise excitation control, consisting of two core procedures: energy conversion and closed-loop regulation.
As the front-end core component of the excitation system, 3BHL000382P0101 samples 3-phase AC power from the grid, executes preliminary AC-DC rectification and voltage regulation via internal circuits, and outputs basic excitation electric energy according to preset system parameters.
As the back-end core power device, 5SHX0445D0001 IGCT performs high-speed switching to accurately regulate output frequency, voltage and current, correct waveform distortion and improve power quality.
During operation, the built-in closed-loop control system collects real-time data including terminal voltage, current and load status of the motor, compares measured values with standard operating parameters, and adjusts switching status and output power within milliseconds to offset deviations caused by grid fluctuation and load change.
5. Application Scenarios
5.1 Power Generation Industry
Widely applied to excitation systems of synchronous generators in thermal power, hydropower, wind power and other generating units. They supply continuous and stable excitation current, precisely regulate unit voltage and reactive power, guarantee stable grid connection of generating sets, improve power generation efficiency and grid compatibility, and serve as core control assemblies on the power generation side of power grids.
5.2 Industrial Drive Sector
Suitable for large synchronous motor driving equipment in metallurgy, chemical industry, mining, building materials and other industries, such as main motors of rolling mills, large air compressors, mine hoists and high-power compressors.Precise excitation regulation optimizes motor power factor, realizes stepless speed control and energy-efficient operation, cuts industrial power consumption and enhances equipment reliability.
5.3 Rail Transit & Marine Power
Deployed in traction converters for high-speed railways and metro systems, as well as excitation systems of main propulsion motors and auxiliary generators on vessels.The modules adapt to dynamic working conditions of train startup, speed variation and braking, along with severe vibration and humid marine environments. They deliver steady excitation power continuously to secure the safe and reliable operation of rail transit power systems and shipboard power systems.
5.4 New Energy & Energy Storage Systems
Applied to converters for photovoltaic and wind power generation, as well as PCS converters for lithium battery and flywheel energy storage systems.They realize high-efficiency AC-DC power conversion, precisely control charge and discharge of energy storage equipment, assist power grids in peak shaving and voltage stabilization, optimize grid-connected power quality of new energy generation, and conform to the operational requirements of the new power system.
5.5 Grid Power Quality Management Equipment
Used in Static Var Generators (SVG), Active Power Filters (APF) and other grid governance devices. High-speed power switching enables dynamic reactive power compensation and harmonic suppression, effectively lifting grid power factor, eliminating voltage fluctuation and waveform distortion, and stabilizing power supply for industrial plants and transformer substations.
