Description
1. Product Overview

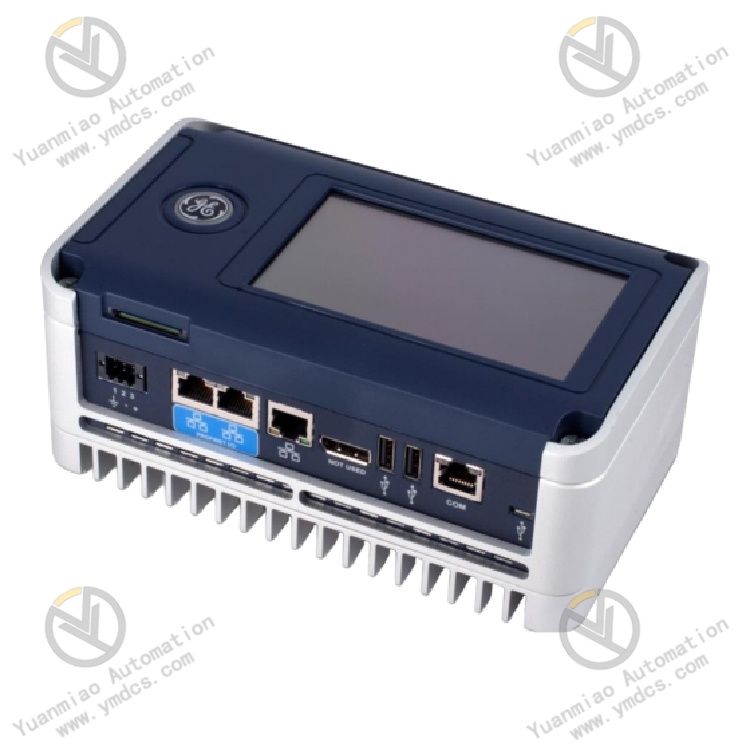

Full Part Number: 14240DB11234A, a high-precision industrial electrical acquisition module for GE industrial measurement and control systems. It features fixed parameter configuration without derivative revisions, and only identical models support direct drop-in replacement.
Manufacturer: General Electric (GE Vernova)
System Compatibility: Applicable to GE power station measurement and control systems, high-power variable-frequency drive systems and factory energy management systems. Specialized in high/low-voltage distribution loop and auxiliary equipment electrical data acquisition and power metering. widely used in thermal power, chemical, metallurgical captive power plants and industrial automatic energy monitoring scenarios.
Model Coding Definition
1. 14240: Prefix for GE industrial high-precision electrical acquisition series, defining basic sampling architecture and accuracy grade;
2. DB: Functional code for integrated three-phase voltage & current synchronous sampling, comprehensive power metering and fault electrical data recording;
3. 11234A: Final batch code for hardware revision, channel configuration and factory precision calibration.
Product Definition: An industrial high-precision three-phase electrical parameter acquisition and power metering module. It synchronously collects three-phase AC voltage and current signals, and accurately calculates active/reactive/apparent power, power factor, bidirectional electric energy, frequency and harmonic parameters. Equipped with real-time sampling, data filtering, abnormal data locking and bus data upload functions, it provides accurate original data for system load monitoring, energy consumption statistics, fault tracing and power closed-loop regulation, serving as the core acquisition unit for industrial power system energy management and equipment condition monitoring.
2. Six Core Hardware Functional Units
2.1 Three-Phase Synchronous High-Precision Sampling & Metering Unit
Equipped with industrial high-speed AD conversion chip, supporting 6-channel synchronous parallel sampling of three-phase voltage and current without timing deviation, eliminating power calculation errors caused by asynchronous sampling. Solidified high-precision metering algorithm achieves accurate parameter calculation under balanced and unbalanced three-phase conditions with 0.2-class industrial precision, meeting strict requirements for power station precision energy statistics, power assessment and load monitoring.
2.2 Full-Parameter Electrical Operation & Analysis Unit
All-dimensional electrical parameter calculation is completed locally without upper computer operation, including split-phase/total power, bidirectional electric energy, power factor, grid frequency, three-phase unbalance and harmonic distortion. The 10ms ultra-fast data refresh tracks real-time load fluctuations and captures dynamic electrical changes during equipment startup, load switching and grid disturbance, providing complete data support for system regulation and fault analysis.
2.3 Abnormal Data Locking & Fault Recording Unit
Built-in intelligent data identification algorithm automatically identifies voltage surge/sag, current overload, excessive three-phase unbalance and frequency deviation, locks and stores electrical data before and after faults. Integrated data filtering eliminates false data caused by instantaneous grid noise and electromagnetic interference, ensuring data authenticity and stability under harsh working conditions.
2.4 Industrial Bus Communication Transmission Unit
Built-in RS485 interface with native Modbus RTU protocol, directly connecting to PLC, DCS, energy management system and power monitoring SCADA. It supports remote data reading, parameter configuration, address and baud rate adjustment, featuring strong anti-interference and long-distance transmission capability for multi-module bus networking and centralized data upload.
2.5 Full-Galvanic Isolation Anti-Interference Unit
Complete optoelectronic isolation between sampling input side and logic communication side blocks industrial electromagnetic interference, ground loop potential difference and frequency converter radiation noise. Full conformal PCB coating resists moisture, dust and salt fog, eliminating sampling drift and data jitter to ensure 24/7 stable operation.
2.6 Wide-Voltage Adaptive Low-Power Unit
Adapts to industrial standard 24VDC wide-range power supply. The fanless passive cooling low-power design eliminates heat-generating vulnerable components. Built-in overvoltage, overcurrent and reverse connection protection locks the circuit abnormally to protect the module without affecting other networking equipment.
3. Technical Specifications
3.1 Basic Hardware Specifications
Item | Specification |
|---|---|
Full Part Number | 14240DB11234A |
Device Type | Three-phase high-precision electrical acquisition & power metering module |
Mounting | Standard DIN rail mounting |
Communication | RS485, Modbus RTU |
Power Supply | DC 24V industrial wide voltage |
Power Consumption | ≤3W ultra-low power |
3.2 Core Acquisition & Metering Parameters
- Sampling Channels: 6 synchronous channels (3-phase voltage, 3-phase current)
- Accuracy: 0.2 class for voltage/current/power, 0.5 class for energy metering
- Refresh Cycle: ≤10ms high-speed dynamic response
- Input Range: Standard PT 100V secondary, CT 1A/5A secondary signal adaptation
- Calculated Parameters: Split-phase/total power, bidirectional energy, frequency, power factor, unbalance, harmonic
- Isolation: Optoelectronic isolation between input and logic side
3.3 Environmental & Compliance Standards
- Operating Temperature: -20℃ ~ +60℃
- Storage Temperature: -40℃ ~ +85℃
- Humidity: 5%~95%RH non-condensing
4. Product Advantages
1. 6-channel synchronous sampling eliminates timing deviation and greatly improves the accuracy of three-phase power and unbalance calculation for precision power system metering and fault analysis.
2. Local full-parameter operation reduces upper system computing load with faster data response and higher stability.
3. Dual protection of optoelectronic isolation and conformal coating adapts to harsh industrial environments with strong electromagnetic interference, dust and high humidity, avoiding data drift and communication failure.
4. Fanless low-power maintenance-free design ensures 24/7 stable operation with low operational cost.
5. Standard Modbus RTU protocol is highly compatible with mainstream industrial control systems, supporting multi-module parallel networking for rapid energy monitoring system construction.
6. Convenient DIN rail installation and parameter configuration enable direct replacement in legacy system renovation without wiring and program modification.
5. Application Scenarios
1. Thermal Power Plant Auxiliary Power Monitoring: Collects electrical parameters and energy consumption of 6kV/10kV feeders and auxiliary inverters to support energy assessment and load optimization.
2. Chemical & Metallurgical Captive Power Energy Management: Adapts to complex industrial electromagnetic environments for refined energy monitoring of substation and workshop distribution loops.
3. High-Power Variable-Frequency Drive Systems: Provides real-time electrical data for closed-loop speed regulation, overload protection and condition monitoring of fan and pump inverters.
4. Municipal & Industrial Distribution Monitoring: Realizes intelligent operation and maintenance of power distribution cabinets with refined energy statistics and abnormal load identification.
